John Boos 4PB24-1D30R Pro-Bowl Compartment Sinks
Description
John Boos Pro-Bowl 4-Compartment Sink w/ 30" Right Drainboard
Model 4PB24-1D30R • NSF & CSA-SanitationTackle your heaviest clean-up tasks with the same stainless-steel muscle trusted in world-class restaurants. Built from 16-gauge Type 300 stainless steel, the Pro-Bowl series delivers uncompromising durability, easy sanitation and the ergonomic details that keep busy crews moving.
Key Features

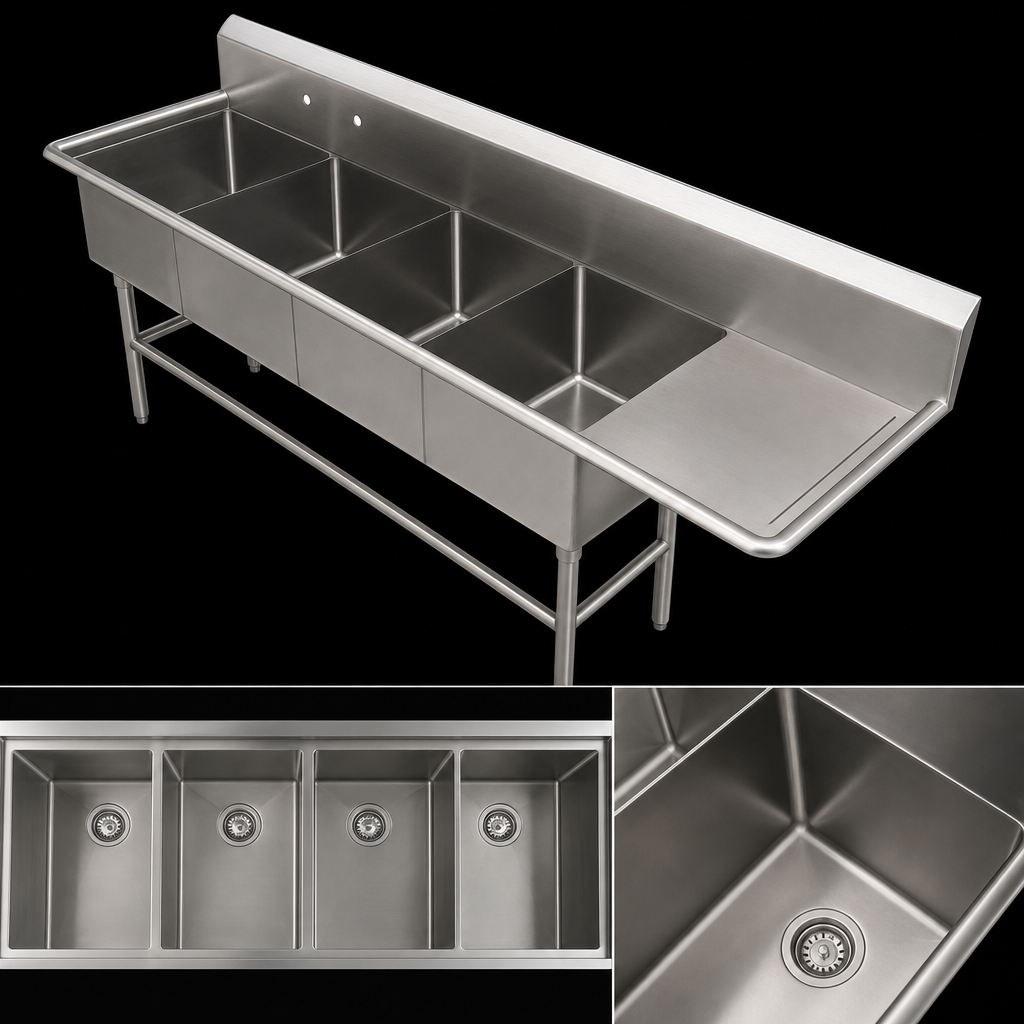

- Four extra-large 24" x 24" x 12" sink compartments handle sheet pans, stock pots & bulky wares.
- 30" right-hand drainboard provides ample landing space for drying or staging.
- Heavy-duty 16 ga. stainless steel top & bowls with a #4 satin polish for quick wipe-downs.
- 10" boxed backsplash with 2" 45° return keeps walls dry and cleaning effortless.
- (2) splash-mount faucet punchings on 8" centers—ideal for separate fill & pre-rinse faucets.
- 3-1/2" die-stamped drain openings promote fast, complete drainage.
- Stainless steel leg base with adjustable front & side cross-bracing for rock-solid stability.
- 1" stainless adjustable bullet feet make leveling on uneven floors simple.
- All interior corners coved to a 5/8" radius; exterior edges bull-nosed for safety and comfort.
Dimensions & Construction
| Overall length | 130 3/16" / 3308 mm |
|---|---|
| Overall depth | 29 1/2" / 749 mm |
| Overall height | 44 1/16" / 1119 mm (to top of backsplash) |
| Compartment size (4) | 24" L × 24" W × 12" D |
| Drainboard | 30" right side |
| Backsplash | 10" H boxed style, 2" return, 45° top |
| Faucet holes | (2) sets, 8" on-center, 1" Ø |
| Drain openings | 3 1/2" Ø die-stamped |
| Top & bowls | 16 ga. Type 300 stainless steel, TIG-welded |
| Legs | 1 5/8" Ø stainless steel, KD |
| Cross-bracing | 1 1/4" Ø stainless steel – adjustable |
Built for the Real-World Grind
- TIG-welded seams ground & polished to blend with the surrounding finish—no crevices for bacteria.
- Generous radiused corners speed up scrubbing and rinse clean instantly.
- Ships knock-down (KD) so you can move through tight hallways and assemble on site.
- Backed by John Boos—crafting premium foodservice equipment in the USA since 1887.
Popular Accessories (sold separately)
- Deck- or wall-mount faucets & add-a-faucet swing spouts
- Pre-rinse spray assemblies
- Lever waste drains
- End splashes (left, right or pair)
- Single- or double-overshelves with optional pot rack
Care & Maintenance
Preserve the like-new satin shine by cleaning with non-chloride stainless cleansers and soft pads only. Avoid abrasive scouring pads or bleach. Full maintenance instructions are included with every sink.
Need a left-hand drainboard, deeper 14" bowls, or additional customization? Reach out and our team will quote the perfect Pro-Bowl configuration for your kitchen.
