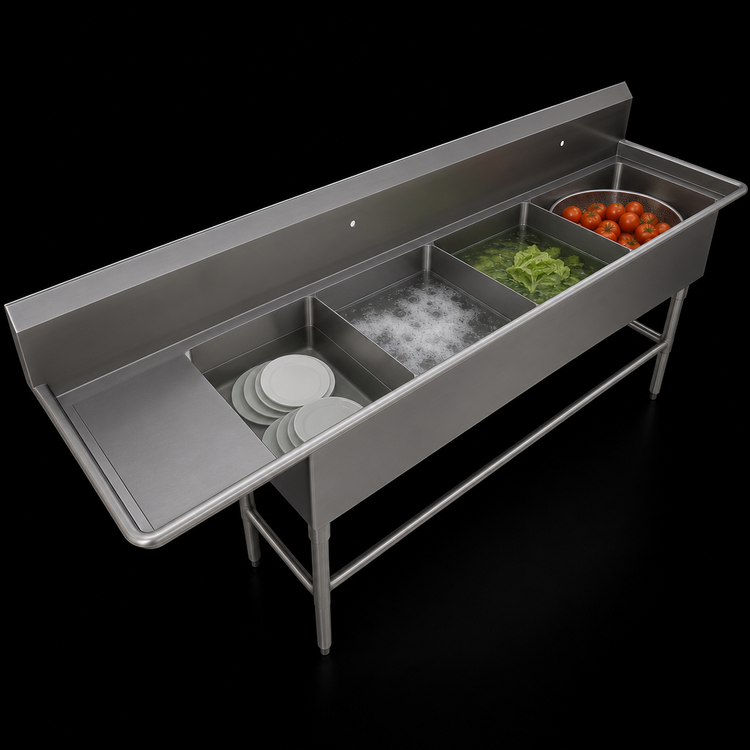

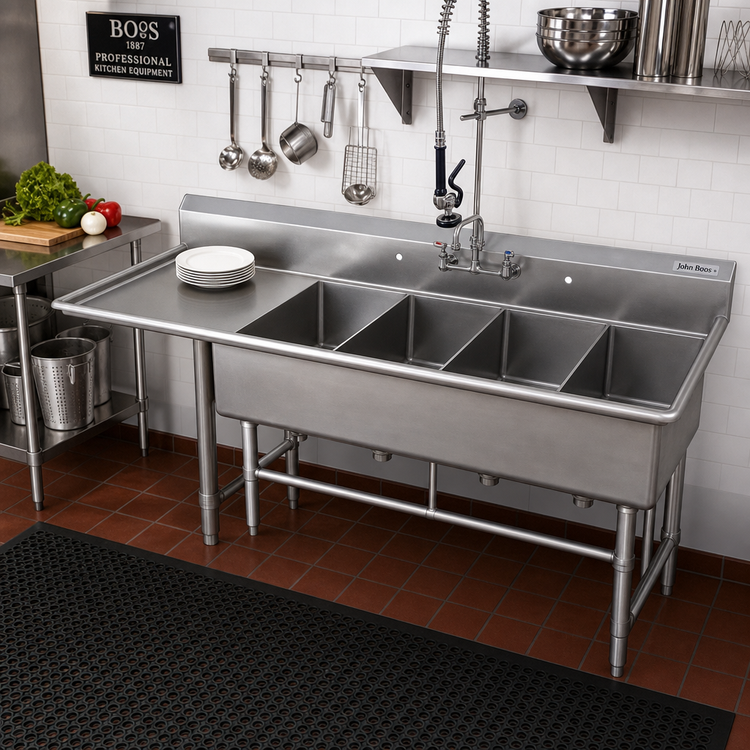

John Boos Pro-Bowl 4-Compartment Stainless Steel Sink with Left Drainboard, 12-Inch Deep Bowls

130-3/16-Inch Overall Length, 30-Inch Drainboard, 16-Gauge Construction

Built for high-volume dish and prep areas, this four-compartment sink combines a full-length left drainboard, durable stainless steel construction, and a generous 10-inch backsplash.

  • Four 24 x 24 x 12 inch compartments support multi-step washing, rinsing, soaking, and prep.
  • 30-inch left-hand drainboard adds a convenient landing area for dishes and tools.
  • 16-gauge Type 300 stainless steel top and bowls are built for commercial durability.
  • 10-inch boxed backsplash with 2-inch return helps control splashes and protect walls.
  • Stainless steel legs, bracing, and adjustable bullet feet provide stable floor support.
  • 3-1/2-inch die-stamped drain openings and coved corners help improve drainage and cleaning.

Overall Dimensions:

130.19"W x 29.5"D x 44.06"H

Product Weight:

197.0 lb

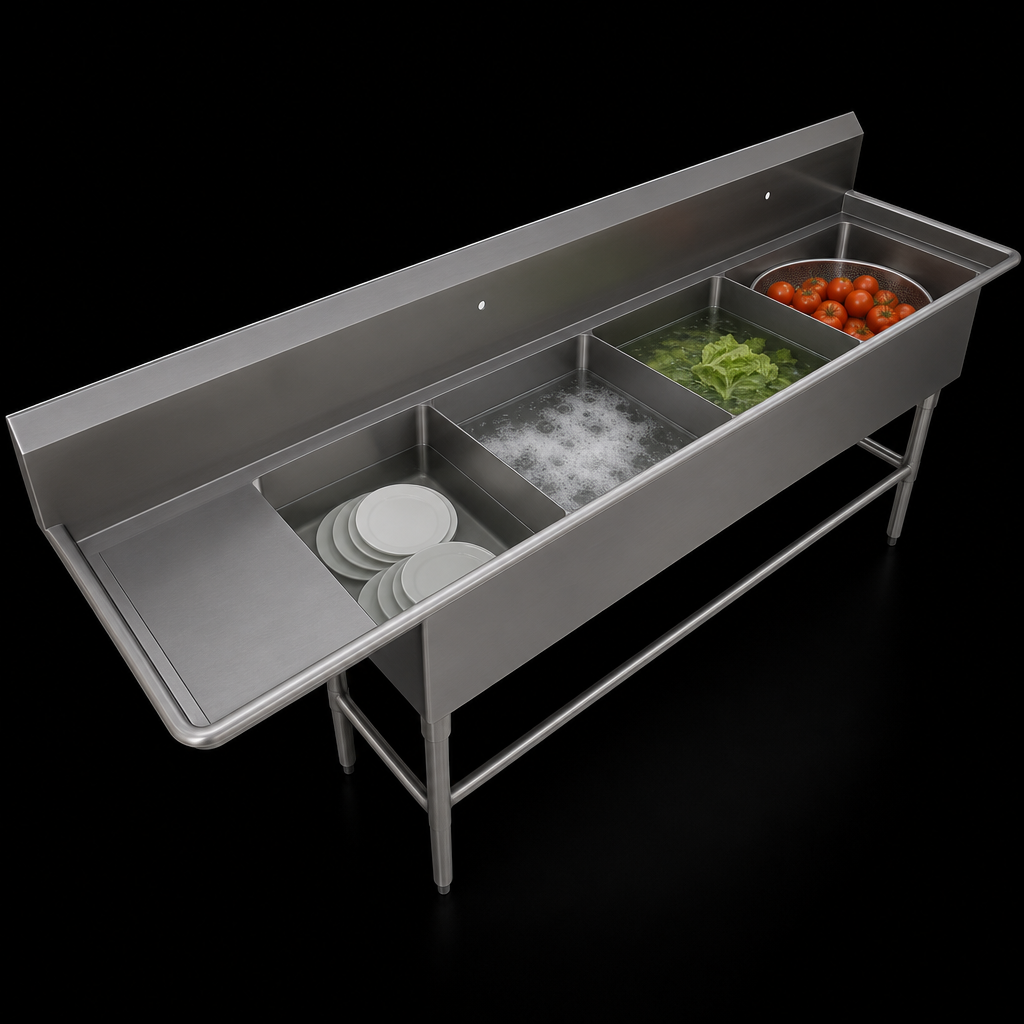

Four-Compartment Layout

Four equal bowls support organized, multi-stage sink workflows in busy kitchens.

Left-Hand 30-Inch Drainboard

Built-in left drainboard provides a staging area for wet dishes, tools, or prep items.

16-Gauge Type 300 Stainless Steel Construction

Heavy-duty stainless top and bowls are designed for commercial use and long service life.

10-Inch Boxed Backsplash

Full-length backsplash with a 2-inch return to the wall helps reduce splash-over.

Dual Splash-Mount Faucet Hole Sets

Includes two sets of 8-inch on-center faucet holes plus 1-inch faucet holes in the backsplash.

Efficient Drainage Details

3-1/2-inch die-stamped drain openings and formed bowl bottoms help move water out efficiently.

Stainless Steel Base With Adjustable Feet

Includes stainless legs, front and side bracing, gussets, and adjustable bullet feet for stable support.

Sanitary Corners and Edge Treatment

Coved bowl corners and bullnosed outside corners support easier cleaning and safer handling.

Type 4-Compartment Sink
Style Left Drainboard
Installation Type Floor Model
Compartments 4
Material Stainless Steel
Gauge 16 Gauge
Finish #4 Polish, Satin Finish
Compartment Size 24 Inches x 24 Inches x 12 Inches
Drainboard Side Left
Drainboard Length 30 Inches
Backsplash Height 10 Inches
Faucet Hole Sets 2
Faucet Hole Centers 8 Inches On Center
Drain Opening 3-1/2 Inches
Base Type Legs with Front and Side Bracing
Shipping Width 131 Inches
Shipping Depth 30 Inches
Shipping Height 45 Inches
Shipping Weight 197 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

This model is the left-hand drainboard version. The series also offers right-hand versions.
Each of the four compartments measures 24 inches wide by 24 inches front-to-back by 12 inches deep.
The top and bowls are 16-gauge Type 300 stainless steel with a stainless steel base and legs.
It includes a full-length 10-inch high boxed backsplash with a 2-inch return to the wall at a 45-degree angle.
It includes 2 sets of splash-mount faucet holes spaced 8 inches on center and 1-inch faucet holes in the backsplash.
The stainless steel base is standard knocked-down (KD).
