John Boos Pro-Bowl 4-Compartment Sink with Left Drainboard, 124-3/16 Inch Wide, 16-Gauge Stainless Steel

SKU: 4PB24-1D24L
GTIN: 662969702045
$4,136.45
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

4-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos Pro-Bowl 4-Compartment Sink with Left Drainboard, 124-3/16 Inch Wide, 16-Gauge Stainless Steel

24-Inch x 24-Inch x 12-Inch Bowls, 10-Inch Boxed Backsplash

A rugged all-stainless sink station with four deep compartments and a full left drainboard for efficient prep, washing, and drying.

  • Four 24" x 24" x 12" compartments handle high-volume washing and prep tasks.
  • 24" left drainboard adds valuable landing and drip-dry space.
  • 16-gauge Type 300 stainless steel construction is built for demanding commercial use.
  • 10" boxed backsplash helps protect walls from splashes.
  • Stainless steel legs, front and side bracing, and adjustable bullet feet provide a stable base.
  • Knock-down construction simplifies shipping and installation.

Overall Dimensions:

124.19"W x 29.5"D x 44.06"H

Product Weight:

193.0 lb

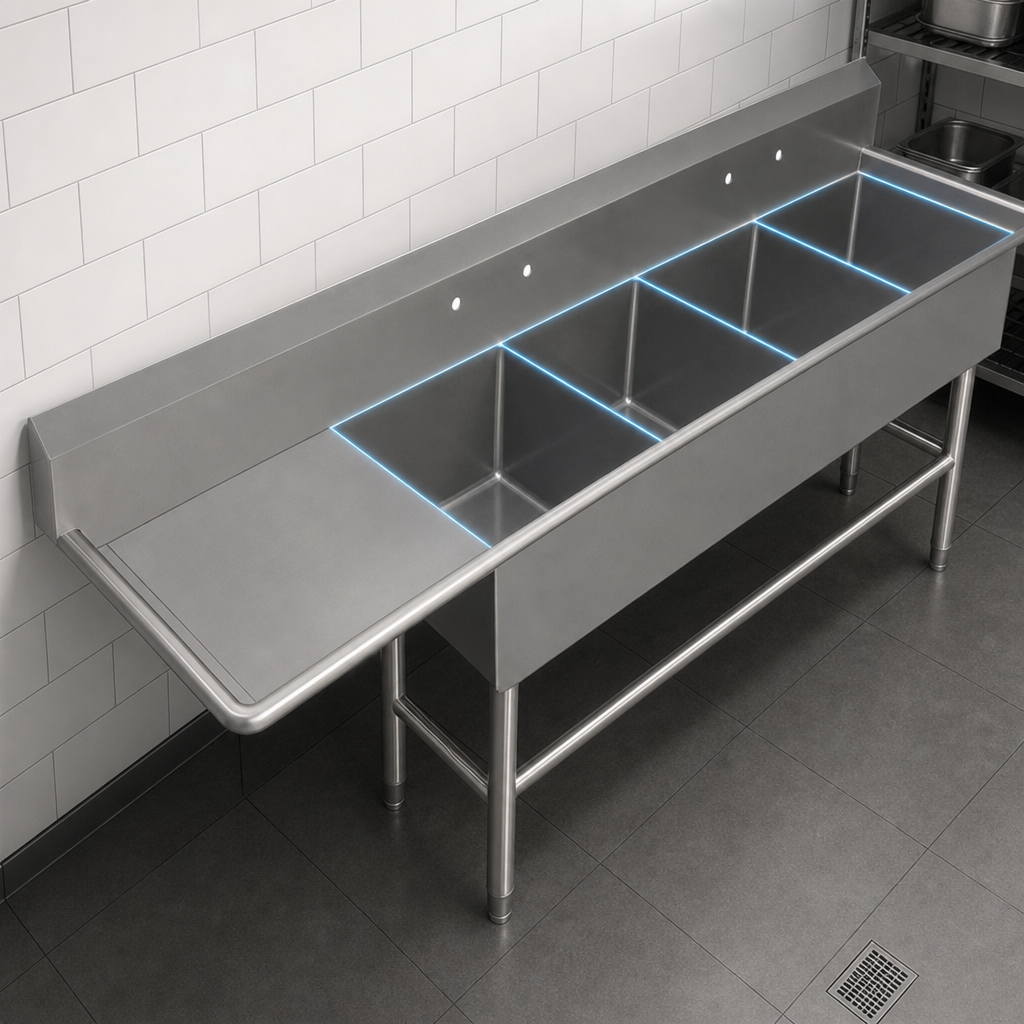

Four-Compartment Layout

Provides four separate bowls for washing, rinsing, sanitizing, or multi-station prep.

Left-Hand Drainboard

A 24" drainboard on the left side offers extra work surface and a place for draining items.

16-Gauge Type 300 Stainless Steel

Top and bowls are built from heavy-duty Type 300 stainless steel with a #4 polish, satin finish.

10-Inch Boxed Backsplash

Full-length backsplash includes a 45° top, 2" return to the wall, and a turned-down rear lip to help control splashes.

Die-Stamped Drain Openings

Bowls are formed with 3-1/2" die-stamped drain openings to promote drainage.

Splash-Mount Faucet Hole Layout

Includes 2 sets of faucet holes on 8" centers, plus 1" faucet holes in the backsplash.

Stainless Steel Base and Support

Features stainless steel legs, bracing, gussets, and adjustable bullet feet for durability and leveling.

Coved Bowl Corners

All vertical and horizontal corners are coved at a 5/8" radius for easier cleaning.

Knock-Down Construction

Ships KD for easier transport and assembly on site.

Type Compartment Sink
Style Pro-Bowl
Installation Type Floor Model
Compartments 4
Compartment Width 24 Inches
Compartment Depth 24 Inches
Sink Depth 12 Inches
Drainboard Side Left
Drainboard Length 24 Inches
Backsplash Height 10 Inches
Top Gauge 16 Gauge
Material Stainless Steel
Interior Finish Type 300 Stainless Steel
Finish #4 Polish, Satin Finish
Base Type Legs With Front & Side Crossrails
Drain Connection Size 3-1/2 Inches
Faucet Hole Centers 8 Inches
Faucet Hole Size 1 Inch
Selling Unit Each
Units Per Case 1
Shipping Width 125 Inches
Shipping Depth 30 Inches
Shipping Height 45 Inches
Shipping Weight 193 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It has four compartments.
Each compartment measures 24" front-to-back x 24" side-to-side x 12" deep.
Yes, it includes a 24" left drainboard.
The sink has a 10" boxed backsplash with a 45° top and 2" return.
It is constructed from 16-gauge Type 300 stainless steel with stainless steel legs and bracing.
Yes, it includes 2 sets of splash-mount faucet holes on 8" centers and 1" faucet holes in the backsplash.
