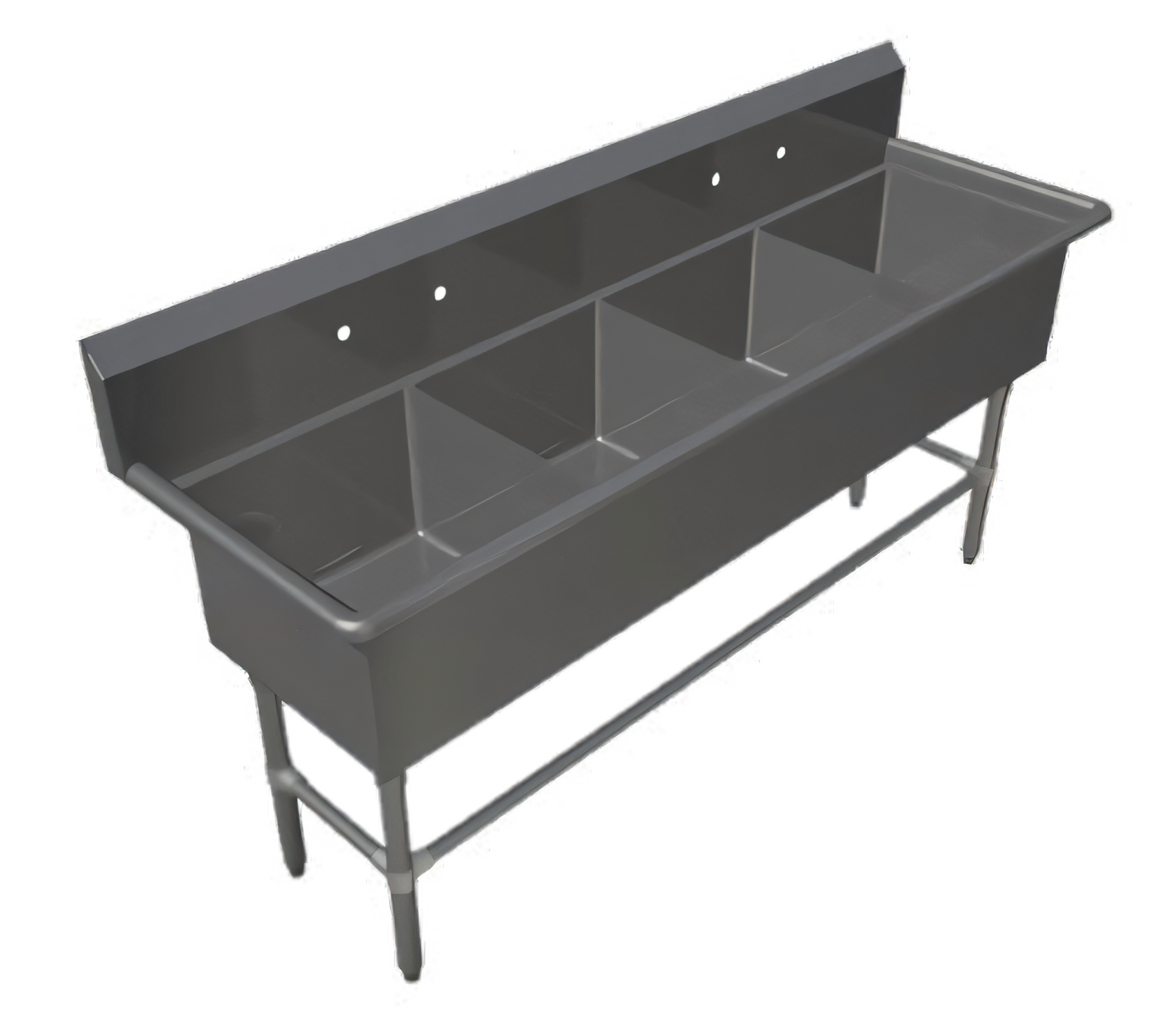

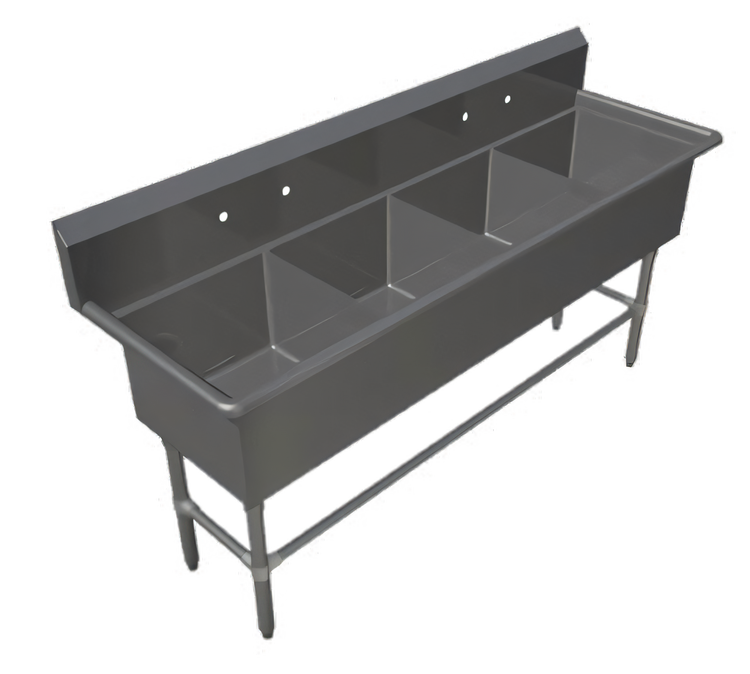

John Boos Pro-Bowl 4-Compartment Floor Model Sink, 16-Gauge Stainless Steel, 14-Inch Deep Bowls

85-1/8-Inch Wide x 25-1/2-Inch Deep with 10-Inch Boxed Backsplash

Built for high-volume kitchens, this four-compartment stainless steel sink combines deep bowls, a sturdy support base, and a wall-protecting boxed backsplash.

  • Four equal compartments support simultaneous washing, rinsing, and prep tasks.
  • 16-gauge Type 300 stainless steel construction with a #4 polish, satin finish.
  • 14-inch deep bowls provide generous working capacity for busy kitchens.
  • 10-inch boxed backsplash with a 2-inch return helps protect the wall behind the sink.
  • Stainless steel legs, front and side bracing, gussets, and adjustable bullet feet add stability.
  • Two sets of splash-mount faucet holes on 8-inch centers support faucet installation.
  • No drainboards keeps the layout focused entirely on sink capacity.

Overall Dimensions:

85.13"W x 25.5"D x 44.06"H

Product Weight:

158.0 lb

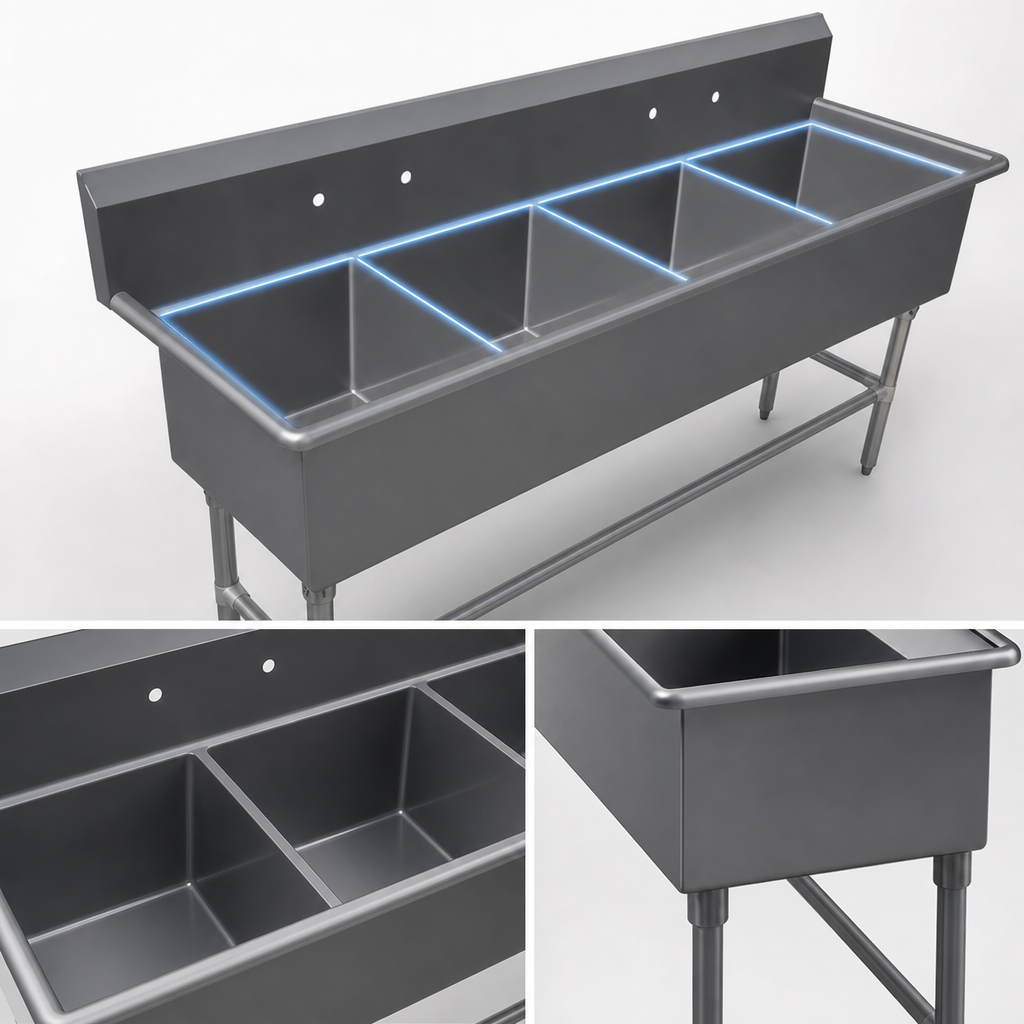

Four-Compartment Layout

Four equal bowls create multiple wash stations for efficient commercial workflow.

16-Gauge Type 300 Stainless Steel

Durable stainless steel top and bowls with a #4 polish, satin finish.

14-Inch Deep Bowls

Deep compartments provide ample capacity for soaking, washing, and rinsing.

10-Inch Boxed Backsplash

The tall backsplash includes a 2-inch return to wall at 45 degrees for added wall protection.

3-1/2-Inch Die-Stamped Drain Openings

Formed bowl bottoms help promote drainage and reduce standing water.

Coved Bowl Corners

5/8-inch radius corners help make cleaning easier.

Stainless Steel Support Base

Stainless steel legs, front and side bracing, and gussets provide a strong support structure.

Adjustable Bullet Feet

Leveling feet help stabilize the sink on uneven floors.

Dual Faucet Hole Sets

Two splash-mount faucet hole sets are spaced 8 inches on center, with 1-inch faucet holes in the backsplash.

No Drainboards

All available surface area is dedicated to sink compartments.

Type Compartment Sink
Style 4-Compartment
Installation Type Floor Model
Material Stainless Steel
Finish Satin Finish
Top Gauge 16 Gauge
Top Stainless Series 300 Series
Base Type Legs With Front And Side Bracing
Compartments 4
Compartment Width 20 Inches
Compartment Front To Back 20 Inches
Sink Depth 14 Inches
Backsplash Height 10 Inches
Backsplash Return 2 Inches
Faucet Hole Centers 8 Inches On Center
Shipping Width 86 Inches
Shipping Depth 26 Inches
Shipping Height 45 Inches
Shipping Weight 158 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Each compartment measures 20 x 20 x 14 Inches.
No, this model is without drainboards.
It is built from 16-gauge Type 300 stainless steel with a #4 polish, satin finish.
The sink includes two sets of splash-mount faucet holes on 8-inch centers, plus 1-inch faucet holes in the backsplash.
The stainless steel base is standard knocked-down for assembly.
The boxed backsplash is 10 Inches high with a 2-Inch return at 45 Degrees.
