Description

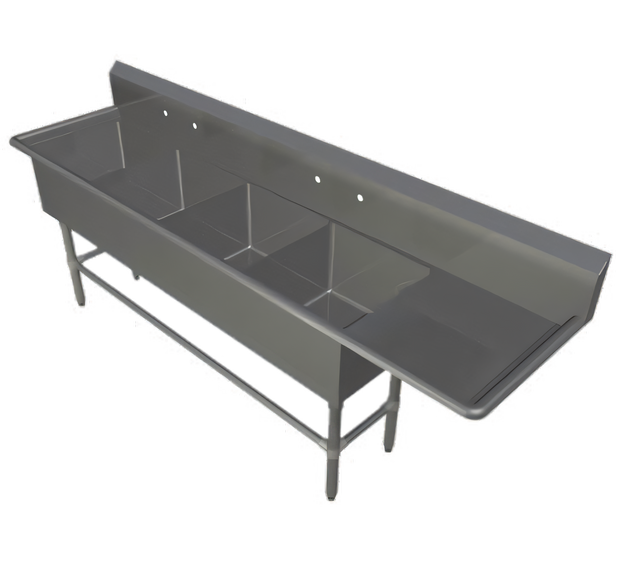

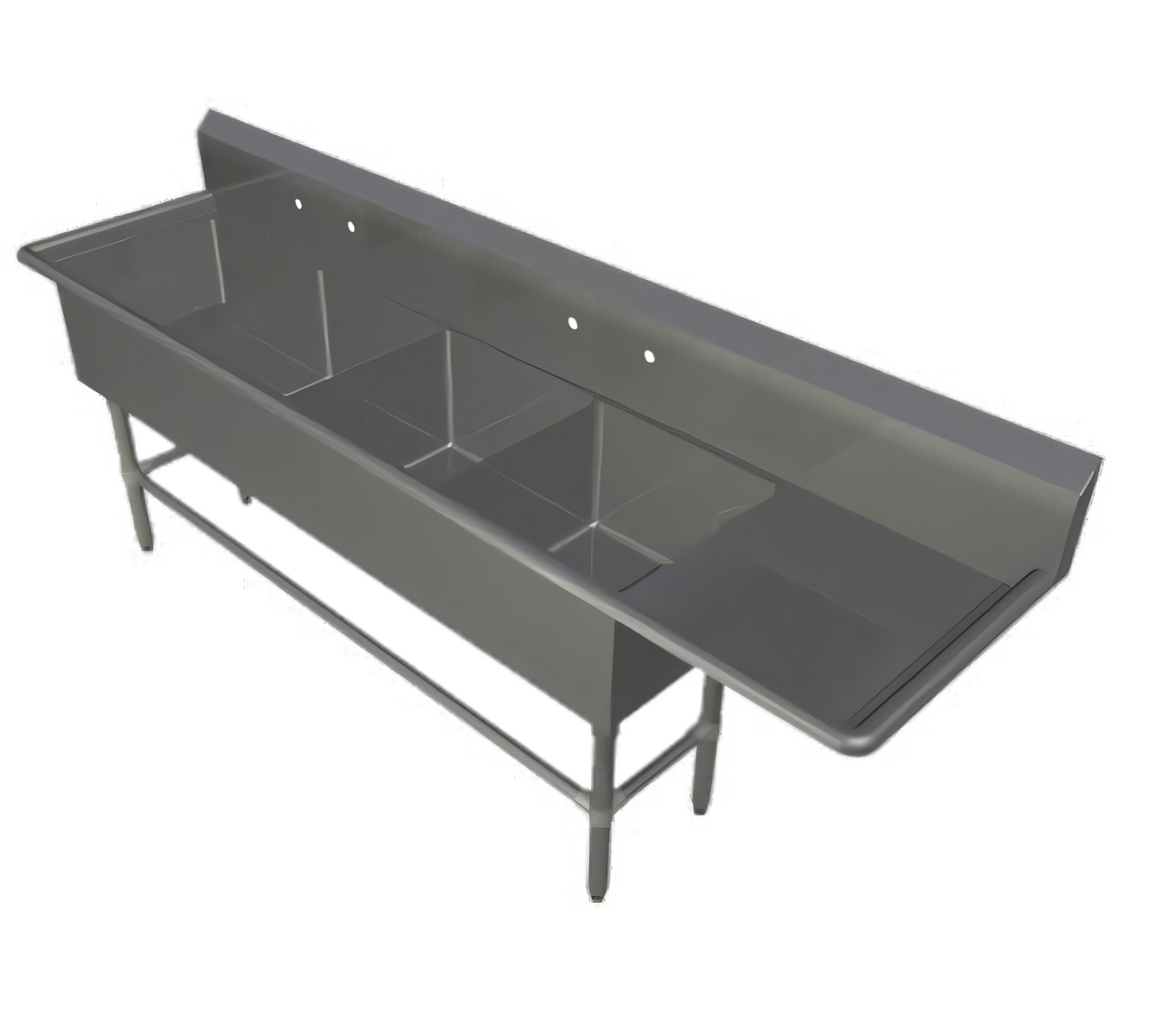

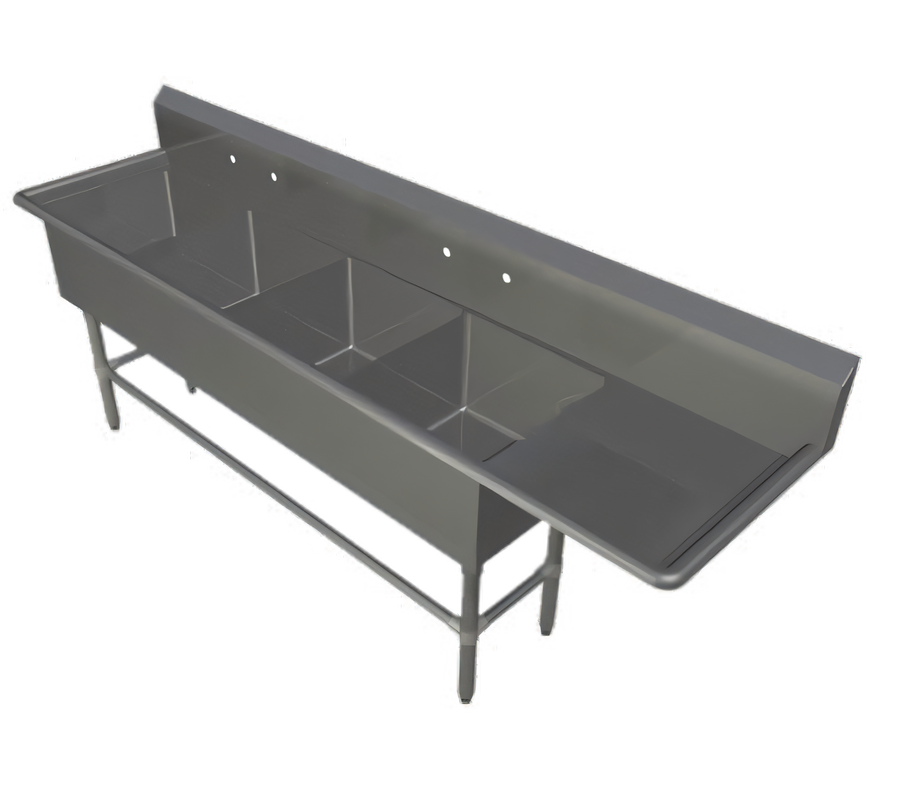

John Boos Pro-Bowl 4-Compartment Sink with 30" Right Drainboard – 114 3/16" W
Model 4PB204-1D30R | NSF & CSA-Sanitation ListedBuilt for demanding commercial kitchens, the John Boos Pro-Bowl series combines rugged 16-gauge stainless-steel construction with labor-saving design details. Four roomy bowls keep wash, rinse, sanitize and prep tasks separate, while a full 30 inch right-hand drainboard lets cleaned items air-dry without crowding your workspace.
Key Features
- Premium 16 GA Type 300 stainless steel, TIG-welded and satin-polished.

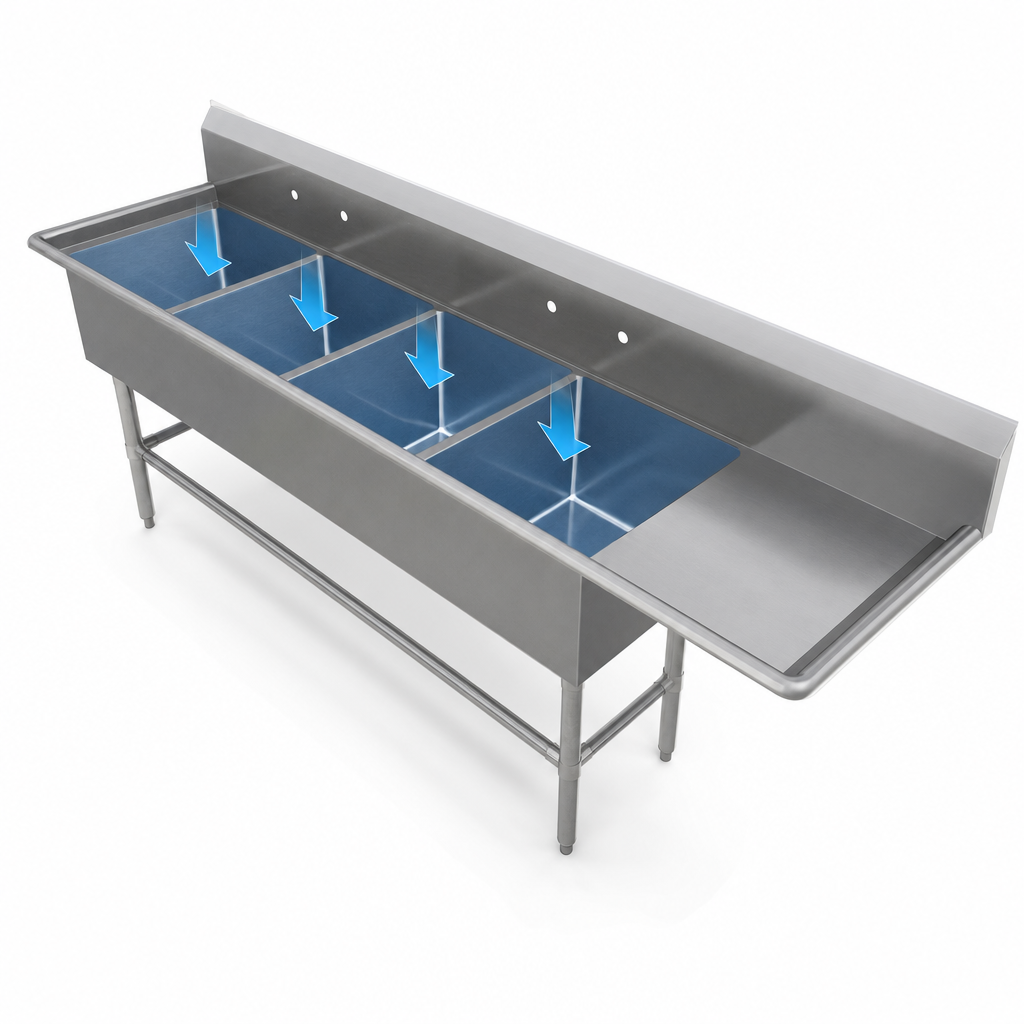

- (4) 20" W x 20" F/B x 14" D bowls with 5/8" coved corners for fast, thorough clean-up.
- 30" integrated right-side drainboard slopes to the bowl for efficient drainage.
- 10" boxed backsplash with 45° top edge & 2" return protects surrounding walls.
- (2) splash-mount faucet hole sets, 8" on-center, 1" diameter (faucets sold separately).
- 3-1/2" die-stamped drain openings accept standard commercial strainers.
- Stainless-steel legs with adjustable front & side bracing for rock-solid stability.
- 1" stainless bullet feet provide quick, precise leveling on uneven floors.
- Ships knocked-down (KD) to reduce freight costs; intuitive field assembly.
Certifications
- NSF Listed for food-contact safety
- CSA-Sanitation compliant
Specifications
Overall width | 114 3/16" (2901 mm) |
---|---|
Overall depth | 25 1/2" (648 mm) |
Overall height | 44 1/16" (1119 mm) to top of backsplash |
Compartment size | 20" W x 20" F/B x 14" D (each) |
Drainboard | 30" – right side |
Backsplash | 10" boxed with 2" return |
Faucet holes | (2) sets, 8" on-center, 1" Ø |
Drain openings | 3 1/2" die-stamped |
Material / finish | 16 GA Type 300 stainless steel, #4 satin |
Legs & bracing | 1 5/8" Ø legs with 1 1/4" Ø front/side bracing |
Feet | 1" adjustable stainless bullet feet |
Approx. shipping weight | 178 lb |
Looking for a left-hand drainboard, pre-rinse faucet, or lever-waste drains? Chat with our team—our foodservice experts can configure a complete Pro-Bowl package to match your workflow.
