John Boos 4PB204-1D30L Pro-Bowl Compartment Sinks
Description

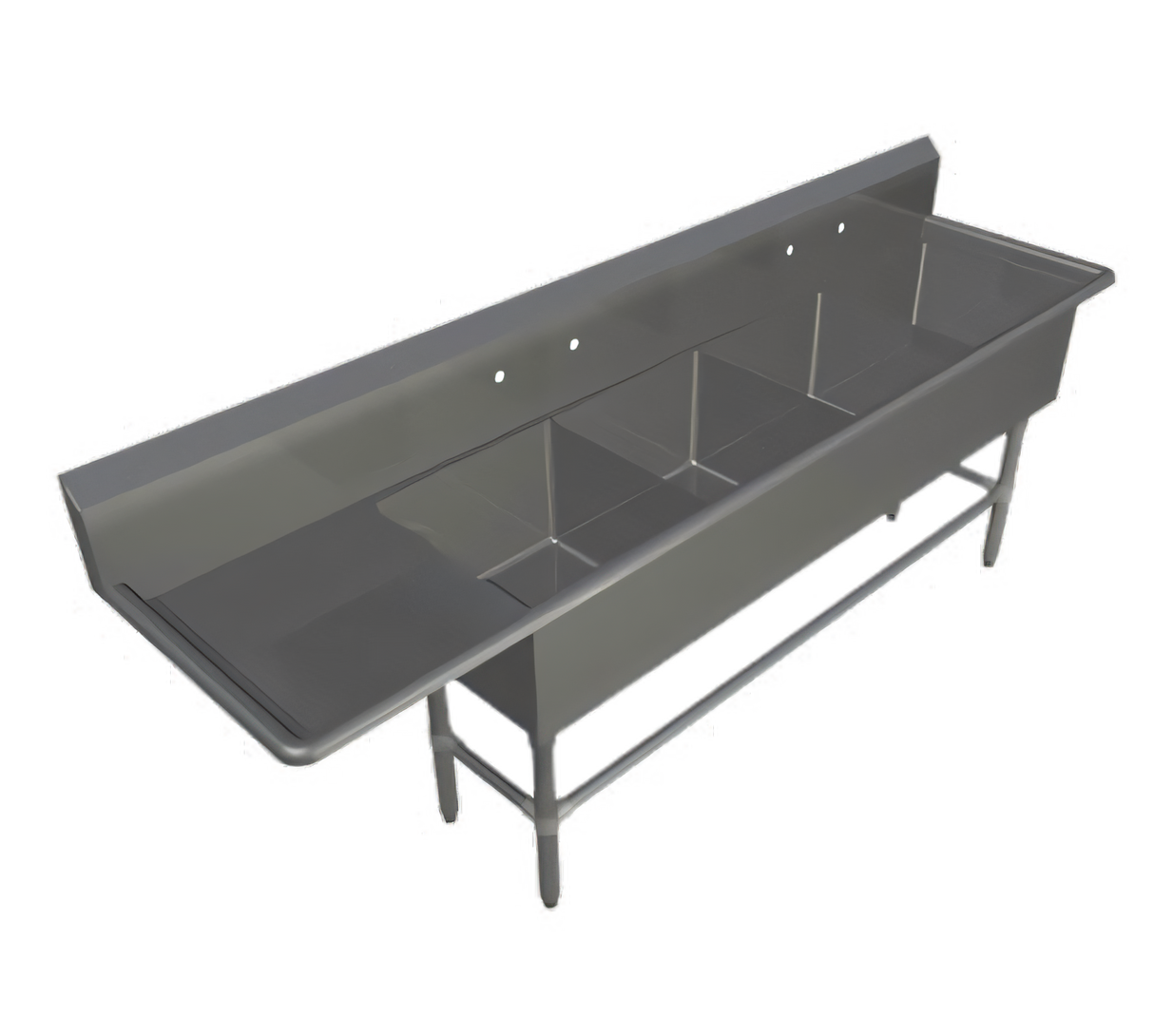

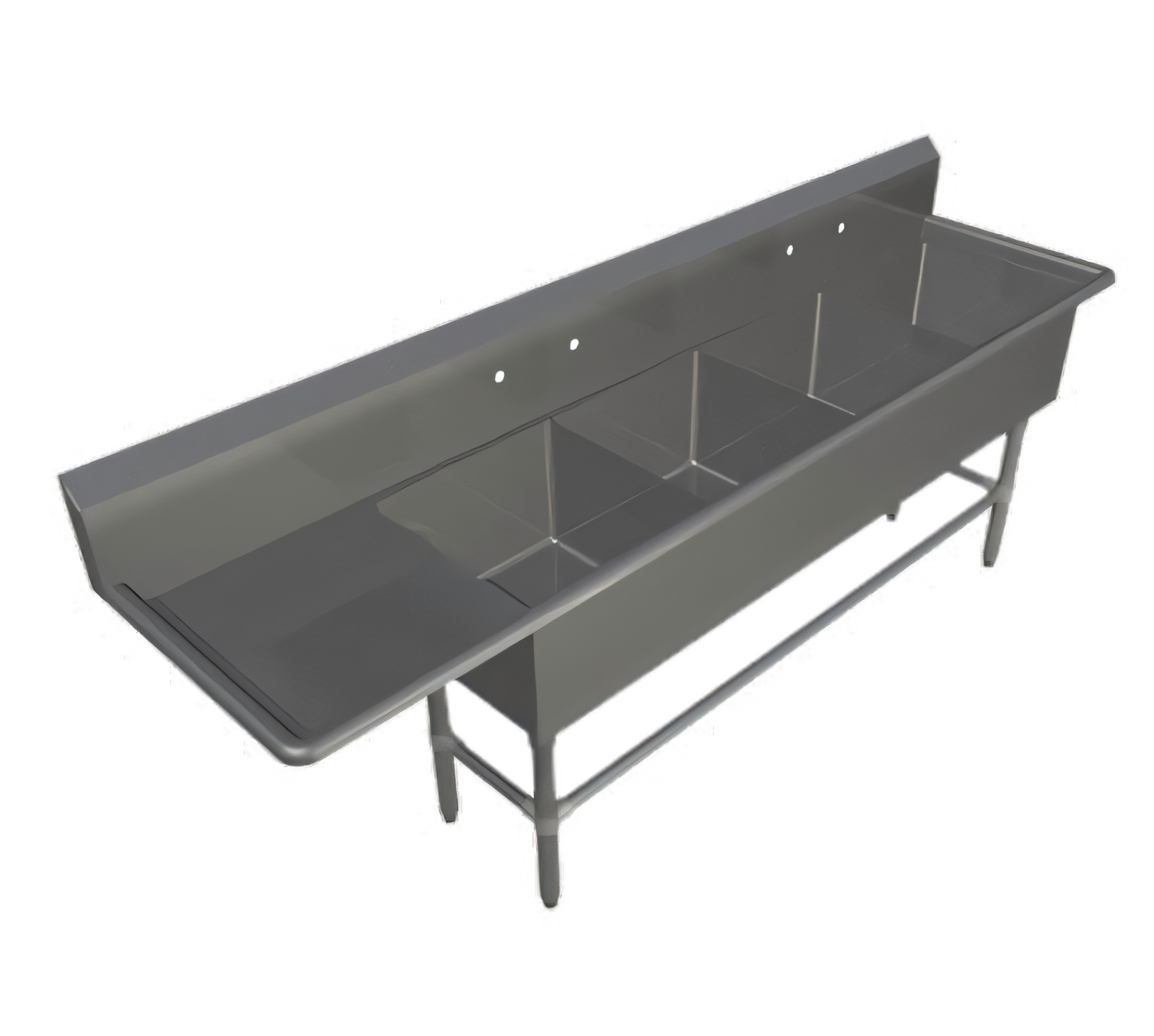

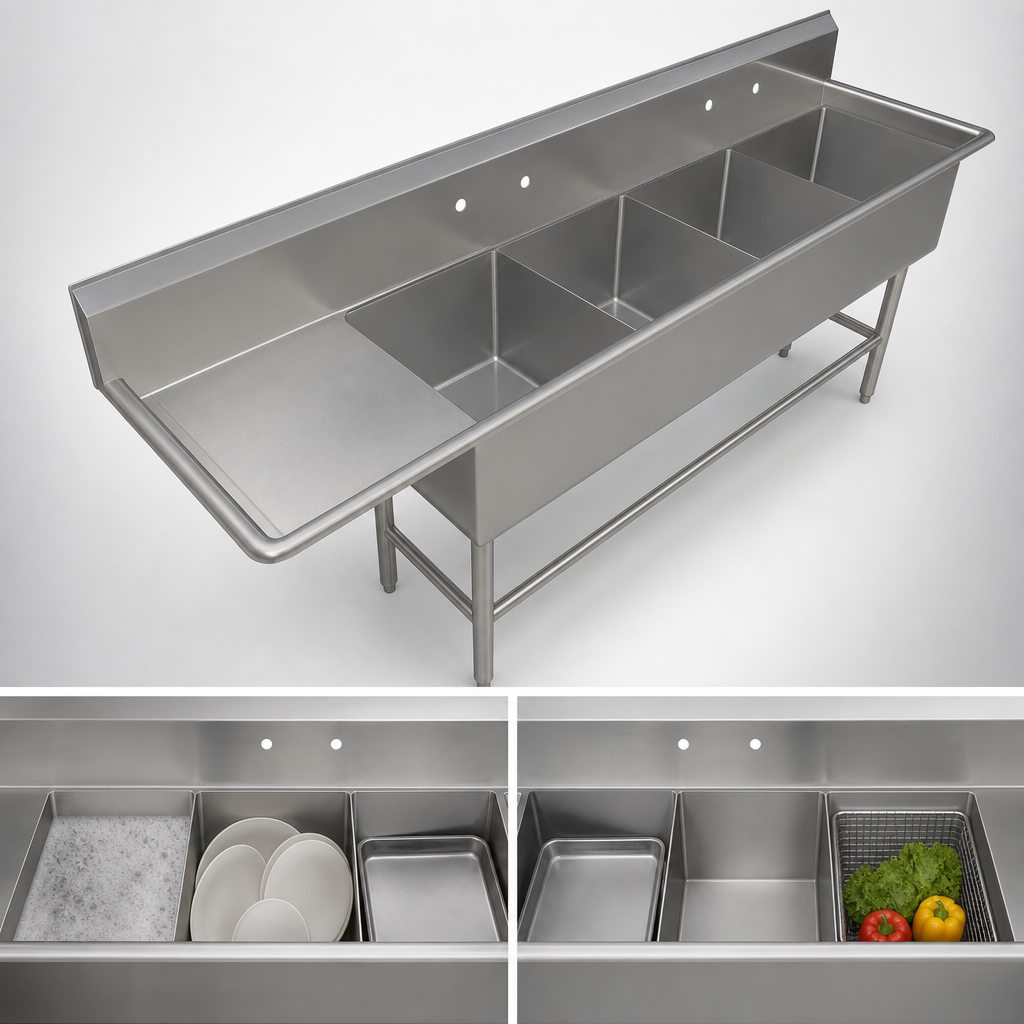

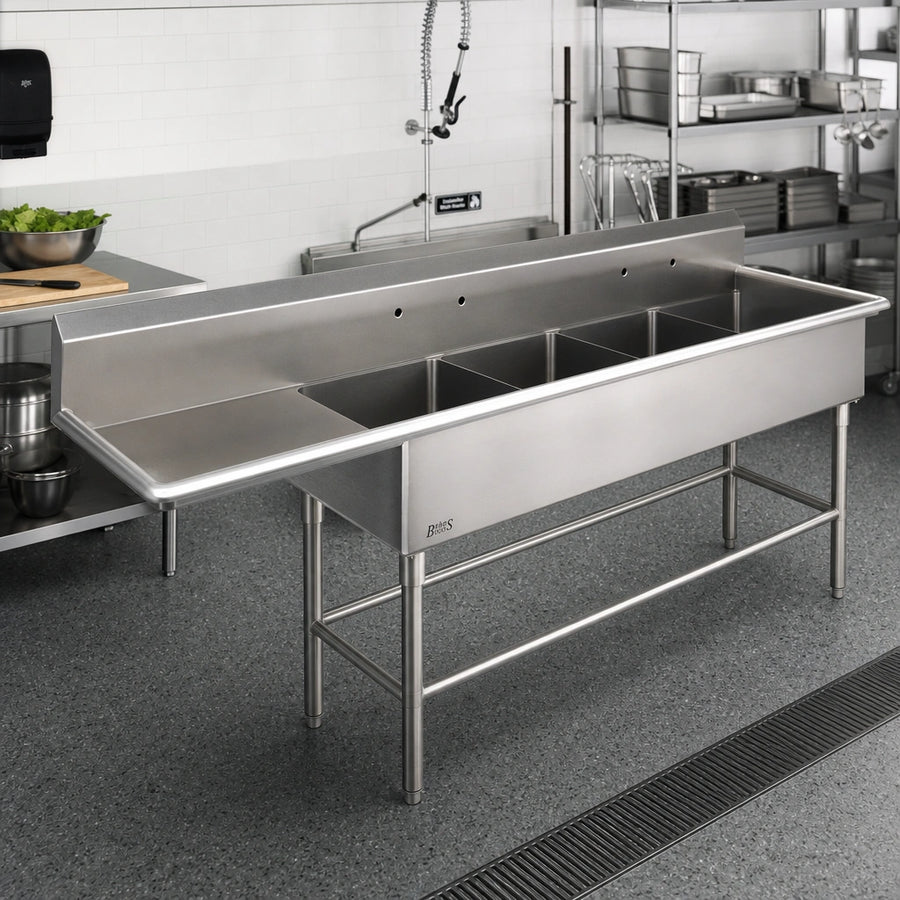

John Boos “Pro-Bowl” 4-Compartment Sink w/ 30" Left Drainboard
Model 4PB20-1D30L | 16 GA Type 300 Stainless SteelBuilt for the rigors of high-volume foodservice, the John Boos Pro-Bowl series delivers uncompromising durability, sanitary performance, and ergonomic workflow. With four spacious 20" x 20" x 14" bowls and an extra-large left-hand drainboard, this NSF & CSA-Sanitation certified sink keeps prep, washing, and rinsing lines moving smoothly in restaurants, hotels, commissaries, and institutions.
Key Features
- Overall size: 114-3/16" W × 25-1/2" D × 44-1/16" H
- (4) fabricated bowls – 20" W × 20" F-B × 14" deep, 5/8" radius corners
- 30" left-side drainboard pitched for rapid water run-off
- 10" boxed backsplash with 45° rolled top & 2" return to wall
- (2) sets of splash-mount faucet holes, 8" on-center, 1" Ø
- (4) 3-1/2" die-stamped drain openings
- Heavy-duty 16 GA type 300 stainless steel, #4 satin polish inside & out
- 1-5/8" Ø stainless legs with adjustable 1-1/4" Ø front & side bracing
- Adjustable stainless bullet feet for fast leveling
- Ships knocked down (KD) for lower freight costs & easy access through tight doorways
- NSF & CSA-Sanitation listed
Detailed Specifications
| Compartments | 4 bowls |
|---|---|
| Bowl Interior (W × F-B × Depth) | 20" × 20" × 14" |
| Drainboard | 30" (left side) |
| Backsplash | 10" H boxed, 45° top, 2" return |
| Faucet Mounting | (2) splash-mount sets, 8" O.C. |
| Drain Openings | (4) 3-1/2" Ø die-stamped |
| Material & Finish | 16 GA Type 300 stainless, #4 satin |
| Legs / Bracing | 1-5/8" Ø legs, 1-1/4" Ø adjustable bracing, stainless steel |
| Feet | 1" adjustable stainless bullet feet |
| Certifications | NSF, CSA-Sanitation |
Built to Boost Your Workflow
- Heavy-gauge construction resists dents, corrosion, and harsh chemicals.
- Coved bowl corners and satin polish make cleaning fast and effortless.
- Bull-nosed exterior edges provide a safe, sleek, and professional look.
- Compatible with John Boos faucets, pre-rinse units, end splashes, overshelves, pot racks, and lever waste systems (sold separately).
Require a right-hand drainboard or additional accessories? Contact our foodservice specialists for quick quotes on custom configurations.
