John Boos

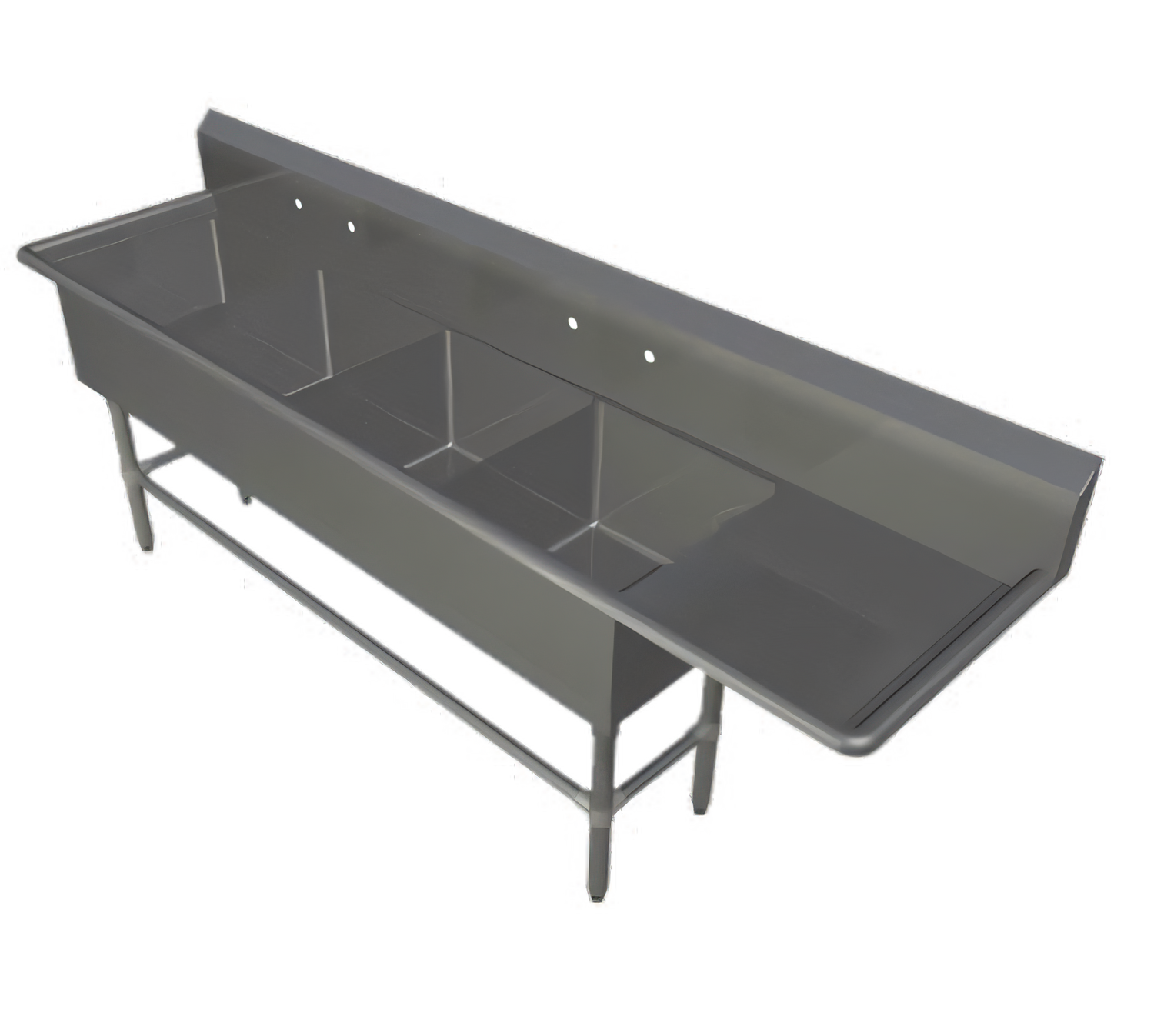

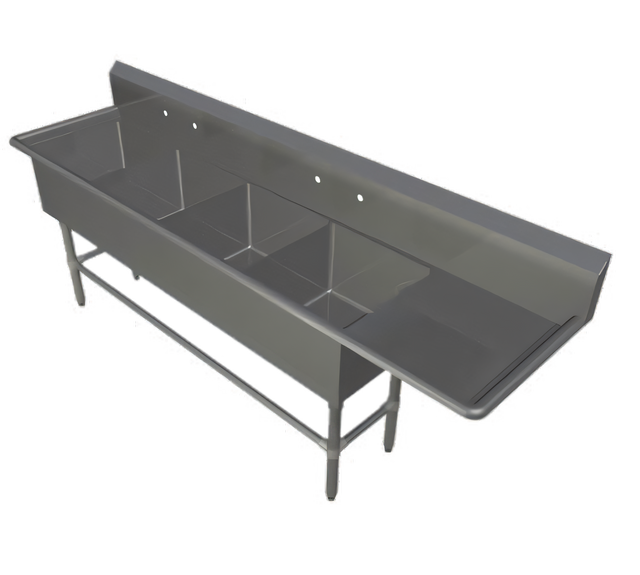

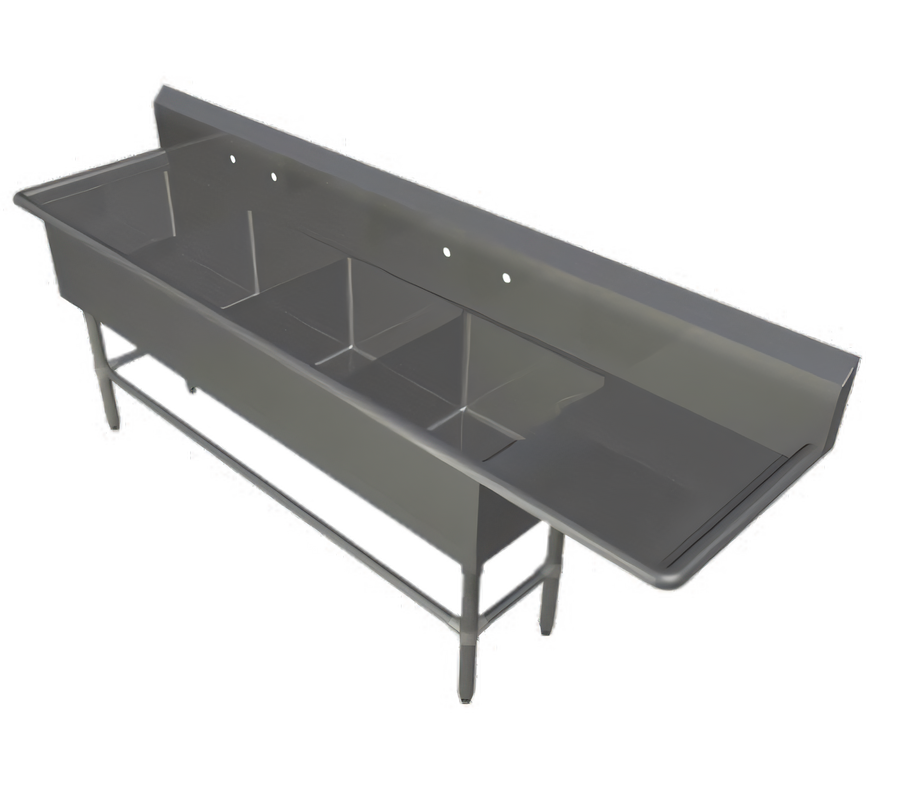

John Boos Pro-Bowl 4-Compartment Sink with 24-Inch Right Drainboard, 20 x 20 x 14-Inch Bowls

SKU: 4PB204-1D24R
$3,494.96
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

4-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos Pro-Bowl 4-Compartment Sink with 24-Inch Right Drainboard, 20 x 20 x 14-Inch Bowls

16-Gauge Type 300 Stainless Steel, 10-Inch Boxed Backsplash

Built for high-volume dishrooms, this four-compartment sink combines a 24-inch right drainboard with durable stainless steel construction for efficient washing and drying.

  • Four 20" x 20" x 14" compartments support washing, rinsing, and sanitizing workflows.
  • 24" right-hand drainboard provides a dedicated staging and drying area.
  • 16-gauge Type 300 stainless steel top and bowls are built for daily commercial use.
  • 10" boxed backsplash with 2" return helps protect walls from splashes.
  • Stainless steel legs, front/side bracing, and adjustable bullet feet add stability.
  • Two splash-mount faucet hole sets on 8" centers simplify faucet installation.

Overall Dimensions:

108.19"W x 25.5"D x 44.06"H

Product Weight:

174.0 lb

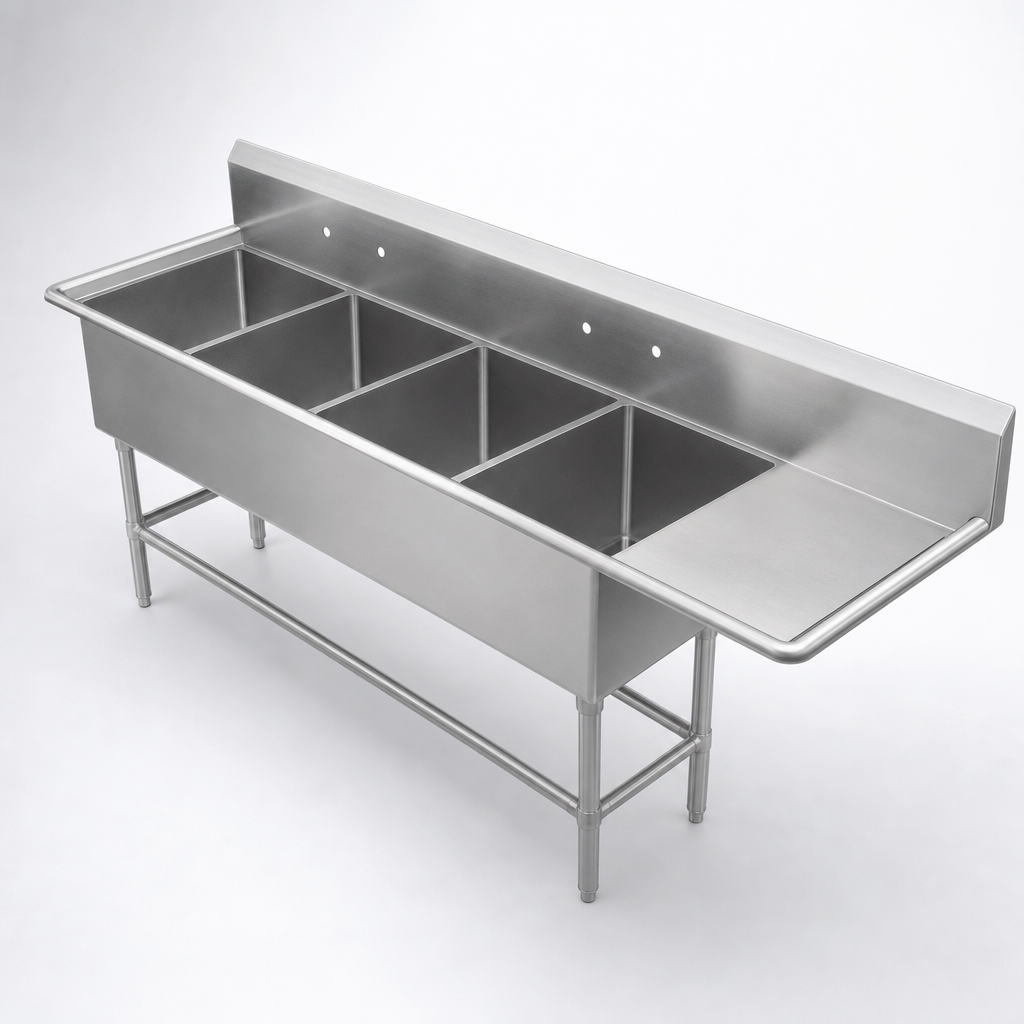

Four-Compartment Layout

Provides four large bowls for separating wash, rinse, sanitize, and prep tasks.

Right-Hand Drainboard

The 24-inch drainboard offers space for staging clean ware or air-drying items.

16-Gauge Stainless Steel Construction

Built from Type 300 stainless steel for dependable commercial durability.

10-Inch Boxed Backsplash

Helps contain splashes and includes a 2-inch return to the wall with a 45° top.

3-1/2-Inch Die-Stamped Drain Openings

Formed bowl bottoms and large drain openings promote drainage.

Splash-Mount Faucet Hole Pattern

Includes two sets of faucet holes on 8-inch centers, plus backsplash faucet holes.

Stainless Steel Base

Stainless steel legs, front and side bracing, and gussets provide rigid support.

Adjustable Bullet Feet

Allows for leveling on uneven floors during installation.

Knocked-Down Shipping

Ships KD for easier handling and site access.

Coved Bowl Corners

Rounded bowl corners help simplify cleaning and reduce buildup.

Type Compartment Sink
Style Pro-Bowl
Installation Type Floor Model (With Legs)
Compartments 4
Compartment Size 20 x 20 x 14 Inches
Drainboard Side Right
Drainboard Length 24 Inches
Material Type 300 Stainless Steel
Finish Satin Finish
Splash Height 10 Inches
Top Gauge 16 Gauge
Base Type Legs with Front and Side Crossrails
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 109 Inches
Shipping Depth 26 Inches
Shipping Height 45 Inches
Shipping Weight 174 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has four compartments.
Each compartment measures 20" wide x 20" front-to-back x 14" deep.
Yes. It includes a 24" right-hand drainboard.
It has two sets of splash-mount faucet holes on 8" centers, plus 1" faucet holes in the backsplash.
The sink has a 10" boxed backsplash with a 2" return and 45° top.
It ships knocked down (KD) for easier handling and installation.
