John Boos 4PB204-1D18R Pro-Bowl Compartment Sinks
John Boos 4PB204-1D18R Pro-Bowl Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description
John Boos “Pro-Bowl” 4-Compartment Sink – 102-3/16″ W x 25-1/2″ D
Model 4PB204-1D18R | 16 GA Type 300 Stainless Steel | 18″ Right DrainboardEngineered for high-volume food-service operations, the Pro-Bowl series delivers uncompromising durability and sanitation. Four spacious 14-inch-deep compartments and an integrated 18-inch drainboard let busy kitchens wash, rinse, sanitize and air-dry without missing a beat.
Built for the Rush
- 16-gauge, Type 300 stainless steel with #4 satin finish resists corrosion & cleans fast
- (4) 20″ W x 20″ F/B x 14″ D bowls formed with 5/8″ radius corners for easy wipe-down

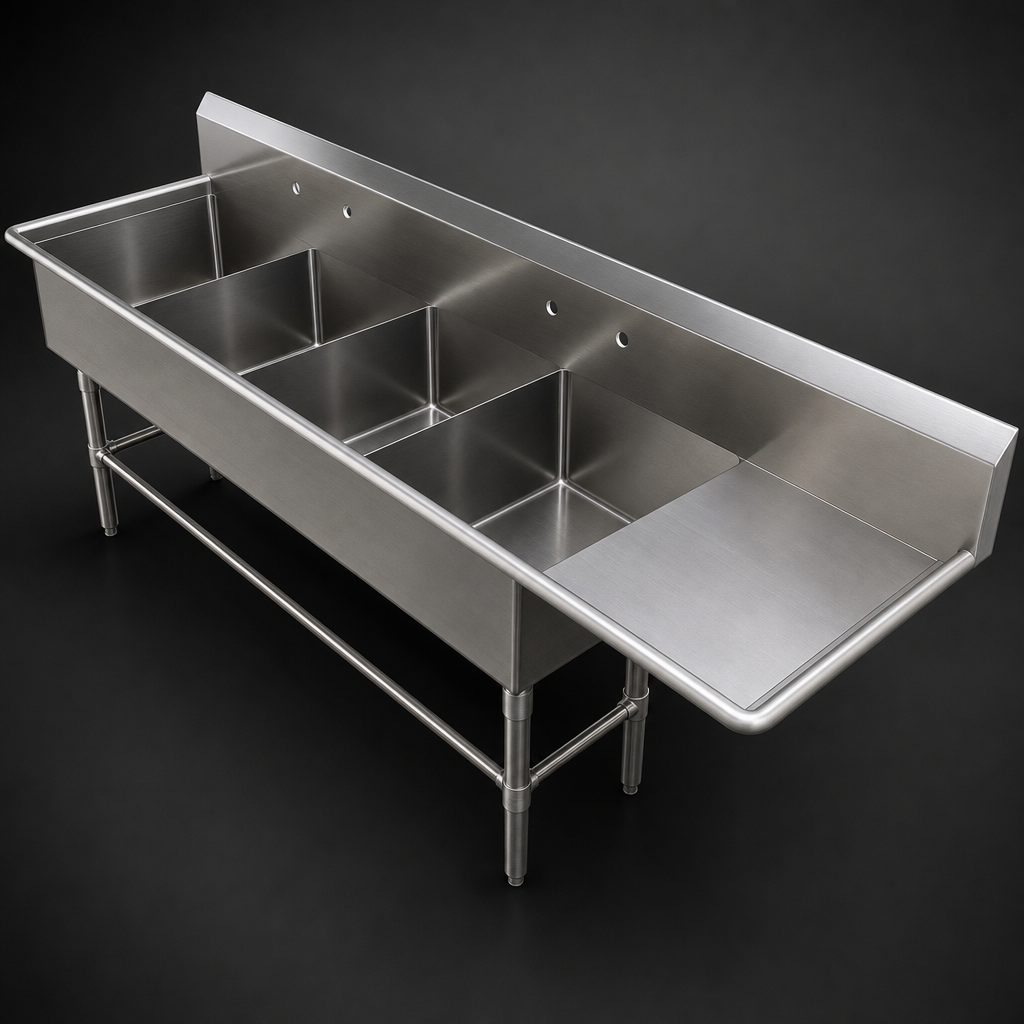

- 18″ right-hand drainboard slopes for positive drainage and added prep space
- 10″ boxed backsplash with 45° rolled top & 2″ return protects walls from overspray
- (2) sets of 8″-on-center splash-mount faucet holes (1″ diameter) accept pre-rinse or add-a-faucet assemblies
- 3-1/2″ die-stamped drain openings fit standard basket strainers or lever-wastes
- All exposed edges bull-nosed and TIG-welded seams polished to match adjacent surfaces
- Heavy-duty 1-5/8″ Ø stainless steel legs with adjustable front & side bracing
- 1″ stainless bullet feet level the sink on uneven floors
- NSF & CSA-Sanitation listed; ships knocked-down (KD) to minimize freight costs
Technical Specifications
Model | 4PB204-1D18R |
---|---|
Compartments | (4) 20″ W x 20″ F/B x 14″ D |
Overall Dimensions (W × D × H) | 102-3/16″ W × 25-1/2″ D × 44-1/16″ H (to top of backsplash) |
Drainboard | 18″ right side, integrally welded |
Backsplash | 10″ high boxed style, 45° top, 2″ return |
Faucet Holes | (2) sets, 8″ centers, 1″ Ø |
Drain Openings | (4) 3-1/2″ die-stamped |
Material & Finish | 16 GA Type 300 SS, #4 satin |
Legs / Bracing / Feet | Stainless steel legs (1-5/8″ Ø) with adjustable SS cross-bracing & 1″ bullet feet |
Certifications | NSF, CSA-Sanitation |
Ship Weight | Approx. 170 lb (KD) |
Faucets, drains, and overflow assemblies are sold separately. Field assembly required; all hardware included.
