John Boos 4PB20 Pro-Bowl Compartment Sinks
$3,101.80
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
John Boos 4PB20 Pro-Bowl Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos 4PB20 Pro-Bowl Compartment Sinks
$3,101.80
Unit price
/
Unavailable
Description

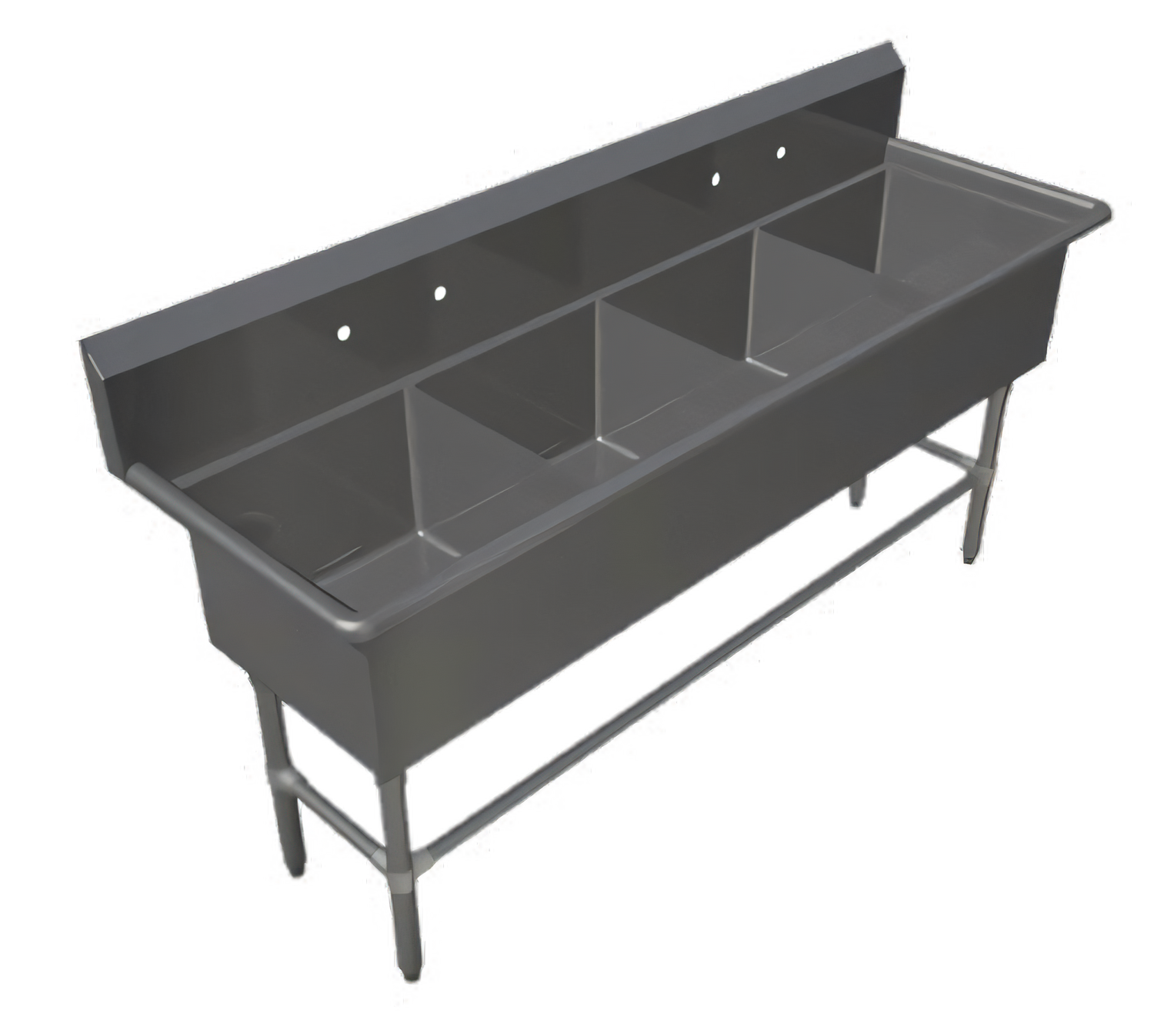

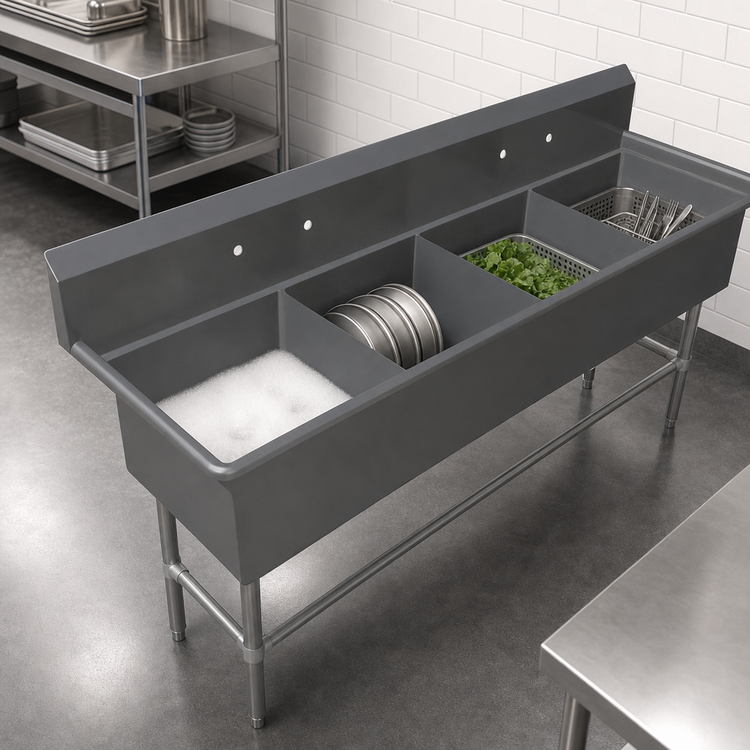

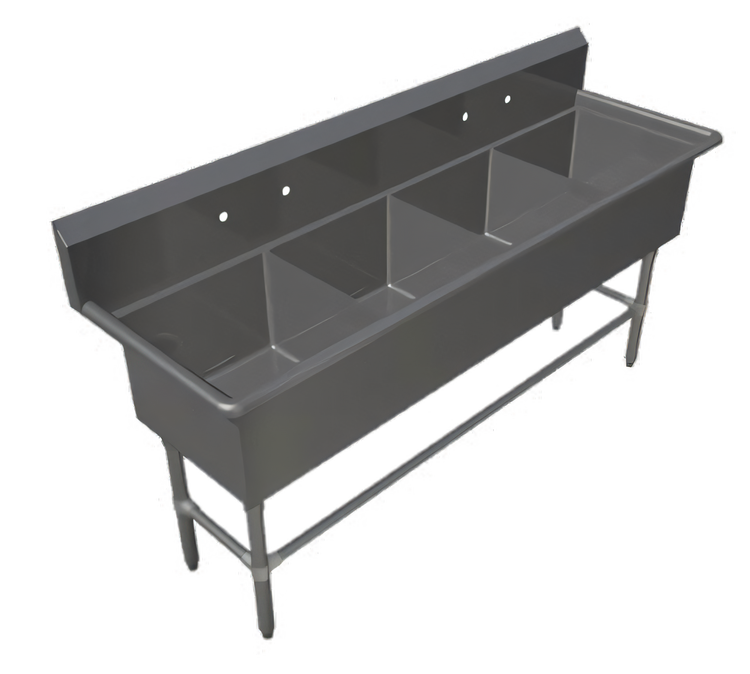

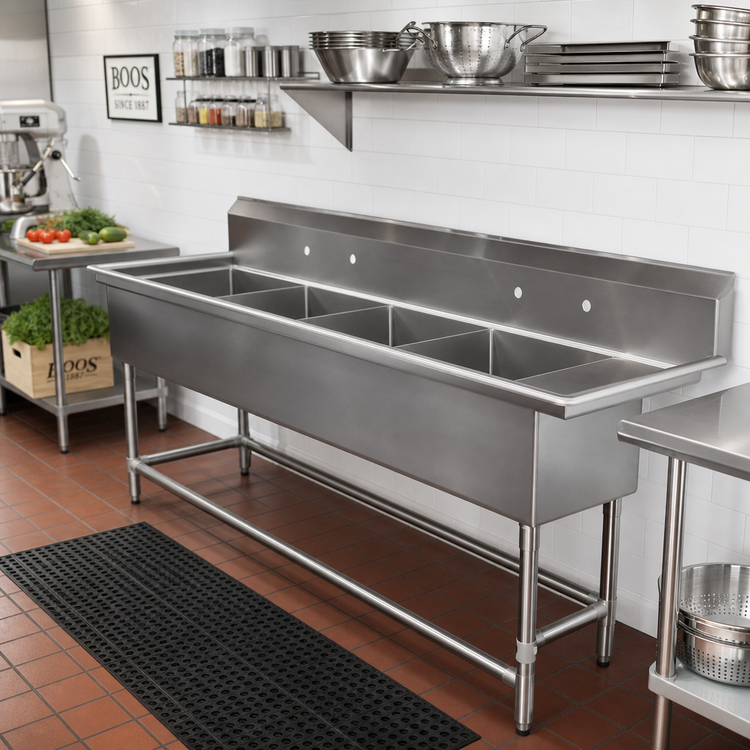

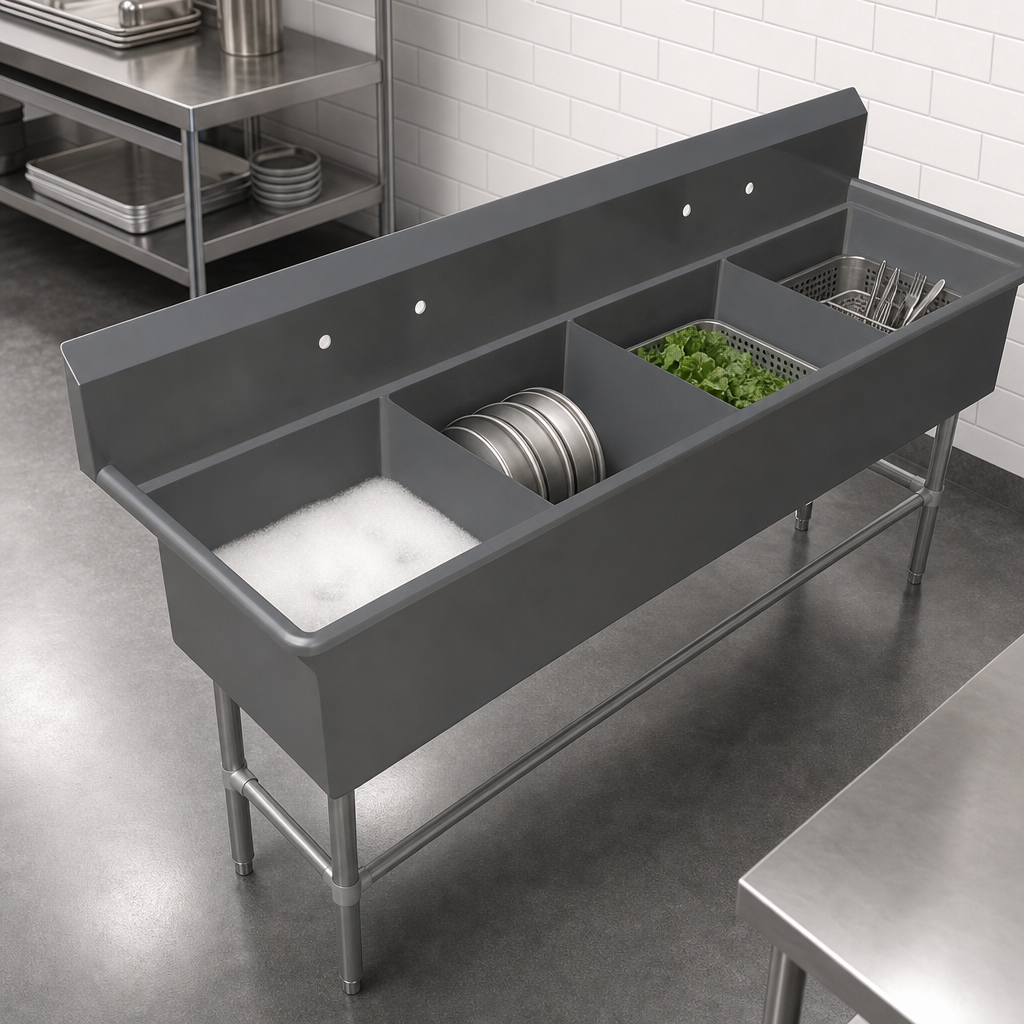

John Boos Pro-Bowl 4-Compartment Sink — 85-1/8" W
Model 4PB20 | Heavy-Duty 16 Ga. Type 300 Stainless SteelEngineered for high-volume food-service operations, the John Boos Pro-Bowl 4-compartment sink combines rugged construction, superior sanitation and ergonomic workflow in one NSF-listed workstation.
Why You’ll Love It
- (4) spacious 20" W × 20" F-B × 12" D bowls handle prep, wash, rinse & sanitize without cross-contamination.
- 16 ga. Type 300 stainless steel with a #4 satin polish resists corrosion and simplifies clean-up.
- 10" boxed backsplash with 2" return and a 45° top cap keeps walls dry and sanitary.
- (2) sets of 1" splash-mount faucet holes on 8" centers accommodate pre-rinse or add-a-faucet setups.
- 3-1/2" die-stamped drain openings speed water evacuation and accept common commercial strainers.
- 5/8" coved bowl corners and bullnosed outer edges eliminate grime-trapping seams.
- TIG-welded construction; exposed welds are ground & polished to match surrounding surfaces.
- 1-5/8" O.D. stainless steel legs with adjustable front & side bracing maximize stability.
- 1" stainless bullet feet level the unit on uneven floors.
- Ships knocked-down (KD) to reduce freight costs and fit through tight doorways.
Technical Specifications
| Overall Dimensions (W × D × H) | 85-1/8" × 25-1/2" × 44-1/16" |
|---|---|
| Compartment Size (each) | 20" W × 20" F-B × 12" D |
| Backsplash Height | 10" boxed with 2" return |
| Faucet Mounting | (2) sets; 8" on-center, 1" diameter holes |
| Drain Openings | 3-1/2" die-stamped (1 per compartment) |
| Material / Finish | 16 ga. Type 300 stainless steel / #4 satin polish |
| Legs & Bracing | 1-5/8" O.D. SS legs · 1-1/4" O.D. SS bracing |
| Feet | 1" adjustable stainless bullet feet |
| Shipping Weight | 147 lb (approx.) |
| Certifications | NSF Listed · CSA-Sanitation |
Popular Accessories (sold separately)
- Left, right or dual end-splashes
- Wall- or deck-mount faucets & add-a-faucets
- Pre-rinse spray units
- Lever waste drains
- Stainless overshelves & pot racks
Heads-up chef! Faucets, drains and other accessories are shown for illustration only and are not included unless specifically added to your order. Some assembly required due to KD (knocked-down) shipping.
Dimensions are typical ± 0.5". John Boos & Co. reserves the right to modify specifications without notice.
Features & Specs
Features & Specs
Manufacturer
John Boos
Brand_name
Pro-Bowl
Certifications
NSF, CSA-Sanitation
Height
44.06in
Width
85.13in
Depth
25.5in
Shipping Weight
147.0lbs
Base Construction
stainless steel
Compartment Width (side - side)
20"
Overall Length
75" - 97"
Splash Height
10"
Drainboards
without drainboards
Sink Depth (rim - drain)
12"
Base Type
legs with front & side crossrails
Top Stainless Series
300 series
Top Gauge
16 gauge
Compartment (front - back)
20"
Specifications
Pro-Bowl Sink, 4-compartment, 85-1/8"W x 25-1/2"D x 44-1/16"H overall size, (4) 20"W x 20" front-to-back x 12" deep compartments, 10"H boxed backsplash with 45° top & 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
