John Boos  |  Pro-Bowl  |  SKU: 4PB20-2D30  |  UPC: 662969795979

John Boos 4PB20-2D30 Pro-Bowl Compartment Sinks

$4,174.24
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
4-compartment Sinks Commercial Plumbing Supplies Commercial Sinks Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Pro-Bowl 4-Compartment Sink with Twin 30" Drainboards

John Boos Model 4PB20-2D30 • 143-1/4" W  ×  25-1/2" D

Engineered for the busiest commercial kitchens, the John Boos Pro-Bowl series delivers the strength, sanitation and workflow efficiency food-service professionals demand. This extra-long, four-compartment model pairs generous 30 inch drainboards on both sides with rugged 16 gauge, type 300 stainless steel construction to keep prep and dish stations running smoothly shift after shift.

Key Features

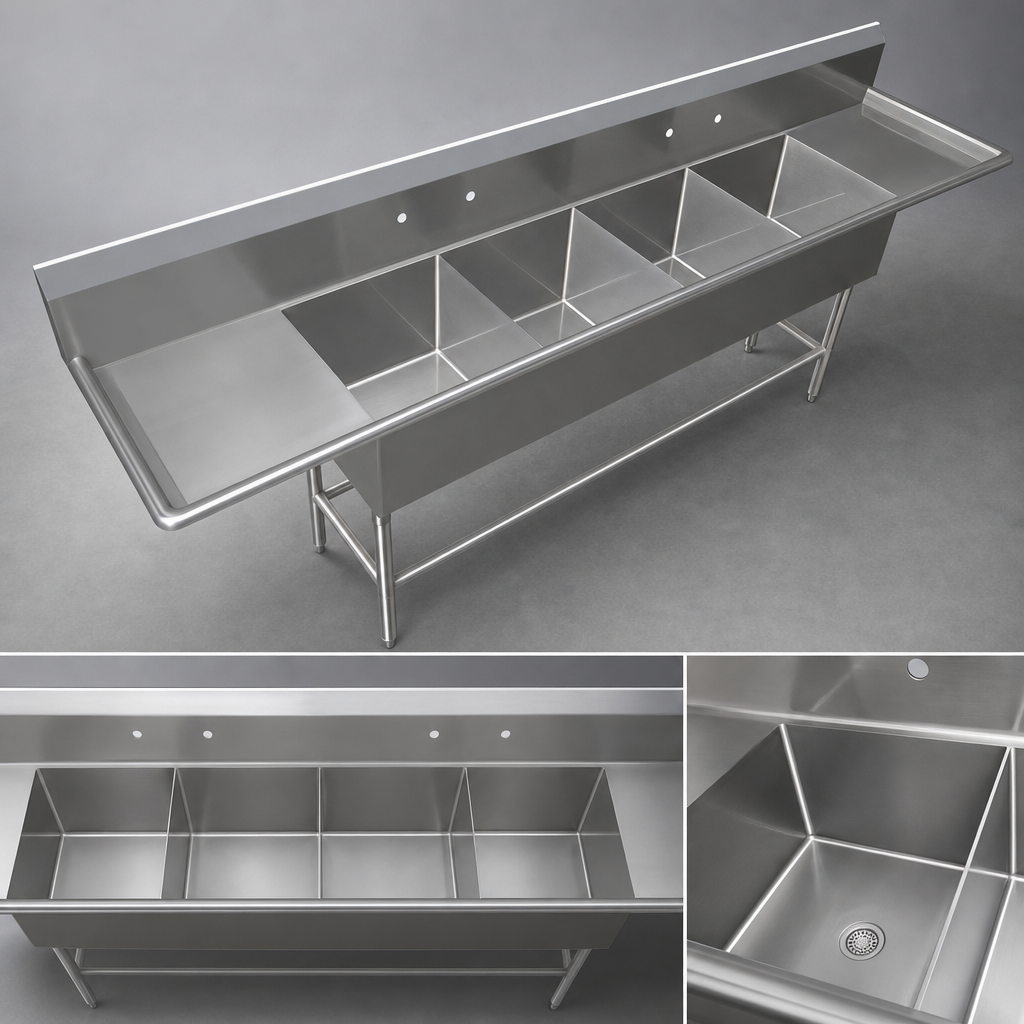

  • (4) sink bowls — each 20" W × 20" F-B × 12" D for versatile warewashing and prep.
  • (2) 30" drainboards (left & right) speed drying and staging.
  • Heavy-duty 16 ga type 300 stainless steel top, bowls & apron with #4 satin polish.
  • 10" high boxed backsplash with 45° top and 2" return protects walls and contains splashes.
  • (2) sets of splash-mount faucet holes, 8" on-center (1" diameter).
  • 3-1/2" die-stamped drain openings; bowls pitched for fast drainage.
  • 1-5/8" O.D. stainless steel legs with adjustable front & side bracing.
  • Stainless steel bullet feet adjust for a level, code-compliant install.
  • Bullnosed outside edges for safety and a clean, finished look.
  • Ships KD to lower freight costs; easy bolt-up assembly on site.
  • NSF and CSA-Sanitation listed.

Dimensional Specifications

Overall width (left – right) 143 1/4 in.
Overall depth (front – back) 25 1/2 in.
Overall height (to top of backsplash) 44 1/16 in.
Bowl dimensions (each) 20" W × 20" F-B × 12" D
Drainboard size (each) 30" W
Backsplash height 10 in.
Faucet hole centers 8 in.
Material thickness 16 ga (0.0625")
Stainless steel type 300 series
Unit weight Approx. 187 lb

Certifications & Compliance

  • NSF Standard 2 Food Equipment
  • CSA B45.4 Sanitation
Important: Faucets, drains and overflow assemblies are sold separately. Professional installation is recommended to ensure code compliance.

Documentation sourced from John Boos & Co. specification sheet (rev 01/2022). All dimensions are typical ± 0.5".

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

143.25in

Depth

25.5in

Shipping Weight

187.0lbs

Compartment Width (side - side)

20"

Base Construction

stainless steel

Overall Length

130" - 198"

Compartment (front - back)

20"

Sink Depth (rim - drain)

12"

Top Stainless Series

300 series

Splash Height

10"

Top Gauge

16 gauge

Drainboards

with left & right-hand drainboards

Base Type

legs with front & side crossrails

Specifications

Pro-Bowl Sink, 4-compartment, 143-1/4"W x 25-1/2"D x 44-1/16"H overall size, (4) 20"W x 20" front-to-back x 12" deep compartments, (2) 30" left & right drainboards, 10"H boxed backsplash with 45° top & 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
