John Boos Pro-Bowl 4-Compartment Sink with Right Drainboard, 20 x 20 x 12 Bowls, 16-Gauge Stainless Steel

108-3/16 In. W x 25-1/2 In. D x 44-1/16 In. H, 24-Inch Right Drainboard, 10-Inch Backsplash

Built for high-volume dishrooms, this four-compartment Pro-Bowl sink pairs heavy-duty stainless steel construction with a right-hand drainboard and tall boxed backsplash for efficient, durable workflow.

  • Four 20" x 20" x 12" compartments support washing, rinsing, soaking, and prep tasks.
  • 24" right-hand drainboard adds a convenient landing and drying area.
  • 16-gauge Type 300 stainless steel top and bowls are built for demanding commercial use.
  • 10" boxed backsplash with a 45° return helps protect the wall from splashes.
  • Stainless steel legs, cross bracing, and adjustable bullet feet provide a stable, level setup.
  • Knock-down construction helps simplify shipping and installation.

Overall Dimensions:

108.19"W x 25.5"D x 44.06"H

Product Weight:

163.0 lb

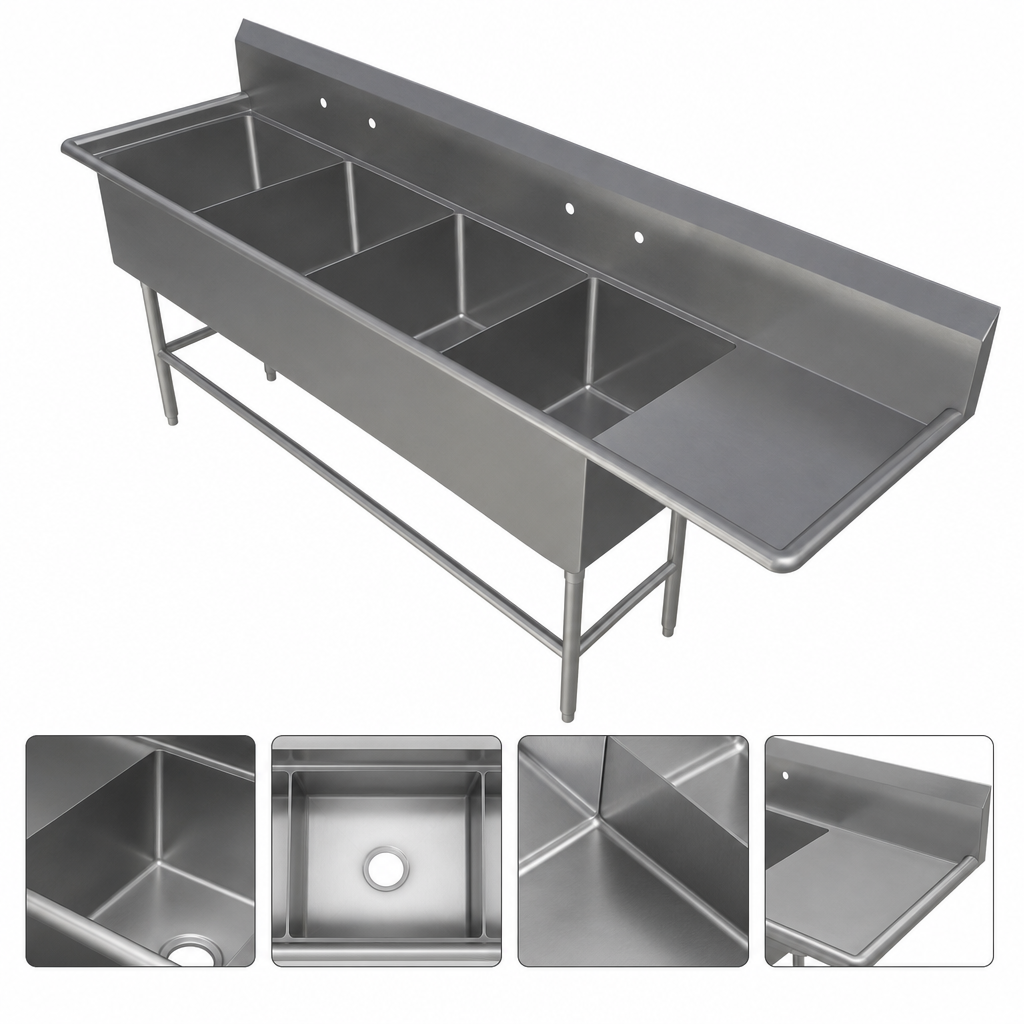

Four-Compartment Sink Layout

Includes four 20" wide x 20" front-to-back x 12" deep bowls for multi-step wash operations.

Right-Hand Drainboard

24" drainboard on the right side provides extra work and drying space.

16-Gauge Type 300 Stainless Steel Construction

Heavy-duty stainless steel top and bowls are designed for commercial durability, with a satin finish.

10" Boxed Backsplash

Full-length backsplash includes a 2" return at 45° to help control splash and protect the wall.

Splash-Mount Faucet Holes

Two sets of faucet holes are spaced 8" on-center for sink-mounted faucet installation.

Die-Stamped Drain Openings

3-1/2" drain openings are formed for drainage from each compartment.

Stainless Steel Base with Adjustable Feet

Stainless steel legs, front and side bracing, and adjustable bullet feet support stable installation and leveling.

Knock-Down Construction

KD design makes the sink easier to handle during shipping and assembly.

Type Compartment Sink
Style Right Drainboard
Installation Type Floor Model
Compartments 4
Material Type 300 Stainless Steel
Finish Satin Finish
Top Gauge 16 Gauge
Compartment Width 20 Inches
Compartment Depth 12 Inches
Drainboard Length 24 Inches
Backsplash Height 10 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 109 Inches
Shipping Depth 26 Inches
Shipping Height 45 Inches
Shipping Weight 163 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Each compartment measures 20" wide x 20" front-to-back x 12" deep.
Yes. This model includes a 24" right-hand drainboard.
It is constructed from 16-gauge Type 300 stainless steel with a satin finish.
It has two sets of splash-mount faucet holes spaced 8" on-center, plus 1" faucet holes in the backsplash.
Overall size is 108-3/16" W x 25-1/2" D x 44-1/16" H.
