John Boos 4PB20-1D18R Pro-Bowl Compartment Sinks
Description

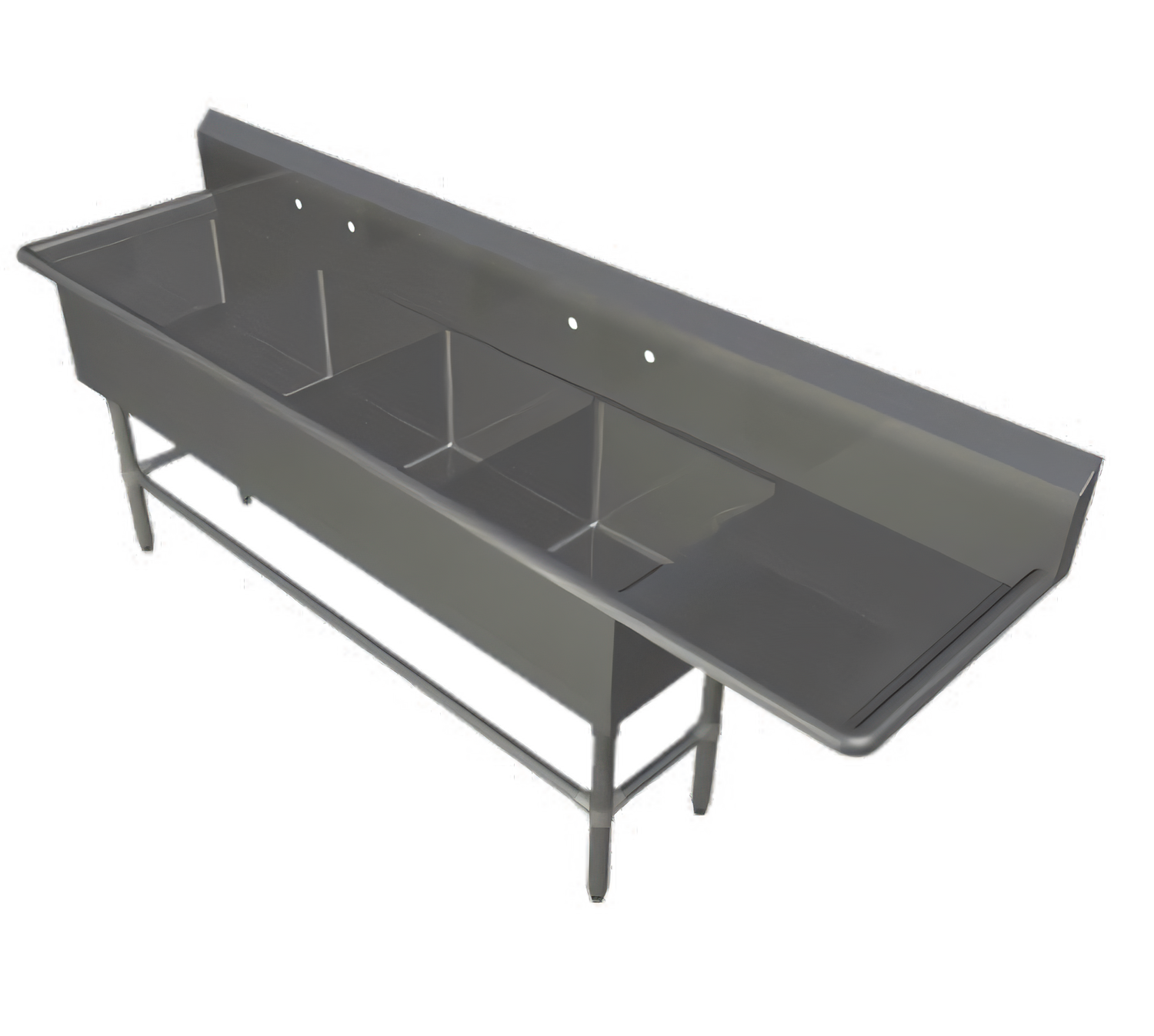

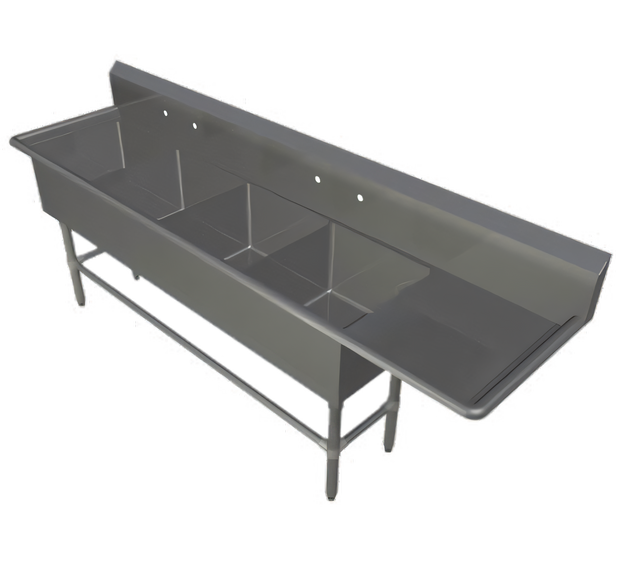

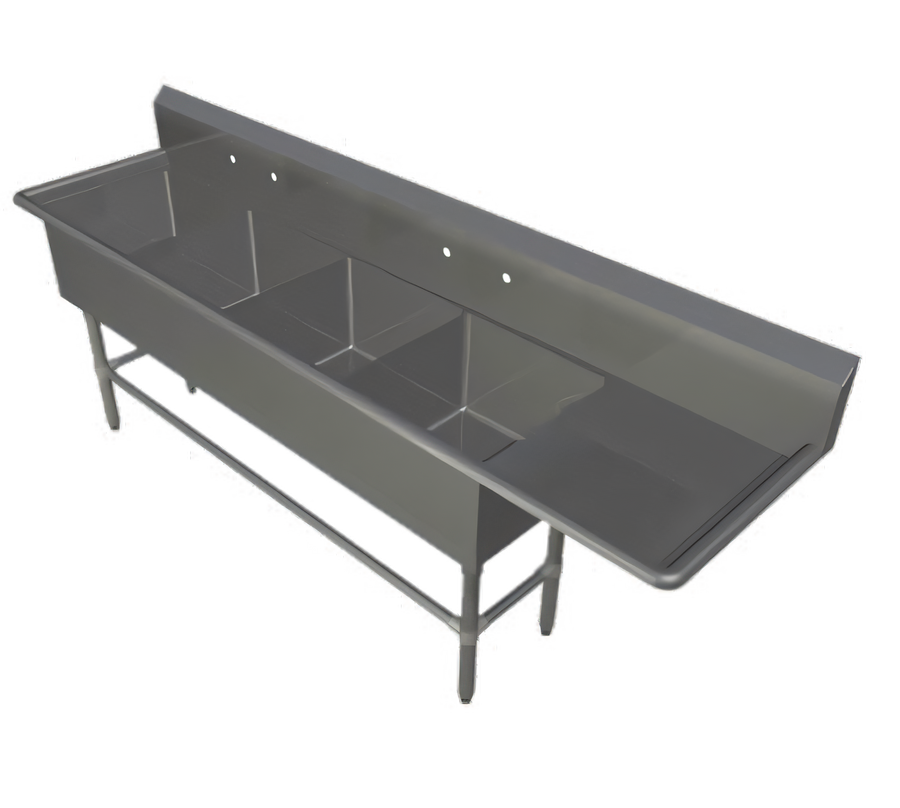

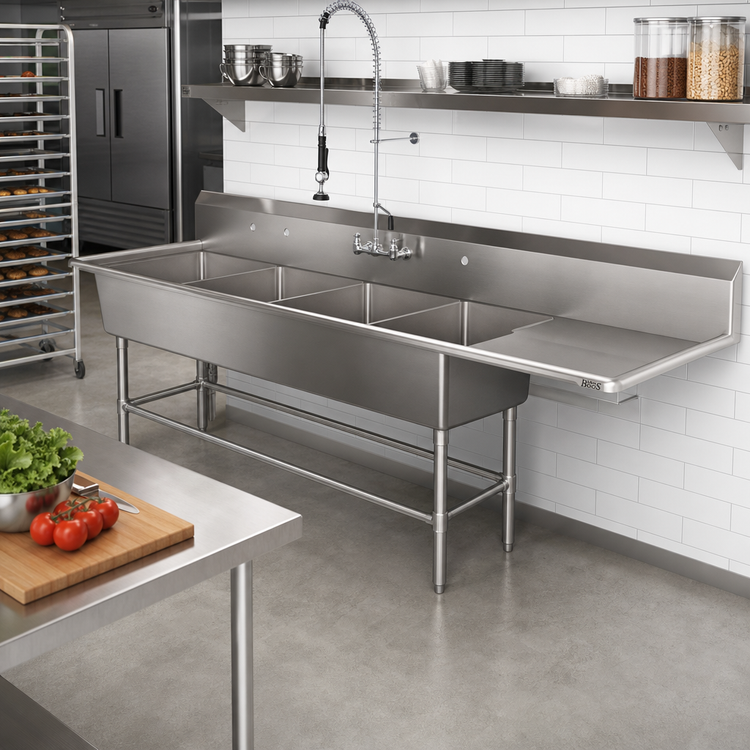

John Boos “Pro-Bowl” 4-Compartment Sink — Right Drainboard
Model 4PB20-1D18R | 16-Gauge Type 300 Stainless SteelBuilt to thrive in the busiest back-of-house environments, the John Boos Pro-Bowl series pairs rugged 16-gauge stainless steel with smart, operator-focused details. Four generous bowls, a right-hand drainboard and a sanitary boxed backsplash keep prep and clean-up flowing smoothly shift after shift.
Key Features

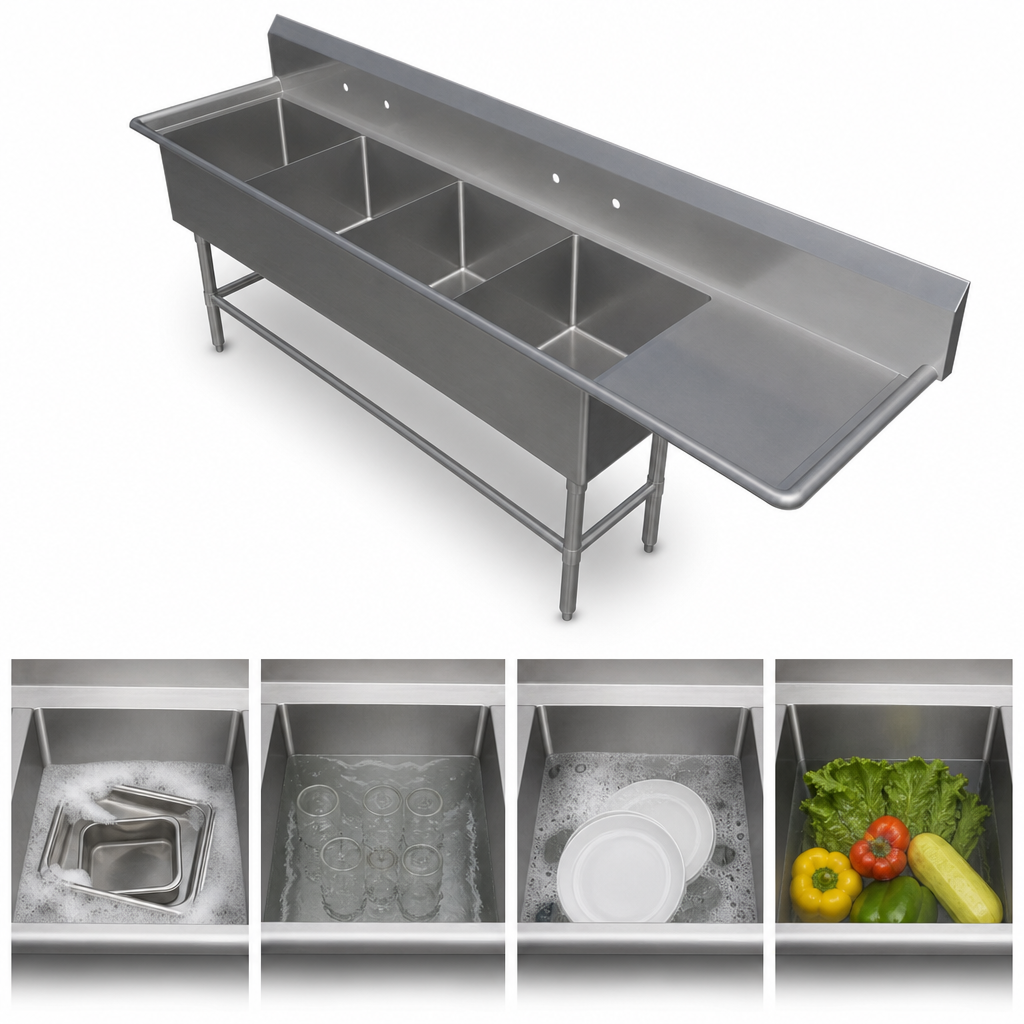

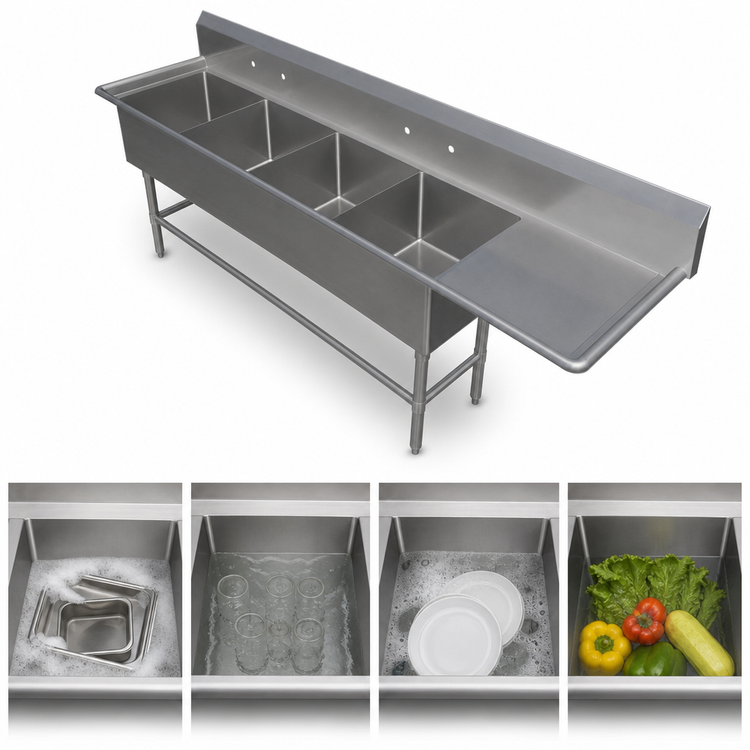

- (4) 20″ W × 20″ F-B × 12″ D compartments handle everything from produce rinsing to heavy pot washing
- 18″ integrated right-side drainboard for efficient drying and staging
- Heavy-duty 16-ga, Type 300 stainless steel with #4 satin polish resists corrosion and wipes clean fast
- 10″ boxed backsplash with 2″ return and 45° top protects surrounding walls
- (2) sets of 8″-on-center splash-mount faucet holes (1″ Ø) – fits most commercial faucets (sold separately)
- 3-1/2″ die-stamped drain openings accept standard basket strainers or lever wastes
- 5⁄8″ radius coved corners streamline cleaning and promote full NSF compliance
- Bull-nosed front & side edges for safer handling and a professional, finished look
- TIG-welded construction; exposed welds blended to match adjoining surfaces
- 1-5/8″ Ø stainless steel legs with adjustable 1-1/4″ Ø side/front bracing
- 1″ stainless steel bullet feet adjust to keep the sink level on uneven floors
- Ships knocked-down (KD) to reduce freight costs and fit through tight doorways
- NSF & CSA-Sanitation listed for use in foodservice operations
At-a-Glance Specifications
| Overall length | 102-3/16″ (259.6 cm) |
|---|---|
| Overall width | 25-1/2″ (64.8 cm) |
| Overall height | 44-1/16″ (111.9 cm) to top of backsplash |
| Compartments | (4) 20″ W × 20″ F-B × 12″ D |
| Drainboard | 18″ W, right side |
| Backsplash | 10″ H boxed w/ 2″ return |
| Faucet holes | (2) sets, 8″ centers, 1″ Ø |
| Drain openings | 3-1/2″ Ø, die-stamped |
| Material & finish | 16-ga Type 300 stainless steel, #4 satin |
| Legs / bracing | Stainless steel, 1-5/8″ Ø legs, 1-1/4″ Ø bracing |
| Feet | 1″ adjustable stainless bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Ships | Knocked-Down (assembly required) |
Installation Tips
- Set the unit level to ensure proper bowl drainage.
- Seal backsplash edges to wall with approved silicone for a watertight fit.
- Order faucets, drains and lever wastes separately to match your plumbing layout.
All dimensions are nominal and subject to ± ½″ manufacturing tolerances. Need a left-hand drainboard or deeper bowls? Contact us — we carry the full John Boos Pro-Bowl lineup.
