John Boos 4PB20-1D18L Pro-Bowl Compartment Sinks
Description

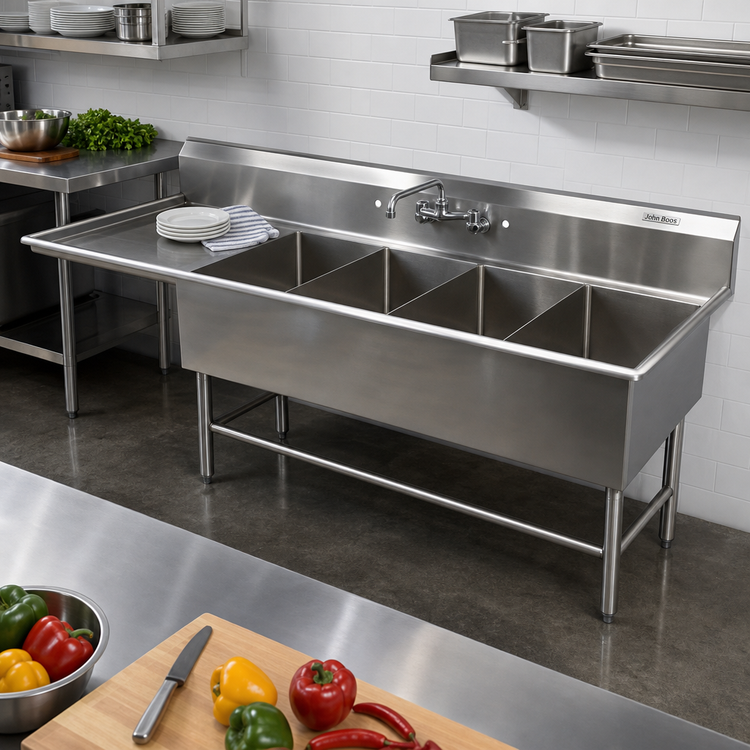

John Boos “Pro-Bowl” 4-Compartment Sink – 102" x 25-1/2"
Model 4PB20-1D18L • NSF & CSA-Sanitation CertifiedEngineered for the busiest commercial kitchens, the John Boos Pro-Bowl series combines rugged 16 gauge, Type 300 stainless steel with thoughtful ergonomic design. Four generous 20" square compartments handle high-volume warewashing while the integrated 18" left-side drainboard keeps your workflow moving smoothly.
Key Features

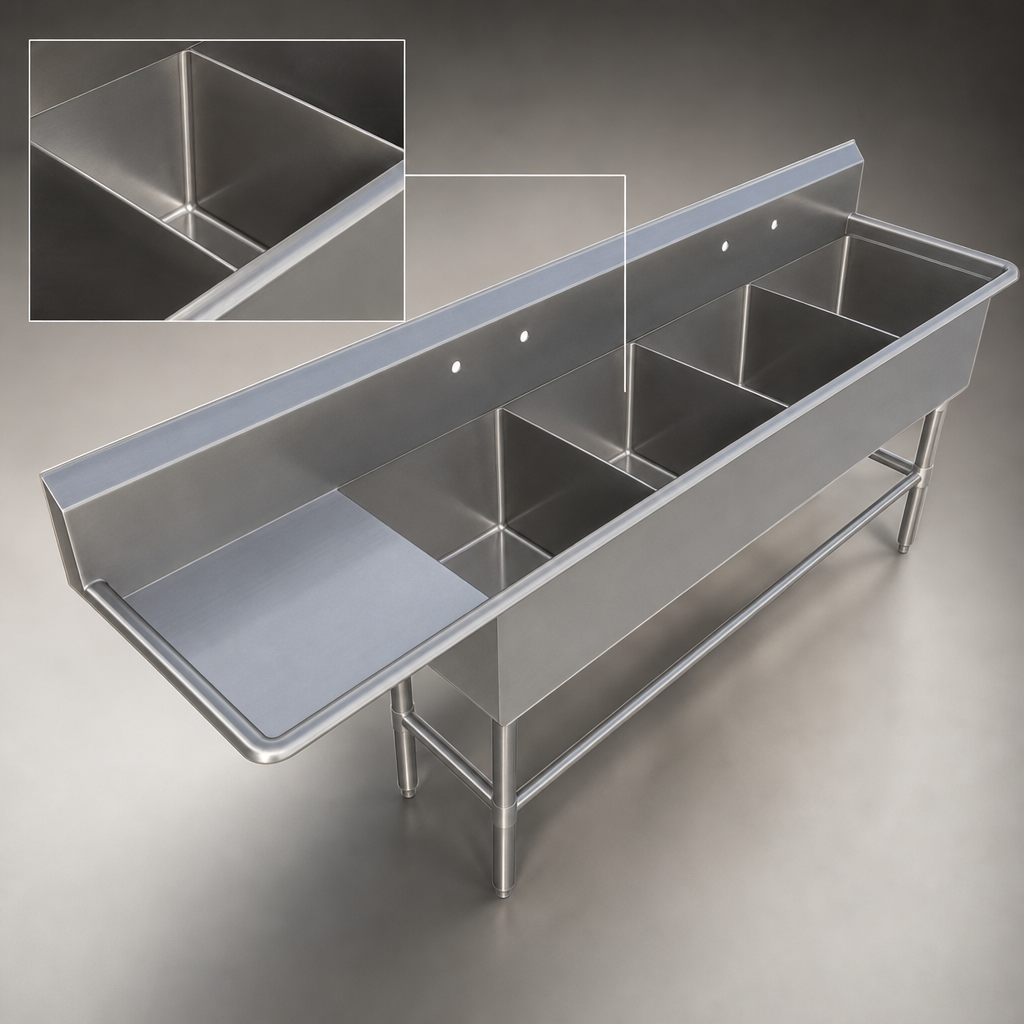

- Four 20" W x 20" F-to-B x 12" D bowls – perfect for wash, rinse, sanitize & dump setups
- 18" left drainboard with stamped drain slots for quick drying
- 10" boxed backsplash with 45° top & 2" return to contain splashes
- Two sets of splash-mount faucet holes, 8" on-center (1" dia.)
- 3-1/2" die-stamped drain openings – ready for standard basket strainers or lever wastes
- Heavy-duty 16 GA Type 300 stainless steel – #4 satin polish inside & out
- 1-5/8" Ø stainless steel legs with adjustable bullet feet
- Front & side 1-1/4" Ø stainless bracing – field adjustable for rock-solid stability
- All corners coved to a 5/8" radius for fast, thorough cleaning
- Ships knocked-down (KD) for easy access into tight spaces
At-a-Glance Specifications
| Overall length | 102-3/16" |
|---|---|
| Overall depth (front-to-back) | 25-1/2" |
| Overall height (to backsplash top) | 44-1/16" |
| Compartment size (4×) | 20" W × 20" F-B × 12" D |
| Drainboard length | 18" (left side) |
| Backsplash height | 10" |
| Faucet holes | 2 sets, 8" on-center, 1" dia. |
| Drain openings | 3-1/2" dia., die-stamped |
| Material / Gauge | 16 GA Type 300 stainless steel |
| Legs / Feet | Stainless steel legs & adjustable bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Shipping format | Knocked-Down (KD) |
Faucets, drains, and other accessories are sold separately. Always verify local code requirements before installation.
