John Boos 4PB184-2D30 Pro-Bowl Compartment Sinks
John Boos 4PB184-2D30 Pro-Bowl Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

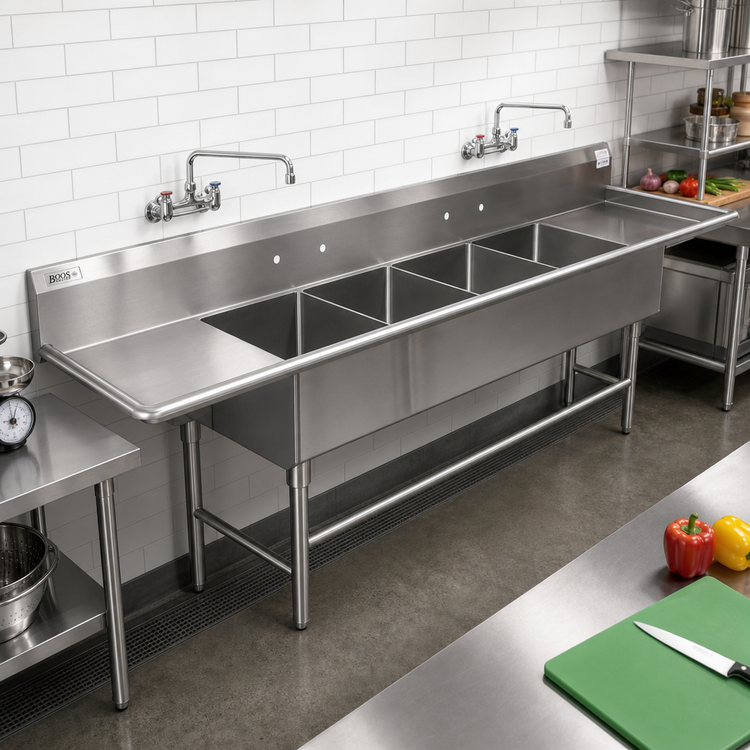

John Boos “Pro-Bowl” 4-Compartment Sink w/ Dual 30" Drainboards
Model 4PB184-2D30 • 135-1/4" W × 23-1/2" D × 44-1/16" HBuilt for the busiest prep lines, this NSF-listed Pro-Bowl sink delivers four full-size wash basins, extra-long drainboards, and rugged 16-gauge stainless steel construction—all in one easy-to-assemble unit.
Performance Features

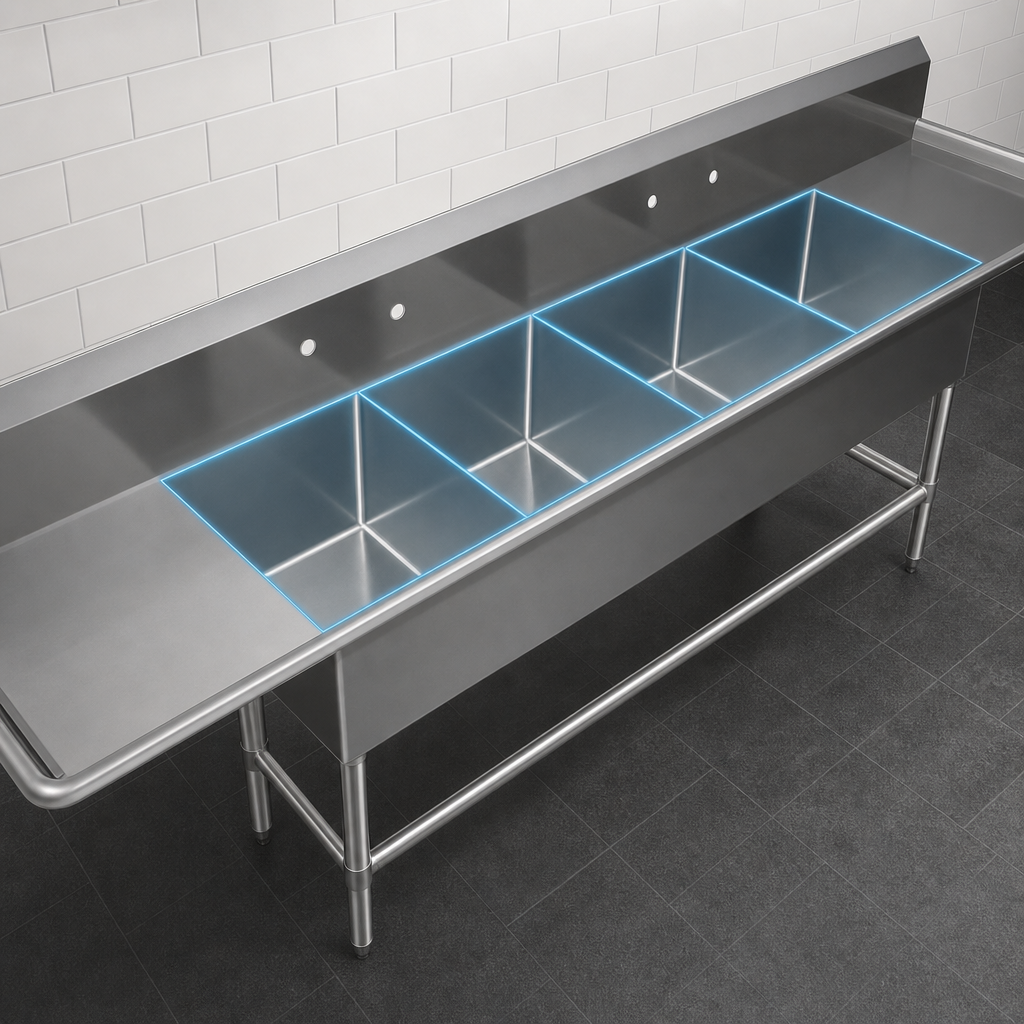

- (4) 18" W × 18" F-B × 14" D bowls for wash, rinse, sanitize & soak.
- 30" left & right drainboards keep workflow moving and dishes drying.
- 10" boxed backsplash with 45° top cap and 2" return contains splashes.
- (2) sets of splash-mount faucet holes, 8" on-center—ideal for pre-rinse or add-a-faucet kits.
- 3-1/2" die-stamped drains and pitched bowl bottoms speed water evacuation.
- Heavy-duty 16 ga, type 300 stainless steel top & bowls with #4 satin finish.
- 1-5/8" O.D. stainless legs, adjustable front & side bracing, and 1" stainless bullet feet for rock-solid leveling.
- Bull-nosed edges and TIG-polished welds provide a safe, easy-to-clean surface.
- Knocked-Down (KD) base ships economically and assembles quickly on-site.
- NSF & CSA-Sanitation certified for code-compliant installation.
Technical Specifications
Overall dimensions | 135-1/4" W × 23-1/2" D × 44-1/16" H |
---|---|
Bowl interior (each) | 18" W × 18" F-B × 14" D |
Drainboards | 30" left & 30" right |
Backsplash | 10" H boxed splash with 45° top & 2" return |
Faucet mounting | (2) sets, 8" O.C. × 1" dia. holes |
Drain opening | 3-1/2" dia. die-stamped |
Material thickness | 16 ga top & bowls / 300 series stainless |
Base construction | Stainless legs & bracing, KD design |
Feet | 1" adjustable stainless bullet feet |
Certifications | NSF, CSA-Sanitation |
Built by John Boos & Co.
- American-made quality since 1887.
- Precision TIG welding and #4 satin polish deliver a professional finish that lasts.
- Compatible factory options—overshelves, pot racks, lever wastes, end splashes—let you customize your sink to match any workflow.
Care & Maintenance Tips
- Clean daily with non-chloride, non-abrasive cleaners such as Bar Keepers Friend.
- Avoid steel wool or wire brushes that can damage the stainless passive film.
- Rinse and wipe dry after each shift to prevent water spots and preserve the satin finish.
Need help selecting faucets or accessories? Reach out and our team will configure a complete solution for your kitchen.
