John Boos  |  Pro-Bowl  |  SKU: 4PB184-2D24  |  UPC: 662969382889

John Boos 4PB184-2D24 Pro-Bowl Compartment Sinks

$4,122.68
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

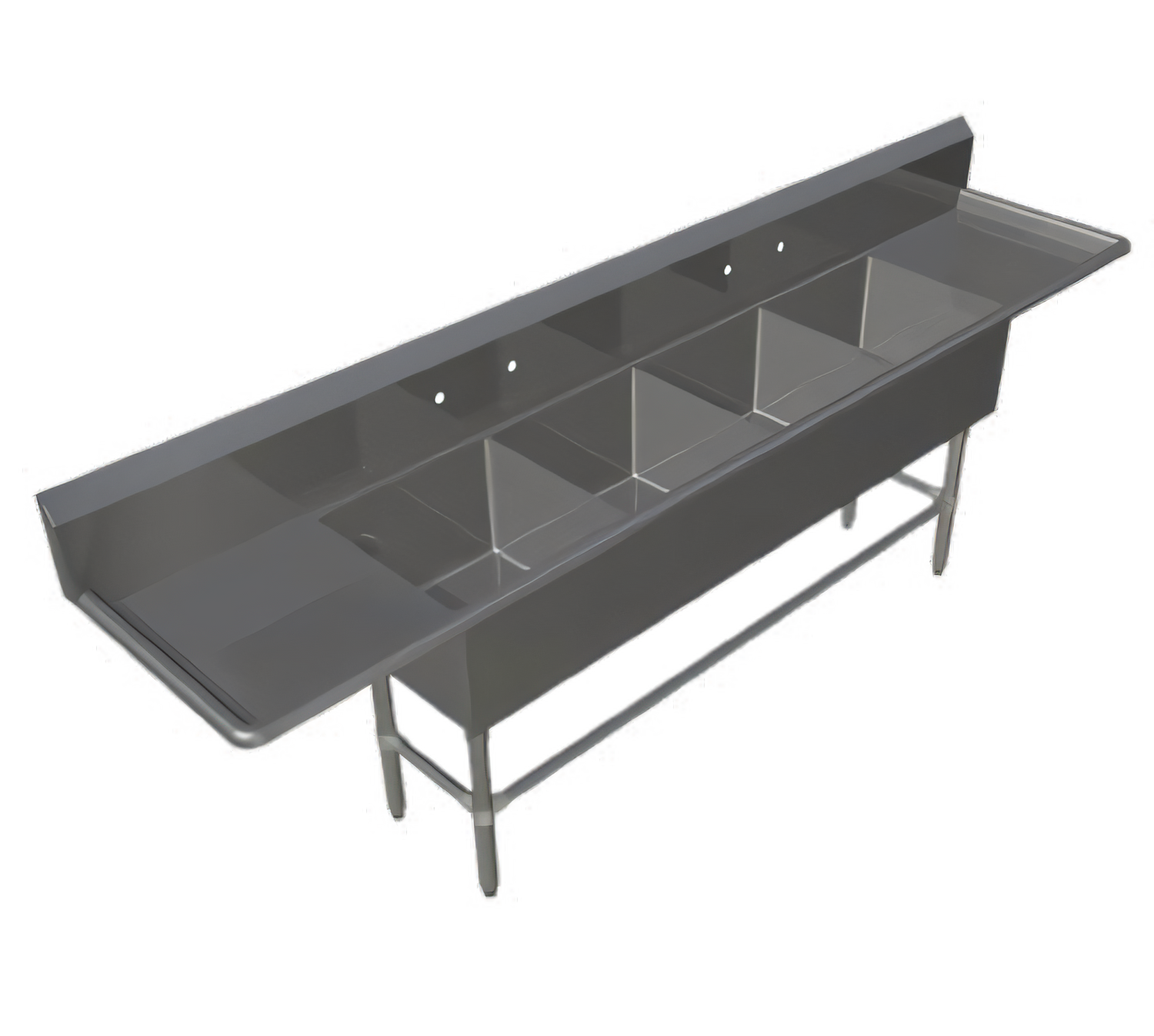

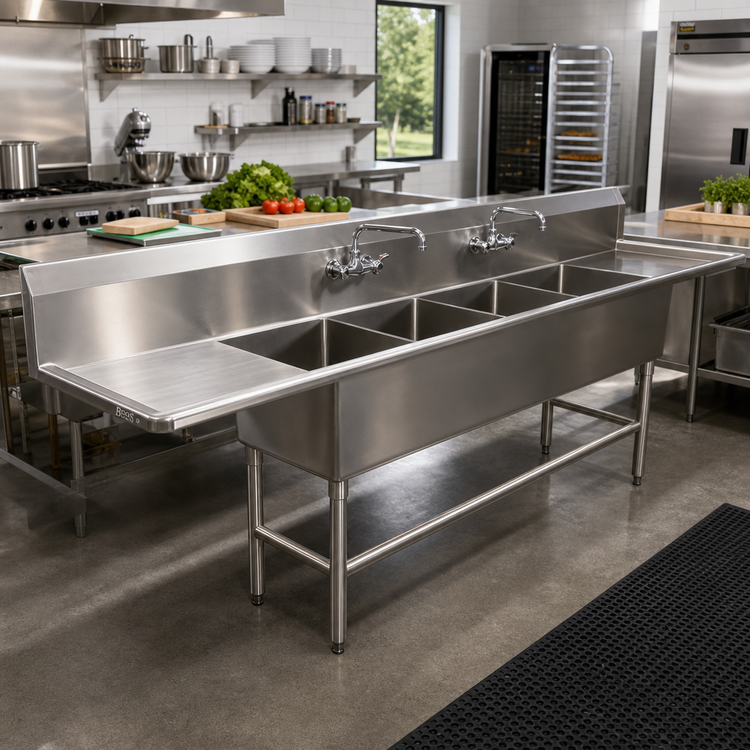

John Boos Pro-Bowl 4-Compartment Sink with (2) 24" Drainboards

Model 4PB184-2D24 • 123-1/4" W x 23-1/2" D • NSF & CSA-Sanitation

Built for high-volume, high-sanitation environments, this John Boos Pro-Bowl sink combines four roomy wash compartments with spacious dual drainboards and the rugged reliability of 16-gauge stainless steel.

Key Features

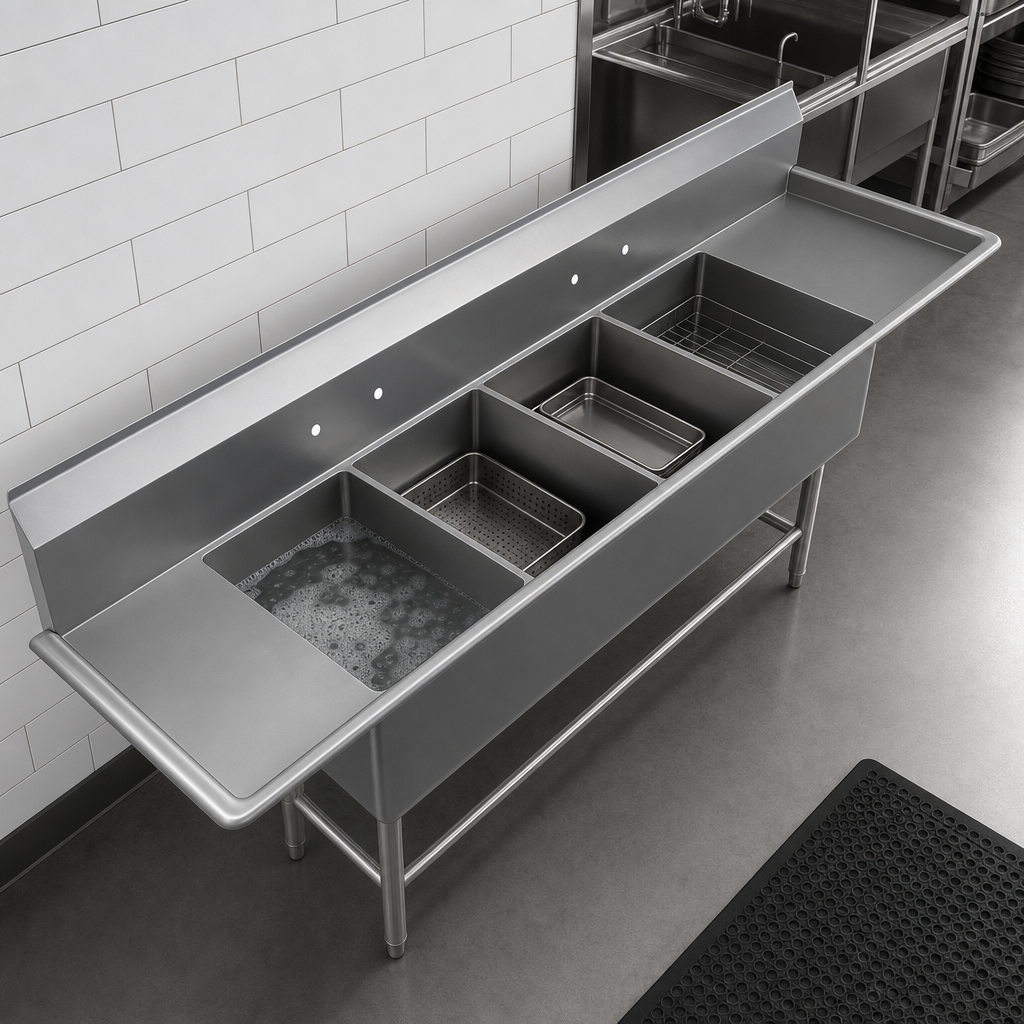

  • (4) 18" W x 18" F-B x 14" D bowls let you dedicate stations for wash, rinse, sanitize and soak.
  • Left & right 24" drainboards give you 48" of total landing space for dirty and clean wares.
  • 10" boxed backsplash with 45° top edge and 2" return safeguards walls and contains splashes.
  • (2) sets of 8" O.C. splash-mount faucet holes (1" dia) for pre-rinse or add-a-faucet setups.
  • 3-1/2" die-stamped drain openings accept standard lever waste or disposer flanges.
  • Coved 5/8" radius bowl corners speed cleanup and prevent food soil build-up.
  • Stainless steel legs with adjustable front & side bracing keep the unit rock solid.
  • 1" adjustable stainless bullet feet for quick, precise leveling on uneven floors.
  • Bull-nosed outside edges deliver a safer, polished appearance.
  • Ships knocked-down (KD) for easier freight handling and on-site assembly.

Specifications

Overall size 123-1/4" W x 23-1/2" D x 44-1/16" H (to top of backsplash)
Bowl interior (ea.) 18" W x 18" F-B x 14" D
Drainboards (2) 24" L – left & right
Backsplash 10" H boxed, 45° top, 2" return
Material / finish 16-ga Type 300 stainless, #4 satin polish
Faucet hole centers 8" O.C. (splash mount)
Drain openings 3-1/2" die-stamped
Legs / bracing 1-5/8" Ø SS legs, 1-1/4" Ø SS bracing
Feet 1" adjustable stainless bullet feet
Certifications NSF, CSA-Sanitation
Shipping Knocked-Down (KD)

Compatible Accessories (sold separately)

  • Deck or splash-mount faucets & pre-rinse units
  • Lever waste drains
  • Stainless overshelves & pot racks
  • End splashes – right, left, or both
Important: Faucets, drains and overflow assemblies are not included. Add the accessories that fit your workflow during checkout.

Care & Maintenance

  • Clean daily with a soft cloth or sponge and a non-chloride stainless cleanser (e.g., Bar Keepers Friend).
  • Always wipe in the direction of the satin polish lines to maintain finish.
  • Rinse and dry after use; do not allow chlorine bleach or salty liquids to stand on the surface.
  • Restore shine periodically with John Boos Stainless Steel Cleaner/Polish.

Looking for another size or configuration? As an authorized John Boos dealer we can quote any Pro-Bowl model—just ask!

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

123.25in

Depth

23.5in

Shipping Weight

169.0lbs

Overall Length

114" - 129"

Drainboards

with left & right-hand drainboards

Splash Height

10"

Compartment (front - back)

18"

Sink Depth (rim - drain)

14"

Top Gauge

16 gauge

Base Construction

stainless steel

Top Stainless Series

300 series

Compartment Width (side - side)

18"

Base Type

legs with front & side crossrails

Specifications

Pro-Bowl Sink, 4-compartment, 123-1/4"W x 23-1/2"D x 44-1/16"H overall size, (4) 18"W x 18" front-to-back x 14" deep compartments, (2) 24" left & right drainboards, 10"H boxed backsplash with 45° top & 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
