John Boos 4PB184-1D30R Pro-Bowl Compartment Sinks
Description

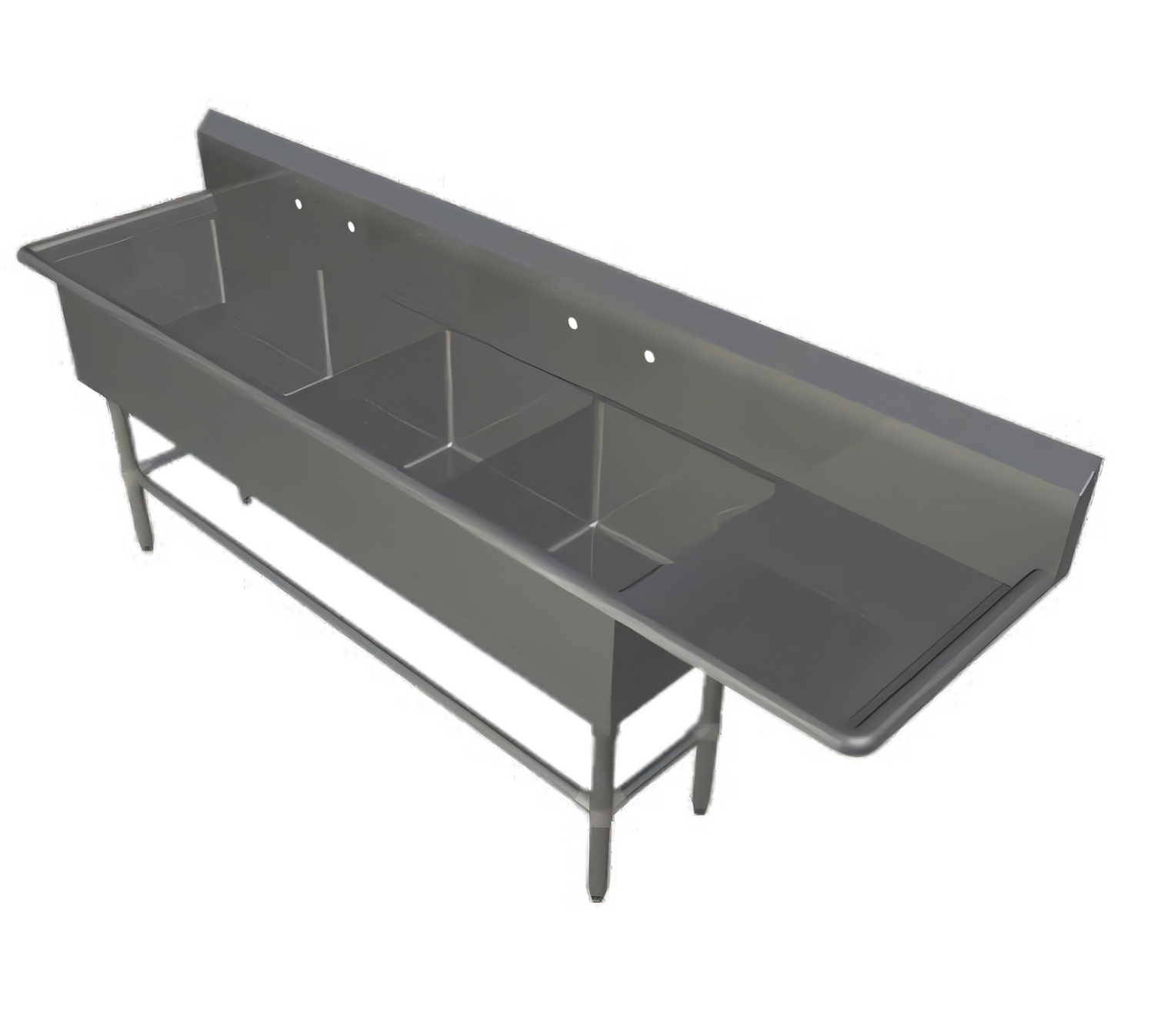

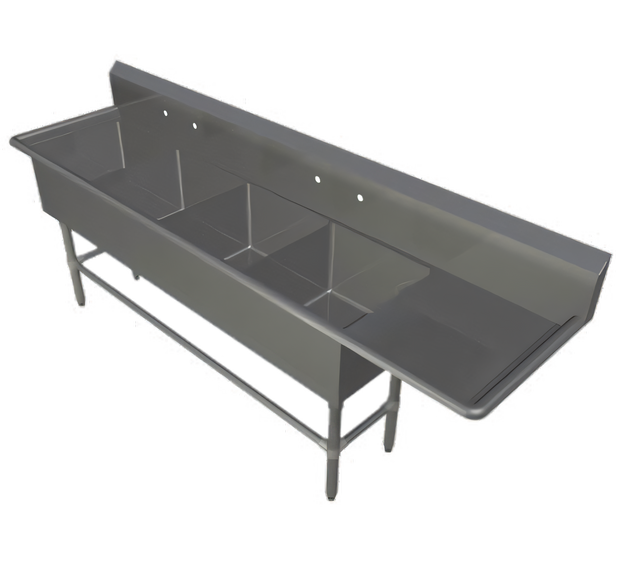

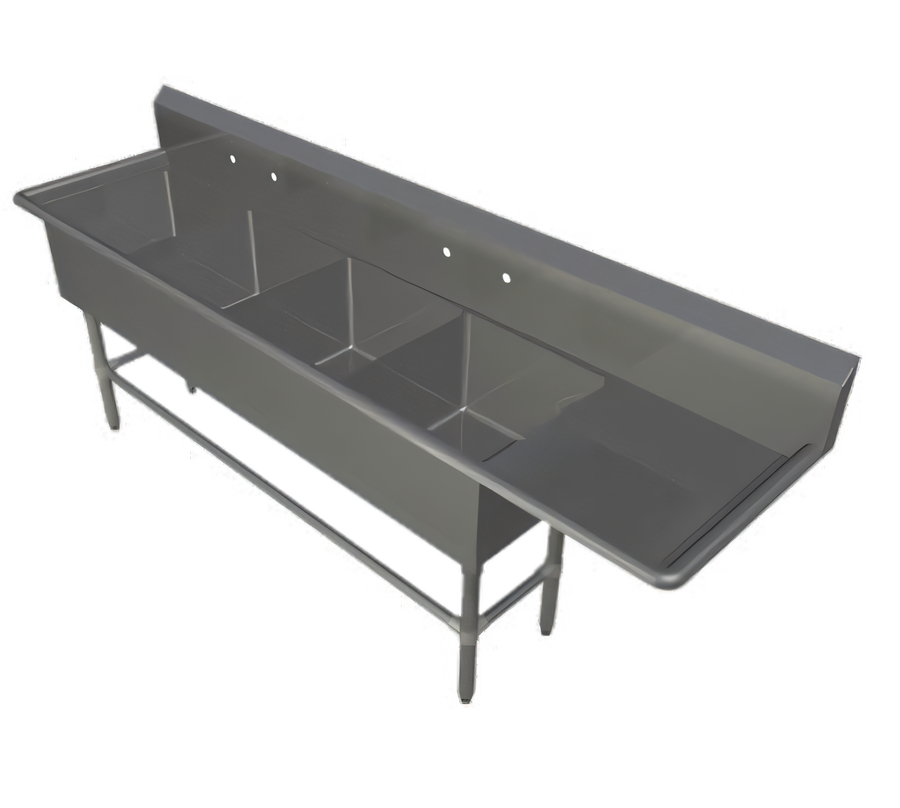

John Boos Pro-Bowl 4-Compartment Sink w/ 30" Right Drainboard
Model 4PB184-1D30R | 106-3/16" W × 23-1/2" D × 44-1/16" HBuilt for the busiest prep, dish, and pot-washing stations, the John Boos Pro-Bowl 4-compartment sink delivers industrial-grade durability and food-service efficiency in one space-saving unit. A generous 30" right-hand drainboard keeps clean or soiled ware organized, while four 14" deep bowls tackle high-volume washing, rinsing, and sanitizing with ease.
Key Features

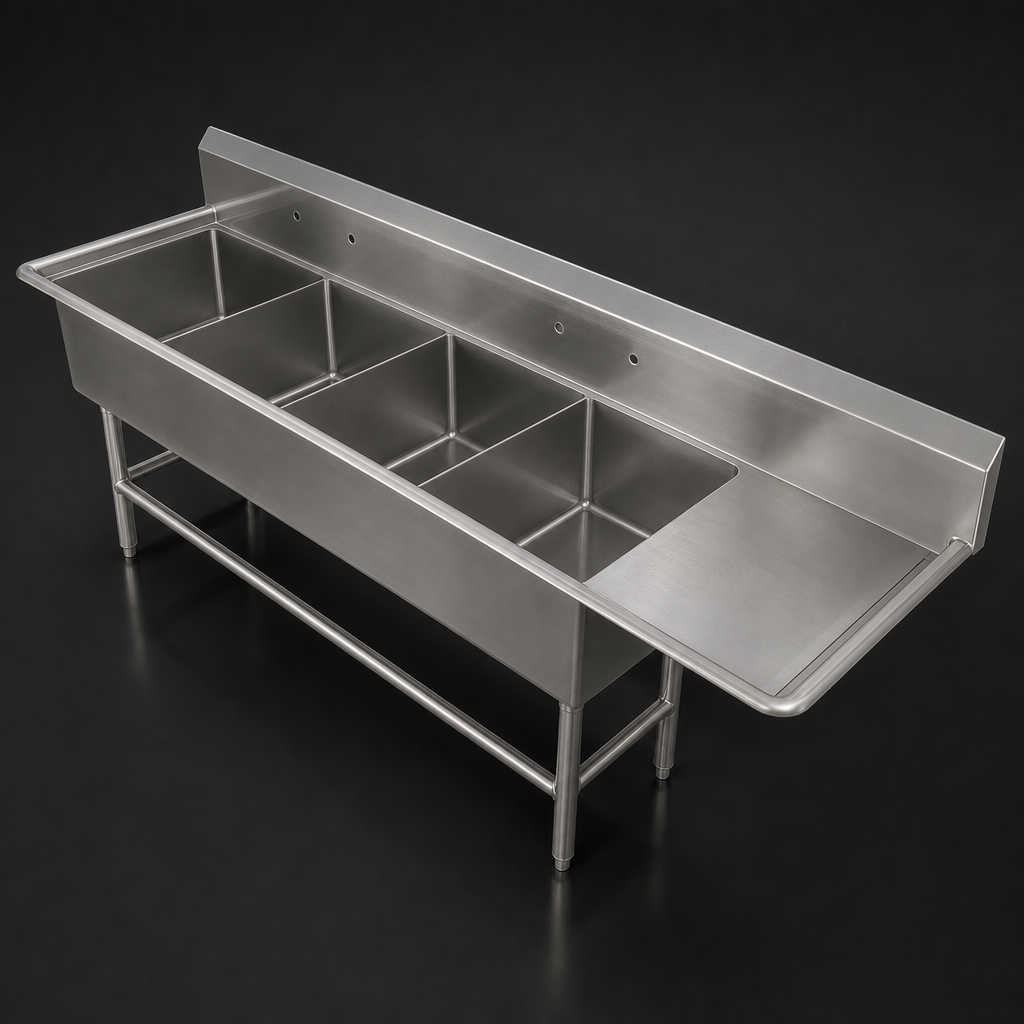

- Four 18" W × 18" F-to-B × 14" D compartments – perfect for wash/rinse/sanitize/soak workflows
- Integrated 30" right drainboard with pitched surface for fast drainage
- 16-gauge, type 300 stainless steel top, bowls & apron with #4 satin finish
- 10" high boxed backsplash with 2" return & easy-clean 45° top edge
- (2) sets of 8"-on-center splash-mount faucet holes (1" diameter) – ready for pre-rinse or add-a-faucet assemblies
- 3-1/2" die-stamped drain openings – fits standard basket strainers & lever waste systems
- Stainless steel base, 1-5/8" O.D. legs, adjustable front & side bracing
- 1" adjustable stainless bullet feet for fast leveling on uneven floors
- NSF & CSA-Sanitation listed for commercial foodservice
- Ships knocked-down (KD) to reduce freight cost; quick bolt-up assembly on-site
At-a-Glance Specifications
| Overall Dimensions | 106 3/16" W × 23 1/2" D × 44 1/16" H (to top of backsplash) |
|---|---|
| Bowl Dimensions (4) | 18" W × 18" F-B × 14" D |
| Drainboard | 30" L (Right side, integrally welded, pitched) |
| Backsplash | 10" H boxed style, 2" return, 45° rolled top |
| Material / Gauge | 16 ga. Type 300 stainless steel (#4 satin) |
| Faucet Holes | (2) splash-mount sets, 8" centers, 1" dia. |
| Drain Openings | 3-1/2" die-stamped (basket strainers not included) |
| Legs & Bracing | Stainless legs, adjustable side & front bracing, 1" bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Shipping | Knocked-down (some assembly required) |
Why Choose John Boos?
- 125+ years of American metal-fabrication expertise
- TIG-welded seams ground & polished to match adjacent surfaces for a professional look
- Bull-nosed exterior corners for worker safety and easy sanitation
- Comprehensive line of compatible pre-rinse units, lever wastes & overshelves
Proper stainless-steel care extends service life – wipe down after each shift and avoid harsh chloride-based cleaners. See the John Boos care guide included with your sink.
