John Boos  |  Pro-Bowl  |  SKU: 4PB184-1D30L

John Boos 4PB184-1D30L Pro-Bowl Compartment Sinks

$3,494.87
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Care & maintenance Instructions
Related Searches
4-compartment Sinks Commercial Plumbing Supplies Commercial Sinks Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

John Boos Pro-Bowl 4-Compartment Sink with 30" Left Drainboard

Model 4PB184-1D30L · NSF & CSA-Sanitation Certified

Built for demanding food-service environments, the John Boos Pro-Bowl series combines heavy-duty stainless-steel construction with ergonomic design to keep your dish line moving smoothly shift after shift.

Key Features

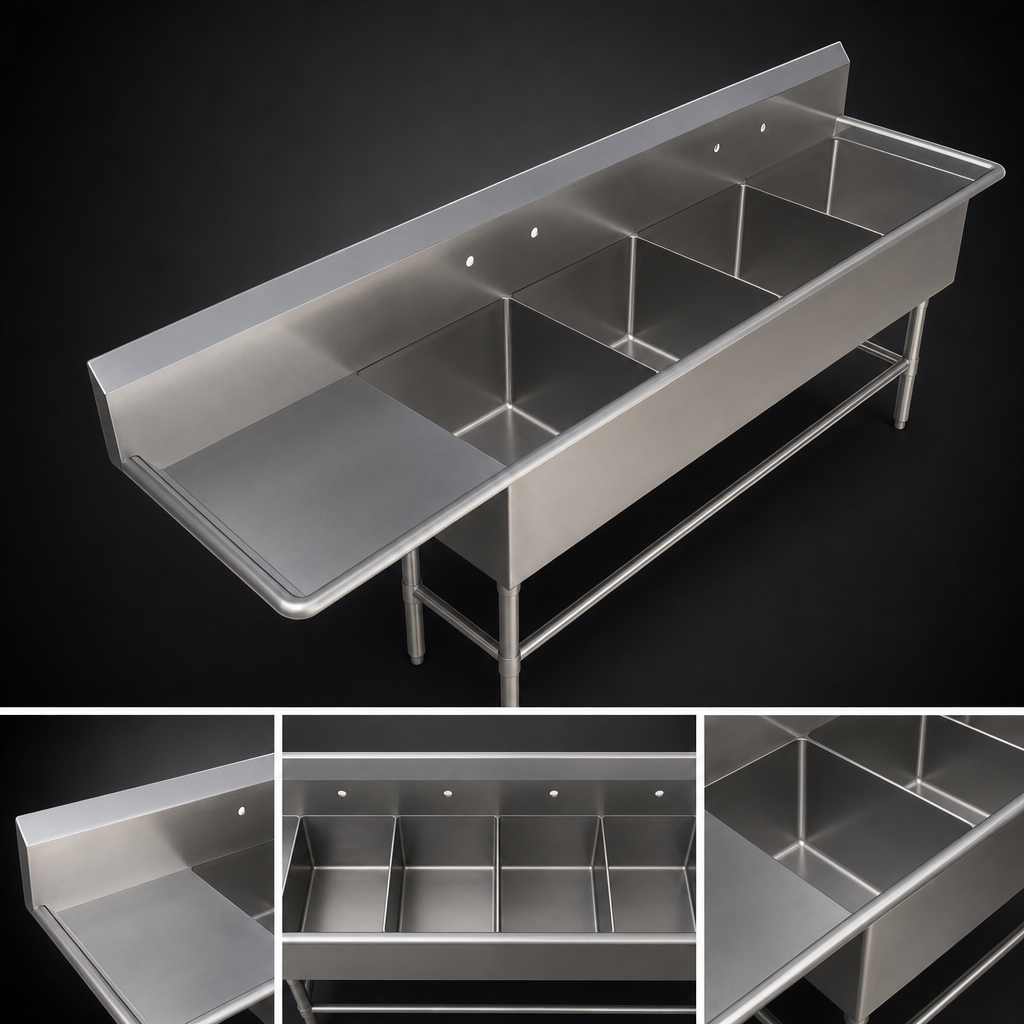

  • Four 18" × 18" × 14" deep compartments for wash, rinse, sanitize & air-dry in one continuous workflow.
  • Generous 30" left-side drainboard speeds up turnaround while keeping worktops dry.
  • 16-gauge, type 300 stainless steel top & bowls with #4 satin polish resist dents, corrosion and harsh cleaners.
  • 10" boxed backsplash with 45° top edge & 2" return protects walls and contains splashes.
  • (2) sets of 8"-on-center faucet holes—ready for pre-rinse units or add-a-faucets (sold separately).
  • 3½" die-stamped drain openings deliver a tight, leak-free fit with common drain assemblies.
  • All vertical & horizontal corners coved to a 5/8" radius for effortless cleaning.
  • Stainless steel legs, adjustable front & side bracing, plus 1" bullet feet provide rock-solid stability and easy leveling.
  • Ships knock-down (KD) for easier delivery through tight doorways; assembles quickly on-site.
Specifications
Overall dimensions 106-3/16" W × 23-1/2" D × 44-1/16" H
Compartments (4) 18" W × 18" F-B × 14" D
Drainboard 30" (left side)
Backsplash 10" boxed, 45° top, 2" return
Faucet mounting (2) splash-mount sets, 8" centers, 1" Ø holes
Material / gauge 16-ga type 300 stainless steel
Construction TIG-welded, exposed welds polished, KD base
Certifications NSF, CSA-Sanitation
Approx. ship weight 158 lb
Perfect For
  • Restaurants, cafés & commissary kitchens
  • Supermarket & butcher prep rooms
  • School, hospital & corporate cafeterias
  • Brewery or distillery glassware stations
Stainless-Steel Care Tips
  • Clean daily with a non-chloride, non-abrasive stainless cleanser (e.g., Bar Keepers Friend).
  • Always wipe in the direction of the grain to maintain the protective chromium oxide film.
  • Rinse and dry after each shift to prevent mineral deposits and surface corrosion.

Need a right-side drainboard, 12"-deep bowls or additional accessories? Contact us for a custom quote.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

106.19in

Depth

23.5in

Shipping Weight

158.0lbs

Splash Height

10"

Top Stainless Series

300 series

Sink Depth (rim - drain)

14"

Compartment (front - back)

18"

Base Type

legs with front & side crossrails

Compartment Width (side - side)

18"

Drainboards

with left-hand drainboard

Base Construction

stainless steel

Top Gauge

16 gauge

Overall Length

98" - 113"

Specifications

Pro-Bowl Sink, 4-compartment, 106-3/16"W x 23-1/2"D x 44-1/16"H overall size, (4) 18"W x 18" front-to-back x 14" deep compartments, (1) 30" left drainboard, 10"H boxed backsplash with 45° top & 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
