John Boos 4PB184-1D24R Pro-Bowl Compartment Sinks
Description

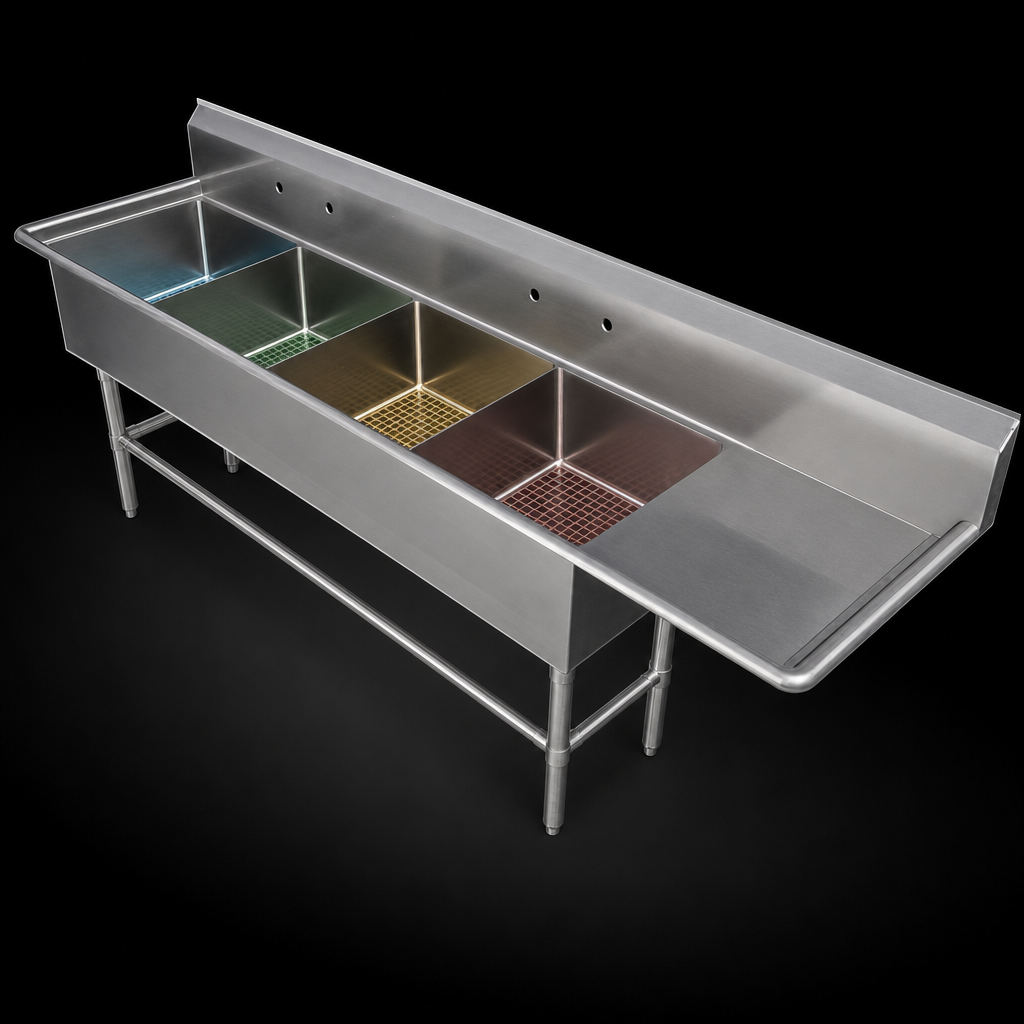

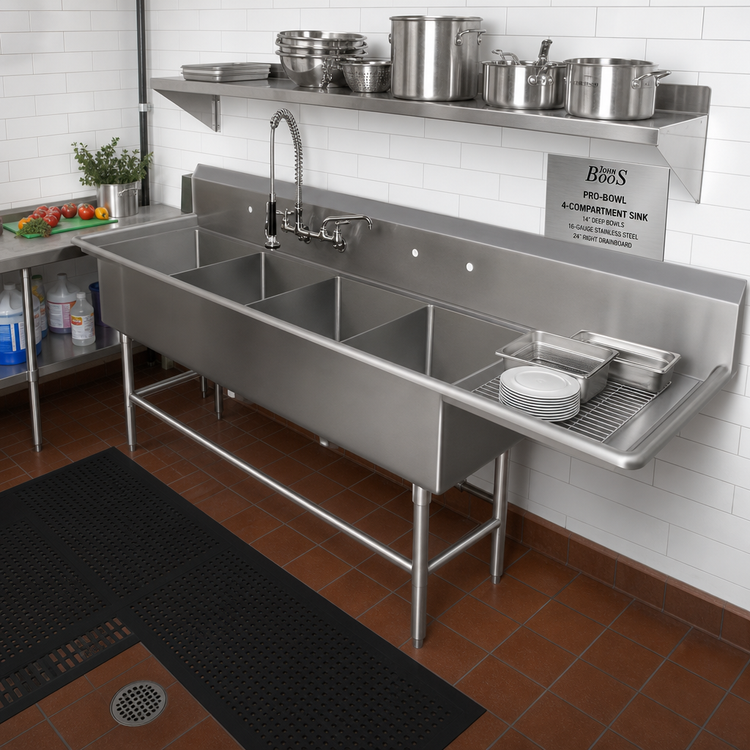

John Boos “Pro-Bowl” 4-Compartment Sink with 24" Right Drainboard
Model 4PB18-1D24R | 16-Gauge Type 300 Stainless SteelBuilt for demanding food-service environments, the John Boos Pro-Bowl delivers four generous wash stations, a spacious drainboard, and the rock-solid durability operators have trusted since 1887.
Key features & benefits
- Four 18" × 18" × 14" deep bowls – ideal for wash, rinse, sanitize, and prep cycles.
- 24" right-side drainboard speeds drying and keeps workflow organized.
- Heavy-duty 16-ga, type 300 stainless steel with easy-to-clean #4 satin finish.
- 10" boxed backsplash with 45° top & 2" return protects surrounding walls.
- (2) sets of 8" O.C. splash-mount faucet holes (1" dia.) – ready for pre-rinse or add-a-faucet assemblies.
- 3-1/2" die-stamped drain openings accept standard strainers or lever wastes.
- 1-5/8" round stainless legs with adjustable front & side bracing for maximum rigidity.
- 1" adjustable bullet feet level the sink on uneven floors.
- All vertical & horizontal corners coved to a 5/8" radius for fast, NSF-approved sanitation.
- Ships knocked down (KD) to cut freight costs and ease transport through doorways.
Technical specifications
| Model | 4PB18-1D24R (right drainboard) |
|---|---|
| Overall dimensions | 100-3/16" W × 23-1/2" D × 44-1/16" H (to top of backsplash) |
| Working height | 36-5/16" to sink roll |
| Compartment size | (4) 18" W × 18" F-to-B × 14" D |
| Drainboard | 24" W, right side |
| Backsplash | 10" H boxed, 2" return |
| Faucet holes | (2) sets, 8" on-center, 1" dia. |
| Drain openings | 3-1/2" dia. die-stamped |
| Material / gauge | 16-ga type 300 stainless steel |
| Finish | #4 satin polish |
| Shipping weight | Approx. 154 lb |
| Certifications | NSF & CSA-Sanitation listed |
Popular accessories (sold separately)
- Pre-rinse units or splash-mount faucets
- Lever waste drains & basket strainers
- Stainless end splashes
- Overshelves & pot racks for extra storage
Care & maintenance
Clean daily with a mild, non-chloride soap and a soft cloth. Avoid abrasive pads, wire brushes, or chlorine bleach. For stubborn stains, apply Bar Keepers Friend® with the grain, rinse thoroughly, and finish with John Boos Stainless Steel Cleaner to restore the satin shine.
