John Boos  |  Pro-Bowl  |  SKU: 4PB18244-1D24R

John Boos 4PB18244-1D24R Pro-Bowl Compartment Sinks

$4,181.14
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

John Boos Pro-Bowl 4-Compartment Sink with 24" Right Drainboard

Model 4PB18244-1D24R  |  Heavy-Duty 16 GA Type 300 Stainless Steel

Designed for high-volume dishrooms and prep areas, the 100" John Boos Pro-Bowl series sink delivers the durability, workflow and sanitation every commercial kitchen demands.

Key Features

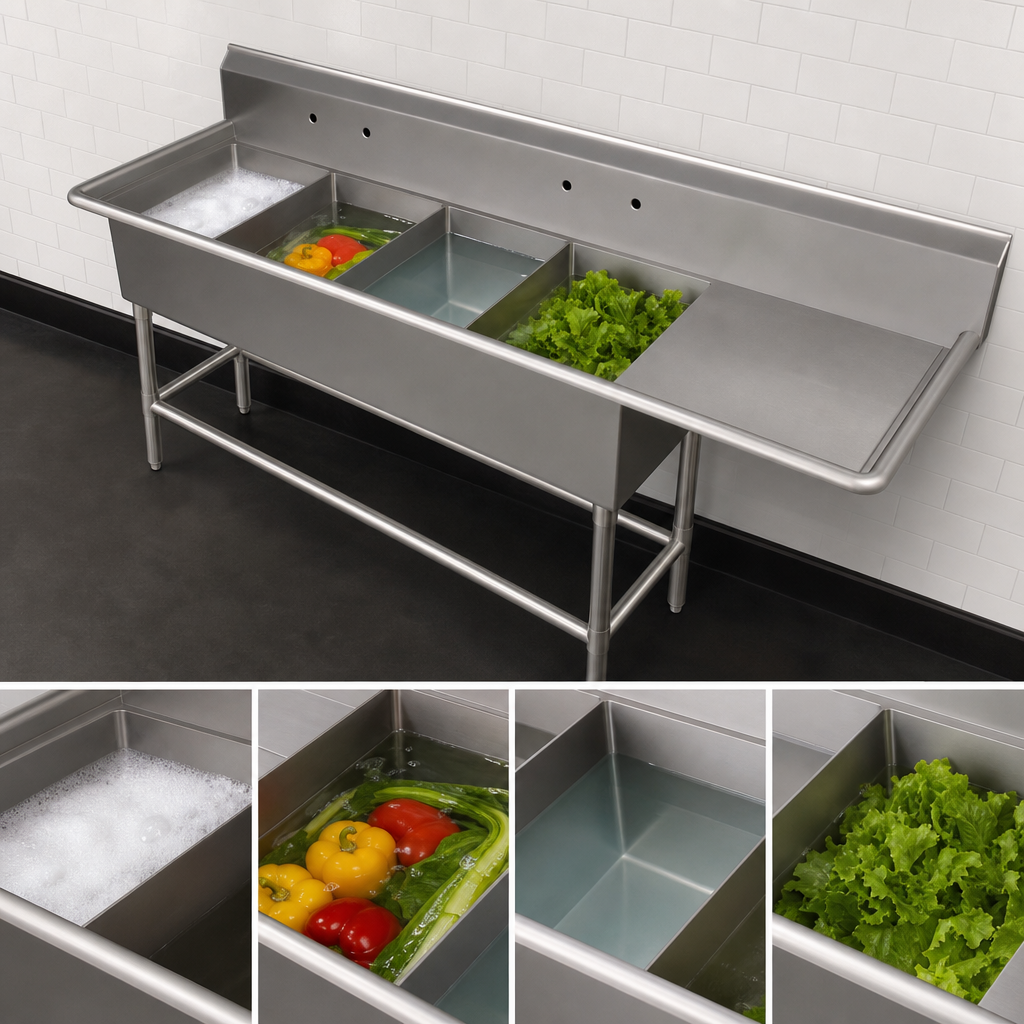

  • (4) 18" W × 24" front-to-back × 14" deep compartments—ideal for wash, rinse, sanitize and soak cycles.
  • Integrated 24" drainboard (right side) slopes toward the bowls for efficient drying.
  • Top & bowls are TIG-welded from 16 GA, type 300 stainless steel with a #4 satin finish.
  • 10" boxed backsplash with 2" return and 45° top helps contain splashes and protects walls.
  • (2) sets of 8"-on-center splash-mount faucet holes for pre-rinse and fill faucets.
  • 3-1/2" die-stamped drain openings accept standard strainers or lever wastes.
  • 1-5/8" O.D. stainless legs with adjustable front & side bracing for rock-solid stability.
  • 1" stainless steel bullet feet level the sink on uneven floors.
  • Bull-nosed outer edges and 5/8" radius interior corners speed cleaning and improve safety.
  • NSF & CSA-Sanitation listed; ships knocked-down (KD) to save on freight.

At-a-Glance Specs

Overall dimensions 100-3/16" W × 29-1/2" D × 44-1/16" H
Number of compartments 4
Bowl size (each) 18" W × 24" F-B × 14" D
Drainboard 24" W (right side)
Backsplash 10" H boxed, 2" return, 45° top
Faucet holes (2) sets, splash-mount, 8" centers
Drain openings 3-1/2" dia. die-stamped
Material / gauge 16 GA Type 300 stainless steel, #4 satin polish
Legs & bracing 1-5/8" O.D. legs; 1-1/4" O.D. adjustable bracing (stainless)
Feet 1" adjustable stainless bullet feet
Certifications NSF, CSA-Sanitation
Shipping Knocked-Down (KD)

Recommended Accessories (Sold Separately)

  • Splash-mount 8"-center faucets or pre-rinse units
  • Lever waste drains & basket strainers
  • End splashes (left, right or both) for extra splash protection
  • Overshelves or pot racks for added storage
Note: Faucets, drains and any pictured accessories are not included unless added to your order.

Maintain your sink’s like-new finish—clean daily with non-chloride cleansers and soft cloths. Refer to the John Boos Stainless Steel Care Guide for full instructions.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

100.19in

Depth

29.5in

Shipping Weight

176.0lbs

Drainboards

with right-hand drainboard

Overall Length

98" - 113"

Splash Height

10"

Top Gauge

16 gauge

Compartment (front - back)

24"

Base Construction

stainless steel

Sink Depth (rim - drain)

14"

Top Stainless Series

300 series

Compartment Width (side - side)

18"

Base Type

legs with front & side crossrails

Specifications

Pro-Bowl Sink, 4-compartment, 100-3/16"W x 29-1/2"D x 44-1/16"H overall size, (4) 18"W x 24" front-to-back x 14" deep compartments, (1) 24" right drainboard, 10"H boxed backsplash with 45° top & 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
