John Boos

John Boos Pro-Bowl 4-Compartment Sink with Left Drainboard, 16-Gauge Stainless Steel

SKU: 4PB1824-1D18L
GTIN: 662969746872
$3,409.56
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

4-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos Pro-Bowl 4-Compartment Sink with Left Drainboard, 16-Gauge Stainless Steel

94-3/16" W x 29-1/2" D x 44-1/16" H; 12" Deep Bowls; 10" Boxed Backsplash

Built for high-volume kitchens, this four-compartment sink combines durable stainless steel construction with a left drainboard and a wall-protecting boxed backsplash.

  • Four 18" x 24" x 12" deep compartments support prep, wash, and rinse workflows.
  • 18" left drainboard adds a convenient landing and drying area.
  • 16-gauge stainless steel construction with a satin finish is built for commercial durability.
  • 10" boxed backsplash with a 45° return helps contain splashes and protect walls.
  • Stainless steel legs, front and side bracing, and adjustable bullet feet provide a stable base.
  • Two sets of 8" OC splash-mount faucet holes and 3-1/2" drain openings simplify installation.

Overall Dimensions:

94.19"W x 29.5"D x 44.06"H

Product Weight:

158.0 lb

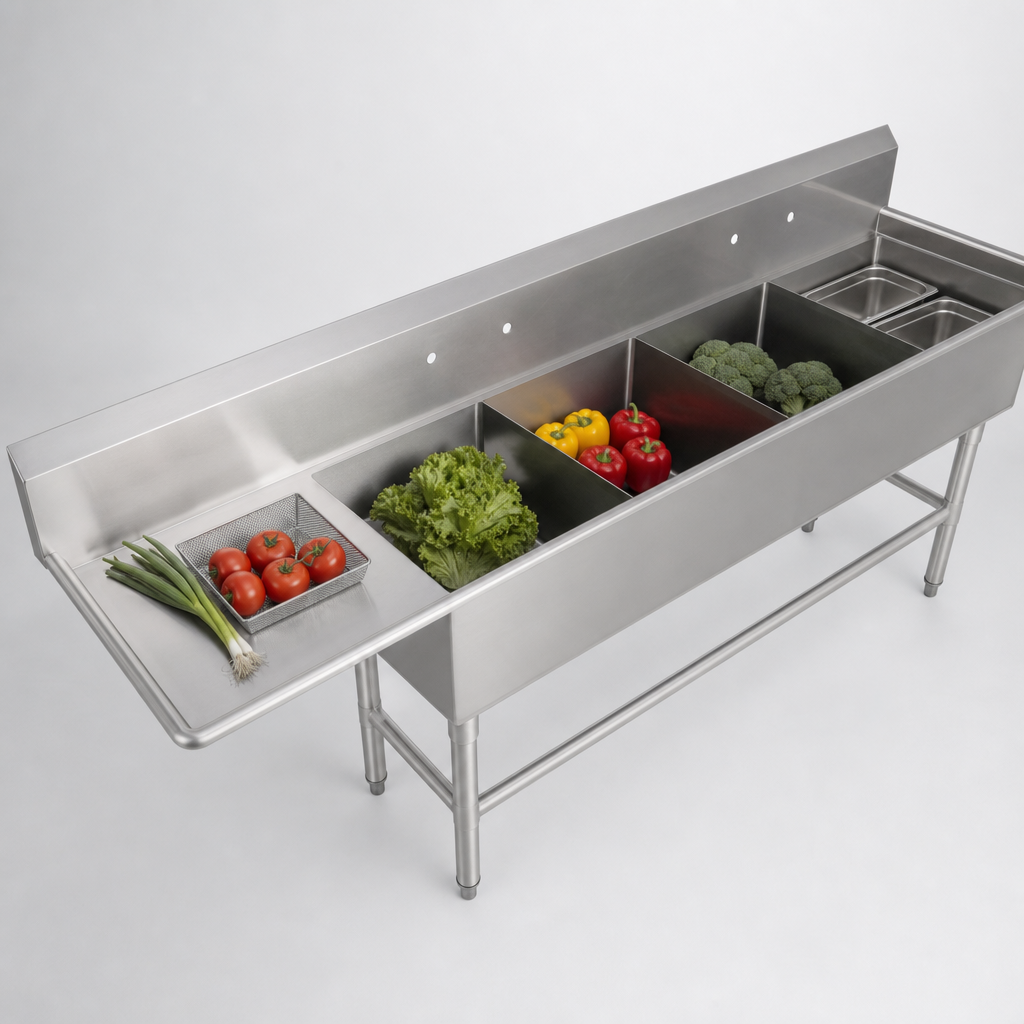

Four Compartment Sink

Provides four separate 18" x 24" work bowls for multi-task foodservice operations.

Left Drainboard

The 18" drainboard gives you extra space for staging, draining, and drying.

16-Gauge Stainless Steel Construction

Heavy-duty stainless steel top and bowls are designed for long service life and easy cleaning.

Coved Bowl Corners

Vertical and horizontal corners are coved at a 5/8" radius to help simplify cleaning.

10" Boxed Backsplash

A full-length backsplash with a 45° top return and rear lip helps reduce wall splatter.

Splash-Mount Faucet Holes

Includes two sets of faucet holes spaced 8" on center for flexible faucet placement.

Die-Stamped Drain Openings

3-1/2" drain openings are formed into the bowl bottoms to promote drainage.

Stainless Steel Base

Stainless steel legs, front and side bracing, gussets, and adjustable bullet feet create a sturdy support frame.

Knock-Down Construction

Ships KD for easier handling and on-site assembly.

Type Compartment Sink
Style Pro-Bowl
Installation Type Floor Model
Compartments 4
Compartment Width 18 Inches
Compartment Depth 24 Inches
Bowl Depth 12 Inches
Drainboard Side Left
Drainboard Length 18 Inches
Backsplash Height 10 Inches
Top Gauge 16 Gauge
Material Stainless Steel
Finish Satin Finish
Base Construction Stainless Steel
Base Type Legs With Front & Side Crossrails
Drain Opening Size 3-1/2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 95 Inches
Shipping Depth 30 Inches
Shipping Height 45 Inches
Shipping Weight 158 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

Each compartment measures 18" wide x 24" front-to-back x 12" deep.
This model has a left-hand drainboard. The series also specifies right-hand versions.
It is built from 16-gauge stainless steel with stainless steel legs and bracing.
The sink includes two sets of splash-mount faucet holes spaced 8" on center, plus 1" faucet holes in the backsplash.
No. It ships knocked down (KD) for assembly on site.
The documents list NSF Sanitation and CSA-Sanitation.
