John Boos

John Boos Pro-Bowl 4-Compartment Stainless Steel Sink with Left Drainboard, 12-Inch Deep Bowls

SKU: 4PB18-1D30L
GTIN: 662969746841
$3,082.86
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

4-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

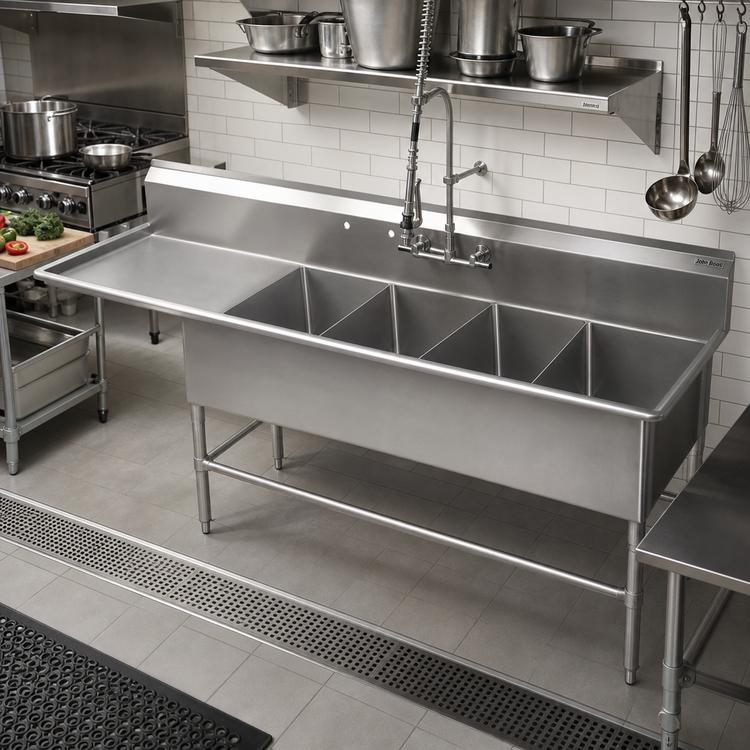

John Boos Pro-Bowl 4-Compartment Stainless Steel Sink with Left Drainboard, 12-Inch Deep Bowls

16-Gauge Type 300 Stainless Steel, 10-Inch Boxed Backsplash, Stainless Steel Base

Designed for high-volume dish areas, this 4-compartment sink combines a roomy left drainboard with durable stainless steel construction and an adjustable stainless base.

  • Four 18" x 18" x 12" deep compartments provide dedicated wash stations for busy operations.
  • 30" left-hand drainboard offers a convenient area for staging and air-drying wares.
  • 10" boxed backsplash with a 45° top and 2" return helps protect the wall from splash.
  • 16-gauge Type 300 stainless steel top is built for durability and long service life.
  • Two sets of 8" on-center splash-mount faucet holes and backsplash faucet holes add installation flexibility.
  • Stainless steel legs, front and side bracing, and adjustable bullet feet provide a stable, level setup.
  • Ships knocked-down for easier handling and installation.

Overall Dimensions:

106.19"W x 23.5"D x 44.06"H

Product Weight:

146.0 lb

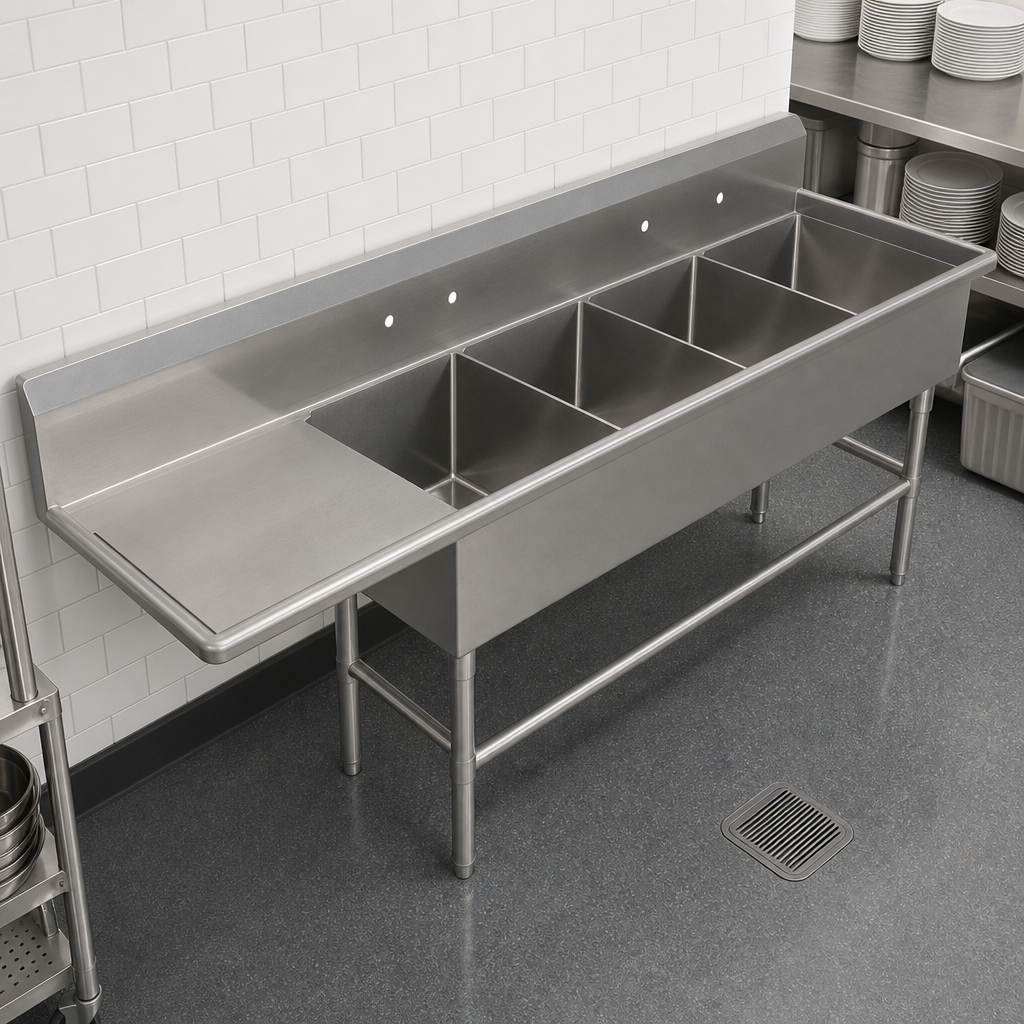

Four-Compartment Layout

Four separate 18" wide by 18" front-to-back bowls help support sorting, soaking, washing, and rinsing tasks.

Left Drainboard

The 30" left-hand drainboard creates a dedicated landing area for clean dishes and utensils.

Boxed Backsplash

A full-length 10" backsplash with a 45° top and 2" return helps control splatter and protect the wall.

Faucet Hole Configuration

Includes two sets of splash-mount faucet holes spaced 8" on-center, plus 1" faucet holes in the backsplash.

Heavy-Duty Stainless Construction

Built from 16-gauge Type 300 stainless steel with a #4 polish satin finish for strength and easy cleaning.

Stable Stainless Base

Stainless steel legs, front and side bracing, gussets, and adjustable bullet feet support a rigid, level installation.

Drainage-Friendly Bowls

Formed bowl bottoms and 3-1/2" die-stamped drain openings promote efficient drainage.

Knocked-Down Shipment

Ships KD to simplify freight handling and jobsite access.

Type Compartment Sink
Style 4-Compartment Sink with Left Drainboard
Installation Type Floor Model
Compartments 4
Compartment Width 18 Inches
Compartment Depth 12 Inches
Drainboard Side Left
Drainboard Length 30 Inches
Splash Height 10 Inches
Top Gauge 16 Gauge
Base Type Legs with Front & Side Crossrails
Material Stainless Steel
Interior Finish 300 Series Stainless Steel
Finish Satin Finish
Selling Unit Each
Units Per Case 1
Shipping Width 107 Inches
Shipping Depth 24 Inches
Shipping Height 45 Inches
Shipping Weight 146 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

Each compartment measures 18" wide by 18" front-to-back by 12" deep.
This model is configured with a left-hand drainboard.
It includes a 10" boxed backsplash with a 45° top and a 2" return to the wall.
The sink has two sets of splash-mount faucet holes spaced 8" on-center, plus 1" faucet holes in the backsplash.
It is built from 16-gauge Type 300 stainless steel with stainless steel legs and bracing.
No. It ships knocked-down (KD).
