John Boos

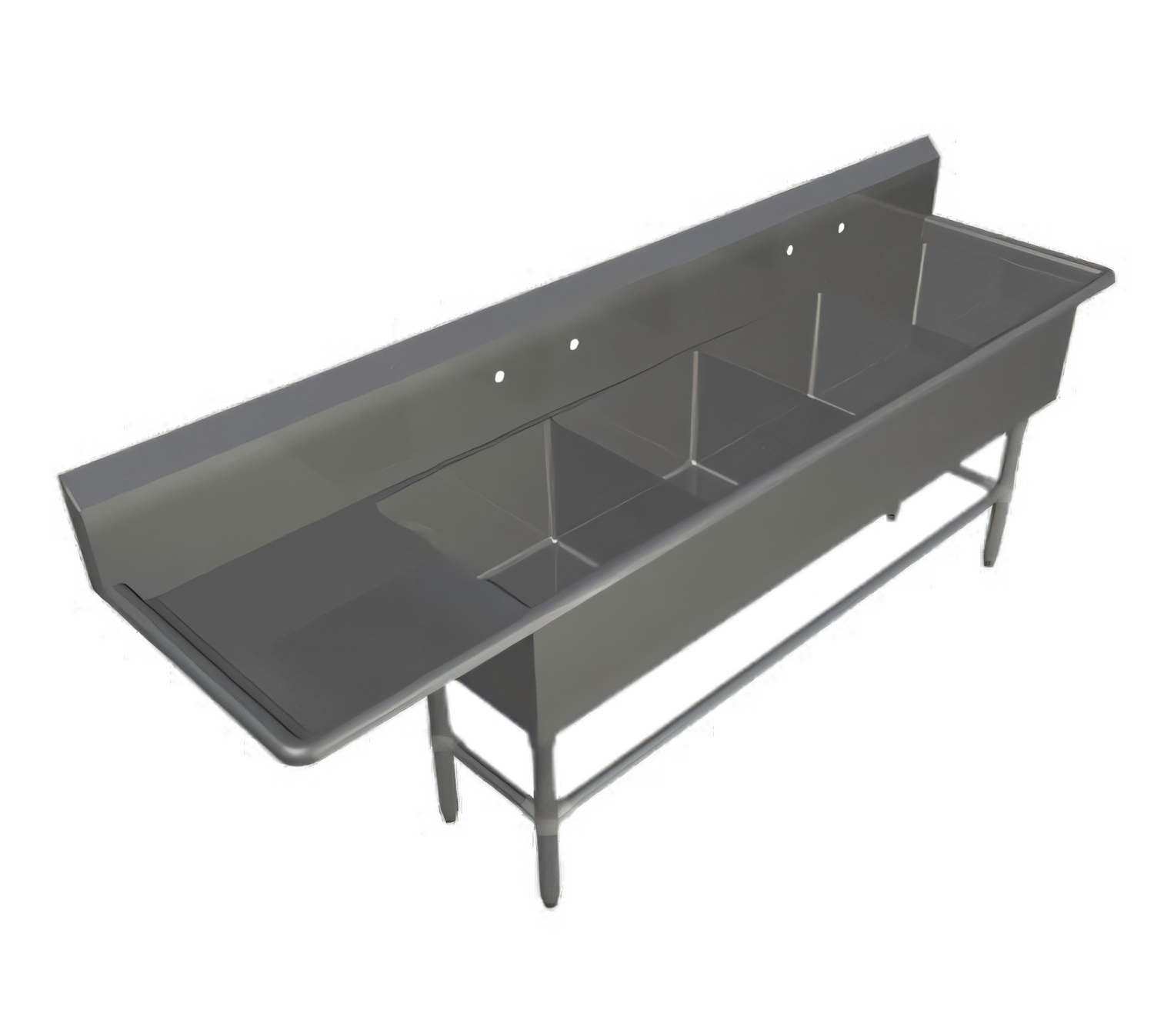

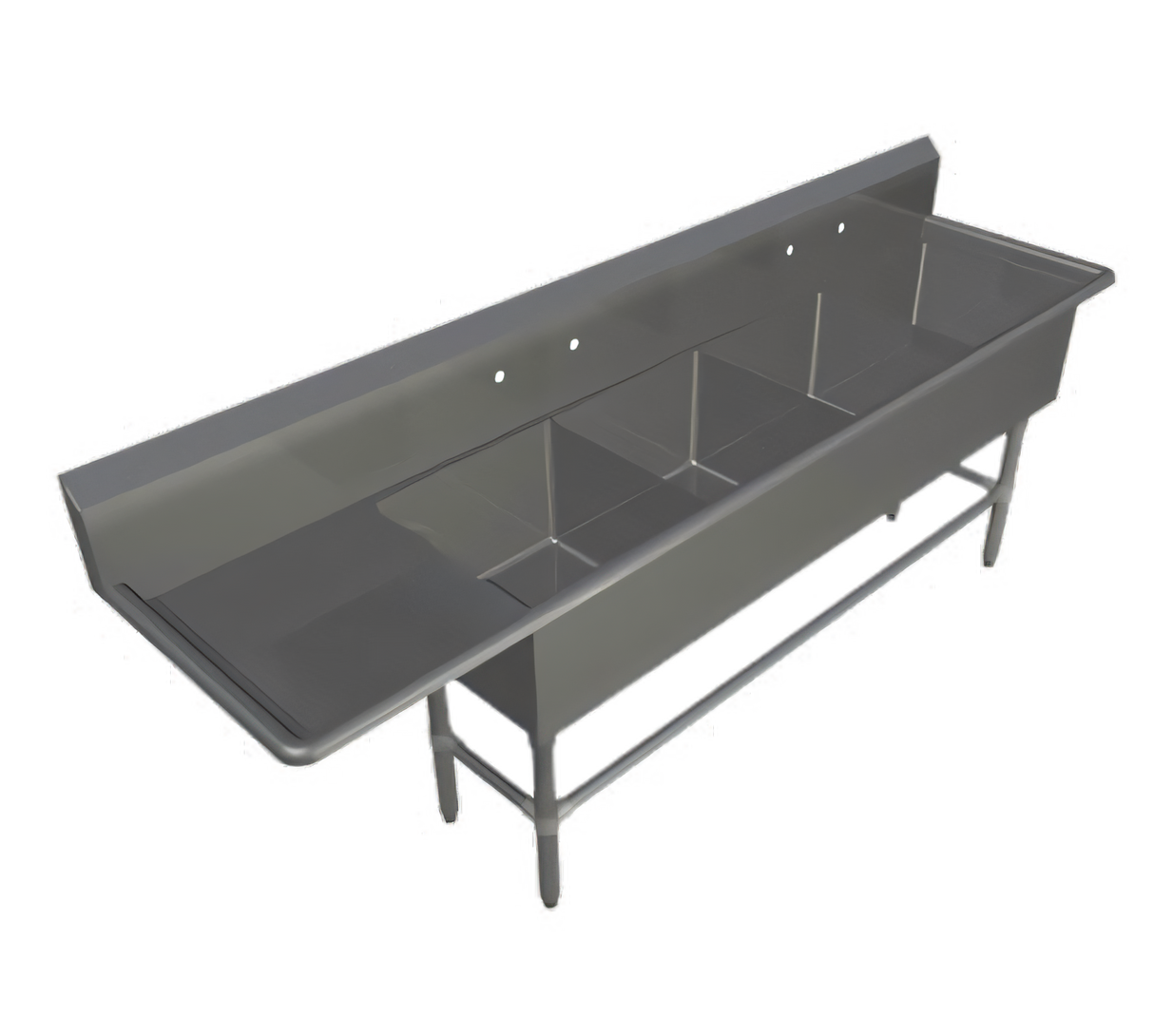

John Boos Pro-Bowl 4-Compartment Stainless Steel Sink with 24-Inch Left Drainboard

SKU: 4PB16204-1D24L
$3,282.84
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

4-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos Pro-Bowl 4-Compartment Stainless Steel Sink with 24-Inch Left Drainboard

16-Gauge, 300 Series Stainless Steel, 10" Boxed Backsplash

Built for busy prep and warewashing stations, this four-compartment sink pairs a generous left drainboard with durable stainless-steel construction.

  • Four 16" x 20" compartments support wash, rinse, soak, and prep workflows.
  • Integrated 24" left drainboard adds a practical landing area for trays, pans, and dishes.
  • 16-gauge Type 300 stainless steel construction is built for demanding commercial use.
  • 10" boxed backsplash and coved bowl corners help improve sanitation and wall protection.
  • Stainless steel legs, bracing, gussets, and adjustable bullet feet provide a stable floor setup.
  • Two sets of splash-mount faucet holes on 8" centers simplify fixture installation.

Overall Dimensions:

92.19"W x 25.5"D x 44.06"H

Product Weight:

151.0 lb

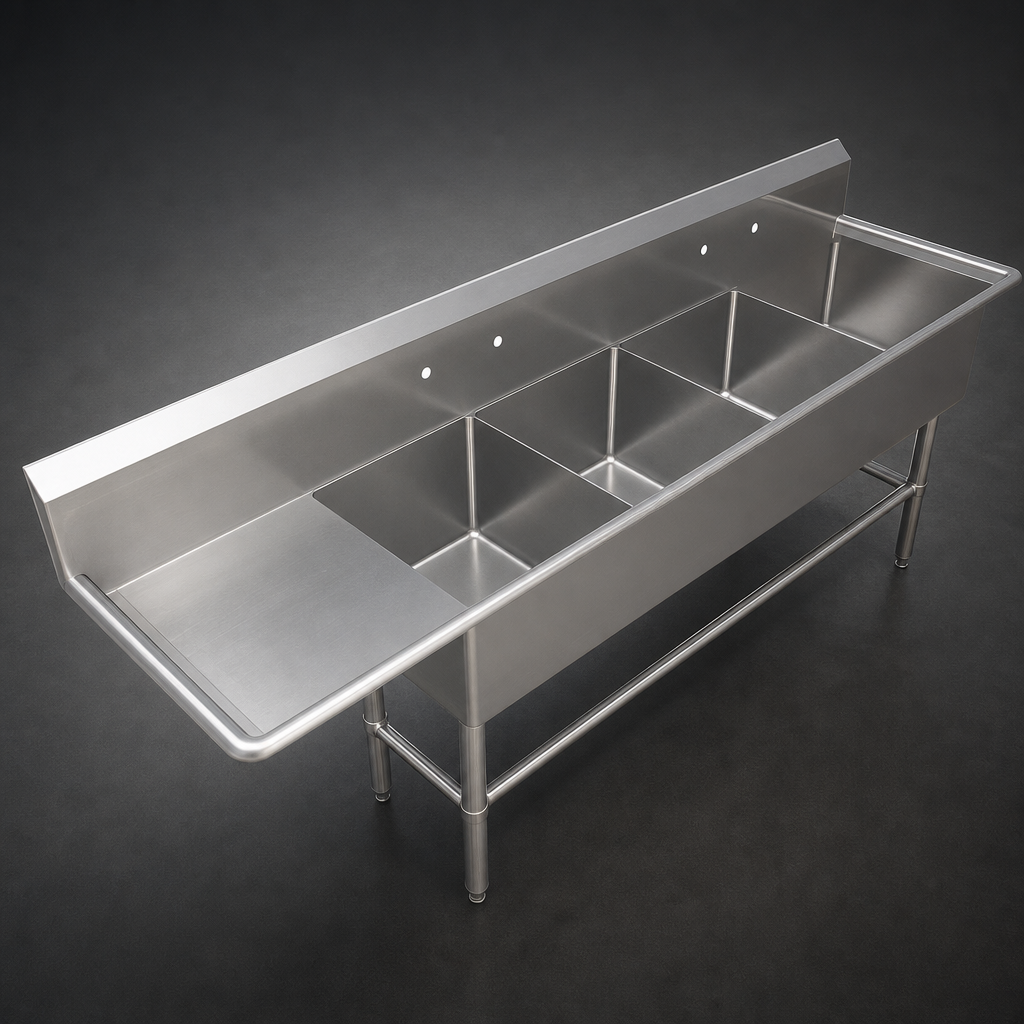

Four-Compartment Layout

Includes four 16" wide x 20" front-to-back x 14" deep compartments for multi-station sink operation.

24-Inch Left Drainboard

Built-in left drainboard provides extra workspace and helps move wet items away from the sink area.

16-Gauge 300 Series Stainless Steel

Top and bowls are made from durable Type 300 stainless steel with a #4 polish, satin finish.

Drain-Friendly Bowl Design

Bowl bottoms are formed for drainage and include 3-1/2" die-stamped drain openings.

10-Inch Boxed Backsplash

Full-length backsplash includes a 45° top return and a 2" return to the wall for splash protection.

Dual Faucet Hole Sets

Includes two sets of splash-mount faucet holes spaced 8" on center, plus 1" faucet holes in the backsplash.

Stainless Steel Support Base

Base includes stainless steel legs, front and side bracing, gussets, and adjustable bullet feet for leveling.

Type 4-Compartment Sink
Style With Left Drainboard
Installation Type Floor Model
Compartments 4
Compartment Width 16 Inches
Compartment Front To Back 20 Inches
Compartment Depth 14 Inches
Drainboard Length 24 Inches
Backsplash Height 10 Inches
Top Gauge 16 Gauge
Faucet Holes 2 Sets
Faucet Hole Spacing 8 Inches On Center
Drain Opening Size 3-1/2 Inches
Material 300 Series Stainless Steel
Finish Satin Finish
Base Type Legs With Front And Side Bracing
Base Construction Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 93 Inches
Shipping Depth 26 Inches
Shipping Height 45 Inches
Shipping Weight 151 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

Each compartment measures 16" wide x 20" front-to-back x 14" deep.
This model is configured with a 24" left drainboard.
It is made with 16-gauge Type 300 stainless steel and a stainless steel base.
The sink includes two sets of splash-mount faucet holes on 8" centers and 1" faucet holes in the backsplash.
Available accessories listed in the document include end splashes, faucets, add-a-faucets, pre-rinse units, lever waste, overshelves, and pot racks.
