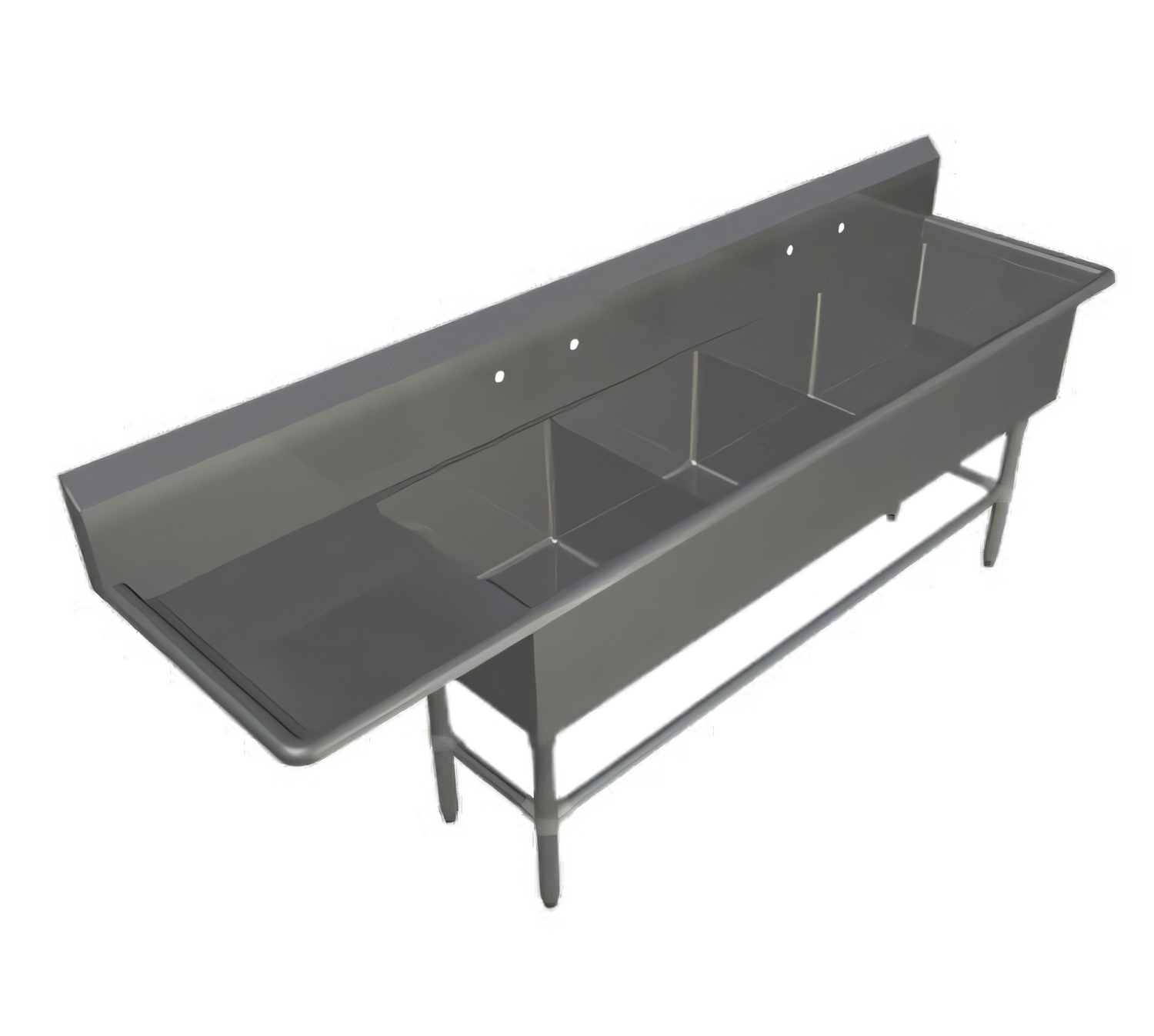

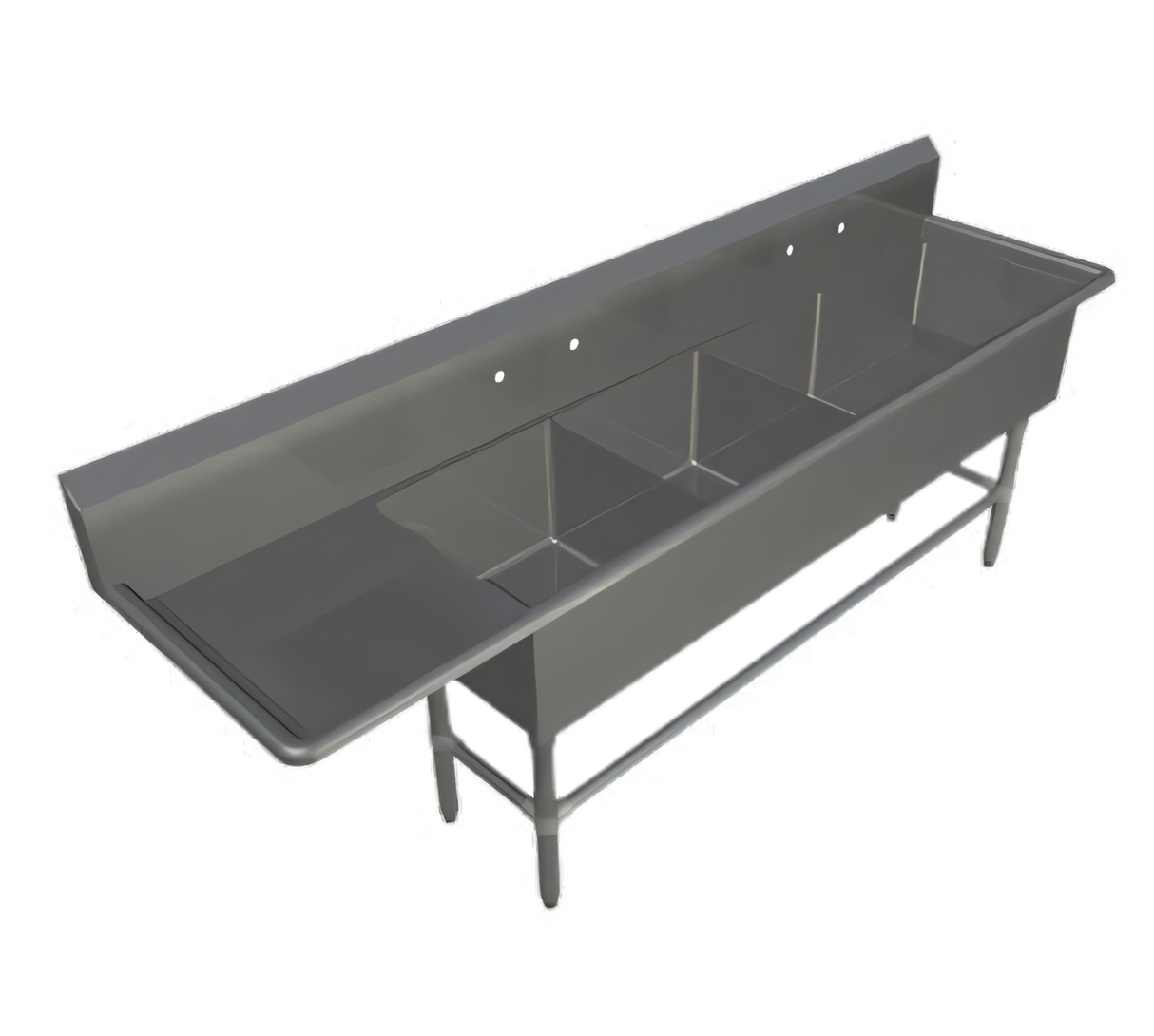

John Boos Pro-Bowl 4-Compartment Floor Model Sink with Left Drainboard, 86-3/16"W x 25-1/2"D, 16-Gauge Stainless Steel

SKU: 4PB16204-1D18L
$3,203.64
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

4-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos Pro-Bowl 4-Compartment Floor Model Sink with Left Drainboard, 86-3/16"W x 25-1/2"D, 16-Gauge Stainless Steel

14" Deep Bowls, Stainless Steel Legs, 10" Boxed Backsplash

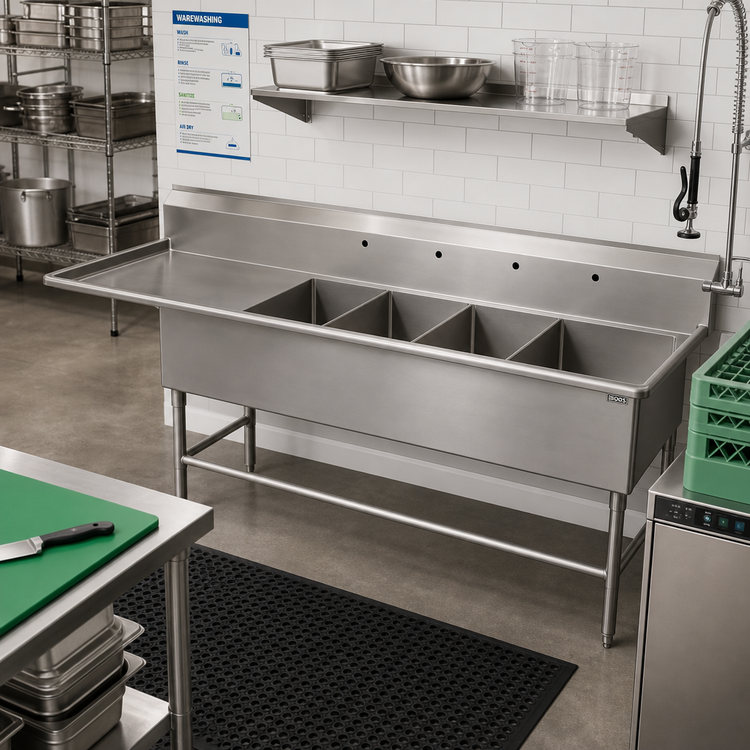

Built for high-volume wash and prep areas, this Pro-Bowl sink combines four deep compartments, a left-hand drainboard, and durable 16-gauge stainless steel construction.

  • Four 16" W x 20" front-to-back compartments with 14" deep bowls support heavy-duty dishwashing and prep tasks.
  • Left-hand 18" drainboard provides landing space for drying, staging, and sorting.
  • 16-gauge Type 300 stainless steel top with a satin #4 polish finish is built for commercial durability.
  • 10" boxed backsplash with a 45° top and 2" return helps protect walls from splash.
  • Two sets of splash-mount faucet holes on 8" centers support standard sink faucet installations.
  • Stainless steel legs, front and side bracing, and adjustable bullet feet provide stable floor support.

Overall Dimensions:

86.19"W x 25.5"D x 44.06"H

Product Weight:

147.0 lb

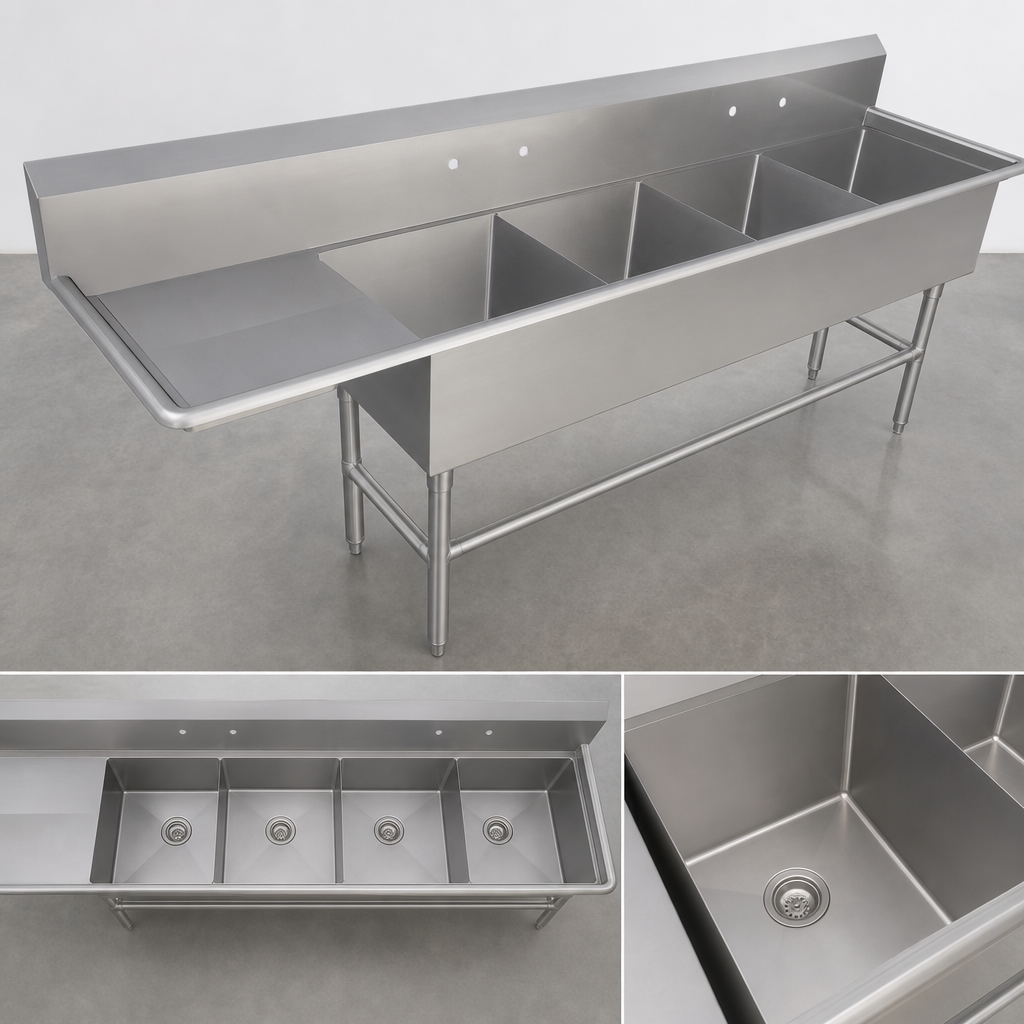

Four-Compartment Layout

Provides four separate wash stations, each measuring 16" wide by 20" front-to-back and 14" deep.

Left-Hand Drainboard

Includes an 18" left drainboard for drainage, staging, and drying space.

16-Gauge Type 300 Stainless Steel Top

Commercial-grade stainless steel construction offers durability for demanding foodservice use.

10-Inch Boxed Backsplash

The backsplash includes a 45° top and 2" return to help reduce wall splashes.

Faucet Hole Configuration

Features two sets of splash-mount faucet holes on 8" centers plus 1" faucet holes in the backsplash.

Drain-Focused Bowl Design

Formed bowl bottoms and 3-1/2" die-stamped drain openings help move water efficiently.

Stainless Steel Base Support

Built with stainless steel legs, front and side bracing, gussets, and adjustable bullet feet for stable support.

Sanitation Listed

Listed for NSF sanitation and CSA-Sanitation use.

Type Compartment Sink
Style 4-Compartment
Installation Type Floor Model
Material Stainless Steel
Finish #4 Polish Satin Finish
Compartments 4
Compartment Width 16 Inches
Compartment Depth 20 Inches
Bowl Depth 14 Inches
Drainboard Side Left
Drainboard Length 18 Inches
Top Gauge 16 Gauge
Backsplash Height 10 Inches
Drain Opening Size 3-1/2 Inches
Base Type Legs With Front And Side Bracing
Selling Unit Each
Units Per Case 1
Shipping Width 87 Inches
Shipping Depth 26 Inches
Shipping Height 45 Inches
Shipping Weight 147 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

This model has a left-hand drainboard. The specification sheet notes that left (L) or right (R) must be specified for the drainboard side.
It has four compartments, each 16" wide x 20" front-to-back x 14" deep.
The sink includes a 10" boxed backsplash with a 45° top and 2" return, plus two sets of splash-mount faucet holes on 8" centers and 1" faucet holes in the backsplash.
It is constructed from 16-gauge Type 300 stainless steel with stainless steel legs and bracing.
The compartments have 3-1/2" die-stamped drain openings.
The documents note that dimensions are typical and may vary by +/- 0.500 inch.
