John Boos  |  Pro-Bowl  |  SKU: 4PB1620-2D24  |  UPC: 662969741297

John Boos 4PB1620-2D24 Pro-Bowl Compartment Sinks

$3,587.84
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

John Boos Pro-Bowl 4-Compartment Sink – 4PB1620-2D24

115-1/4" W x 25-1/2" D with twin 24" drainboards

Engineered for high-volume food-service operations, the Pro-Bowl delivers four generous wash basins, dual drainboards and rugged 16-gauge stainless-steel construction – everything you need to keep dish, prep and sanitizing lines moving smoothly.

Key Features & Benefits

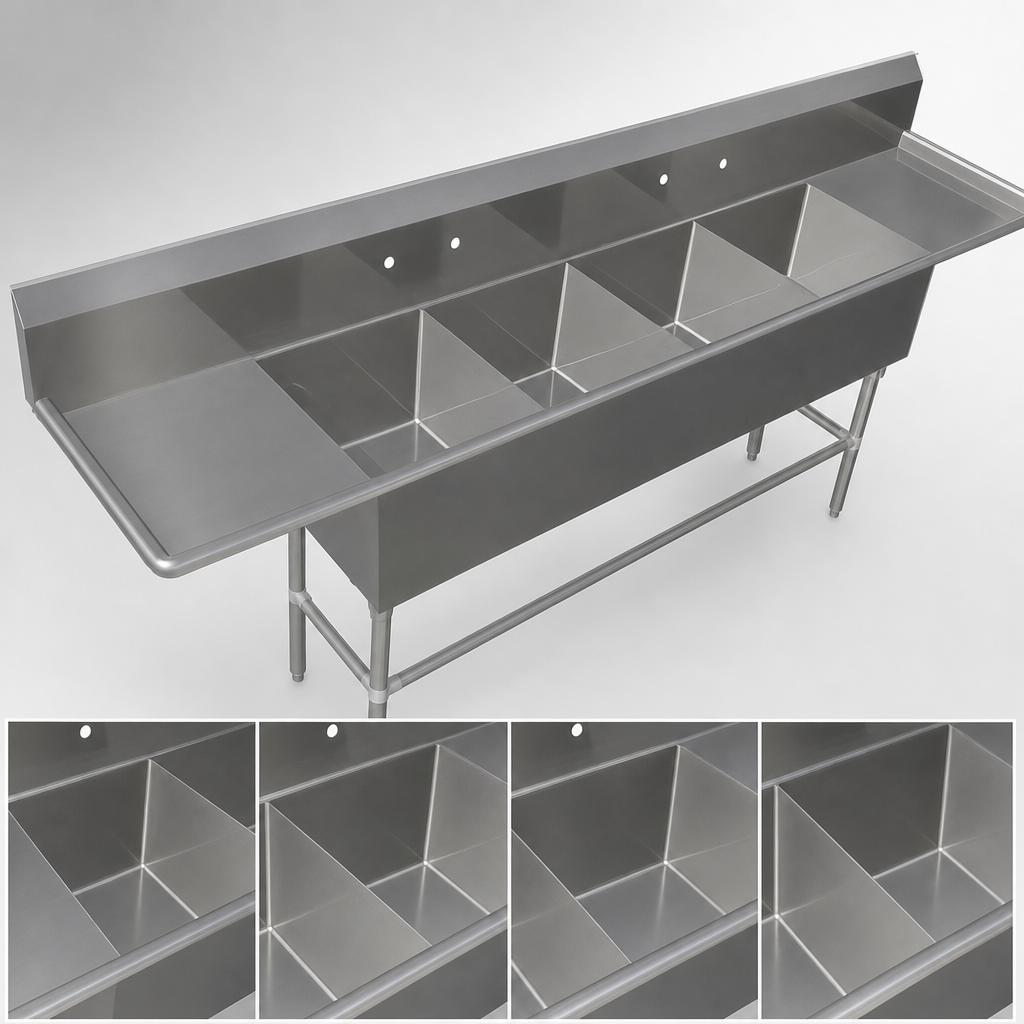

  • (4) 16" W × 20" F-B × 12" D compartments for efficient wash, rinse, sanitize & prep work.
  • 24" left & right drainboards supply ample staging and drying real estate.
  • 16-ga. Type 300 stainless steel top, bowls & apron resist corrosion, dents and chemicals.
  • 10" boxed backsplash with 45° top & 2" return keeps surrounding walls dry and clean.
  • (2) sets of splash-mount faucet holes, 8" on-center, let you equip both pairs of bowls.
  • 3-1/2" die-stamped drain openings fit standard basket strainers for fast water evacuation.
  • Stainless steel 1-5/8" O.D. legs with adjustable front & side bracing add rock-solid stability.
  • 1" stainless bullet feet level the sink on uneven floors in seconds.
  • Ships knock-down (KD) so it glides through tight hallways and assembles quickly on site.
  • NSF & CSA-Sanitation listed for worry-free code compliance.

Specifications

Model 4PB1620-2D24 (Pro-Bowl Series)
Overall size 115-1/4" W × 25-1/2" D × 44-1/16" H (to top of backsplash)
Compartment size (4) 16" W × 20" F-B × 12" D
Drainboards (2) 24" L – left & right
Backsplash 10" H boxed, 45° top, 2" return
Faucet holes (2) sets, 1" Ø, 8" on-center
Drain openings 3-1/2" Ø die-stamped
Material 16-ga Type 300 series stainless steel, #4 satin polish
Legs / bracing Stainless 1-5/8" O.D. legs & 1-1/4" O.D. adjustable bracing
Feet 1" adjustable stainless steel bullet feet
Certifications NSF, CSA-Sanitation
Ship weight Approx. 156 lb (knock-down)

Looking for faucets, lever wastes, end splashes or overshelves? Compatible John Boos accessories are available in the “Add-Ons” tab.

Care & Maintenance

  • Wipe daily with mild soap & warm water using a soft towel or plastic scouring pad.
  • Always clean in the direction of the grain to preserve the satin finish.
  • Avoid chlorine bleach & harsh abrasives; they can damage the protective chromium film.
  • Restore luster periodically with John Boos Stainless Steel Cleaner or Bar Keepers Friend.
Install Tip: Leave clearance behind the 2" backsplash return for 1/2" water-supply and waste lines when planning rough-in plumbing.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

115.25in

Depth

25.5in

Shipping Weight

156.0lbs

Compartment Width (side - side)

16"

Top Gauge

16 gauge

Splash Height

10"

Base Construction

stainless steel

Overall Length

114" - 129"

Top Stainless Series

300 series

Sink Depth (rim - drain)

12"

Base Type

legs with front & side crossrails

Drainboards

with left & right-hand drainboards

Compartment (front - back)

20"

Specifications

Pro-Bowl Sink, 4-compartment, 115-1/4"W x 25-1/2"D x 44-1/16"H overall size, (4) 16"W x 20" front-to-back x 12" deep compartments, (2) 24" left & right drainboard, 10"H boxed backsplash with 45° top & 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
