John Boos 4PB1620-1D24L Pro-Bowl Compartment Sinks
Description
John Boos Pro-Bowl 4-Compartment Sink with 24" Left Drainboard
Model 4PB1620-1D24L | 92-3/16" W x 25-1/2" D x 44-1/16" H | NSF & CSA-SanitationEngineered for heavy-duty foodservice duty, the John Boos Pro-Bowl series combines robust 16-gauge stainless steel construction with smart, labor-saving features that keep prep and cleanup moving at peak speed.
Key Features

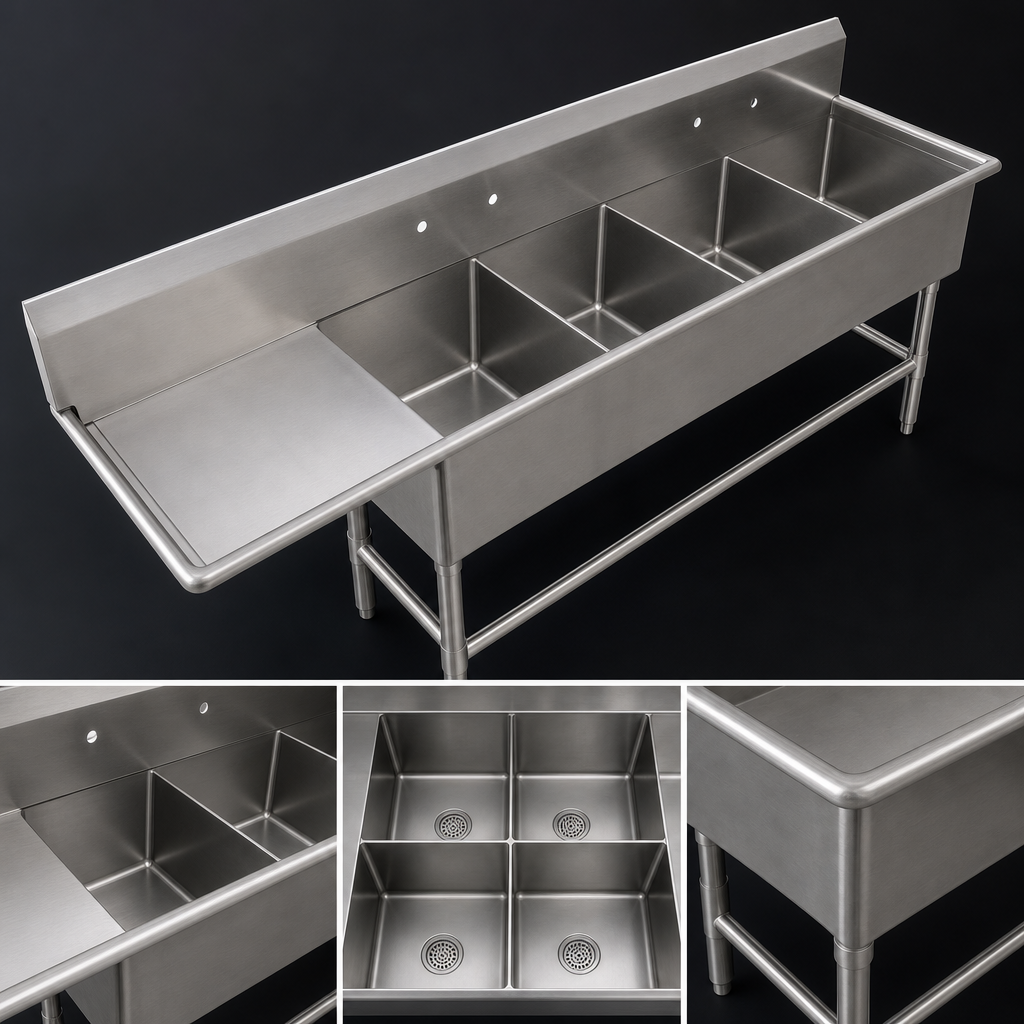

- Four 16" W x 20" front-to-back x 12" deep compartments—perfect for wash, rinse, sanitize & soak.
- Generous 24" left-side drainboard provides ample landing space for dirty or cleanware.
- 16-gauge Type 300 stainless steel top & bowls with #4 satin polish for long-lasting corrosion resistance.
- 10" boxed backsplash with 45° top and 2" return keeps water inside the sink, not on your walls.
- (2) sets of 8" on-center splash-mount faucet holes accommodate pre-rinse or deck faucets (sold separately).
- 3-1/2" die-stamped drain openings fit standard basket strainers or lever wastes.
- 1-5/8" round stainless legs, adjustable front & side bracing, and bullet feet deliver rock-solid stability on uneven floors.
- Bull-nosed outside edges for operator safety and faster wipe-downs.
- Ships knocked-down (KD) for lower freight costs and easy on-site assembly.
Specifications
| Overall dimensions (W × D × H) | 92-3/16" × 25-1/2" × 44-1/16" |
|---|---|
| Compartment size (4) | 16" W × 20" F/B × 12" D |
| Drainboard | 24" (left side) |
| Backsplash | 10" H boxed, 45° top, 2" return |
| Faucet holes | (2) sets, 1" dia., 8" centers |
| Material / finish | 16-ga Type 300 stainless steel / #4 satin |
| Drain openings | 3-1/2" die-stamped |
| Legs & feet | Stainless legs with adjustable bracing & bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Ship configuration | Knocked-Down (KD) |
Built by John Boos—Trusted Since 1887
- TIG-welded seams are polished smooth for a sanitary finish.
- All outside corners are bull-nosed for a safe, professional edge.
- Made in the USA and backed by a century-plus reputation for quality.
Popular Add-Ons (sold separately)
- Splash-mount faucets or add-a-faucet assemblies
- Lever waste drains & basket strainers
- End splashes, overshelves & pot racks
- John Boos Stainless Steel Cleaner & Care Kit
Care & Maintenance
Wipe down daily with non-chloride cleaner and a soft cloth or plastic scouring pad—always in the direction of the polish lines. Rinse thoroughly and dry to preserve the stainless steel’s protective film. Avoid abrasive cleaners, steel wool or chlorine bleach.
