John Boos 4CB4R10-3096-R Bar Equipment
Description

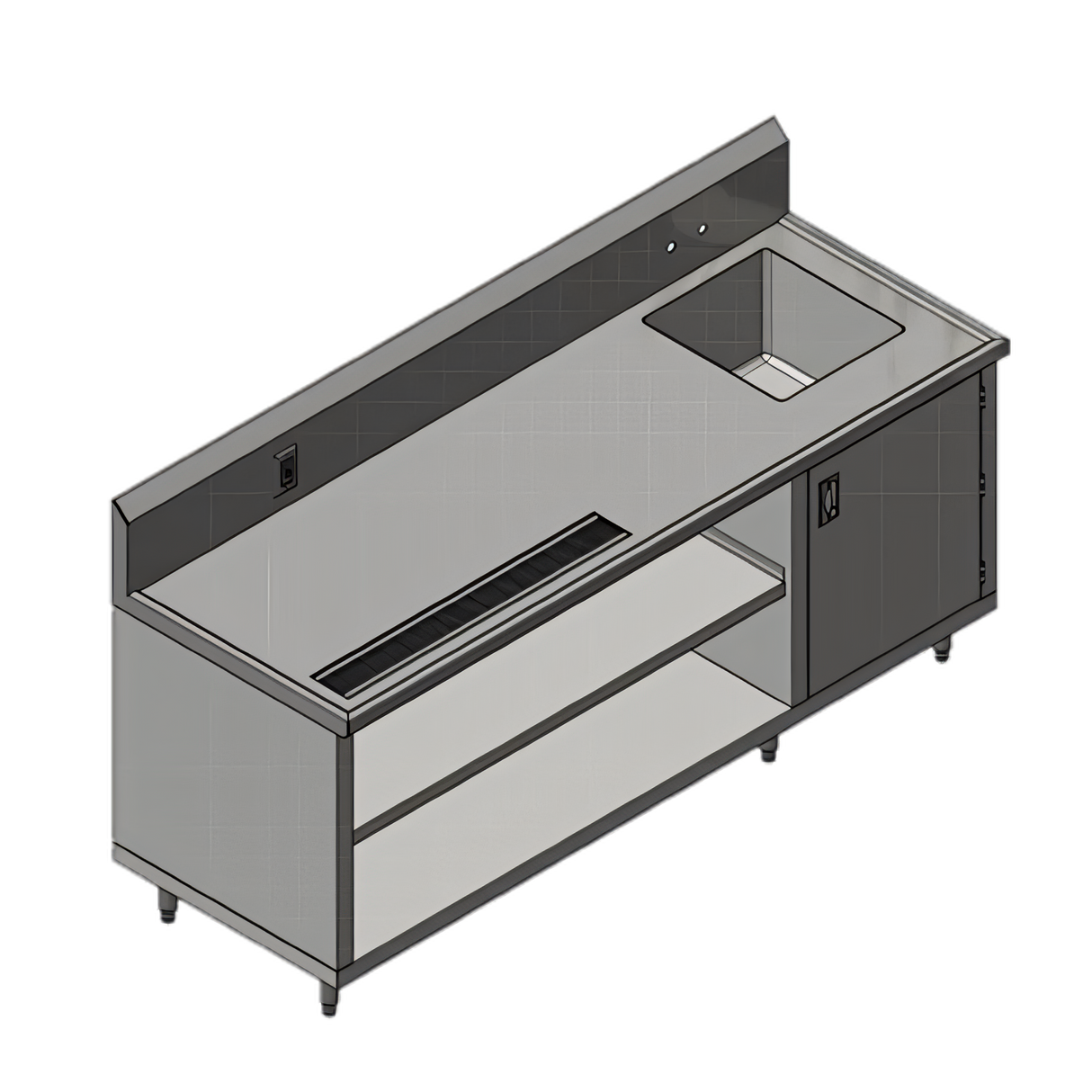

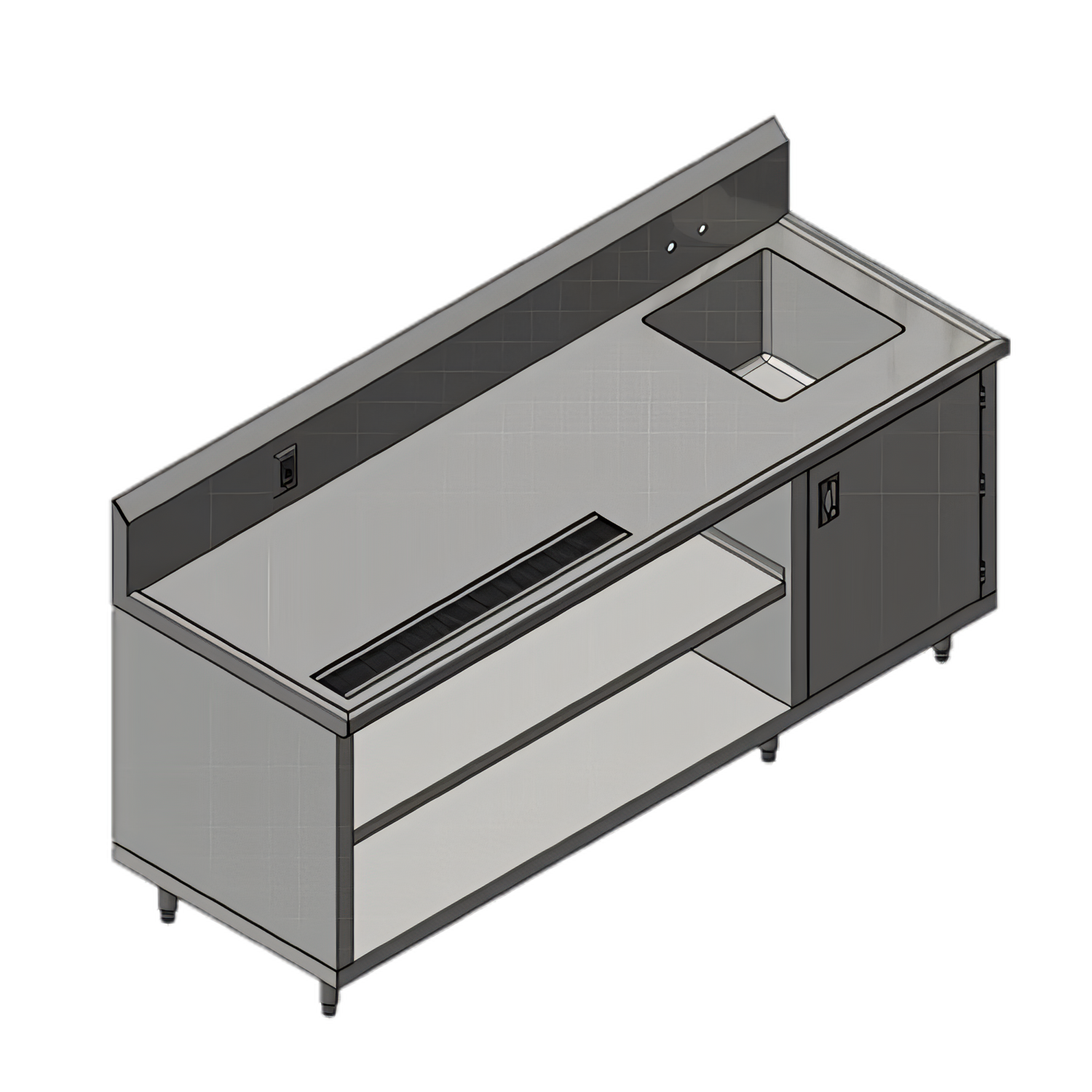

John Boos 4CB4R10-3096-R Beverage Table – 96" Cabinet Base, Right-Hand Sink
14 ga Type 300 Stainless Steel Top • Open Front • NSF ListedDesigned for high-volume drink service, this 96" John Boos beverage table combines a heavy-duty stainless work surface, integrated urn trough and right-hand sink into one seamless, ready-to-install station. From coffee shops to banquet halls, it delivers the rugged performance and smart details professionals demand.
Key Features
- 14 ga Type 300 stainless steel top with #4 satin polish for superior strength and easy sanitation
- 10" high backsplash with non-drip marine edge protects walls and counters
- 1-½" Stallion Safety Edge on front; square turndown ends align cleanly with adjoining equipment
- 18" × 18" × 12" deep sink (right side) with 4" O.C. splash-mount faucet holes & 3-½" drain opening
- 36" urn trough with removable louvered grate and 2" drain—ideal for coffee and tea brewers
- Cabinet base with open front plus hinged door in front of sink compartment for concealed storage
- Adjustable intermediate shelf maximizes undercounter organization
- 20 A, 120 V single-phase duplex outlet pre-mounted in backsplash for grinders, blenders or POS devices
- 18 ga Type 430 stainless steel body wrap, stainless legs & adjustable bullet feet for rock-solid stability
- TIG-welded construction ships fully welded and ready to install
Perfect For
- Coffee & espresso service stations
- Hotel, casino or cafeteria beverage lines
- Back-bar glass rinse & garnish prep
- Juice, smoothie or cocktail build stations
Specifications
| Model | 4CB4R10-3096-R |
|---|---|
| Overall Dimensions | 96" W × 30" D × 45-3/4" H (36" working height) |
| Top Material / Thickness | 14 ga Type 300 stainless steel |
| Backsplash | 10" high with marine edge & duplex outlet |
| Front Edge | 1-½" Stallion Safety Edge |
| Sink Bowl | 18" W × 18" F-B × 12" D, right side, 3-½" drain |
| Faucet Holes | (2) splash-mount, 4" centers (faucet sold separately) |
| Urn Trough | 36" length with louvered grate & 2" drain |
| Body / Legs | 18 ga Type 430 stainless wrap; stainless legs with adjustable feet |
| Storage | (1) adjustable intermediate shelf; hinged door in front of sink |
| Electrical | (1) 120 V, 20 A, 1-ph duplex outlet (field wired) |
| Certifications | NSF Listed |
| Shipping Weight | Approx. 400 lb |
Why Choose John Boos?
- Made in the USA since 1887
- TIG-welded seams polished to match #4 finish for a clean, sanitary look
- Industry-leading lead times and customer support
Need a left-hand sink, extra outlets or custom length? Contact us—John Boos can factory-modify to meet your exact workflow.
