John Boos 4CB4R10-3096-L Bar Equipment
John Boos 4CB4R10-3096-L Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos 4CB4R10-3096-L Bar Equipment
Description

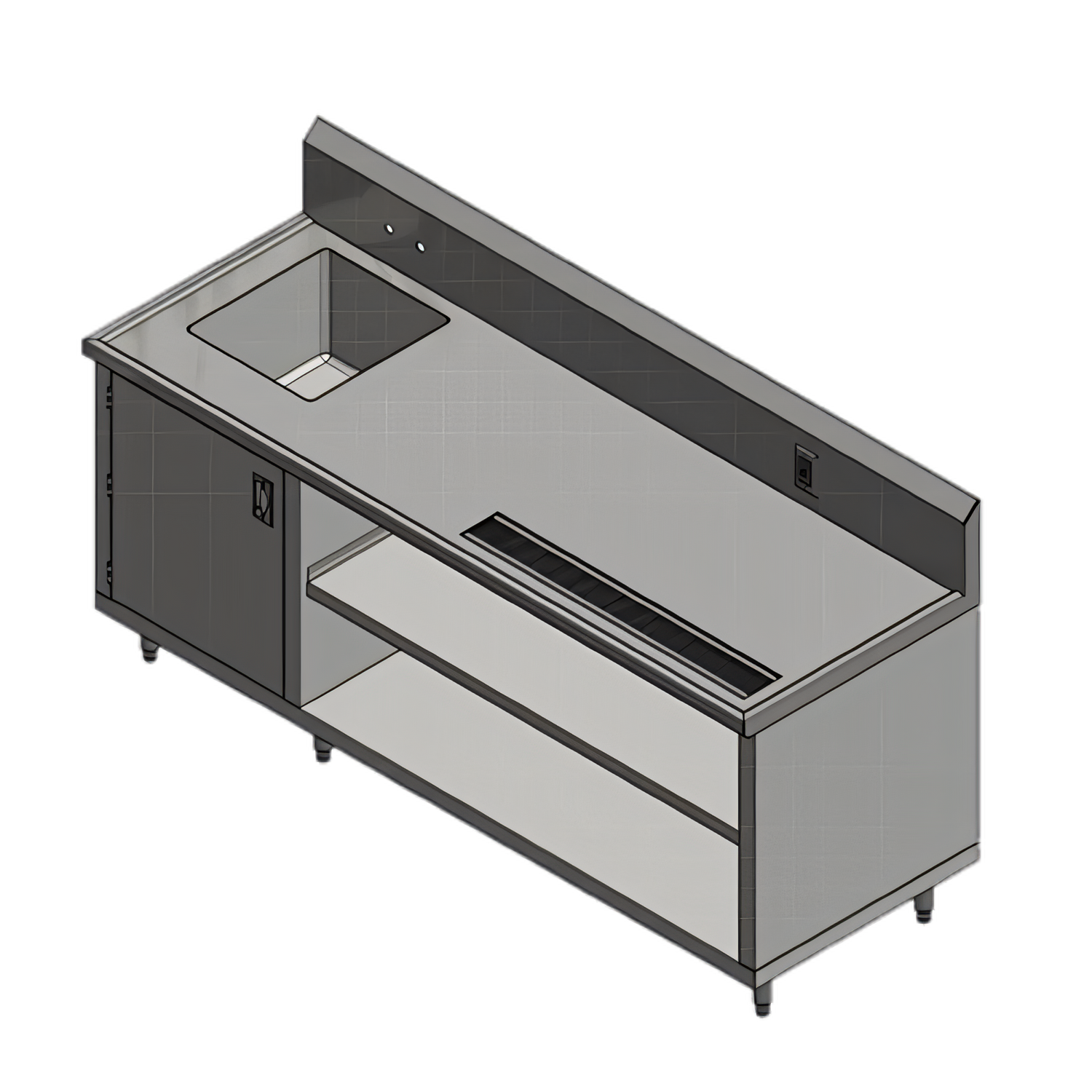

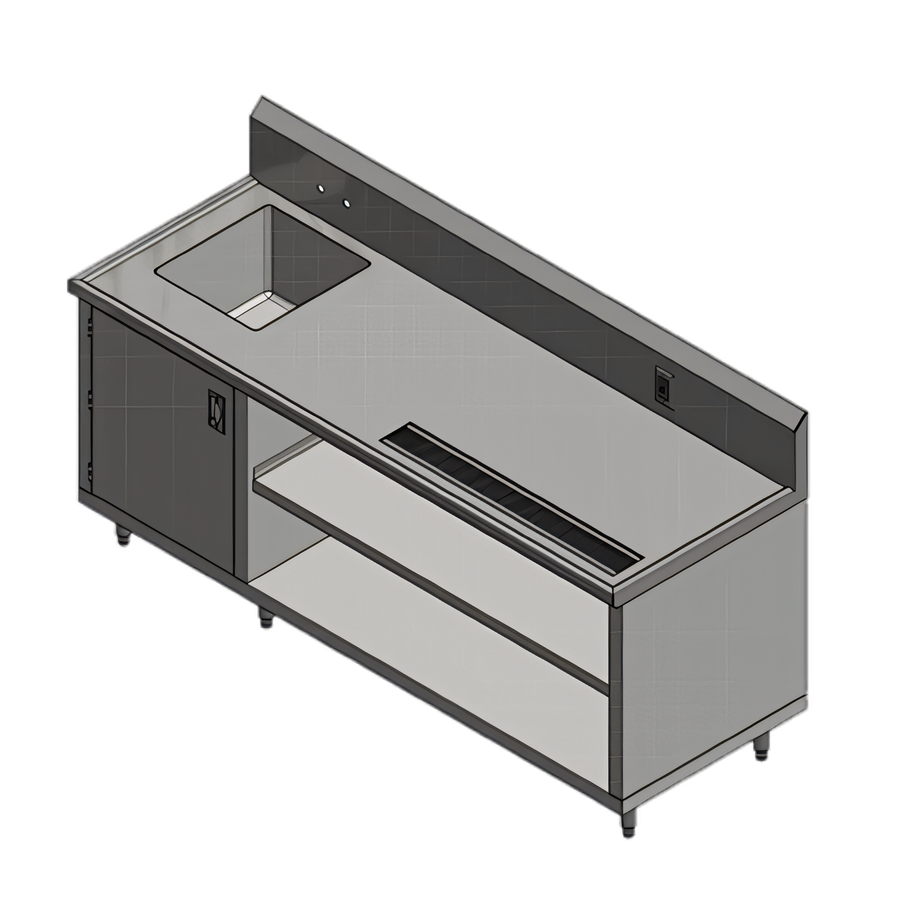

John Boos 4CB4R10-3096-L Beverage Table
96" W x 30" D • Left-Hand Sink • Open Front Cabinet BasePurpose-built for high-volume coffee, tea, and beverage service lines, the 4CB4R10-3096-L combines a heavy-duty 14-gauge stainless worktop with smart plumbing and electrical integrations. Arriving fully welded and NSF listed, it installs quickly and stands up to years of daily use in cafés, restaurants, stadium concessions, and corporate breakrooms.
Built-In Advantages
- 14-ga Type 300 stainless steel top with #4 satin polish resists dents & corrosion.
- 10" backsplash with non-drip marine edge contains splashes and channels liquids away from walls.
- 1½" Stallion Safety Edge on front for operator comfort; 90° square turndown ends align flush with adjacent equipment.
- 18" × 18" × 12" deep sink (left side) with 4" on-center splash-mount faucet holes & 3½" drain opening.
- Hinged front door below sink conceals plumbing while maintaining rapid access for service.
- 36" urn trough with removable louvered grate & 2" drain keeps carafes and airpots clear of standing liquids.
- Open cabinet base with adjustable intermediate shelf maximizes undercounter storage.
- Integrated 1-ph duplex outlet in backsplash—ideal for grinders, blenders, or hot plates (installer-provided wiring).
- 2" × 3" full-length reinforcement channels deaden sound and prevent tabletop flex.
- 18-ga Type 430 stainless steel body wrap, stainless legs, and adjustable bullet feet for a perfectly level work surface.
- Ships welded, ready to set in place—no field assembly required.
- NSF certified for safe food-contact operations.
Specifications
| Model | 4CB4R10-3096-L |
|---|---|
| Overall dimensions | 96" W × 30" D × 45-3/4" H (including backsplash) |
| Working height | 36" |
| Backsplash height | 10" |
| Sink bowl size (L × W × D) | 18" × 18" × 12" |
| Faucet holes | (2) splash-mount holes on 4" centers |
| Urn trough length | 36" with louvered grate & 2" drain |
| Countertop material | 14-ga Type 300 stainless steel, #4 finish |
| Cabinet/body material | 18-ga Type 430 stainless steel |
| Electrical | (1) 120 V, 1-phase duplex outlet in backsplash (field wired) |
| Certifications | NSF |
| Approx. shipping weight | 400 lb |
Care & Maintenance
- Clean daily with mild, non-chloride cleansers and a soft cloth or sponge.
- Always wipe in the direction of the stainless steel polish lines.
- Avoid steel wool, wire brushes, and abrasive powders that can break the protective chromium film.
- For tough stains or light corrosion, use Bar Keepers Friend followed by a stainless steel polish.
Faucet, drain hardware, and installation services are sold separately. Specifications subject to change without notice.
