John Boos 4CB4R10-3084-R Bar Equipment
Description

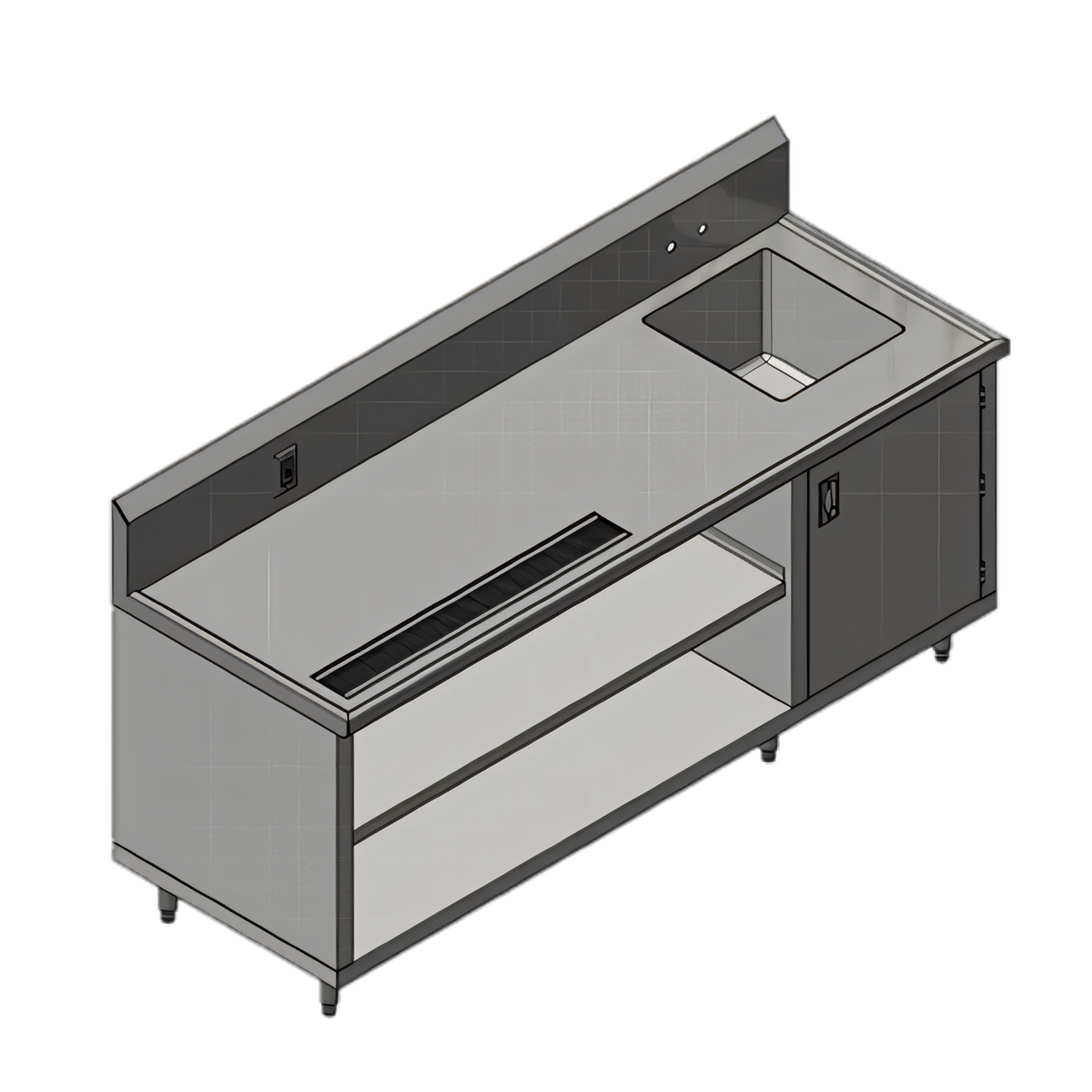

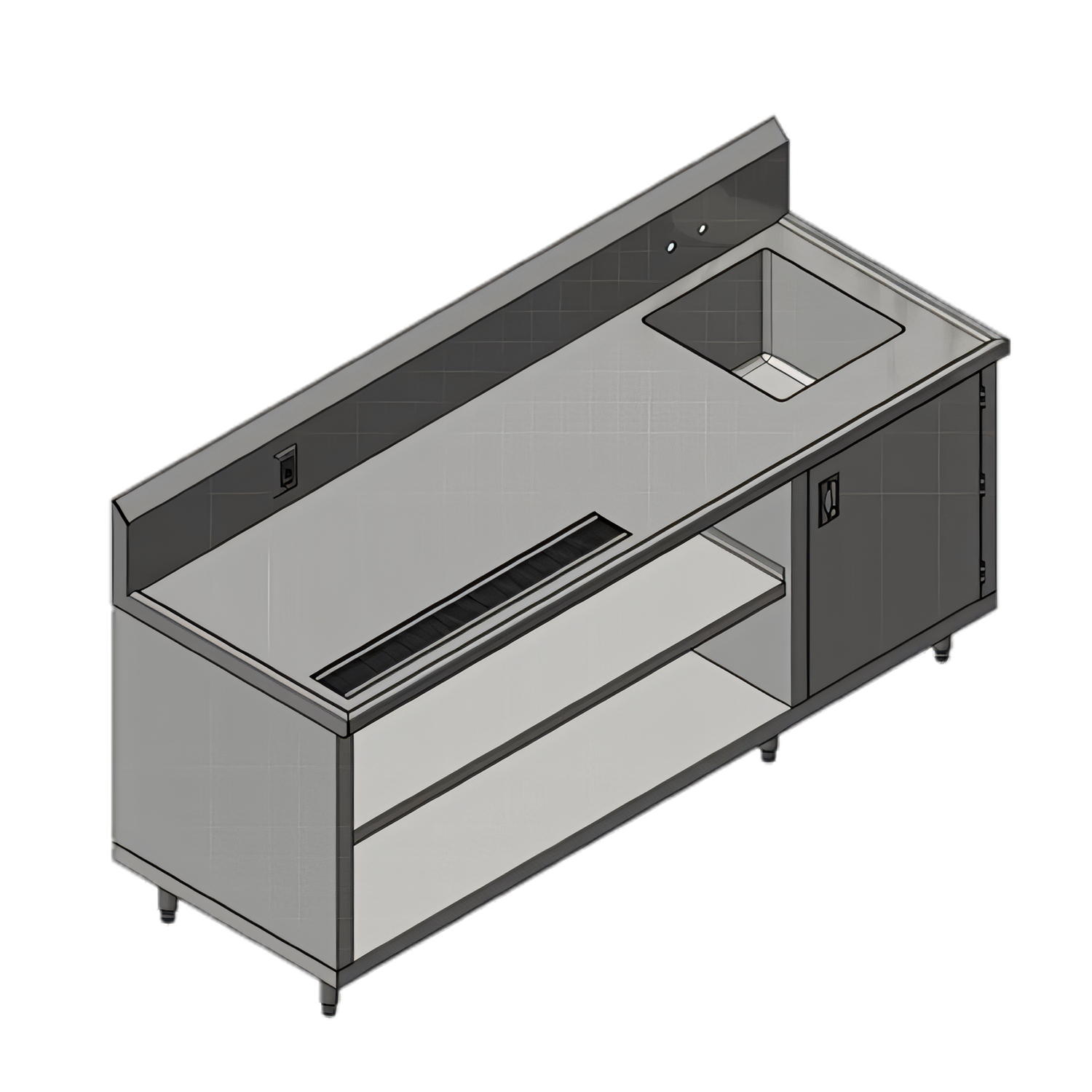

John Boos 84" Stainless Steel Beverage Table w/ Right-Hand Sink & Urn Trough
Model 4CB4R10-3084-R | NSF ListedBuilt for high-volume beverage service, this John Boos 4CB4R10 series table combines a rugged 14-gauge stainless top with an open-front cabinet base, integrated sink, and 36" urn trough—everything you need to keep coffee, tea, and drink stations running smoothly.
Stand-Out Features
- Heavy-duty 14 GA, Type 300 stainless top with #4 satin polish for superior durability and easy cleaning.
- 10" rear backsplash with non-drip marine edge keeps spills contained and protects walls.
- 1½" Stallion Safety Edge on front for comfortable, snag-free work access; square turndown ends align flush with adjoining equipment.
- 18" × 18" × 12" deep sink (right-hand) supplied with 4" O.C. splash-mount faucet holes and 3½" drain opening.
- 36" urn trough with removable louvered grate and 2" drain handles high-volume coffee and tea service.
- Integrated 20 A, single-phase duplex outlet in backsplash—power brewers, grinders, or blenders right at the station.
- Hinged double-panel door in front of sink conceals plumbing while providing quick access for maintenance.
- Open front cabinet base with adjustable intermediate shelf keeps pitchers, filters, and supplies close at hand.
- 18 GA, Type 430 stainless body plus removable stainless legs with adjustable bullet feet for rock-solid leveling.
- Ships fully welded & ready to install; NSF certified for food-service confidence.
Specifications
| Overall Dimensions | 84" W × 30" D × 45-3/4" H (to backsplash top) |
|---|---|
| Work Height | 36" |
| Top Material | 14 GA Type 300 stainless steel, #4 satin finish |
| Body Material | 18 GA Type 430 stainless steel wrap |
| Edge Profile | 1-1/2" Stallion Safety Edge (front) & square turndown ends |
| Backsplash | 10" H with marine edge & integrated duplex outlet |
| Sink Bowl | 18" W × 18" F-B × 12" D, right-hand location |
| Faucet Holes | Splash mount, 4" centers (faucet sold separately) |
| Urn Trough | 36" L with louvered grate & 2" drain |
| Shelf | (1) adjustable intermediate shelf, stainless steel |
| Legs & Feet | Stainless legs, adjustable bullet feet |
| Certifications | NSF |
| Shipping Weight | Approx. 350 lb |
Perfect For
- Coffee shops & cafés needing a dedicated brew station
- Hotel breakfast buffets & lobby beverage areas
- Catering kitchens & banquet halls
- Institutional food-service lines (hospitals, universities, corporate)
Care & Maintenance
Preserve the table’s professional finish by cleaning with non-chloride, non-abrasive stainless cleaners such as Bar Keepers Friend. Always wipe in the direction of the polish lines and dry thoroughly after rinsing.
