John Boos 4CB4R10-3060-L Bar Equipment
Description

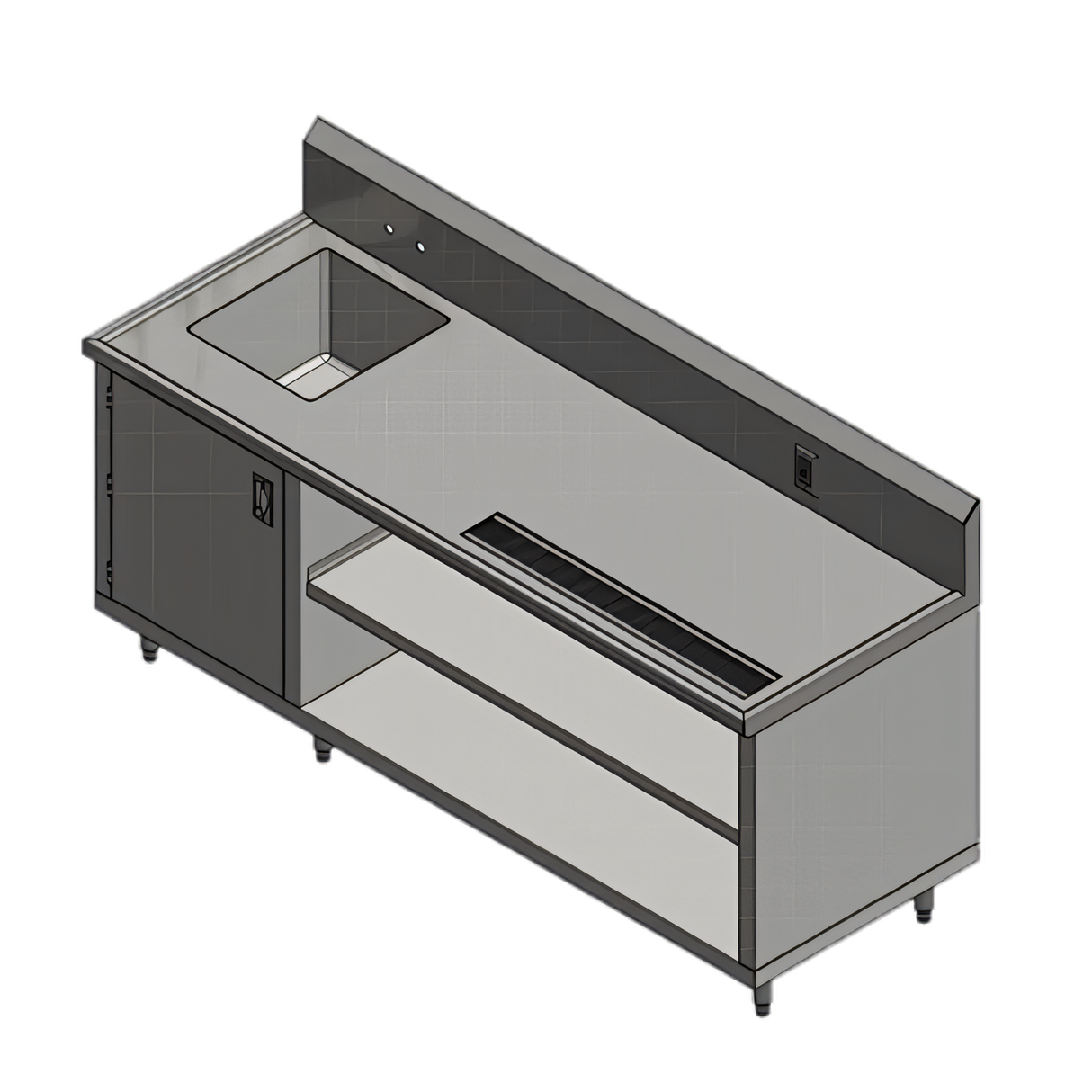

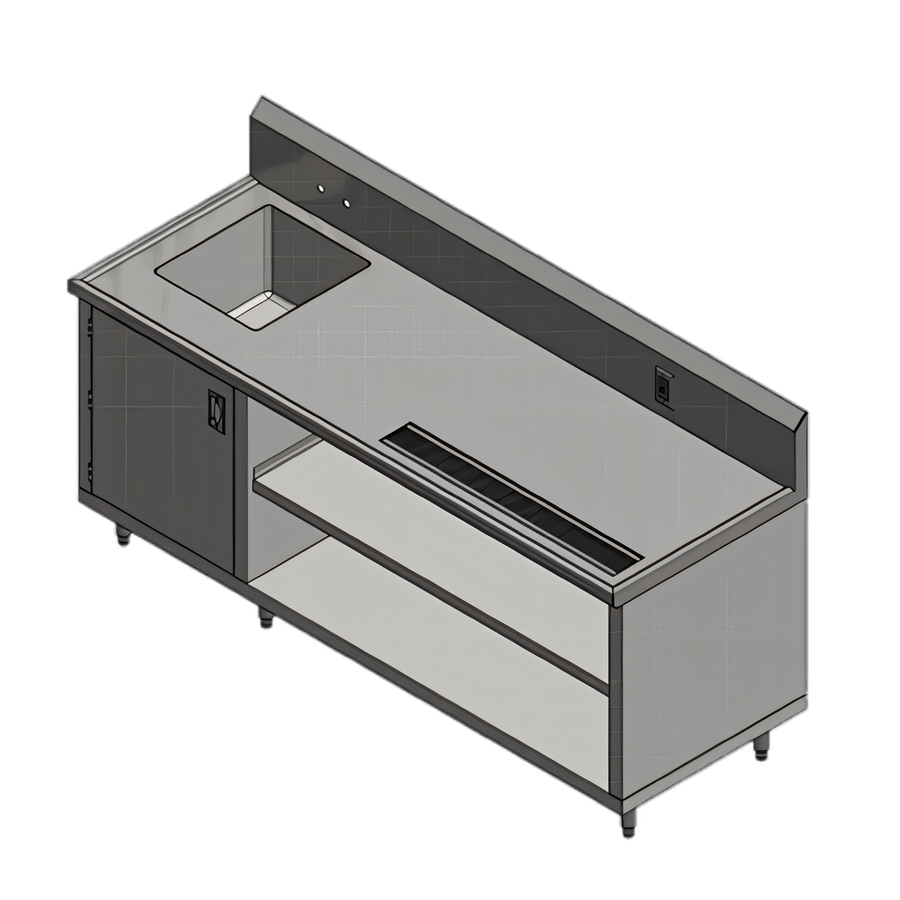

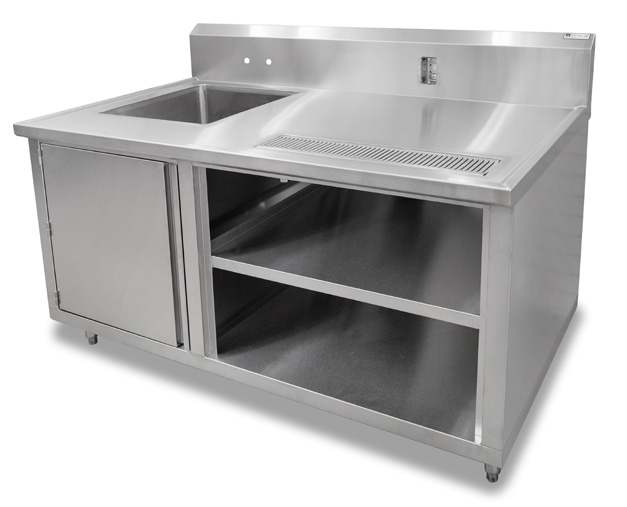

John Boos 4CB4R10-3060-L Beverage Table – 60" x 30"
Left-Hand Sink | 14 GA Type 300 Stainless Steel Top | NSF ListedBuilt for heavy-duty beverage service, the John Boos 4CB4R10-3060-L combines a rugged 14-gauge stainless work surface with integrated sink, urn trough, and convenient electrical access—all in one ready-to-use welded unit. Ideal for coffee stations, banquet beverage setups, and back-of-house drink prep.
Key Features
- 60" W x 30" D cabinet base with open front and hinged door in front of sink
- 14 GA Type 300 stainless steel top with #4 satin polish
- 10" high rear backsplash with built-in 1-ph duplex outlet (GFCI-ready)
- Non-drip marine edge + Stallion Safety Edge front, square turndown ends for tight line-up
- 18" W x 18" F-B x 12" deep sink (left side) with 4" splash-mount faucet centers | 3-1/2" drain opening
- 24" urn trough with louvered grate and 2" drain keeps drip-through mess contained
- Sound-deadened top reinforced by full-length 2" x 3" channel
- Adjustable intermediate shelf provides quick storage for airpots, pitchers & supplies
- 18 GA Type 430 stainless body wrap, removable stainless legs & adjustable bullet feet
- Ships fully welded & ready to install • NSF certified for safe food & beverage contact
At-a-Glance Specifications
| Model | 4CB4R10-3060-L (sink on left) |
|---|---|
| Overall Dimensions | 60" W x 30" D x 45-3/4" H (including backsplash) |
| Working Height | 36" |
| Top Material / Gauge | 14 GA Type 300 stainless steel |
| Body Material | 18 GA Type 430 stainless steel |
| Sink Bowl | 18" W x 18" F-B x 12" D • (1) 3-1/2" drain |
| Faucet Mount | (2) splash-mount holes, 4" centers (faucet sold separately) |
| Urn Trough | 24" length with louvered grate & 2" drain |
| Electrical | Duplex 120 V outlet pre-cut in backsplash |
| Shipping Weight | Approx. 250 lb |
| Certifications | NSF |
Why Choose John Boos Stainless?
- More than 135 years of American manufacturing expertise
- TIG-welded construction with polished, blended seams for a seamless appearance
- Precision-formed Stallion Safety Edge reduces sharp corners and adds strength
- Field-friendly design—removable legs and adjustable feet make level set-up fast
Care & Cleaning
For daily cleaning, wipe with mild soap and warm water using a soft cloth, always following the grain. Avoid chlorine-based or abrasive cleaners to preserve the stainless protective film. Periodic polishing with John Boos Stainless Steel Cleaner keeps the satin finish looking new.
