Description

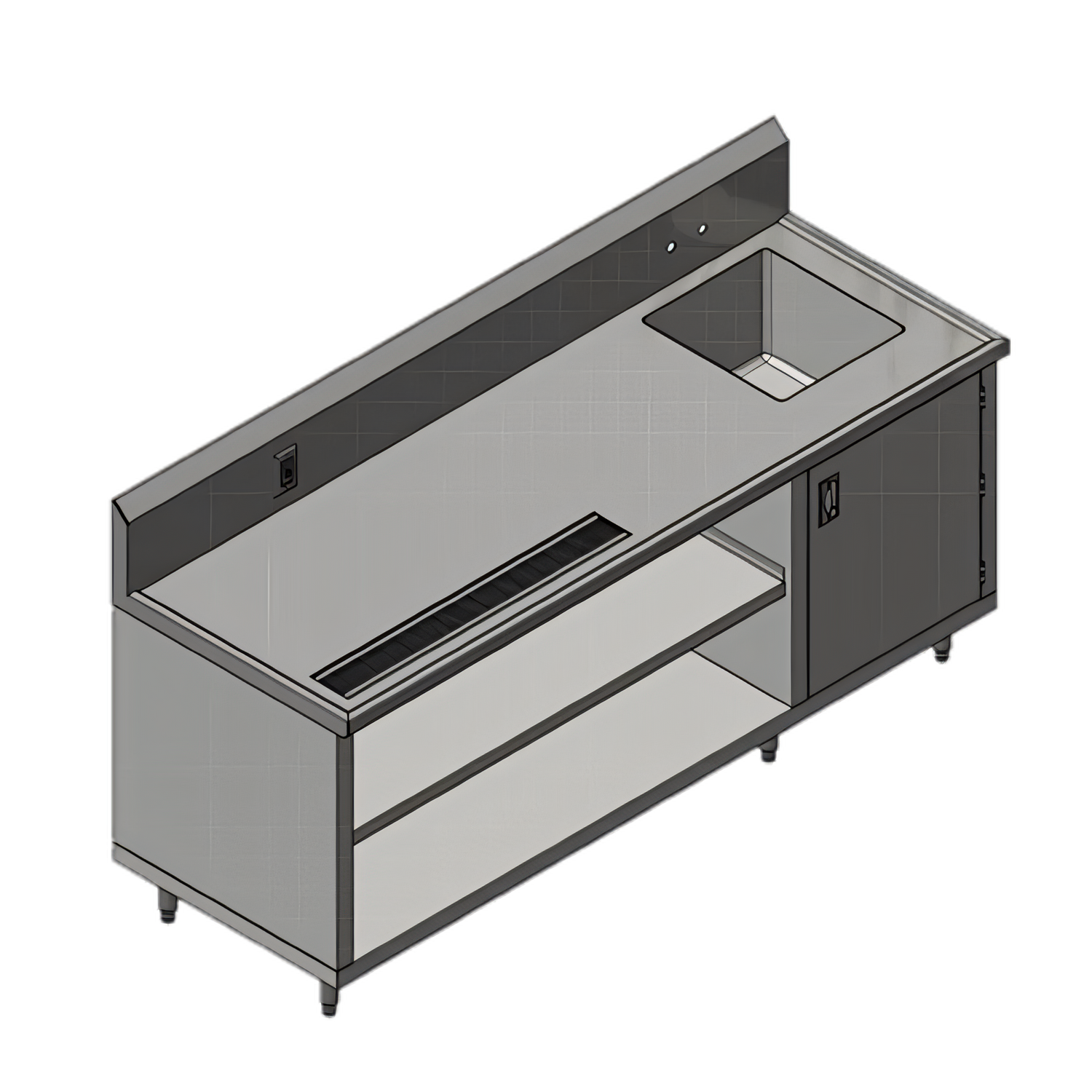

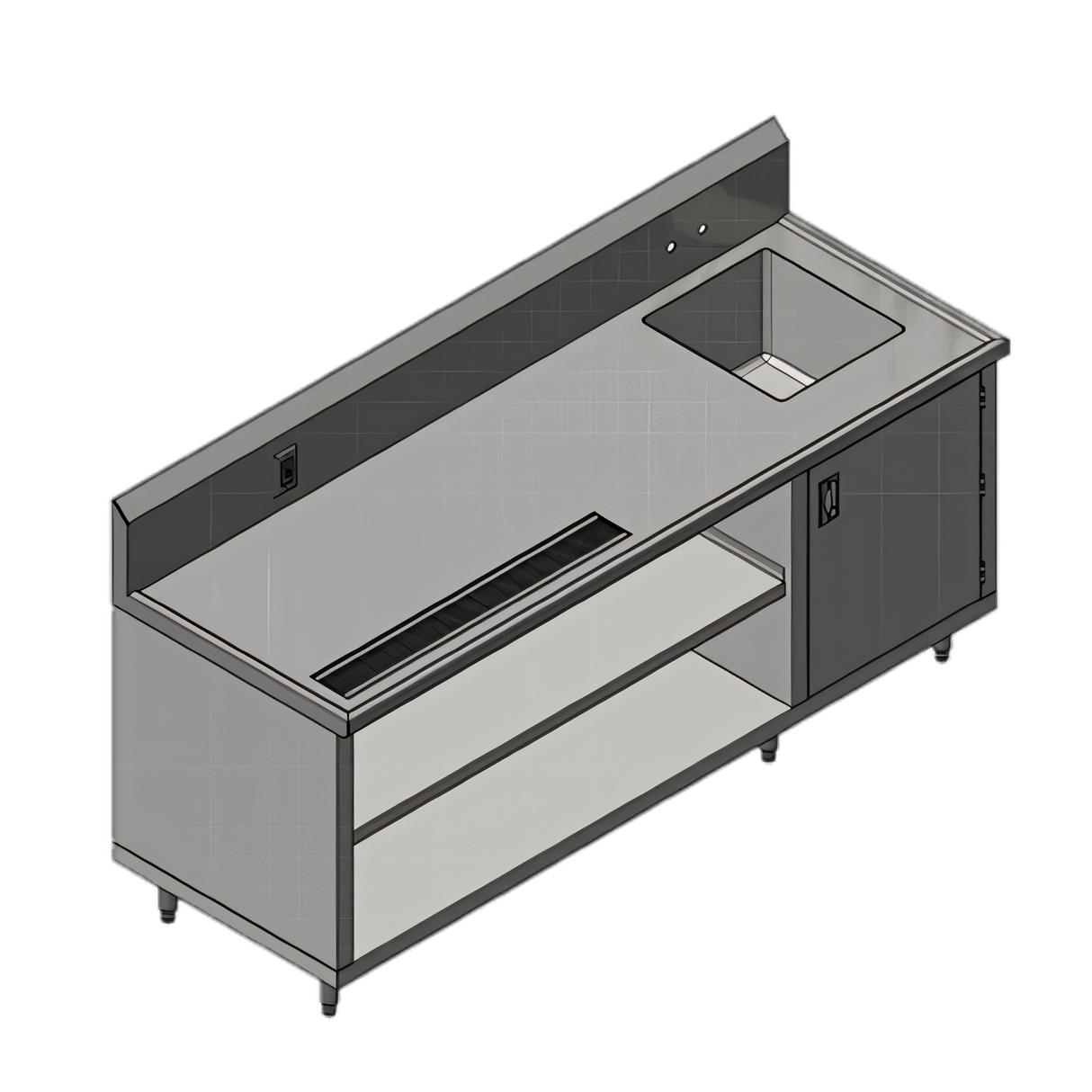

John Boos 4CB4R10-30144-R 144" Beverage Table – Right-Hand Sink

14 ga Type 300 Stainless Steel Top | Open-Front Cabinet Base | NSF Listed

Give your high-volume beverage station the rock-solid foundation it deserves. At 12 feet long and crafted from heavy-duty 14-gauge stainless steel, this John Boos beverage table delivers a complete service platform with integrated sink, urn trough and storage—all in one welded unit.

Key Features
  • Spacious 144" W × 30" D footprint accommodates multiple coffee urns, tea brewers and accessories.
  • 10" rear backsplash with non-drip marine edge contains spills and includes a factory-installed 1-phase duplex outlet for small appliances.
  • 14 ga Type 300 stainless steel top is TIG-welded, sound-deadened and reinforced with a 2" × 3" full-length channel.
  • Stallion Safety Edge front for operator comfort; square turndown ends align flush with adjoining equipment.
  • 18" × 18" × 12" deep sink on the right side with 4" O/C splash-mount faucet holes and 3-1/2" drain opening.
  • 36" urn trough with removable louvered grate and dedicated 2" drain quickly manages overflow.
  • Open-front cabinet base features a hinged door below the sink and an intermediate shelf for filters, cups and syrups.
  • 18 ga Type 430 stainless steel wrap, stainless steel legs and adjustable bullet feet provide strength and leveling.
  • Ships fully welded and NSF certified for easy, code-compliant installation.
Specifications
Model 4CB4R10-30144-R
Overall Dimensions 144" W × 30" D × 45-3/4" H (to top of backsplash)
Work Surface Height 36"
Top Material / Gauge 14 ga Type 300 stainless steel, #4 satin finish
Backsplash 10" H with 1-ph duplex outlet (120 V)
Edge Profile Stallion Safety Edge front, square turndown ends, non-drip marine edge
Sink Bowl 18" W × 18" F-B × 12" D, right-hand position
Faucet Mounting 4" on-center splash-mount holes (faucet not included)
Drain Openings 3-1/2" sink drain; 2" urn trough drain
Urn Trough 36" L with removable louvered grate
Cabinet Base Open front, hinged door under sink, 1 intermediate shelf
Body Material 18 ga Type 430 stainless steel wrap
Legs / Feet Stainless steel legs with adjustable bullet feet
Reinforcement 2" × 3" full-length channel, sound deadened
Certification NSF
Shipping Weight ≈ 550 lb
Perfect For
  • Coffee & tea service stations
  • Hotel breakfast bars & banquet halls
  • Convention centers & stadium suites
  • Cafeterias, corporate dining and catering prep
Stainless Steel Care Tips
  • Clean daily with mild soap or a non-chloride stainless cleaner; always wipe with the grain.
  • Avoid abrasive pads, wire brushes and cleaners containing bleach or chlorides.
  • Rinse and dry surfaces after cleaning to preserve the protective chromium film.
  • For stubborn stains, use Bar Keepers Friend and a wet non-abrasive pad, then re-polish.

Following these guidelines will keep your John Boos table looking professional and performing flawlessly for years.

Note: Faucet, drains and final electrical connection are not included unless specifically selected in product options. Verify local code requirements before installation.

Features & Specs

Manufacturer

John Boos

Certifications

NSF

Height

45.75in

Width

144.0in

Depth

30.0in

Shipping Weight

550.0lbs

Depth (front - back)

30"

Width (side - side)

144"

Exterior Finish

all stainless steel exterior

Style

cabinet base with open shelf(s)

Specifications

Beverage Table, cabinet base with open front, 144"W x 30"D x 45-3/4"H overall size, 14/300 stainless steel top with 10" backsplash, marine edge top, Stallion Safety Edge front and square turndown ends, (1) 18"W x 18" front-to-back x 12" deep sink on right, (1) set of splash mount faucet holes with 4" centers, 3-1/2" drain opening, hinged door in front of sink, 36" urn trough & louvered grate with 2" drain, (1) intermediate shelf, includes 1-ph duplex outlet in backsplash, 18/430 stainless steel wrap with legs & adjustable feet, NSF
