John Boos 4CB4R10-30144-L Bar Equipment
John Boos 4CB4R10-30144-L Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos 4CB4R10-30144-L Bar Equipment
Description

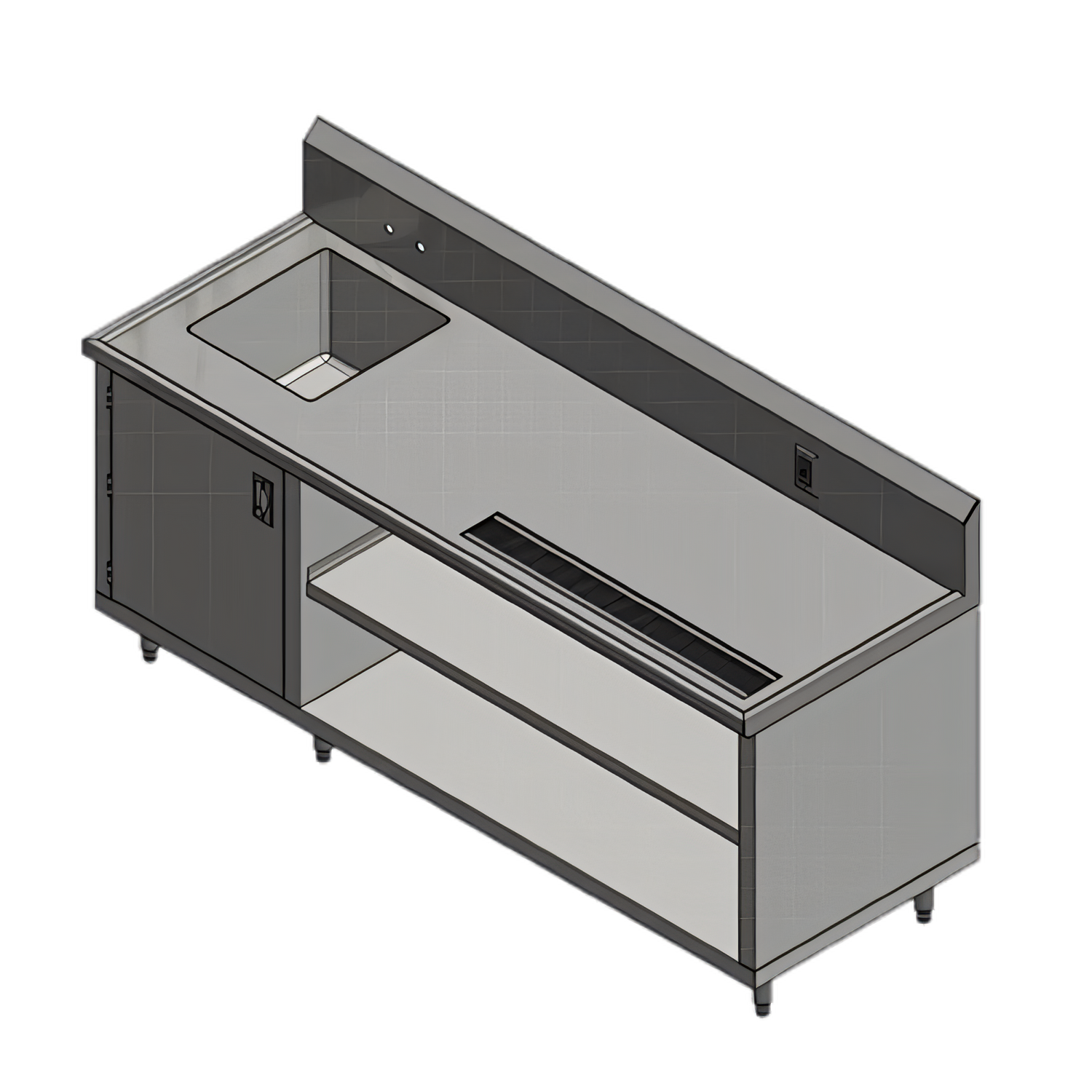

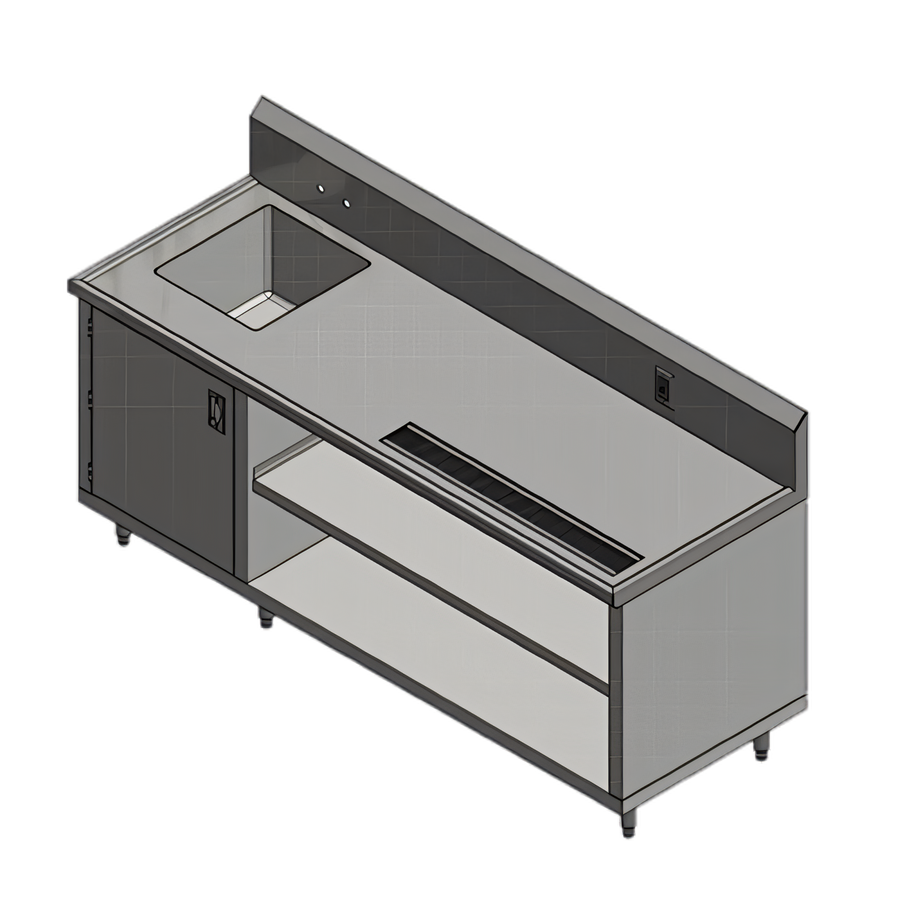

John Boos 4CB4R10-30144-L Stainless Steel Beverage Table – 144"L
Left-Hand Sink • 36" Urn Trough • Open Front Cabinet BaseEngineered for busy cafes, hotels and banquet facilities, this 12-foot John Boos beverage table delivers a dedicated zone for brewing, dispensing and clean-up in one seamless station. Heavy-duty 14 gauge Type 300 stainless steel, a full 10" backsplash and built-in utilities keep your beverage service safe, sanitary and fast.
Why you’ll love it
- Massive 144" x 30" workspace handles multiple brewers, urns and cambros at once.
- Integrated 18" x 18" x 12" sink (LH) with 4" O/C splash-mount faucet holes and 3-½" drain for quick rinse-offs.
- 36" urn trough with removable louvered grate funnels run-off into a 2" drain—no messy spills.
- Marine edge & Stallion Safety Edge keep liquids on the counter, not on your floor.
- Open cabinet base includes an intermediate shelf for filters, pitchers and back-up supplies.
- Hinged front door hides plumbing under the sink while leaving the rest of the base open for fast access.
- Factory-installed 20 A duplex outlet in the backsplash powers grinders, blenders or countertop brewers.
- NSF listed & fully TIG-welded for food-safe, rock-solid performance right out of the crate.
Technical specifications
| Model | 4CB4R10-30144-L (Sink Left) |
|---|---|
| Overall dimensions | 144" W × 30" D × 45-¾" H (to top of backsplash) |
| Working height | 36" |
| Countertop | 14 GA Type 300 stainless steel, #4 satin polish |
| Backsplash | 10" high, includes duplex GFCI outlet |
| Front / side edges | 1-½" Stallion Safety Edge (front) & square turndown (ends) with non-drip marine edge |
| Sink bowl | 18" W × 18" F-B × 12" deep, 3-½" basket drain, 4" O/C faucet holes |
| Urn trough | 36" length, louvered grate, 2" drain connection |
| Base construction | 18 GA Type 430 stainless wrap, open front, one hinged door under sink, one intermediate shelf |
| Legs / feet | Removable stainless steel legs with adjustable bullet feet |
| Reinforcement | Sound-deadened top with continuous 2" × 3" reinforcing channels |
| Shipping weight | ≈ 550 lb (ships welded, ready to install) |
| Certifications | NSF |
Care & cleaning
Clean daily with non-chloride stainless cleaners and a soft cloth. Avoid abrasive pads or bleach to preserve the protective chromium film and keep your John Boos table looking its best.
