John Boos 4CB4R10-30132-R Bar Equipment
Description

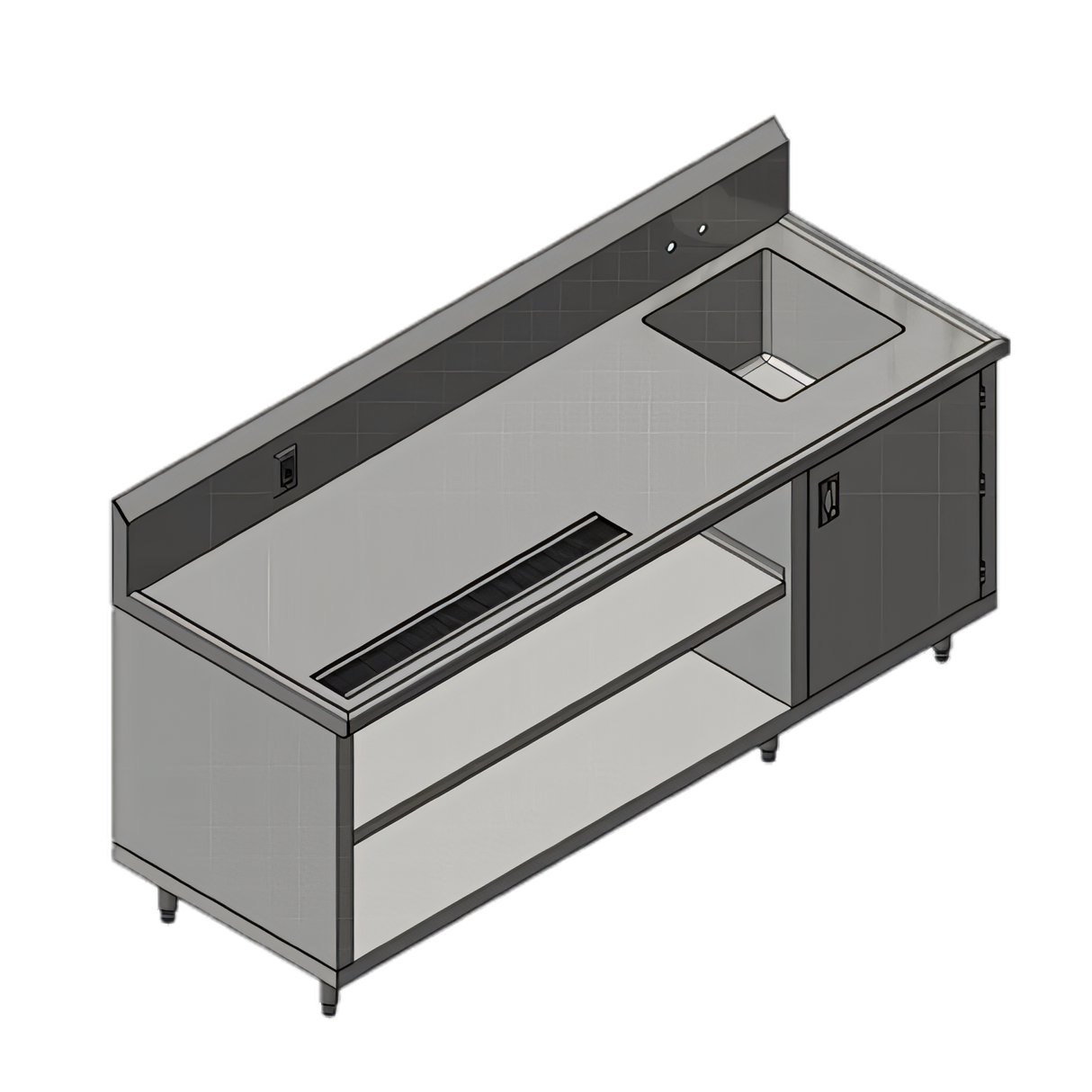

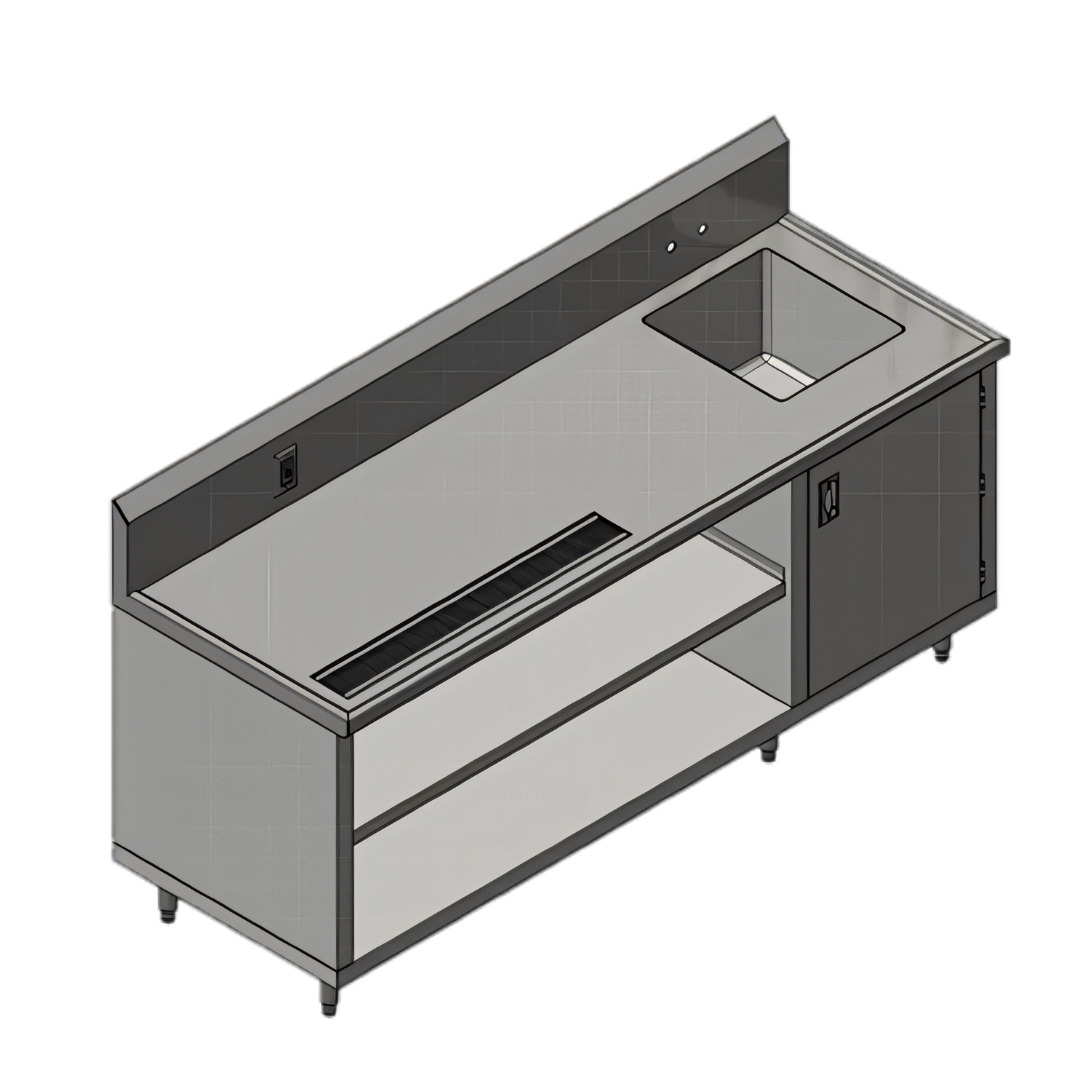

John Boos 4CB4R10-30132-R Beverage Table
132″ W x 30″ D – 14 GA Stainless Top, Sink on Right, Open Front Cabinet BaseEngineered for high-volume beverage service, this 132-inch John Boos Beverage Table delivers a seamless prep, pour and cleanup station in one rugged, NSF-listed unit. From its heavy-duty 14-gauge stainless steel top and integrated urn trough to a spacious open cabinet base, every detail is built to keep your drink lines moving and your workspace spotless.
Key features & benefits
- 14 GA Type 300 stainless steel top with #4 satin polish for superior durability and shine.
- 10″ integral backsplash with marine edge keeps spills contained and off the floor.
- 1-½″ Stallion Safety Edge front and square turndown ends align perfectly with adjacent equipment.
- Sound-deadened top reinforced by a full-length 2″ x 3″ channel – no rattle, no flex.
- 18″ W x 18″ F-B x 12″ D sink (right-hand) with 4″ O.C. splash-mount faucet holes • 3-½″ drain opening.
- 36″ urn trough with removable louvered grate and 2″ drain speeds bulk liquid disposal.
- Open front cabinet base in 18 GA Type 430 stainless with one intermediate shelf for bulky supplies.
- Hinged double-panel door in front of sink conceals plumbing while maintaining quick access.
- 20 A, 1-phase duplex outlet factory-mounted in backsplash – plug grinders, blenders or brewers right in.
- Stainless steel legs with adjustable bullet feet level the table on uneven floors; legs are removable for easy install.
- Ships welded & set-up from the factory to slash installation time.
- NSF certified for food-service sanitation compliance.
Technical specifications
| Model | 4CB4R10-30132-R (sink on RH) |
|---|---|
| Overall size | 132″ W × 30″ D × 45-¾″ H (to top of backsplash) |
| Working height | 36″ (countertop) |
| Backsplash height | 10″ with ¾″ return |
| Top material | 14 GA Type 300 stainless steel, #4 satin |
| Body material | 18 GA Type 430 stainless steel |
| Sink bowl | 18″ W × 18″ front-to-back × 12″ D, 3-½″ drain |
| Faucet mounting | Splash mount, 4″ centers (faucet sold separately) |
| Urn trough | 36″ with louvered grate & 2″ drain |
| Shelving | 1 intermediate shelf (adjustable) |
| Electrical | 1-phase duplex outlet in backsplash, 20 A GFCI |
| Weight | Approx. 525 lb |
| Certifications | NSF |
Care & maintenance
Maintain the stainless steel’s protective finish by cleaning with non-chloride detergents, soft towels or plastic scouring pads. Avoid abrasive cleaners or steel wool. For heavy buildup, John Boos recommends Bar Keepers Friend followed by its food-safe Stainless Steel Cleaner & Polisher.
Always wipe in the direction of the grain and rinse thoroughly to prevent chemical residue and corrosion.
