John Boos 4CB4R10-30132-L Bar Equipment
John Boos 4CB4R10-30132-L Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos 4CB4R10-30132-L Bar Equipment
Description

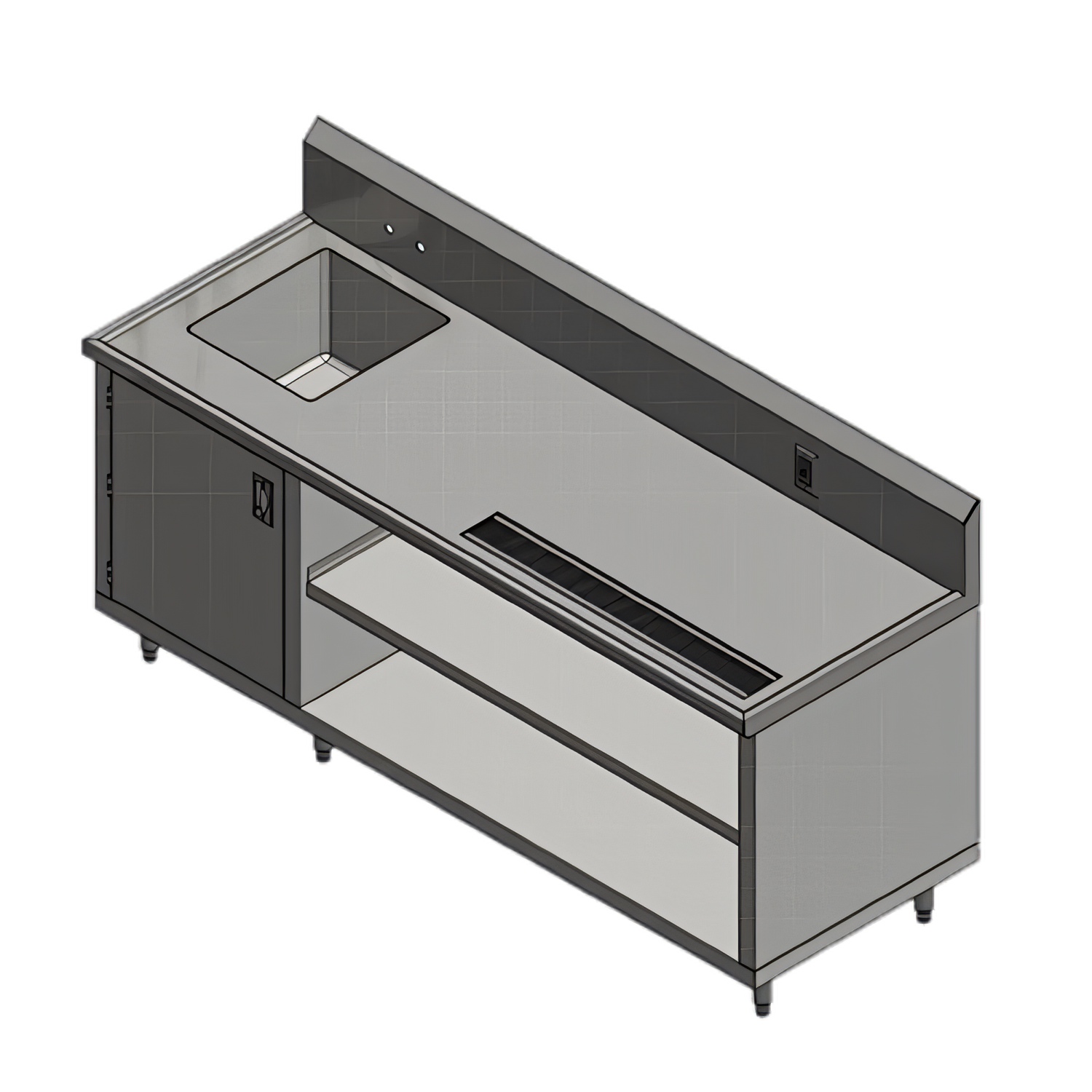

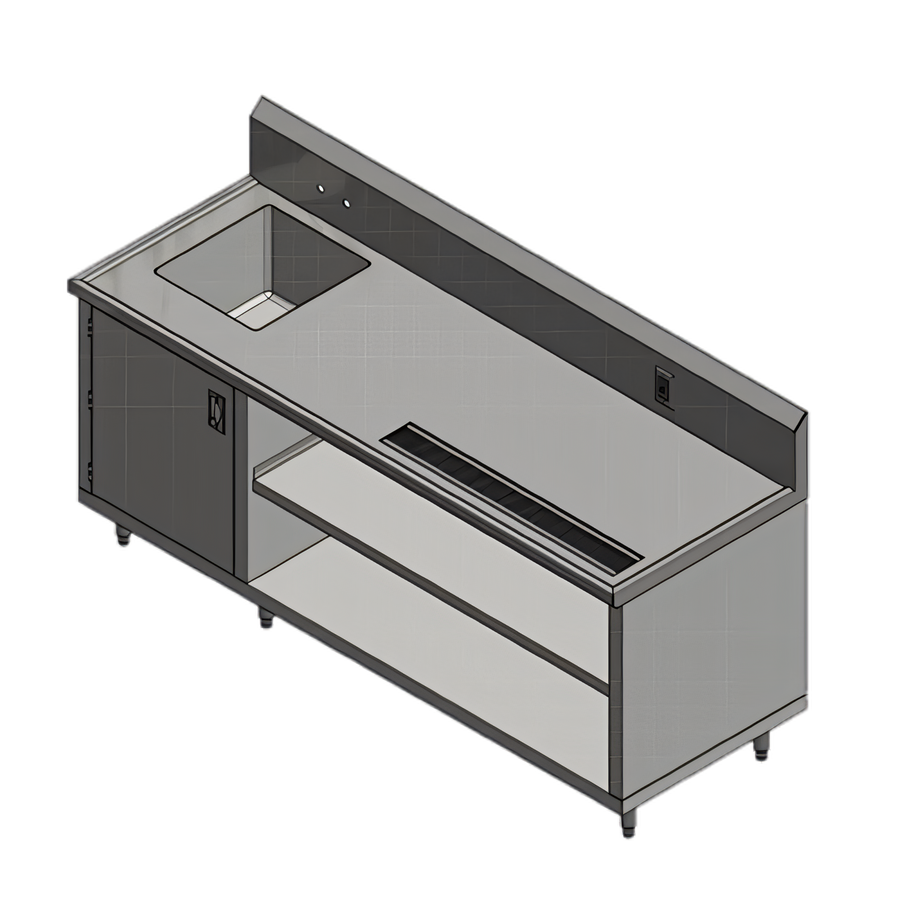

John Boos 4CB4R10-30132-L Beverage Table
132" W x 30" D – Open-Front Cabinet Base, Left-Hand SinkGive your beverage service the durable, all-in-one work center it deserves. Built from heavy-duty 14-gauge Type 300 stainless steel with a full 10" backsplash, this 132-inch John Boos beverage table provides ample counter space, integrated plumbing, electrical convenience and rugged storage — all in a sanitary, NSF-listed design.
Why you’ll love it
- Marine edge top keeps spills contained and off the floor.
- Stallion Safety Edge on the front for a smooth, snag-free work surface.
- 18" x 18" x 12" sink (LH) with 4" on-center splash-mount faucet holes & 3 ½" drain.
- 36" urn trough with removable louvered grate and 2" drain — perfect for coffee urns & drink dispensers.
- Built-in 1-ph duplex outlet in the backsplash for grinders, blenders or POS devices.
- Open-front cabinet base with intermediate shelf for quick-grab supplies.
- Hinged double-panel door directly beneath the sink conceals plumbing and cleaning tools.
- Stainless legs with adjustable feet level the table on uneven floors.
- Ships welded & ready-to-use to minimize installation time.
Technical specifications
| Model | 4CB4R10-30132-L |
|---|---|
| Overall dimensions | 132" W × 30" D × 45 ¾" H (to top of backsplash) |
| Working height | 36" |
| Top construction | 14-ga Type 300 stainless steel, #4 satin finish |
| Backsplash | 10" rear riser, includes duplex outlet |
| Front/Side edges | Stallion Safety Edge front; square turndown ends |
| Sink bowl | (1) 18" W × 18" F-B × 12" D (left side) |
| Faucet mounting | Splash-mount, 4" centers (faucet sold separately) |
| Drain openings | 3 ½" sink drain; 2" urn-trough drain |
| Urn trough | 36" long with removable louvered grate |
| Storage | (1) intermediate shelf + open front cabinet |
| Body & shelf material | 18-ga Type 430 stainless steel wrap |
| Legs / feet | Stainless steel legs with adjustable bullet feet |
| Certifications | NSF |
| Ship weight | Approx. 525 lb |
Maintain your stainless investment with non-chloride cleaners and always wipe along the grain. See the included care guide for recommended products.
