John Boos 4CB4R10-30120-R Bar Equipment
Description

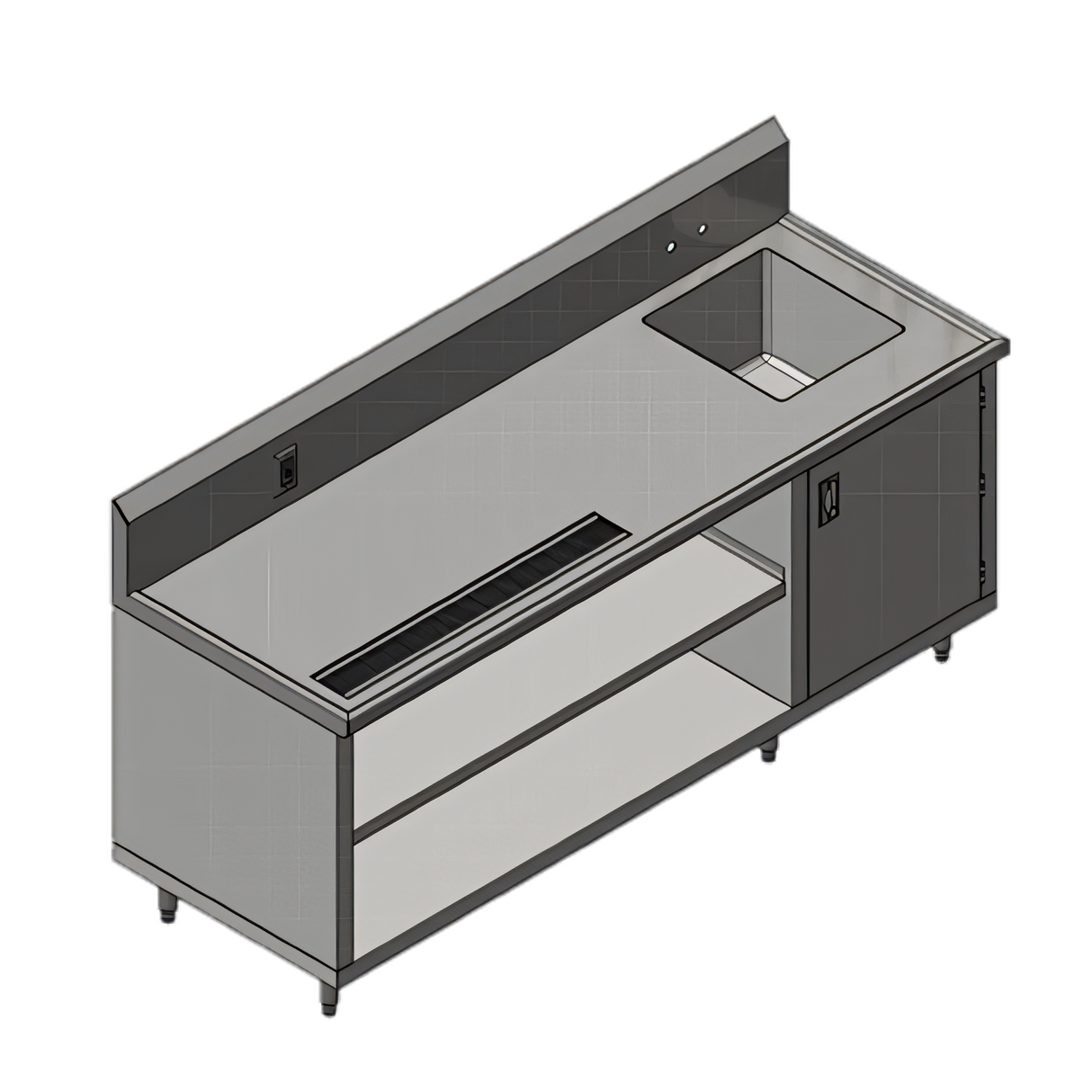

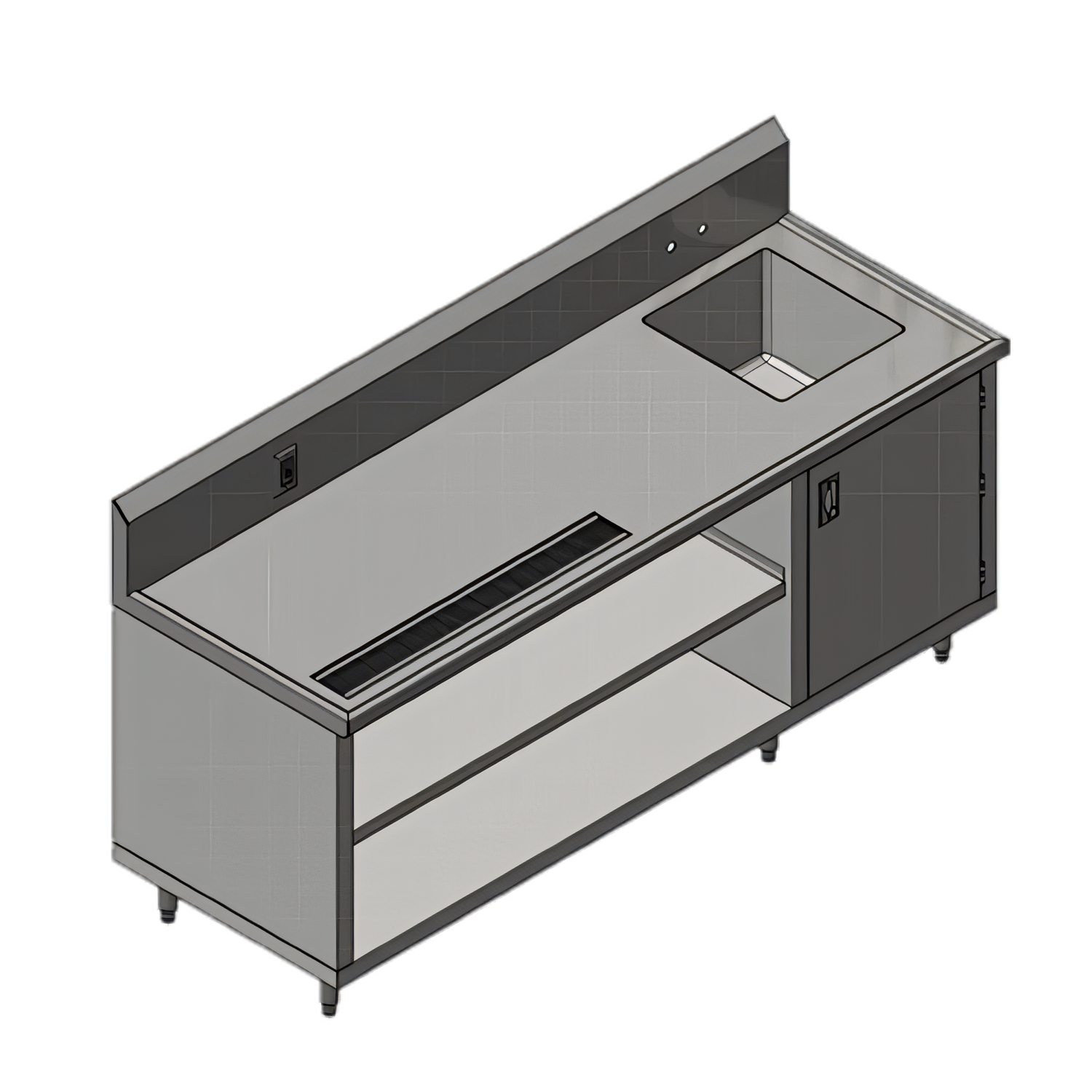

John Boos 4CB4R10-30120-R Beverage Table
120"W x 30"D · Right-hand sink · Open-front cabinet baseEngineered for high-volume beverage or plating lines, the John Boos 4CB4R10-30120-R delivers a full 10 feet of rock-solid stainless work surface, integrated urn trough, and a deep sink – all in one NSF-listed station. Built from heavy-duty 14 ga. Type 300 stainless steel and reinforced with a sound-deadening 2" × 3" channel, this table stands up to the punishing demands of commercial kitchens, cafeterias, convenience stores, and catering halls.
Why you’ll love it
- Massive 120" x 30" footprint handles multiple brewers, dispensers, or plating pans at once.
- 10" boxed backsplash with built-in 1-ph duplex outlet keeps cords neat and safe.
- Non-drip marine edge + Stallion Safety Edge keeps spills contained and staff protected.
- 18" × 18" × 12" deep sink (right-hand) comes pre-punched with 4"-O/C splash-mount faucet holes and a 3 ½" drain opening.
- 36" urn trough & louvered grate with 2" drain whisks away overflow from coffee urns or tea brewers.
- Open cabinet base with one adjustable intermediate shelf maximizes dry storage.
- Hinged stainless door in front of the sink hides plumbing while providing quick access.
- 18 ga. Type 430 stainless wrap, legs & adjustable feet resist corrosion and make leveling easy.
- Ships fully welded and ready for immediate installation.
Technical specifications
| Model | 4CB4R10-30120-R |
|---|---|
| Overall dimensions | 120"W × 30"D × 45 ¾"H (36" working height + 10" backsplash) |
| Top material | 14 ga. Type 300 stainless steel, #4 satin finish |
| Top edges | Stallion Safety Edge front, 90° square turndown ends, non-drip marine edge |
| Reinforcement | Sound-deadened 2" × 3" full-length channel |
| Sink bowl | 18"W × 18" front-to-back × 12" deep (right) |
| Faucet holes | 1 set, splash-mount, 4" centers (faucet not included) |
| Urn trough | 36" long with removable louvered grate & 2" drain |
| Cabinet base | Open front, 1 intermediate shelf, 1 hinged door at sink |
| Body material | 18 ga. Type 430 stainless steel |
| Electrical | 1-phase duplex outlet mounted in backsplash |
| Legs / feet | Stainless steel legs with adjustable bullet feet |
| Shipping weight | Approx. 500 lb |
| Certifications | NSF |
Care & maintenance
Clean daily with a non-chloride, non-abrasive stainless cleaner and a soft cloth. Always wipe in the direction of the grain and rinse off any chemicals promptly to preserve the passive protective film.
