John Boos 4CB4R10-30120-L Bar Equipment
Description

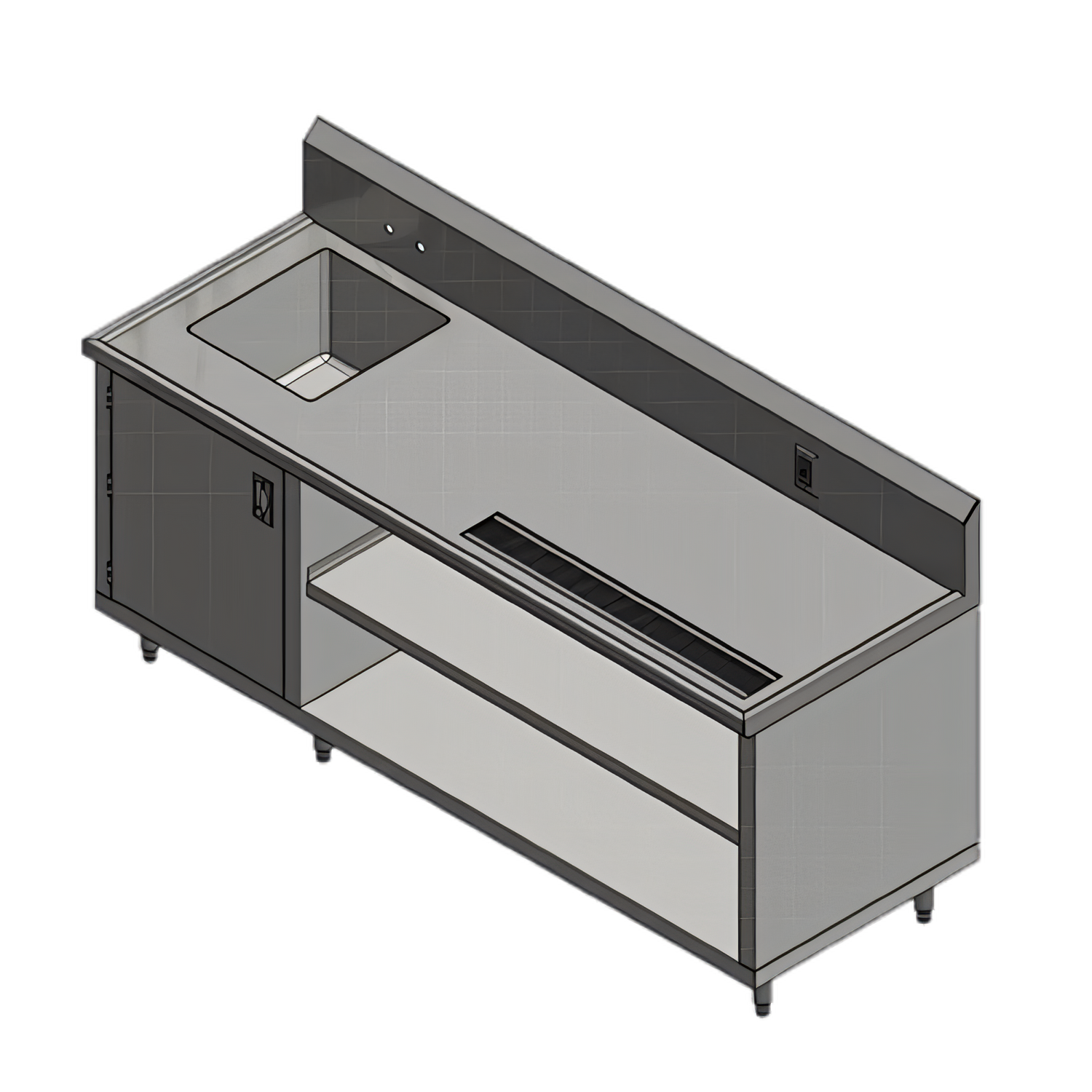

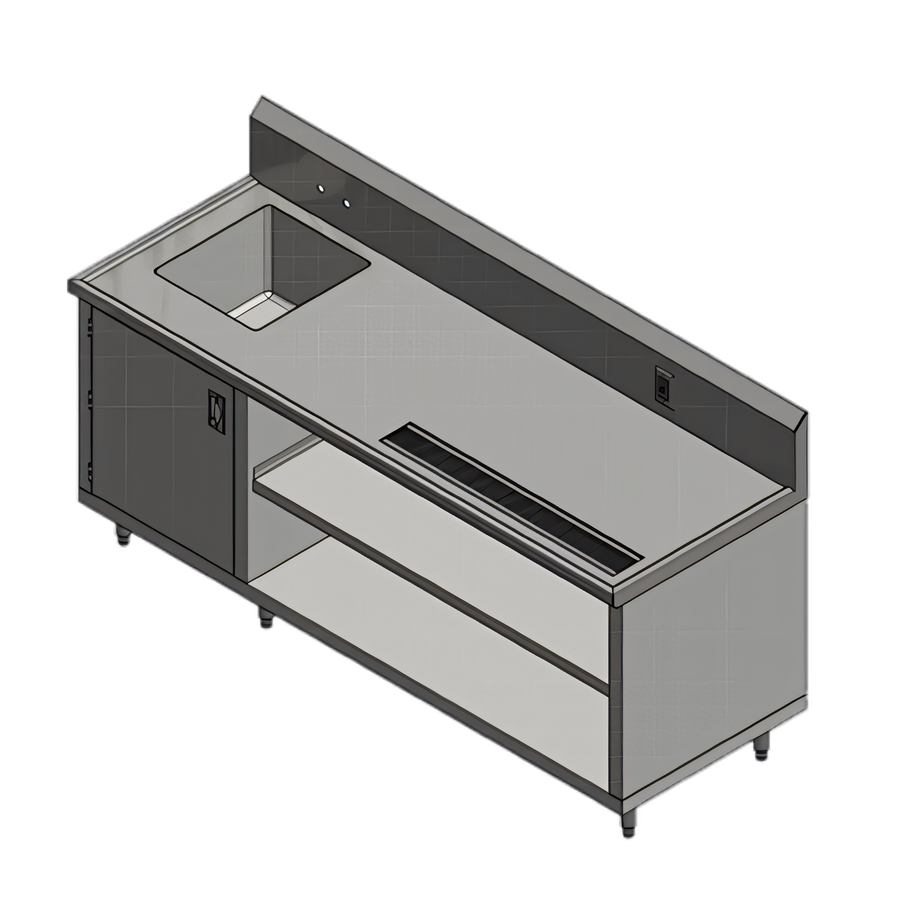

John Boos 4CB4R10-30120-L Beverage Table
120" cabinet base · sink on left · open-front designEngineered for high-volume beverage service, this 120-inch John Boos beverage table delivers a generous work surface, built-in sink, urn trough and convenient storage—all finished in heavy-duty stainless steel that meets rigorous NSF standards.
Why you’ll love it
- 14 ga type 300 stainless steel top with #4 satin polish for superior durability.
- 10" rear backsplash and non-drip marine edge keep liquids off your floor.
- 1 ½" Stallion Safety Edge on front with square turndown ends for seamless line-up.
- 18" × 18" × 12" deep sink (left side) with 4" O/C splash-mount faucet holes and 3 ½" drain opening.
- 36" urn trough with removable louvered grate & 2" drain—perfect for coffee urn service.
- Sound-deadened top reinforced by full-length 2" × 3" channel.
- Open cabinet base with one intermediate shelf plus a hinged double-panel door in front of the sink bay.
- Factory-installed 1-ph duplex outlet in backsplash for brewers, grinders or pumps.
- 18 ga type 430 stainless steel body wrap, stainless legs & adjustable bullet feet.
- Ships welded & ready to install; NSF listed for food-service safety.
Technical specifications
| Model | 4CB4R10-30120-L |
|---|---|
| Overall dimensions | 120" W × 30" D × 45 ¾" H (to top of backsplash) |
| Working height | 36" |
| Top construction | 14 ga 300-series stainless steel, #4 satin finish |
| Backsplash | 10" high, integrated with marine edge |
| Sink bowl (L × W × D) | 18" × 18" (front-to-back) × 12" deep; 3 ½" drain |
| Faucet holes | 4" on-center, splash mount (faucet not included) |
| Urn trough | 36" long with louvered grate & 2" drain |
| Body / shelf | 18 ga 430-series stainless steel |
| Legs / feet | Stainless steel legs with adjustable feet |
| Electrical | 1-phase duplex outlet pre-wired in backsplash |
| Shipping weight | ≈ 500 lb |
| Certifications | NSF |
Care & maintenance
Preserve the satin finish by cleaning with a soft cloth or plastic scouring pad and a non-chloride stainless cleanser (e.g., Bar Keepers Friend). Rinse thoroughly and wipe dry—never use abrasive pads, wire brushes or bleach.
