Description

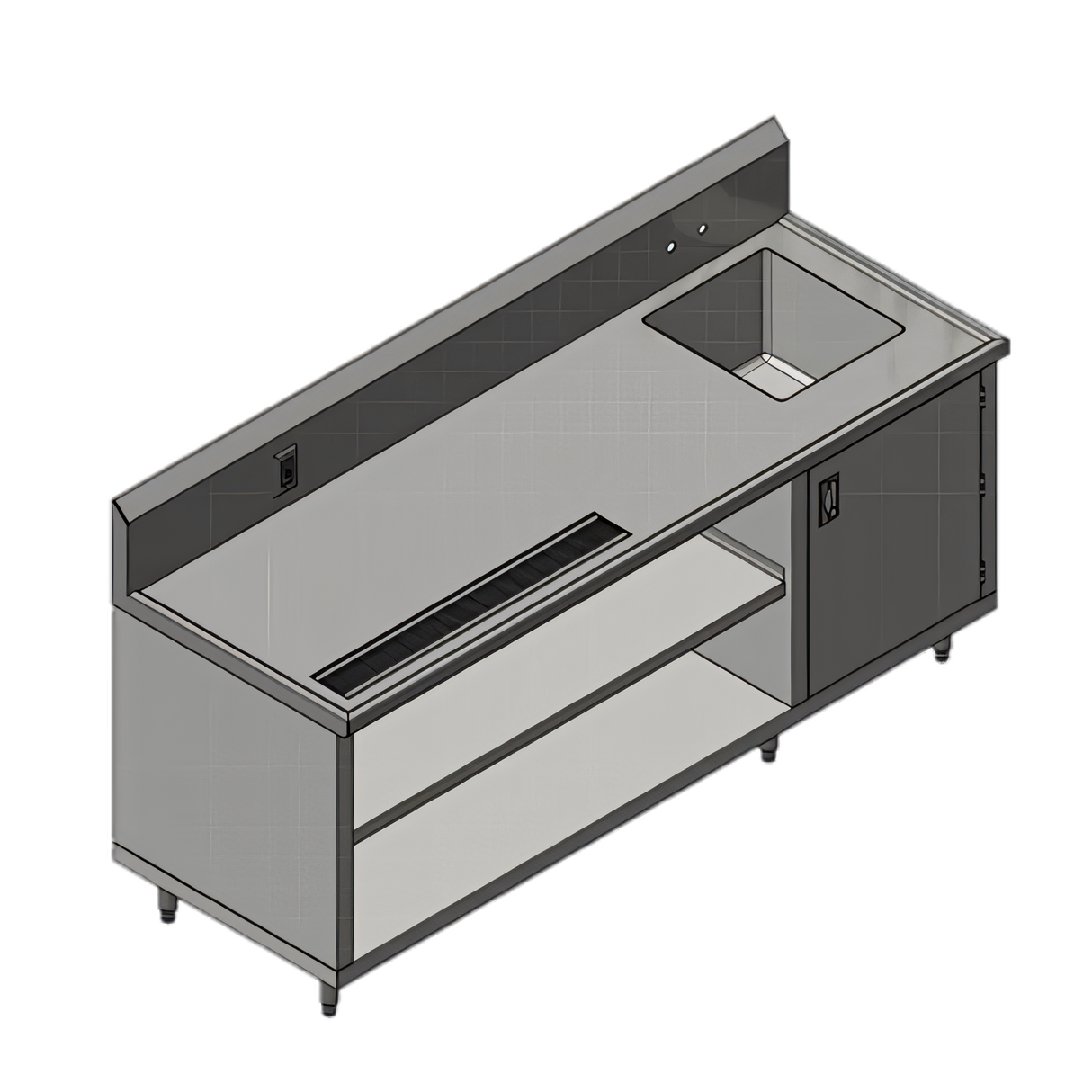

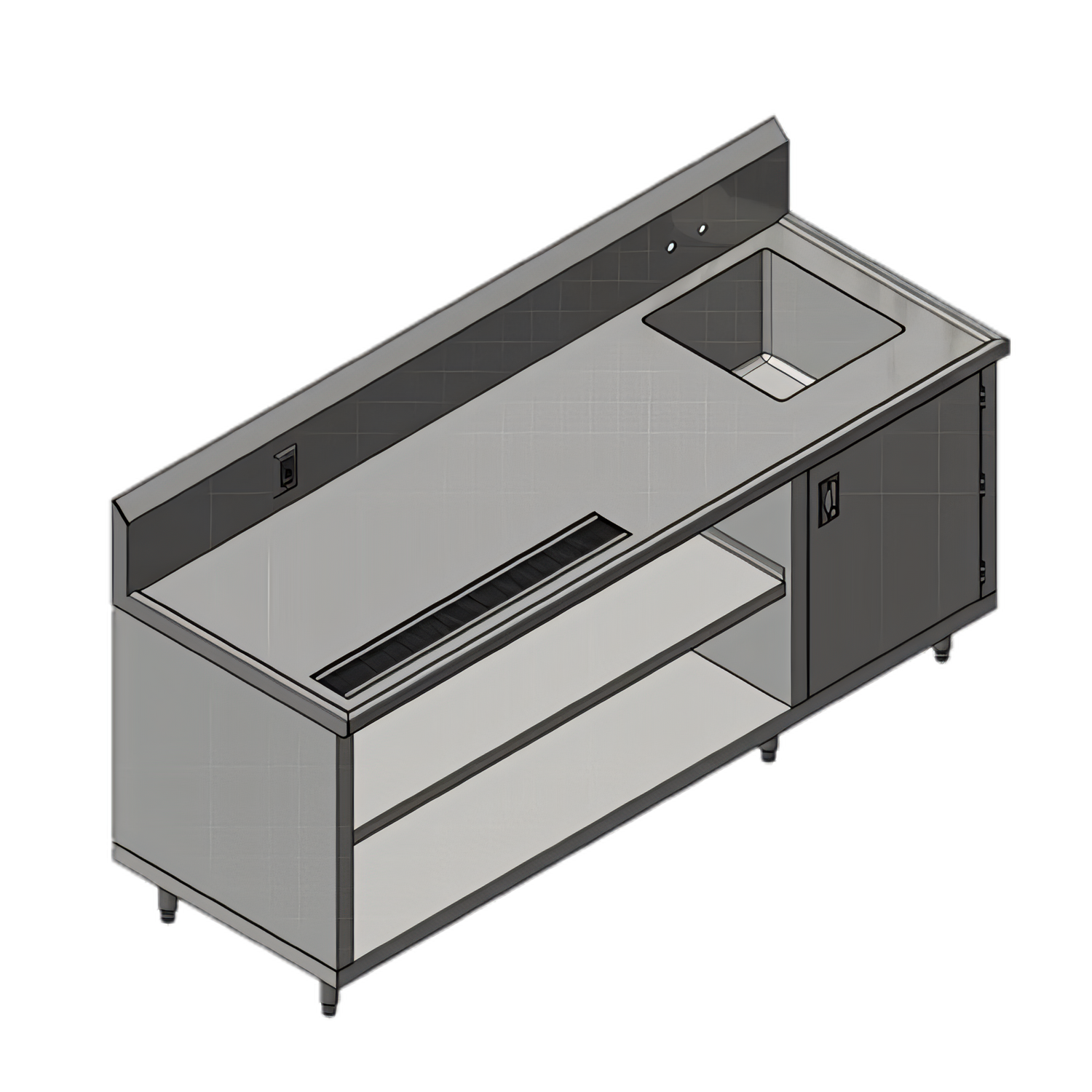

John Boos 4CB4R10-30108-R 108" Beverage Table – Right-Hand Sink
14 ga Type 300 Stainless Steel Top • Open-Front Cabinet Base • NSF ListedEngineered for high-volume beverage service, this 108-inch John Boos beverage table combines a heavy-duty stainless work surface, integrated sink, urn trough and handy power outlet—everything you need to keep coffee, tea and cold-drink stations running smoothly.
Key Features
- 14 ga Type 300 stainless steel top with #4 satin polish for superior durability.
- 10" backsplash with non-drip marine edge keeps liquids off surrounding counters.
- Stallion Safety Edge on front; square turndown ends for easy line-up with adjacent equipment.
- 18" × 18" × 12" deep sink (right-hand) with 4" O/C splash-mount faucet holes and 3-1/2" drain opening.
- 36" urn trough with louvered grate and 2" drain efficiently captures overflow from beverage urns.
- 20 A GFCI single-phase duplex outlet in backsplash—perfect for brewers, grinders or blenders.
- Sound-deadened top reinforced by full-length 2" × 3" channels.
- Open-front cabinet base with one intermediate shelf for cups, filters or cleaning supplies.
- Hinged double-panel door in front of sink offers quick access to plumbing connections.
- 18 ga Type 430 stainless steel body wrap, stainless legs and adjustable bullet feet (36" working height).
- Ships welded and ready to install; NSF certified for commercial food-service use.
Technical Specifications
Model | 4CB4R10-30108-R (sink on right) |
---|---|
Overall Dimensions | 108" W × 30" D × 45-3/4" H (to top of backsplash) |
Work Surface Height | 36" |
Top Material / Gauge | 14 ga Type 300 stainless steel, #4 satin finish |
Cabinet / Body | 18 ga Type 430 stainless steel |
Sink Bowl | 18" W × 18" F-B × 12" D; right-hand location |
Faucet Mounting | (2) splash-mount holes on 4" centers (Faucet not included) |
Drains | Sink: 3-1/2" • Urn trough: 2" |
Urn Trough | 36" length with removable louvered grate |
Electrical | 1-ph 120 V duplex GFCI outlet, 20 A |
Reinforcement | Sound-deadened, 2" × 3" full-length channels |
Shipping Weight | Approx. 450 lb |
Certifications | NSF |
Note: Faucet, drain basket and plumbing fittings are sold separately.
Stainless Steel Care & Maintenance
- Clean daily with mild soap or a non-chloride stainless cleaner; always wipe in the direction of the grain.
- Avoid abrasive pads, steel wool or cleaners containing bleach or quaternary salts.
- Remove standing water, coffee or acidic juices promptly to preserve the protective chromium film.
- For restoring shine, use John Boos Stainless Steel Cleaner or Bar Keepers Friend followed by a rinse and soft towel dry.
