John Boos 4CB4R10-30108-L Bar Equipment
John Boos 4CB4R10-30108-L Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

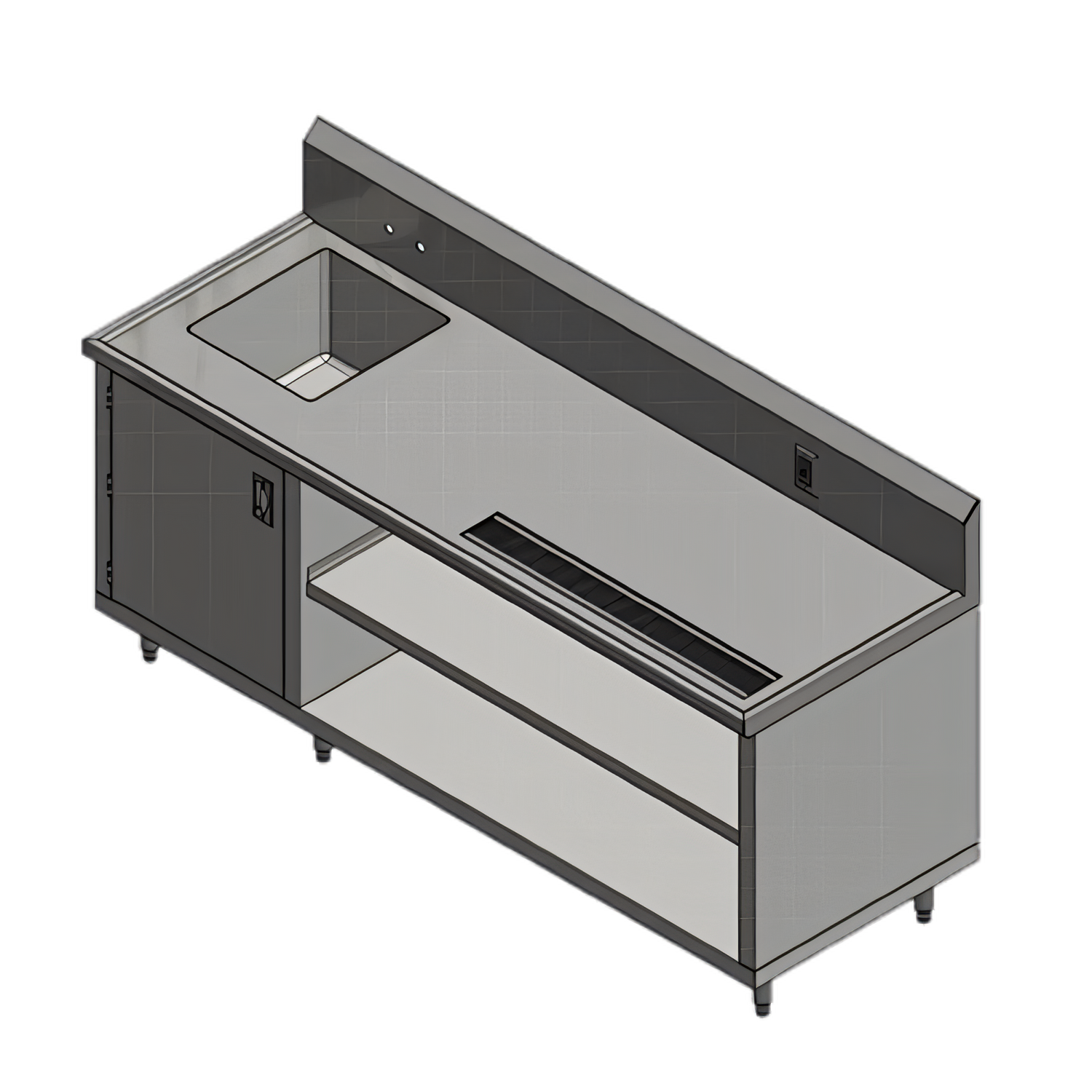

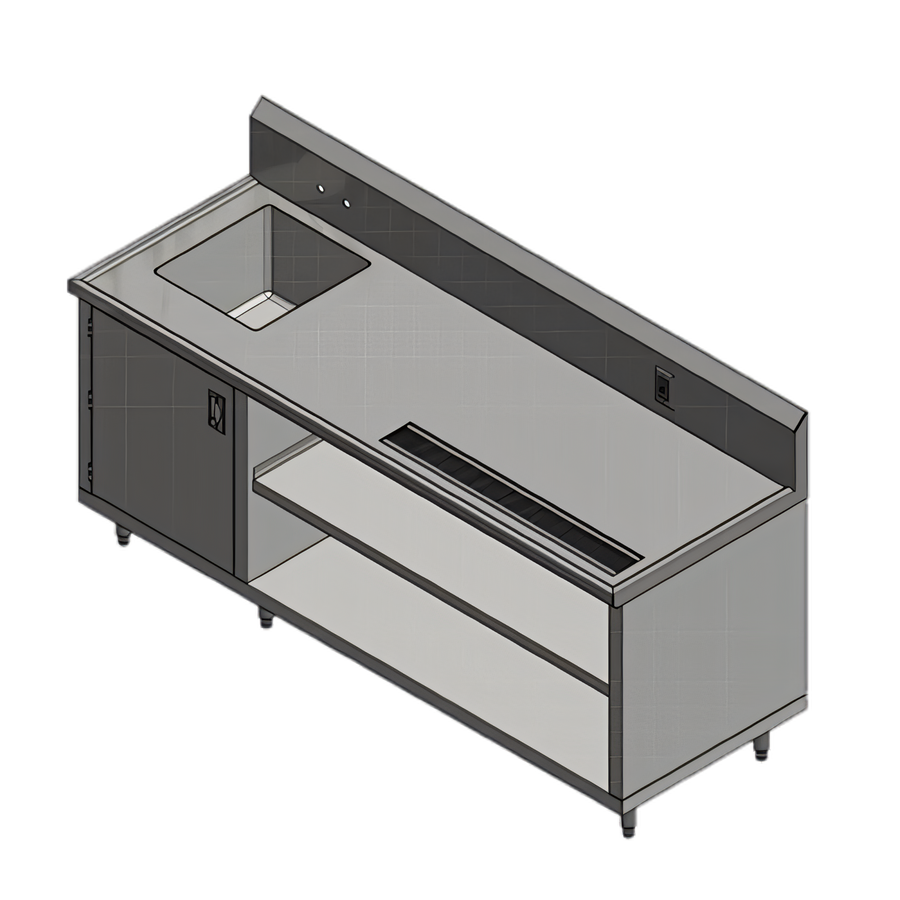

John Boos 4CB4R10-30108-L Stainless Steel Beverage Table – 108" Left-Hand Sink
14 ga. Type 300 top • open cabinet base • NSF certifiedBuilt for busy beverage lines, this 108-inch John Boos station combines a heavy-duty stainless work surface, sink, and urn trough into one streamlined, easy-to-sanitize unit—perfect for coffee service, iced-tea programs, or back-of-house prep.
Key features
- 14 ga Type 300 stainless steel top with #4 satin finish—endures daily commercial abuse.
- 10" rear backsplash plus non-drip marine edge contain spills and protect adjoining walls.
- Stallion Safety Edge front and square 90° turndown ends for seamless table line-up.
- 18" × 18" × 12" deep sink (left) with 4" O/C splash-mount faucet holes & 3-1/2" drain.
- 36" urn trough with removable louvered grate and 2" drain keeps dispenser run-off in check.
- Hinged double-panel door in front of sink conceals plumbing yet allows easy service access.
- Open front base with full-length intermediate shelf stores pitchers, filters, and supplies.
- 20 A single-phase duplex GFCI outlet in backsplash—power brewers, grinders, or blenders right where you need them.
- 18 ga Type 430 stainless steel body wrap; stainless steel legs with adjustable bullet feet.
- Factory-welded set-up ships ready to install, saving precious labor hours.
At-a-glance specifications
Model | 4CB4R10-30108-L (sink on left) |
---|---|
Overall size | 108" W × 30" D × 45-3/4" H (36" working height) |
Top material | 14 ga Type 300 stainless steel |
Backsplash | 10" high, includes 1-ph duplex outlet |
Sink bowl | 18" W × 18" F-B × 12" deep |
Faucet mount | Splash mount, 4" centers (faucet not included) |
Urn trough | 36" long with louvered grate & 2" drain |
Base | Open front cabinet with 1 intermediate shelf |
Legs / feet | Stainless steel legs, adjustable bullet feet |
Body material | 18 ga Type 430 stainless steel |
Shipping weight | Approx. 450 lb |
Certifications | NSF |
Why choose John Boos stainless?
- Made in the USA since 1887—over a century of fabrication expertise.
- TIG-welded seams are ground and polished to match #4 finish for a seamless, sanitary surface.
- Sound-deadened top reinforced with 2" × 3" channels eliminates vibration under heavy equipment.
Care & maintenance
Follow these simple steps to keep your table looking like new:
- Clean daily with mild soap or detergent and warm water; rinse and dry completely.
- Avoid chlorine bleach and abrasive cleaners that contain chlorides.
- For stubborn spots, use a non-chloride cleaner (e.g., Bar Keepers Friend) and scrub with the grain.
- Finish with John Boos Stainless Steel Cleaner to restore the original luster.
