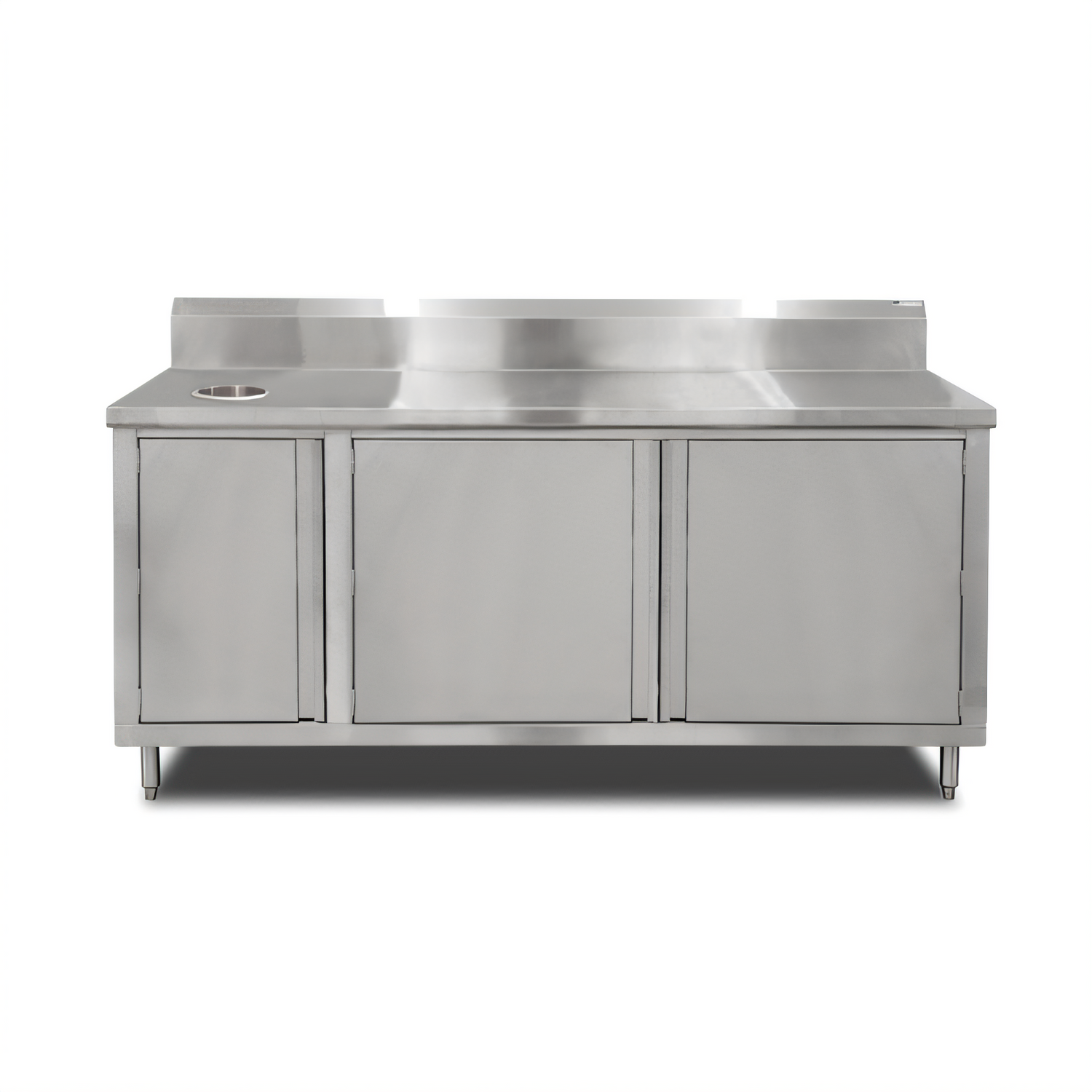

John Boos 72-Inch Stainless Steel Beverage Unit Cabinet Base with Right Trash Chute, Hinged Doors, and 5-Inch Backsplash

SKU: 4BU4R5-3672-R-X
$4,314.90
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Work Tables Enclosed Work Tables John Boos New Arrivals Restaurant Equipment Specialty Work Tables Stainless Steel Prep Tables Tables & Workstations

John Boos 72-Inch Stainless Steel Beverage Unit Cabinet Base with Right Trash Chute, Hinged Doors, and 5-Inch Backsplash

14-Gauge Top, 18-Gauge Base, Front-Hinged Doors, Adjustable Feet

Built for busy beverage stations, this heavy-duty cabinet base combines a reinforced stainless steel worktop, right-side trash chute, and enclosed storage in one durable unit.

  • 72"W x 36"D beverage unit designed for commercial beverage prep and service areas.
  • 14-gauge Type 300 stainless steel top with 5" backsplash and Stallion Safety Edge front.
  • Right-side 6" trash chute accommodates a 16-gallon Slim Jim trash can (not included).
  • 18-gauge Type 400 stainless steel base with front hinged doors for enclosed storage.
  • Stainless steel legs with adjustable feet help with leveling on uneven floors.
  • Sound-deadened, reinforced top and standard welded set-up add durability; NSF listed.

Overall Dimensions:

72.0"W x 36.0"D x 40.75"H

Product Weight:

296.0 lb

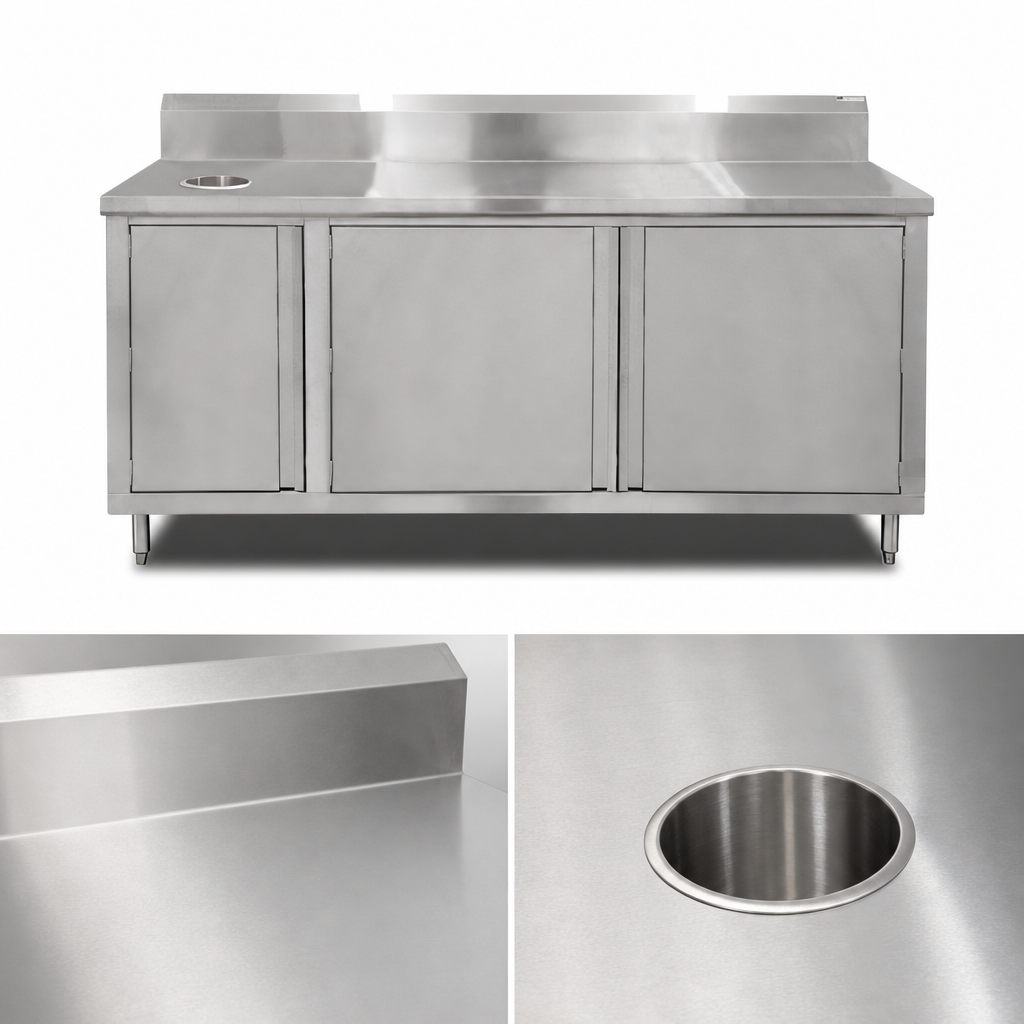

14-Gauge Type 300 Stainless Steel Top

Durable top surface with a #4 polished, satin finish for demanding foodservice use.

5-Inch Backsplash with Stallion Safety Edge

Helps contain spills while the 1-1/2" Stallion edge and bent-down side edges support table line-up.

Reinforced, Sound-Deadened Top

Top is reinforced with a 2" x 3" channel running the full length of the unit for added strength and noise reduction.

18-Gauge Type 400 Stainless Steel Base

Corrosion-resistant cabinet base construction with enclosed storage below the work surface.

Front Hinged Double-Panel Doors

Provides easy access to the cabinet base while maintaining a clean, enclosed appearance.

Right-Side 6-Inch Trash Chute

Built-in chute is positioned on the right side and accommodates a 16-gallon Slim Jim trash can; can is not included.

Stainless Steel Legs with Adjustable Feet

Helps provide stability and allows for leveling after installation.

Shipped Standard Welded Set-Up

Unit ships fully welded for a ready-to-install presentation.

Type Beverage Unit
Style Cabinet Base
Installation Type Floor Model
Material Stainless Steel
Finish Satin Finish
Top Gauge 14 Gauge
Top Stainless Series 300 Series
Base Gauge 18 Gauge
Base Stainless Series 400 Series
Splash Height 5 Inches
Trash Chute Diameter 6 Inches
Trash Chute Location Right Side
Shipping Width 72 Inches
Shipping Depth 36 Inches
Shipping Height 41 Inches
Shipping Weight 296 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Assembly instructions PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The overall size is 72"W x 36"D x 40-3/4"H.
The trash chute is on the right side.
No. It accommodates a 16-gallon Slim Jim trash can, but the can is not included.
The top is 14-gauge Type 300 stainless steel and the base is 18-gauge Type 400 stainless steel.
Yes, the unit has front hinged double-panel doors.
Yes, the product is NSF listed.
