Description
John Boos Pro-Bowl 4-Compartment Sink – 131-1/4"W with Dual 24" Drainboards
Model: 44PB204-2D24 • 14 ga Type 300 Stainless Steel • NSF & CSA-SanitationEngineered for high-volume food-service operations, the John Boos Pro-Bowl 4-Compartment Sink delivers uncompromising durability, ample work space, and industry-leading sanitation compliance. Four generous 20" × 20" × 14" bowls let you establish a true wash-rinse-sanitize setup, while full-size 24" drainboards on both sides keep soiled and clean wares organized and flowing. Built from heavy 14-gauge, 300-series stainless steel and finished to a #4 satin polish, this rugged sink stands up to years of daily abuse in the back-of-house, commissary, or production kitchen.
Key Features

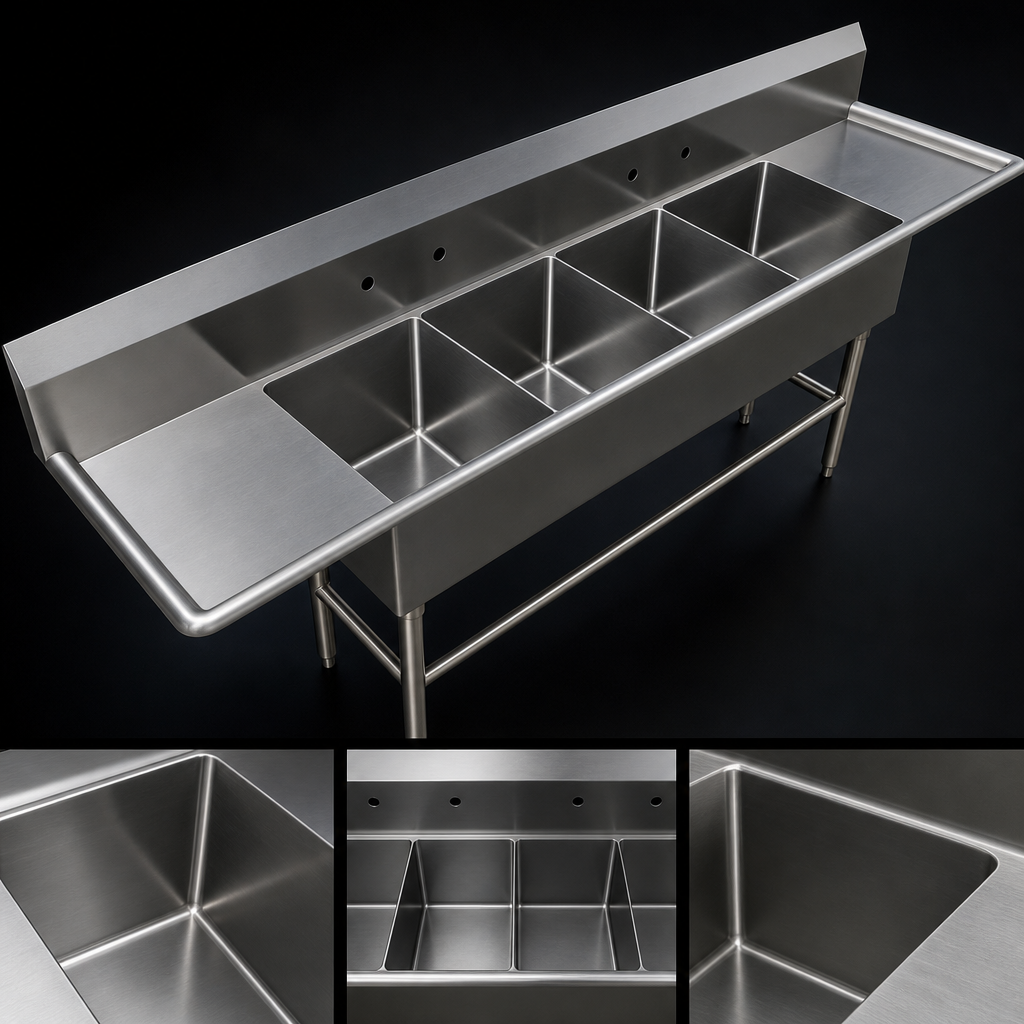

- Four 20" W × 20" F/B × 14" D compartments – ideal for a full 3-bay ware-washing process plus an extra utility bowl.
- (2) 24" drainboards (left & right) with positive draining pitch help stage racks, sheet pans, or prep items.
- 10" boxed backsplash with 2" return and safety 45° top edge stops water & debris from escaping onto walls.
- (2) splash-mount faucet hole sets on 8" centers (1" dia.) – accepts most commercial faucets & pre-rinses.
- 3-1/2" die-stamped drain openings in each compartment for a leak-free fit with standard basket drains.
- TIG-welded, polished seams and 5/8" coved bowl corners for effortless clean-up and superior hygiene.
- 1-5/8" Ø stainless steel legs with adjustable bullet feet and front/side cross-bracing for rock-solid stability.
- Ships knocked-down (KD) for easier freight handling; quick assembly with included hardware.
- NSF & CSA-Sanitation certified – passes the toughest health-department inspections.
Specifications
Overall Dimensions | 131-1/4" W × 25-1/2" D × 44-1/16" H (to top of backsplash) |
---|---|
Compartment Size (4) | 20" W × 20" F/B × 14" D |
Drainboard Size | 24" L (left) & 24" L (right) |
Backsplash | 10" H boxed, 2" return, 45° safety edge |
Faucet Mount | (2) 8" on-center splash-mount hole sets, 1" dia. |
Drain Openings | 3-1/2" dia. die-stamped (one per bowl) |
Material / Finish | 14-ga Type 300 stainless steel, #4 satin polish |
Base Construction | Stainless steel legs, 1-1/4" Ø SS bracing, adjustable SS bullet feet |
Certifications | NSF, CSA-Sanitation |
Shipping Configuration | Knocked-Down (KD) |
Approx. Weight | 231 lb |
Ideal For
- Restaurants & commissary kitchens
- Institutional food service (schools, hospitals, corrections)
- Catering & banquet operations
- Food-processing & packaging facilities
Need a different size, end splashes, or overshelves? Chat with our team for a custom Pro-Bowl configuration.
