John Boos Pro-Bowl 4-Compartment Sink with 30" Right Drainboard
Model 44PB204-1D30R • 14-Gauge Type 300 Stainless SteelEngineered for the rigors of commercial kitchens, the Pro-Bowl series combines heavy-duty construction, generous bowl capacity, and code-compliant sanitation in one workhorse sink.
Key Features

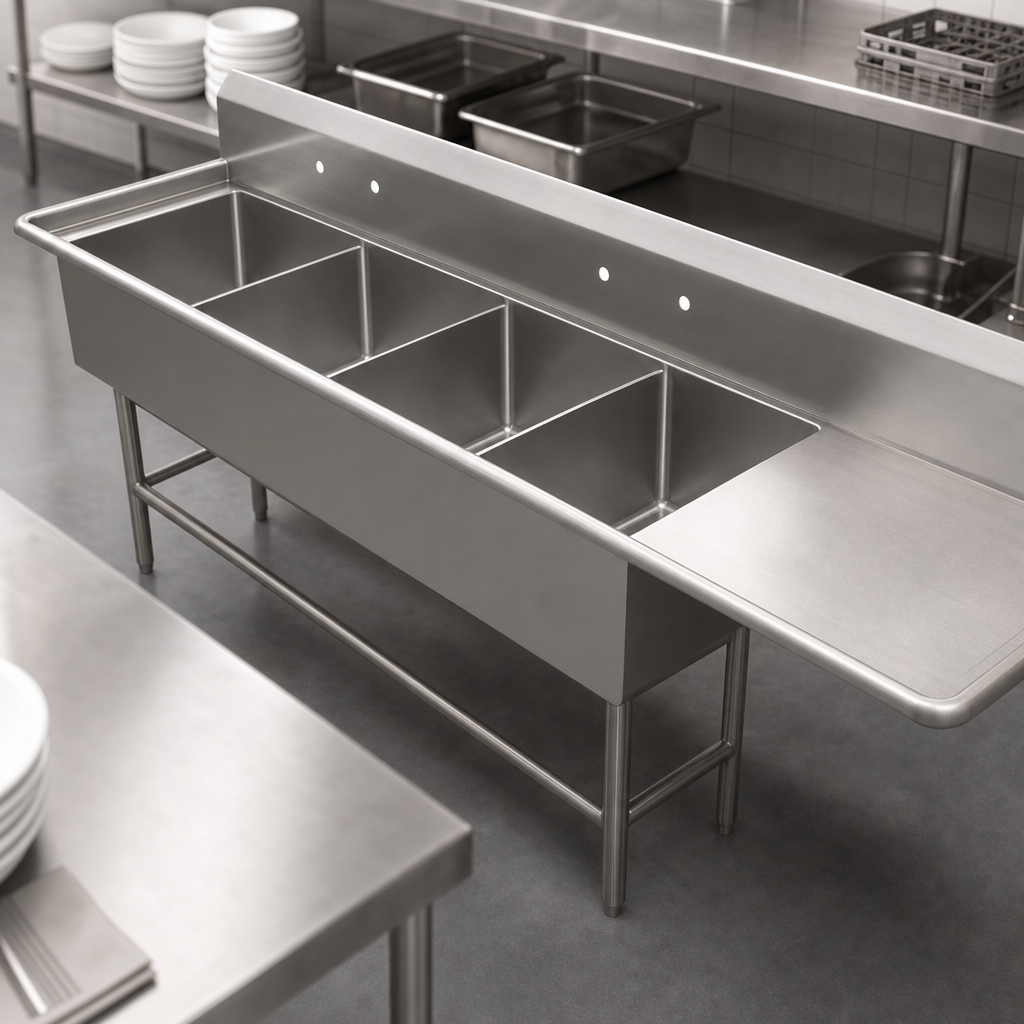

- Four large 20" W x 20" F/B x 14" D compartments handle high-volume warewashing, prep, or thawing.
- Integrated 30" right-side drainboard provides ample space for drying and staging.
- 14-gauge, type 300 stainless steel top and bowls with #4 satin polish resist corrosion and everyday abuse.
- 10" boxed backsplash with 2" return and 45° coved top keeps surrounding walls dry and sanitary.
- Pre-punched for (2) splash-mount faucets on 8" centers; 1" diameter holes accept most commercial fixtures.
- 3-1/2" die-stamped drain openings ensure a precise fit with standard basket strainers or lever wastes (sold separately).
- 1-5/8" O.D. stainless legs with 1-1/4" O.D. adjustable front & side bracing create a rigid, wobble-free base.
- Adjustable stainless steel bullet feet make leveling on uneven floors quick and easy.
- Ships knock-down (KD) to reduce freight costs and simplify on-site handling.
- NSF and CSA-Sanitation listed for worry-free health-code compliance.
At-a-Glance Specifications
Overall Dimensions (W × D × H) | 114 3⁄16" x 25 1⁄2" x 44 1⁄16" |
---|---|
Compartment Count / Size | (4) 20" W x 20" F/B x 14" D bowls |
Drainboard | 30" right-hand, integrally welded |
Backsplash | 10" boxed with 45° top & 2" return |
Faucet Mount | (2) sets 8" O.C. splash-mount holes, 1" dia. |
Material Thickness | 14-ga. (0.078") type 300 stainless steel |
Legs / Bracing | 1-5/8" O.D. SS legs • 1-1/4" O.D. SS bracing |
Drain Opening | 3-1/2" die-stamped (each bowl) |
Shipping Configuration | Knock-down (assembly required) |
Certifications | NSF, CSA-Sanitation |
Faucets, drains, and other accessories are sold separately so you can configure the sink to match your workflow.
