John Boos 44PB20-2D24 Pro-Bowl Compartment Sinks
John Boos 44PB20-2D24 Pro-Bowl Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos 44PB20-2D24 Pro-Bowl Compartment Sinks
Description

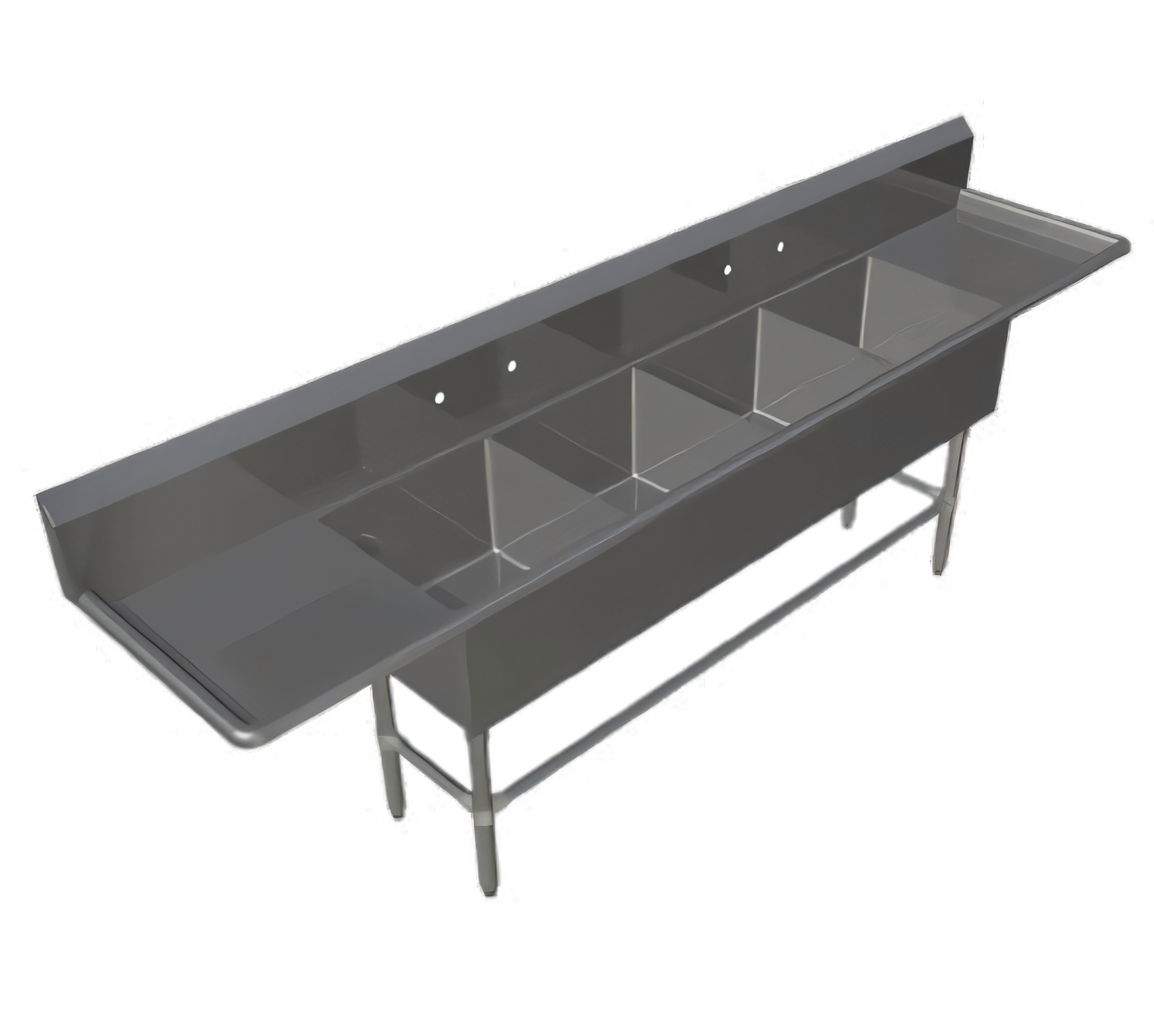

John Boos Pro-Bowl 4-Compartment Sink with Twin 24" Drainboards
Model 44PB20-2D24 | 131-1/4" W × 25-1/2" D × 44-1/16" HEngineered for demanding prep and ware-washing lines, the John Boos Pro-Bowl 44PB20-2D24 delivers four generous 20" × 20" × 12" bowls flanked by full-size drainboards to keep production moving. Heavy-duty 14-gauge, type 300 stainless steel resists corrosion, while a 10" boxed backsplash and sanitary coved corners simplify clean-ups and help you maintain a spotless kitchen.
Key Features

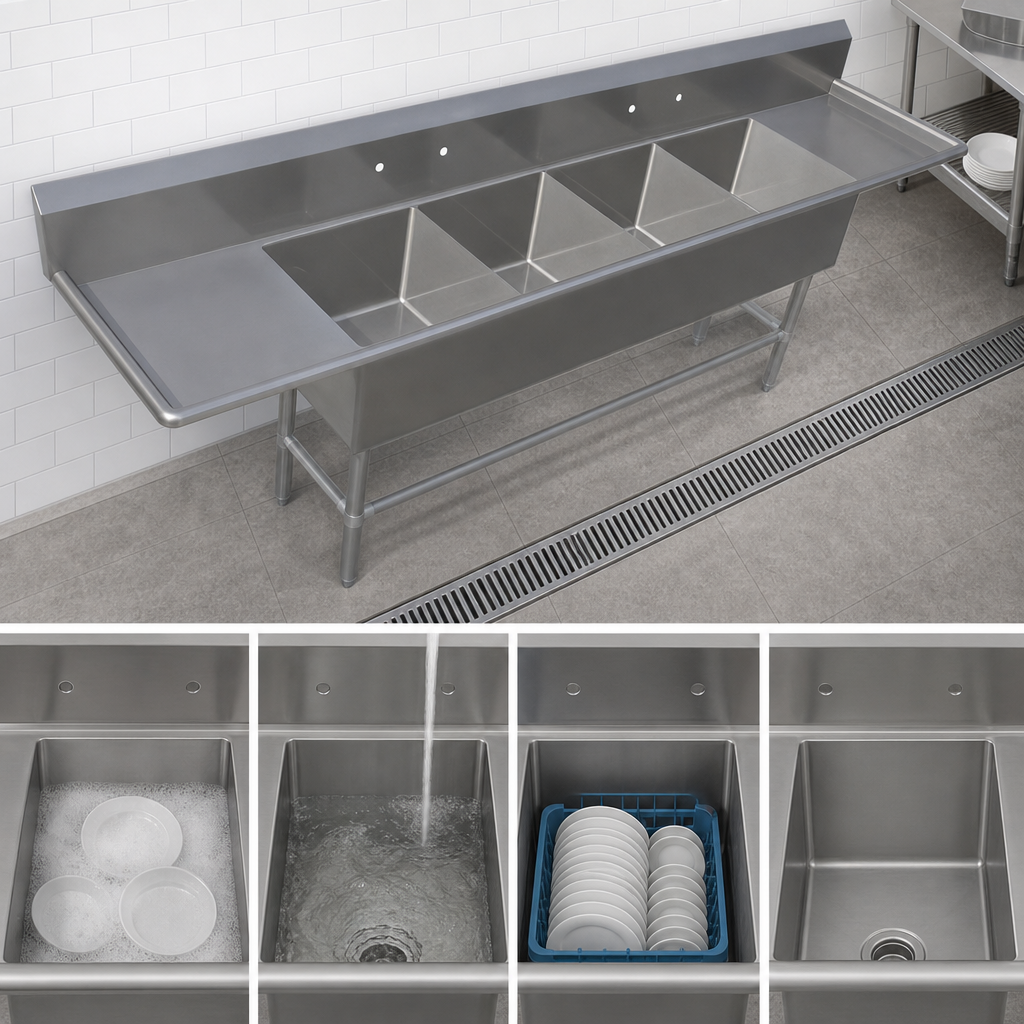

- Four 20" W × 20" F-B × 12" D bowls—ideal for wash, rinse, sanitize & prep zones
- Dual 24" drainboards (left & right) speed up drying and staging
- 14-gauge type 300 stainless steel top, bowls & front apron with #4 satin polish
- 10" high boxed backsplash with 45° top & 2" return prevents wall damage
- (2) sets of 1" splash-mount faucet holes, 8" on-center
- 3-1/2" die-stamped drain openings for standard basket strainers
- All corners coved to a 5/8" radius for effortless sanitation
- Stainless steel 1-5/8" O.D. legs with adjustable side & front bracing
- Adjustable stainless steel bullet feet level the sink on uneven floors
- TIG-welded construction; exposed welds polished to match adjacent surfaces
Technical Specifications
| Model | 44PB20-2D24 (Pro-Bowl Series) |
|---|---|
| Overall Dimensions | 131-1/4" W × 25-1/2" D × 44-1/16" H (to top of backsplash) |
| Bowl Size (each) | 20" W × 20" F-B × 12" D |
| Drainboards | 24" L (left) & 24" L (right) |
| Backsplash | 10" H boxed style with 2" return, 45° top edge |
| Material Thickness | 14-ga (0.078") type 300 stainless steel |
| Faucet Holes | (2) sets, 8" on-center, 1" diameter |
| Drain Openings | 3-1/2" diameter, die-stamped |
| Legs / Bracing | 1-5/8" O.D. stainless legs & 1-1/4" O.D. stainless bracing (adjustable) |
| Feet | 1" adjustable stainless bullet feet |
| Shipping Configuration | Knocked-Down (KD) |
| Approx. Weight | 217 lb |
Certifications & Compliance
- NSF Certified for food-service sanitation
- CSA-Sanitation listed
John Boos & Co. reserves the right to modify specifications without notice. All dimensions are typical and subject to a ±0.5" tolerance.
