John Boos 44PB16204-1D24R Pro-Bowl Compartment Sinks
Description

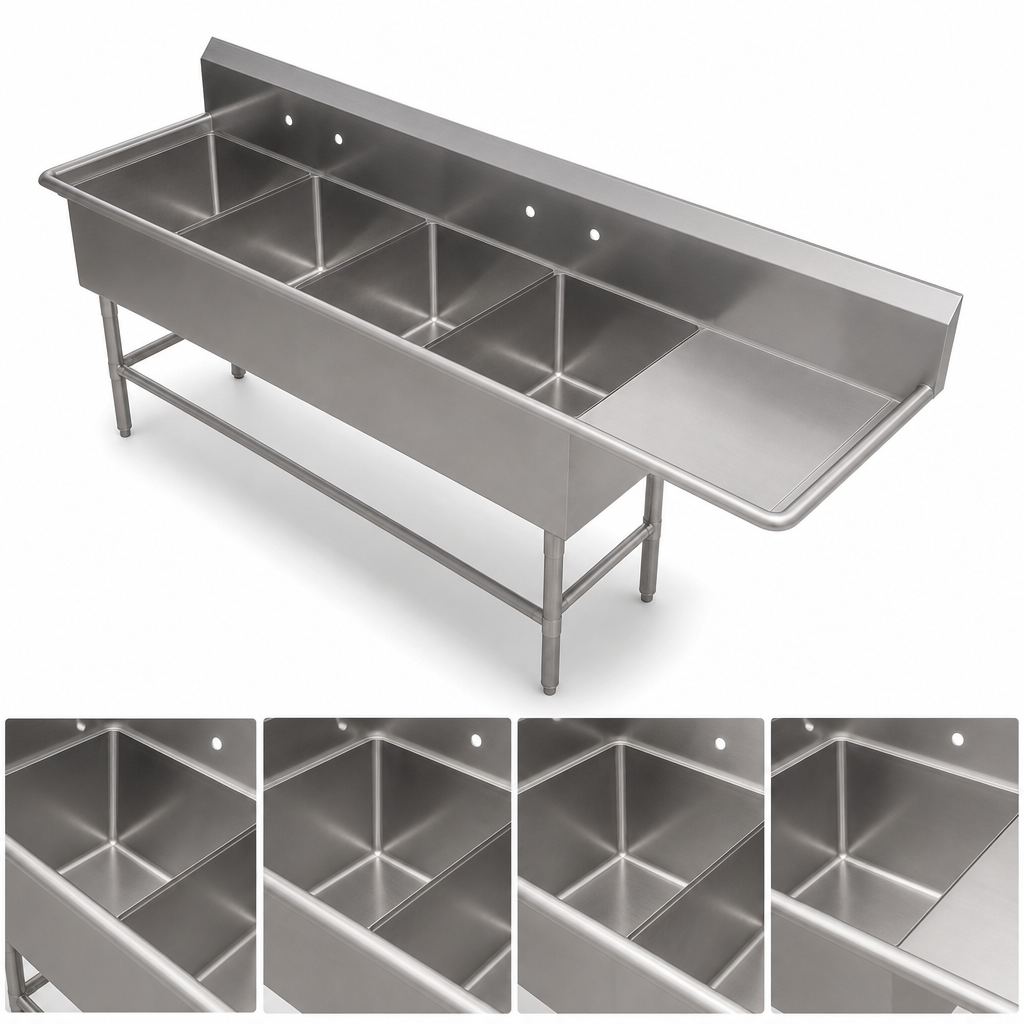

John Boos Pro-Bowl 4-Compartment Sink with 24" Right Drainboard
Model 44PB16204-1D24R | 14 ga Type 300 Stainless SteelBuilt for the daily demands of high-volume kitchens, the John Boos Pro-Bowl 4-compartment sink delivers the rugged durability, sanitary performance and ergonomic workflow food-service professionals expect from America’s premier stainless-steel fabricator.
Why This Sink Stands Out
- Four generous 16" W × 20" F-B × 14" D bowls handle prep, washing, rinsing & sanitizing simultaneously.
- Integrated 24" right-side drainboard speeds drying and keeps work surfaces clutter-free.
- Heavy-duty 14 gauge stainless steel with satin #4 finish resists dents, corrosion and harsh cleaners.
- Full-length 10" boxed backsplash with 45° return contains splashes and protects walls.
- (2) sets of 8" on-center splash-mount faucet holes allow flexible faucet or pre-rinse installation.
- 5⁄8" radius coved corners and die-stamped 3-1⁄2" drains promote fast, complete bowl clean-out.
- Stainless steel legs, adjustable front & side bracing, and 1" bullet feet deliver rock-solid stability on uneven floors.
- Ships knocked-down (KD) for lower freight costs and quick on-site assembly.
- Third-party certified NSF & CSA-Sanitation for code-compliant installation nationwide.
Technical Specifications
| Overall Size | 92-3/16" W × 25-1/2" D × 44-1/16" H (to top of backsplash) |
|---|---|
| Compartments (4) | 16" W × 20" F-B × 14" D |
| Drainboard | 24" W (right-hand) |
| Backsplash | 10" H boxed style with 2" 45° return |
| Faucet Holes | (2) sets, 8" centers, 1" diameter |
| Drain Openings | 3-1/2" die-stamped, one per bowl |
| Material | 14 ga Type 300 stainless steel, TIG-welded, #4 satin polish |
| Legs & Bracing | 1-5/8" O.D. stainless legs with 1-1/4" O.D. stainless bracing |
| Feet | Adjustable stainless steel bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Shipping Configuration | Knocked-down (KD), field assembly required |
Popular Factory Accessories (sold separately)
- 8" swing-nozzle or gooseneck faucets
- Pre-rinse spray units
- Lever waste drains
- Overshelves or pot racks
- End splashes (left, right or both)
Care & Maintenance
To preserve the protective chromium oxide layer, clean daily with a soft cloth or sponge and a non-chloride stainless cleanser; rinse and wipe dry. Avoid wire brushes, steel wool or bleach. Periodically polish with John Boos Stainless Steel Cleaner to restore the original satin sheen.
Need a left-hand drainboard or different bowl size? Contact us for custom Pro-Bowl configurations direct from John Boos.
