John Boos 43PBPS3224-2D30 Pro-Bowl Compartment Sinks
Description

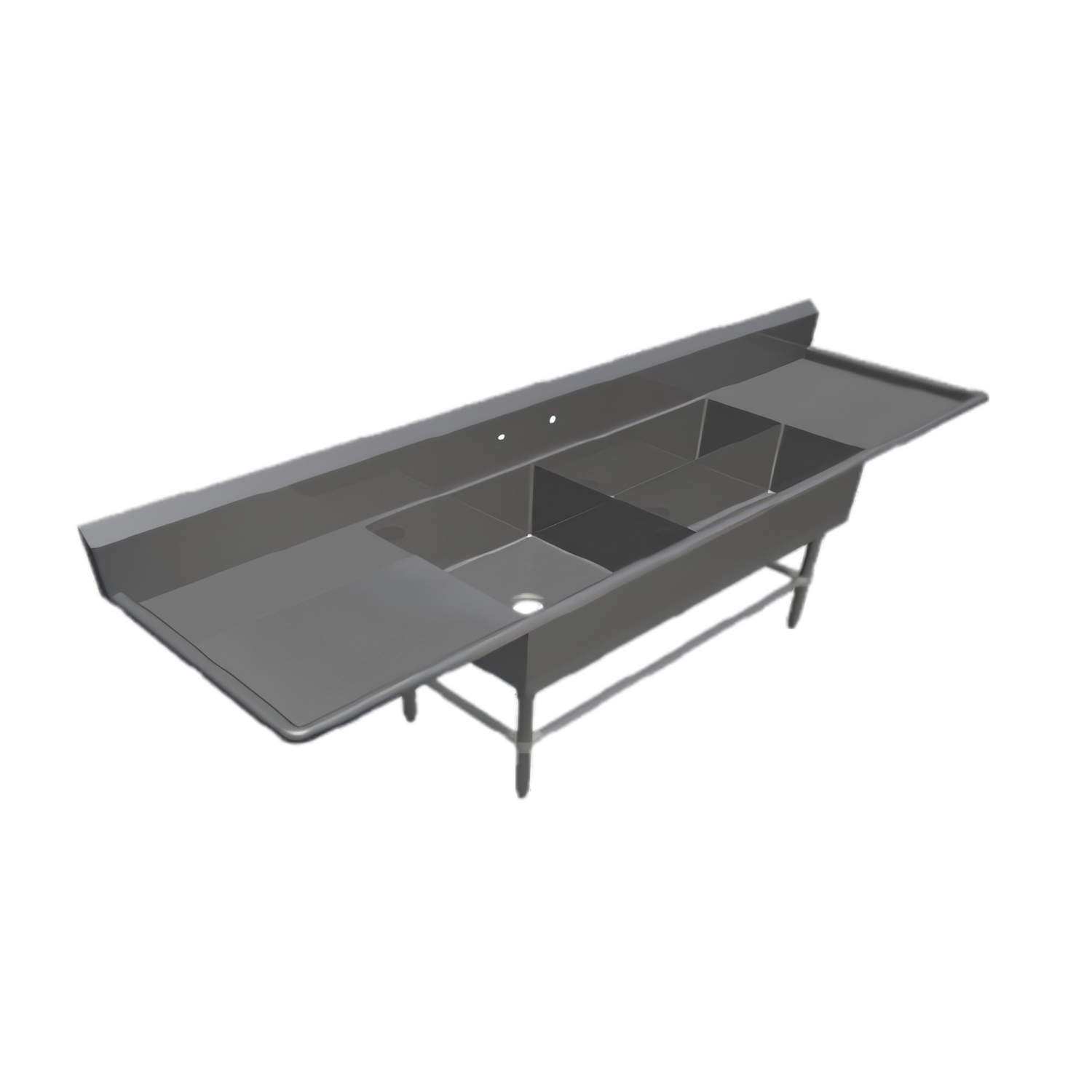

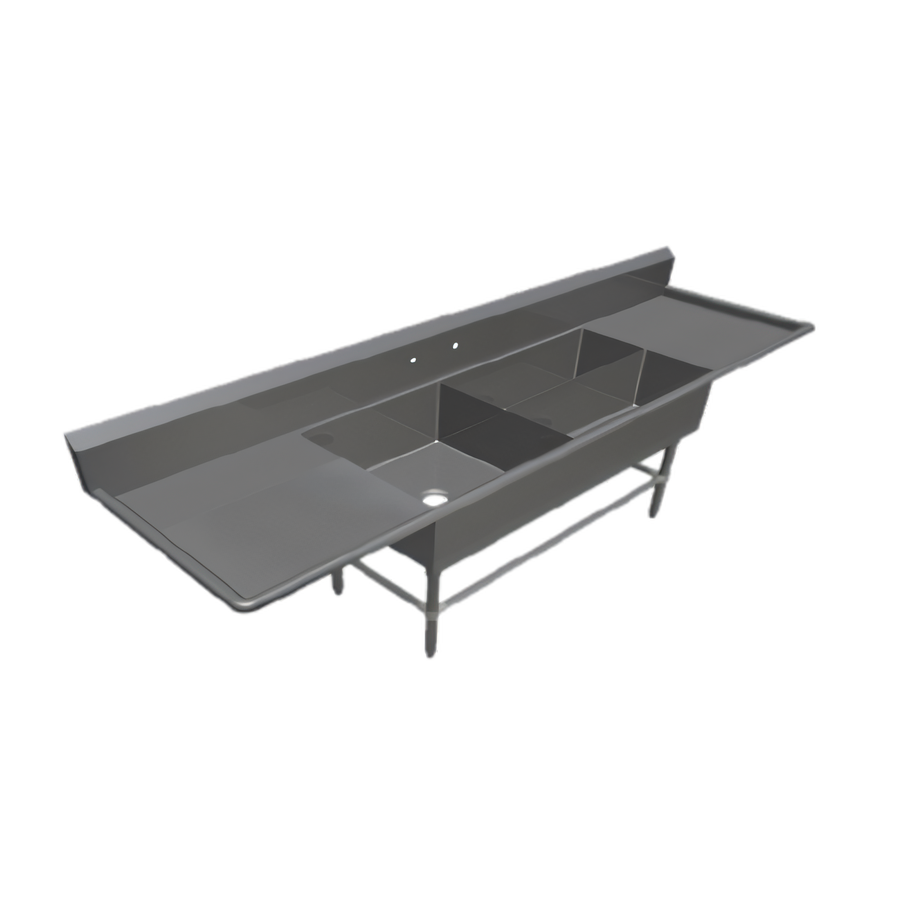

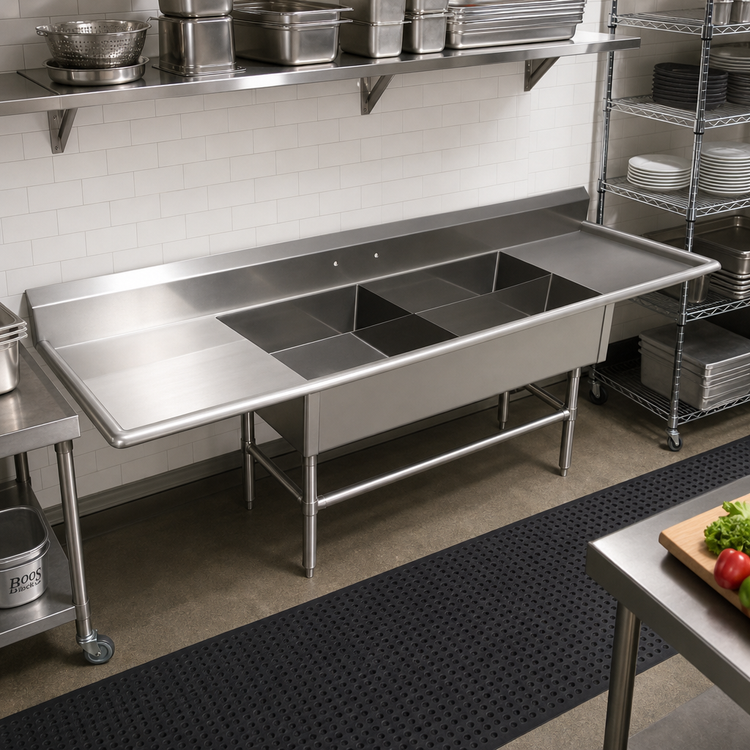

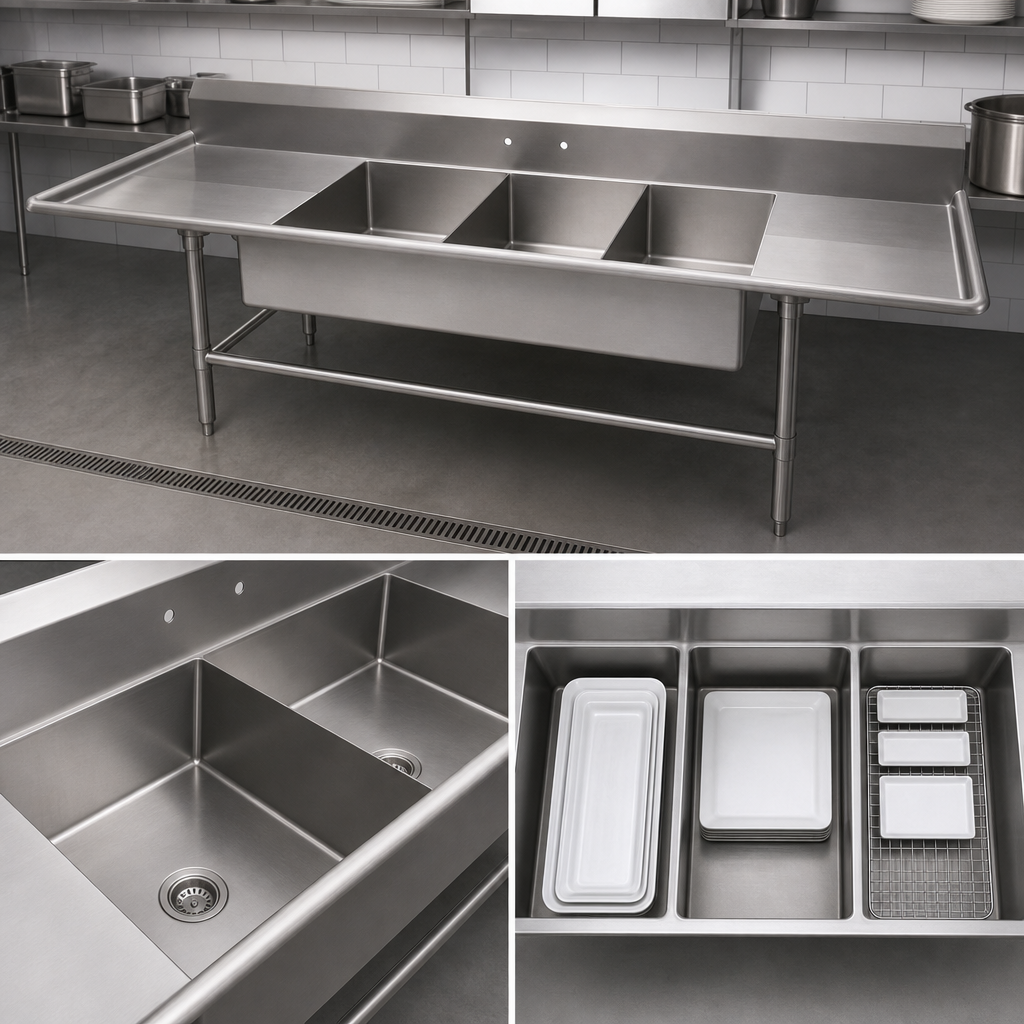

John Boos Pro-Bowl 3-Compartment Platter Sink
Model 43PBPS3224-2D30 | 119 in. wide with dual 30 in. drainboardsEngineered for demanding commercial kitchens, the Pro-Bowl platter sink combines three heavy-duty wash wells, oversized drainboards, and a full-height backsplash into one rock-solid, sanitary work center. Built from extra-thick 14-gauge Type 300 stainless steel, it is NSF and CSA listed, ships knock-down (KD) for lower freight costs, and assembles quickly on site.
Key Features
- 14-gauge, Type 300 stainless steel bowls, top & front apron with #4 satin polish
- (1) 24 in. × 24 in. × 12 in. deep wash bowl
- (2) 32 in. × 12 in. × 12 in. deep rinse / sanitize bowls
- (2) 30 in. integral drainboards—perfect for plating or air-drying
- 10 in. boxed backsplash with 2 in. 45° return keeps walls dry & sanitary
- Splash-mount faucet holes: 8 in. on-center, 1-1/8 in. diameter
- 3-1/2 in. die-stamped drain openings; bowl bottoms pitched for rapid drainage
- 1-5/8 in. Ø stainless steel legs with 1 in. adjustable bullet feet
- Adjustable front & side stainless steel bracing for extra rigidity
- TIG-welded seams; exposed welds polished to a smooth #4 finish
- All internal corners coved 5/8 in. radius; all external corners bull-nosed for operator safety
- NSF & CSA-Sanitation certified
Dimensions & Specifications
| Overall size | 119-3/16 in. W × 29-1/2 in. D × 43 in. H* |
|---|---|
| Compartment(s) |
Wash: 24 in. W × 24 in. F/B × 12 in. D Rinse & Sanitize (2): 32 in. W × 12 in. F/B × 12 in. D |
| Drainboards | 30 in. left & 30 in. right |
| Backsplash | 10 in. H boxed with 2 in. 45° return & 3/4 in. turned-down lip |
| Faucet mounting | (1) set, 8 in. on-center, splash-mount |
| Drain size | 3-1/2 in. Ø die-stamped openings (strainers not included) |
| Construction | 14-ga Type 300 stainless steel top & bowls; stainless legs, bracing & feet |
| Shipping weight | Approx. 525 lb (ships KD) |
| Certifications | NSF, CSA-Sanitation |
*Height measured to top of backsplash.
Popular Optional Accessories †
- Left / right end splashes
- Splash-mount faucets & add-a-faucets
- Pre-rinse spray assemblies
- Lever or twist-handle waste valves
- Stainless overshelves & pot racks
†Accessories sold separately. See “Related Products” below or contact us for details.
Care & Maintenance Tips
- Clean daily with mild, non-chloride detergents and a soft cloth or plastic scouring pad.
- Always wipe along the grain to preserve the #4 satin finish.
- Rinse and dry after each use to prevent mineral deposits and surface corrosion.
- For stubborn stains, use Bar Keepers Friend followed by John Boos Stainless Steel Cleaner.
- Avoid steel wool, wire brushes, and chlorine bleach—these will damage the protective surface film.
Quick Ship Notice: This sink ships knock-down (KD) for lower freight cost and must be assembled on site. All hardware and instructions are included.
