John Boos 43PBPS3224-1D30R Pro-Bowl Compartment Sinks
Description

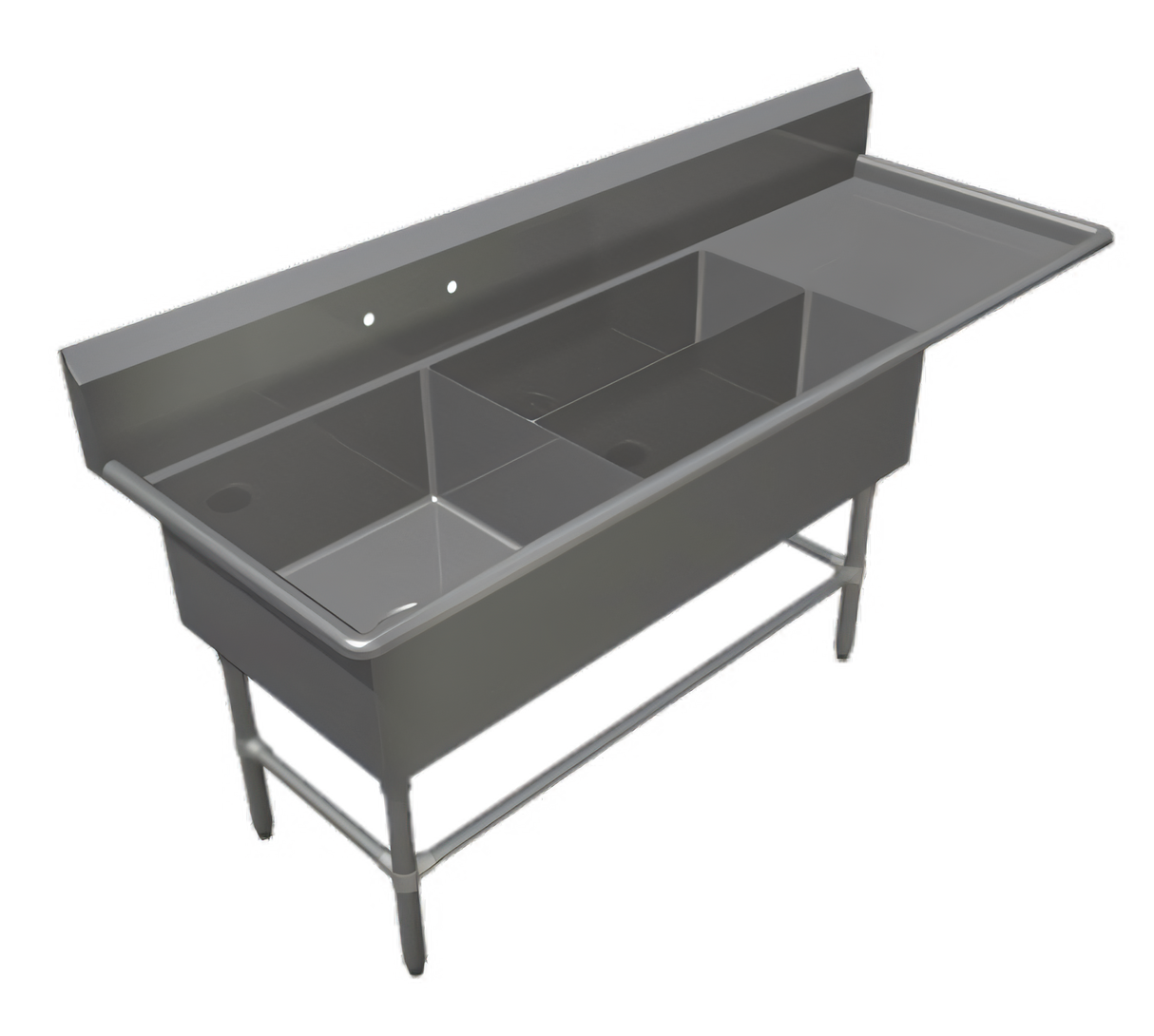

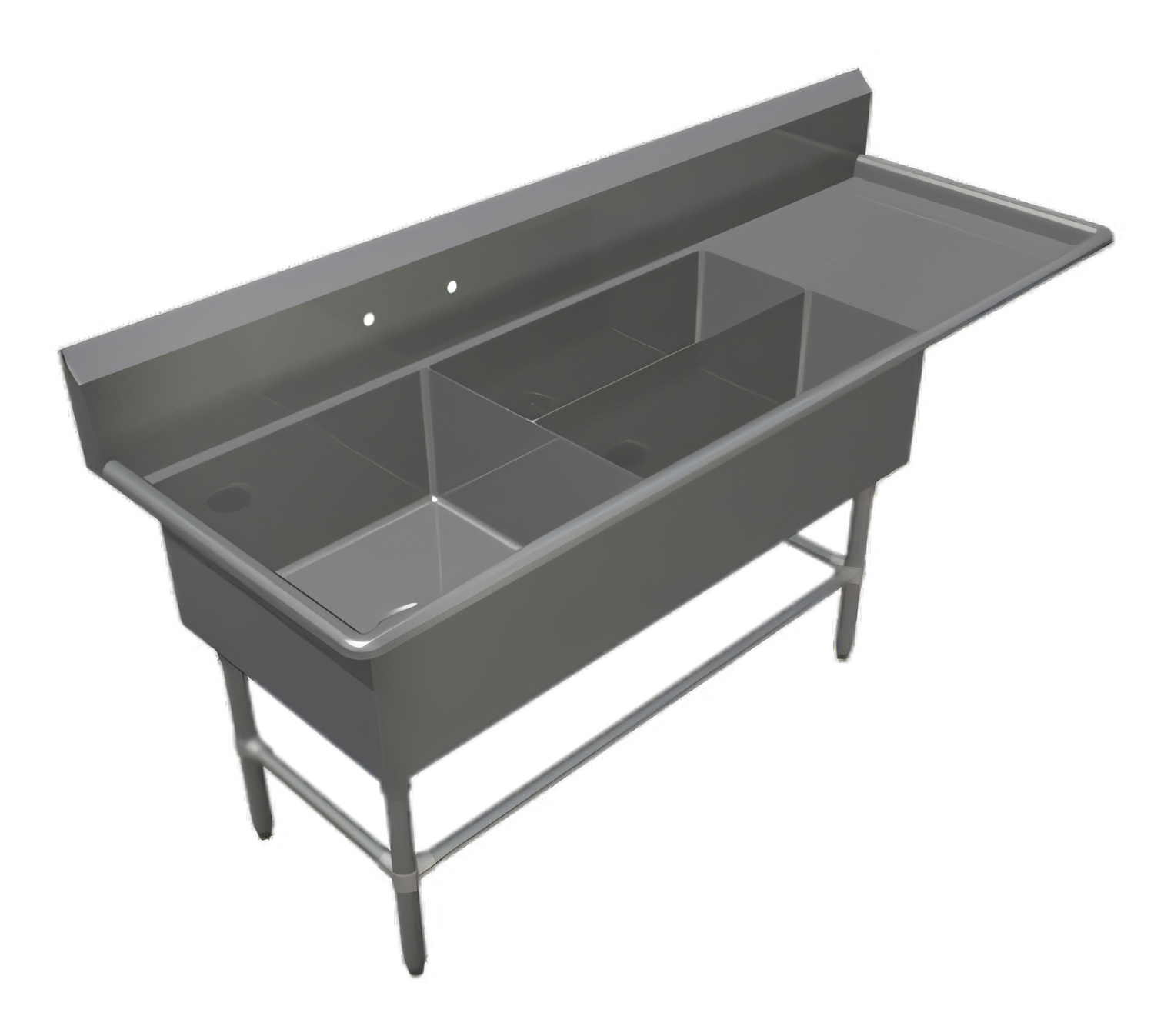

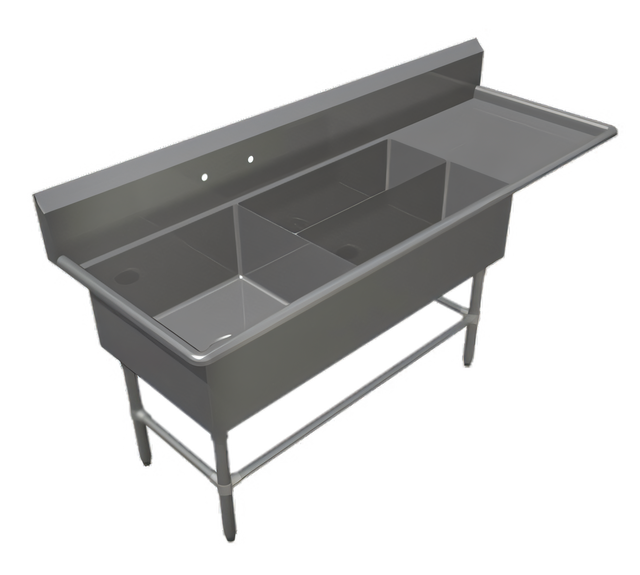

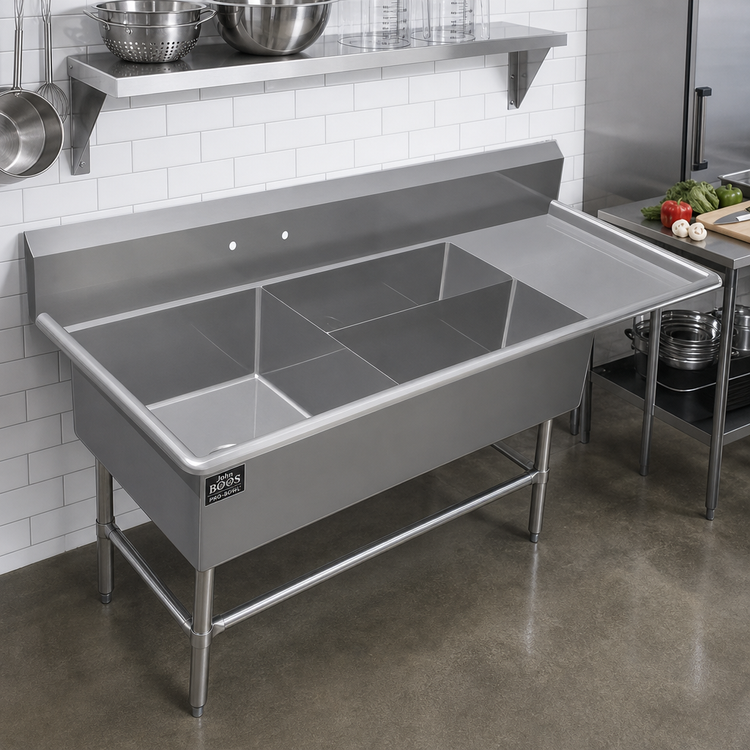

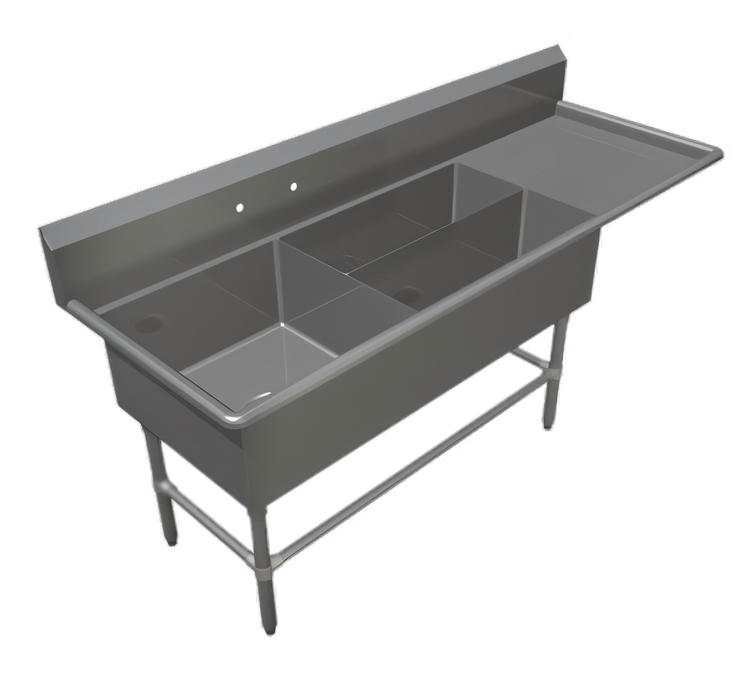

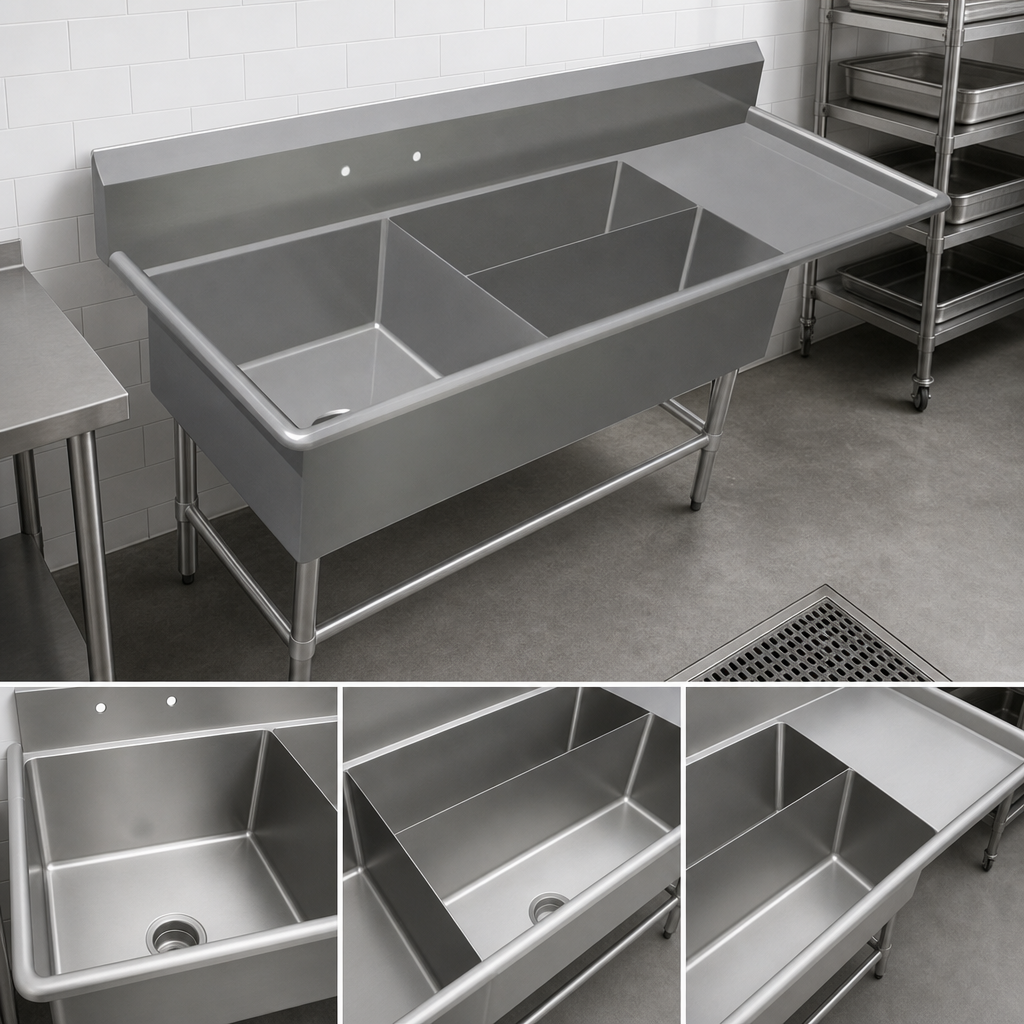

Pro-Bowl 3-Compartment Platter Sink with 30" Right Drainboard
John Boos Model 3PBPS3224-1D30 | 14 ga Type 300 Stainless SteelBuilt for high-volume foodservice, the John Boos Pro-Bowl platter sink delivers the rugged strength, generous bowl sizes, and smart sanitation details chefs rely on day after day. Three individually sized compartments let you separate prep, wash and rinse tasks, while the oversized 30" drainboard keeps clean ware or plated items right where you need them.
Key features at a glance
- 14-gauge, Type 300 stainless steel top and bowls with easy-to-clean #4 satin polish.
- One 24" W x 24" F-B x 12" D bowl for large stock pots and platters.
- Two 32" W x 12" F-B x 12" D bowls—perfect for multi-step sink systems.
- Coved 5/8" radius vertical & horizontal corners speed up wipe-downs.
- 10" high boxed backsplash with 45° top and 2" return contains splashes.
- (1) set of splash-mount faucet holes on 8" centers.
- 3-1/2" die-stamped drain openings promote fast, unobstructed drainage.
- Heavy-duty 1-5/8" O.D. stainless steel legs with adjustable 1" bullet feet.
- Adjustable 1-1/4" O.D. front & side bracing add stability on uneven floors.
- TIG-welded construction; exposed welds are polished to match adjoining surfaces.
- NSF & CSA-Sanitation listed for code compliance.
- Ships knocked-down (KD) to reduce freight cost and ease site access.
Detailed specifications
| Overall size (W × D × H) | 90-3/16" × 29-1/2" × 43" |
|---|---|
| Bowl 1 (center) | 24" W × 24" F-B × 12" D |
| Bowls 2 & 3 (left) | 32" W × 12" F-B × 12" D (each) |
| Drainboard | 30" – right side |
| Backsplash height | 10" boxed style |
| Faucet mounting | (1) set, 8" centers |
| Material & finish | 14 ga Type 300 SS, #4 satin polish |
| Legs / bracing | 1-5/8" O.D. legs / 1-1/4" O.D. adjustable bracing, SS |
| Drain openings | 3-1/2" die-stamped (per bowl) |
| Certifications | NSF, CSA-Sanitation |
| Approx. shipping weight | 401 lb |
Popular add-ons (sold separately)
- End splashes (left, right, or both)
- Deck or splash-mount faucets & add-a-faucets
- Pre-rinse spray units
- Lever waste drains
- Overshelves & pot racks
Care & maintenance tips
- Clean daily with a soft cloth or non-chloride detergent; always wipe with the grain.
- Avoid abrasive cleansers and steel wool that can break the protective stainless layer.
- Use Bar Keepers Friend or John Boos Stainless Steel Cleaner to remove tough stains and restore shine.
- Rinse off chlorine bleach immediately and dry to prevent surface pitting.
Need a different drainboard orientation or bowl depth? Contact us for custom quotes on any John Boos Pro-Bowl configuration.
