John Boos 43PBPS3224-1D24R Pro-Bowl Compartment Sinks
$4,311.40
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
John Boos 43PBPS3224-1D24R Pro-Bowl Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos 43PBPS3224-1D24R Pro-Bowl Compartment Sinks
$4,311.40
Unit price
/
Unavailable
Description

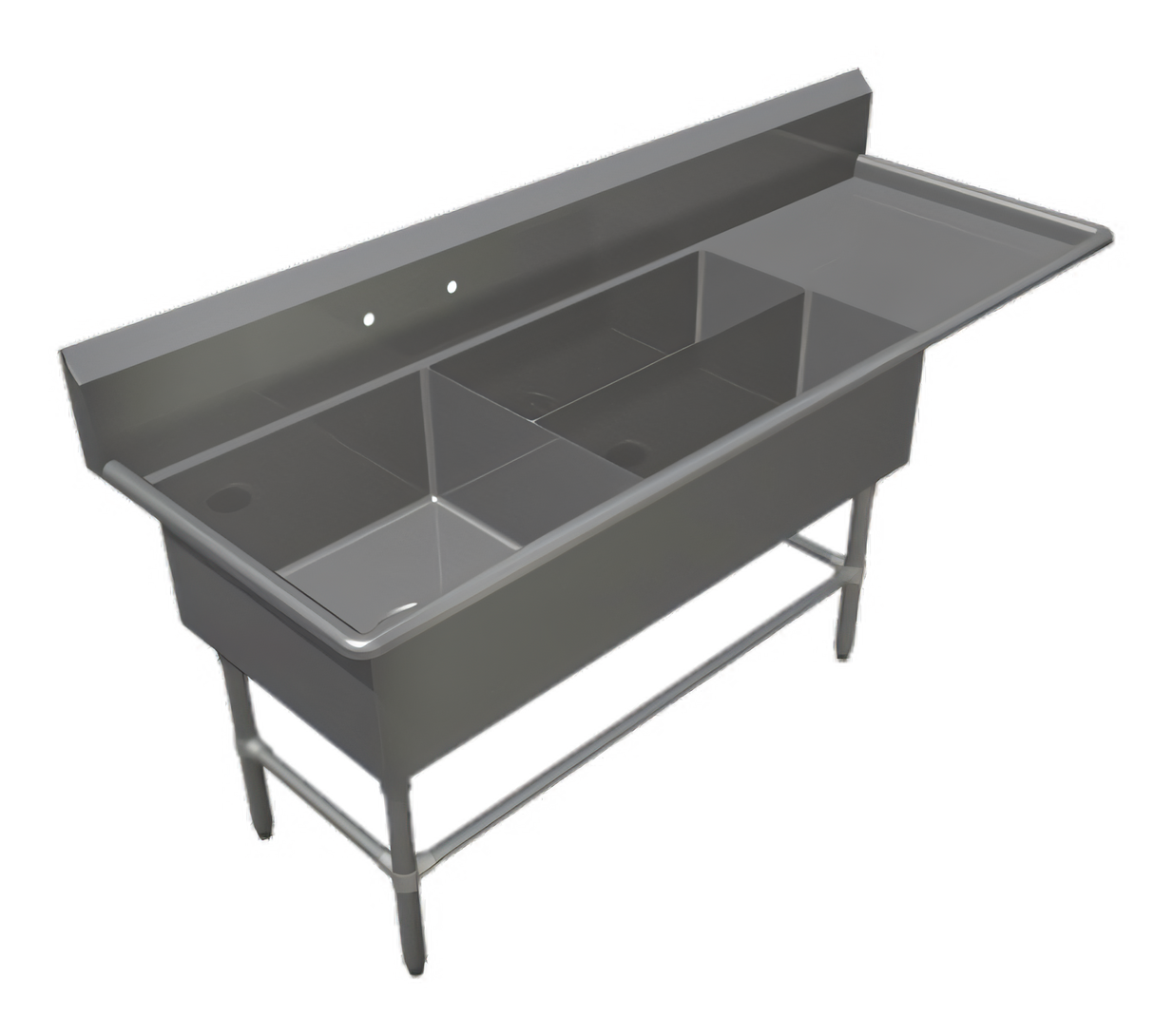

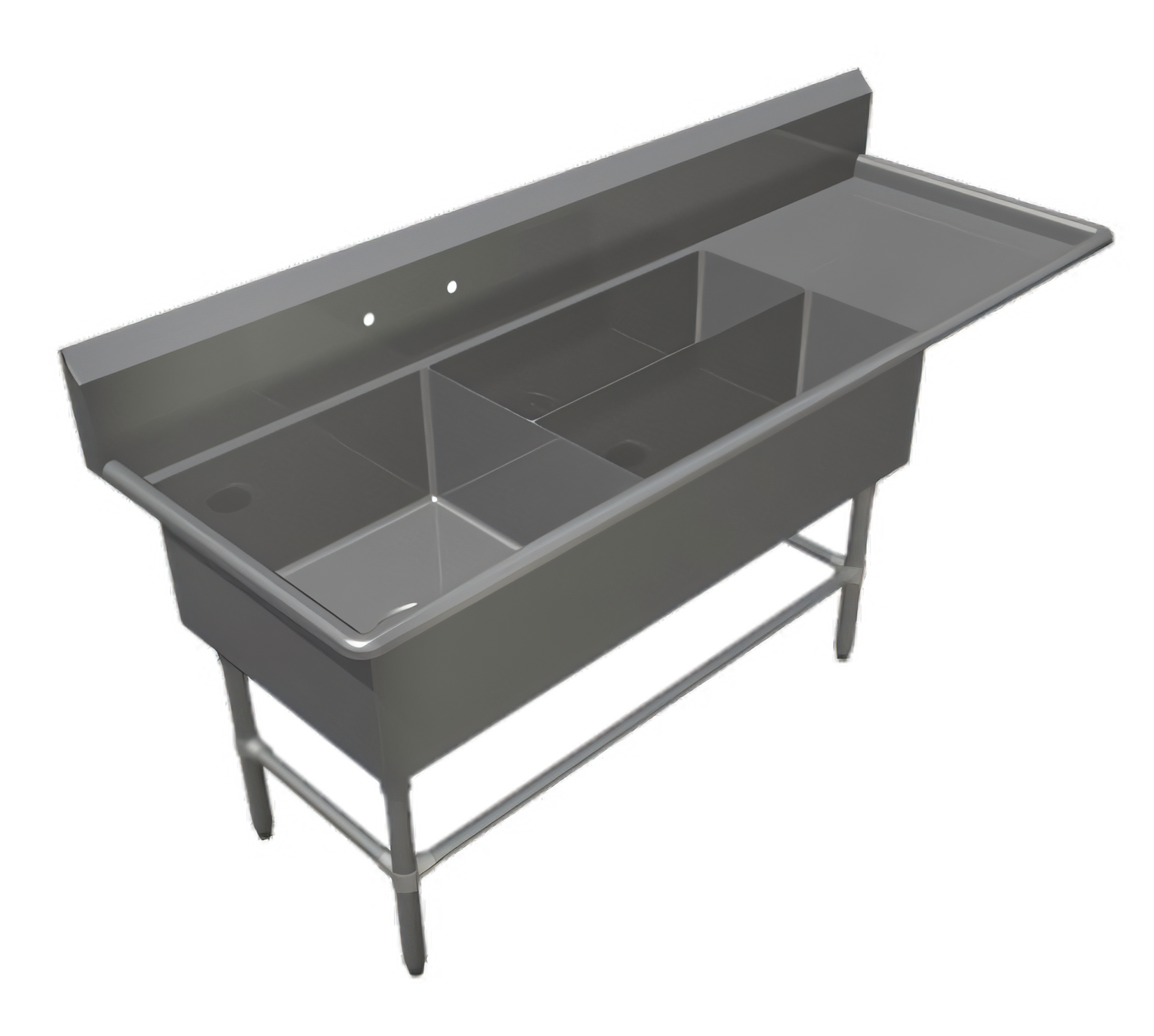

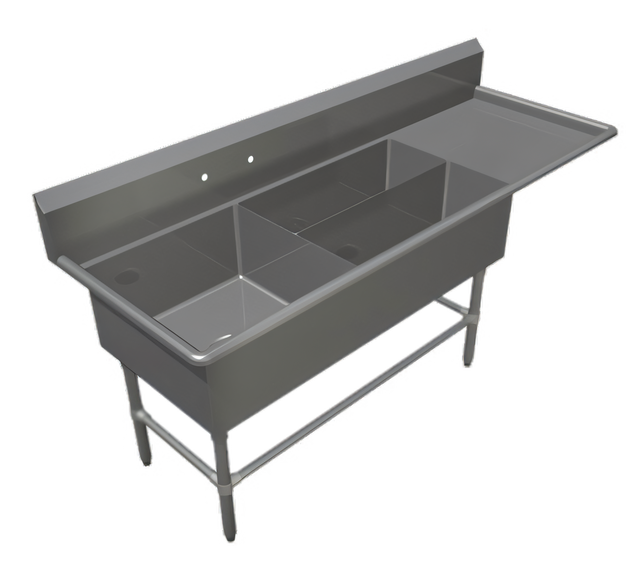

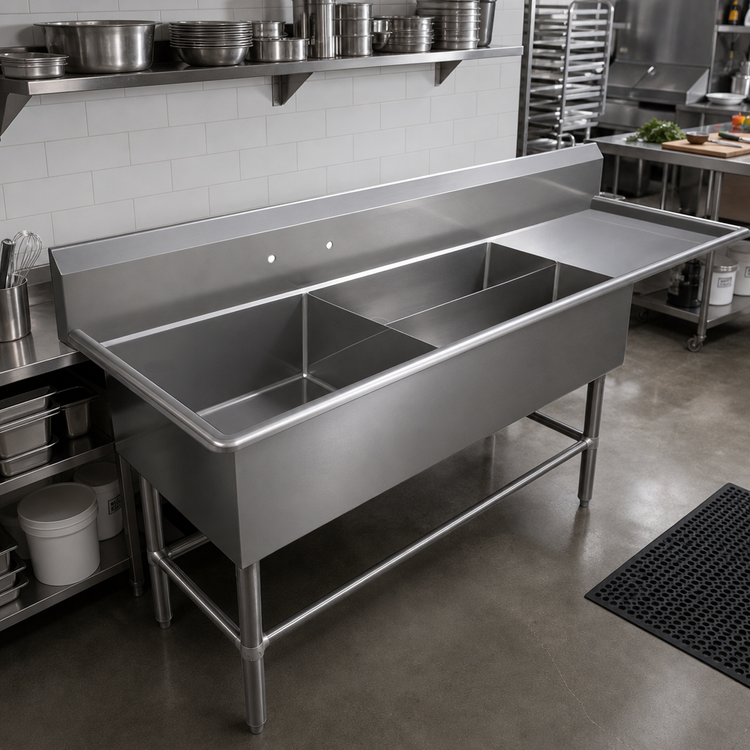

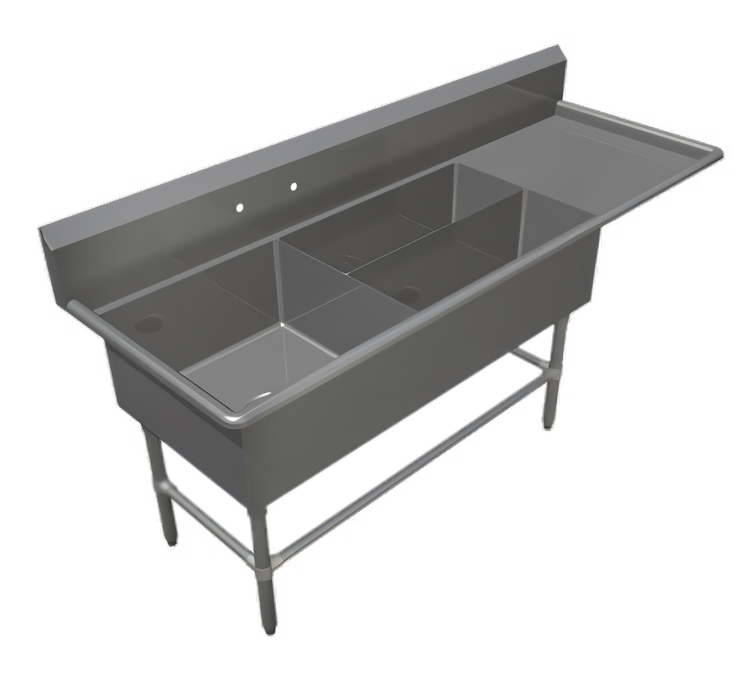

John Boos Pro-Bowl 3-Compartment Platter Sink – 84" w/ Right Drainboard, 14 ga Stainless
Model 3PBPS3224-1D24 | NSF & CSA Sanitation ListedBuilt to thrive in the busiest plating and pot-washing lines, the John Boos Pro-Bowl platter sink pairs heavy-duty 14-gauge stainless steel with smart, labor-saving ergonomics that keep back-of-house operations moving.
Key Features
- 14 ga Type 300 stainless steel bowls & deck with #4 satin polish

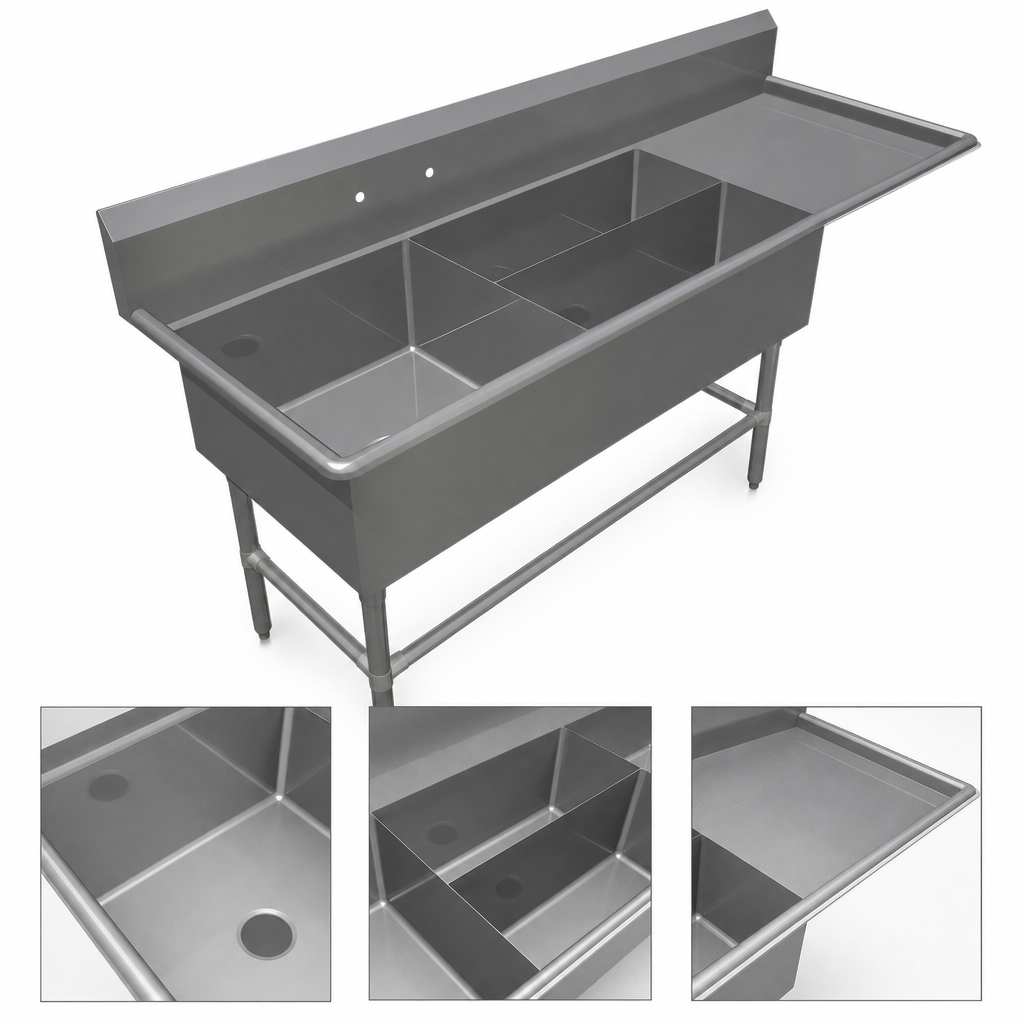

- Three roomy compartments
- (1) 24" W × 24" F/B × 12" D
- (2) 32" W × 12" F/B × 12" D
- Integrated 24" right-hand drainboard accelerates drying & staging
- 10" boxed backsplash with 45° top & 2" return; 8"-on-center splash-mount faucet holes
- 5/8" coved interior corners for quick, sanitary clean-up
- 3-1/2" die-stamped drain openings fit standard strainers or disposers
- TIG-welded construction; exposed welds polished to match adjacent surfaces
- 1-5/8" O.D. stainless legs with adjustable bullet feet
- Field-adjustable 1-1/4" front & side stainless bracing for extra rigidity
- Knock-down (KD) design ships unassembled to cut freight costs & fits through tight doorways
At-a-Glance Specifications
| Overall size (W × D × H) | 84-3/16" × 29-1/2" × 43" |
|---|---|
| Compartment #1 | 24" W × 24" F/B × 12" D |
| Compartments #2 & #3 | 32" W × 12" F/B × 12" D (each) |
| Drainboard | 24" wide, right side |
| Backsplash | 10" high boxed with 45° top, 2" return |
| Faucet holes | (1) set, 1-1/8" dia., 8" centers |
| Material | 14 ga Type 300 stainless steel |
| Legs / Bracing | Stainless steel legs (1-5/8" O.D.) with 1-1/4" bracing, adjustable |
| Drain openings | 3-1/2" die-stamped |
| Shipping weight | Approx. 244 lb |
| Certifications | NSF, CSA-Sanitation |
Perfect For
- Banquet & catering plating lines
- Institutional kitchens & cafeterias
- Hotels, resorts & convention centers
- Any operation handling large platters, sheet pans or hotel pans
Optional Accessories (sold separately)
- Stainless end-splashes (left, right or pair)
- Deck & splash-mount faucets or add-a-faucet adapters
- Pre-rinse spray units
- Lever waste drains
- Overshelves & pot racks
Care Tip: Preserve the sink’s satin finish by cleaning with non-chloride detergents and a soft towel or plastic scouring pad. Avoid abrasive or bleach-based cleaners.
John Boos & Co. may update specifications without notice. All dimensions ± 0.5".
Features & Specs
Features & Specs
Manufacturer
John Boos
Brand_name
Pro-Bowl
Certifications
NSF, CSA-Sanitation
Height
43.0in
Width
84.19in
Depth
29.5in
Shipping Weight
244.0lbs
Splash Height
10"
Compartment Width (side - side)
24"
Base Type
legs with front & side crossrails
Overall Length
73" - 84"
Drainboards
with right-hand drainboard
Top Gauge
14 gauge
Compartment (front - back)
24"
Top Stainless Series
300 series
Sink Depth (rim - drain)
12"
Base Construction
stainless steel
Specifications
Pro-Bowl Platter Sink, 3-compartment, 84-3/16"W x 29-1/2"D x 43"H overall size, (1) 24"W x 24" front-to-back x 12" deep compartment, (2) 32"W x 12" front-to-back x 12" deep compartments, (1) 24" right drainboard, 10"H boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 14/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
