John Boos 43PB3024-2D36 Pro-Bowl Compartment Sinks
Description

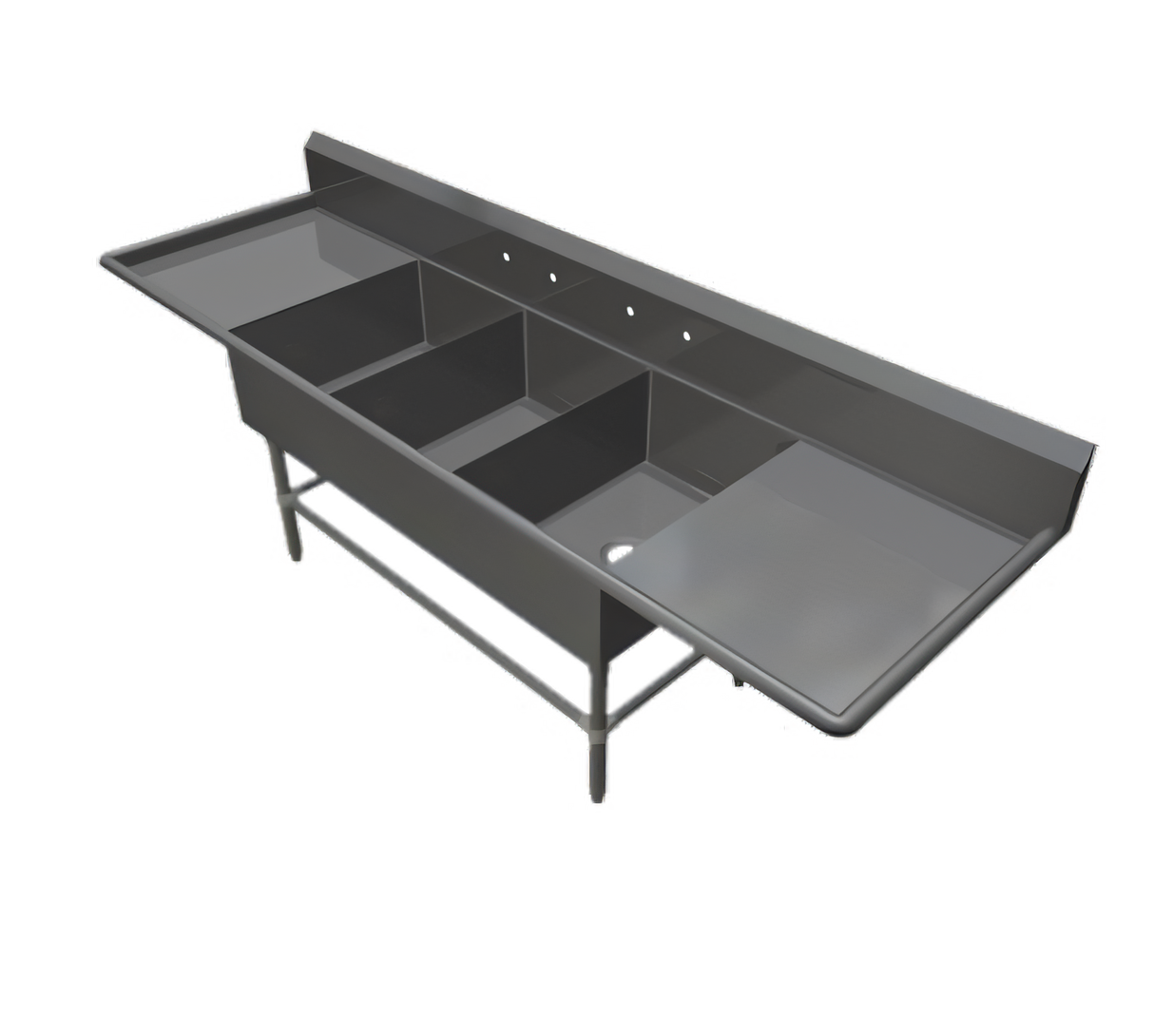

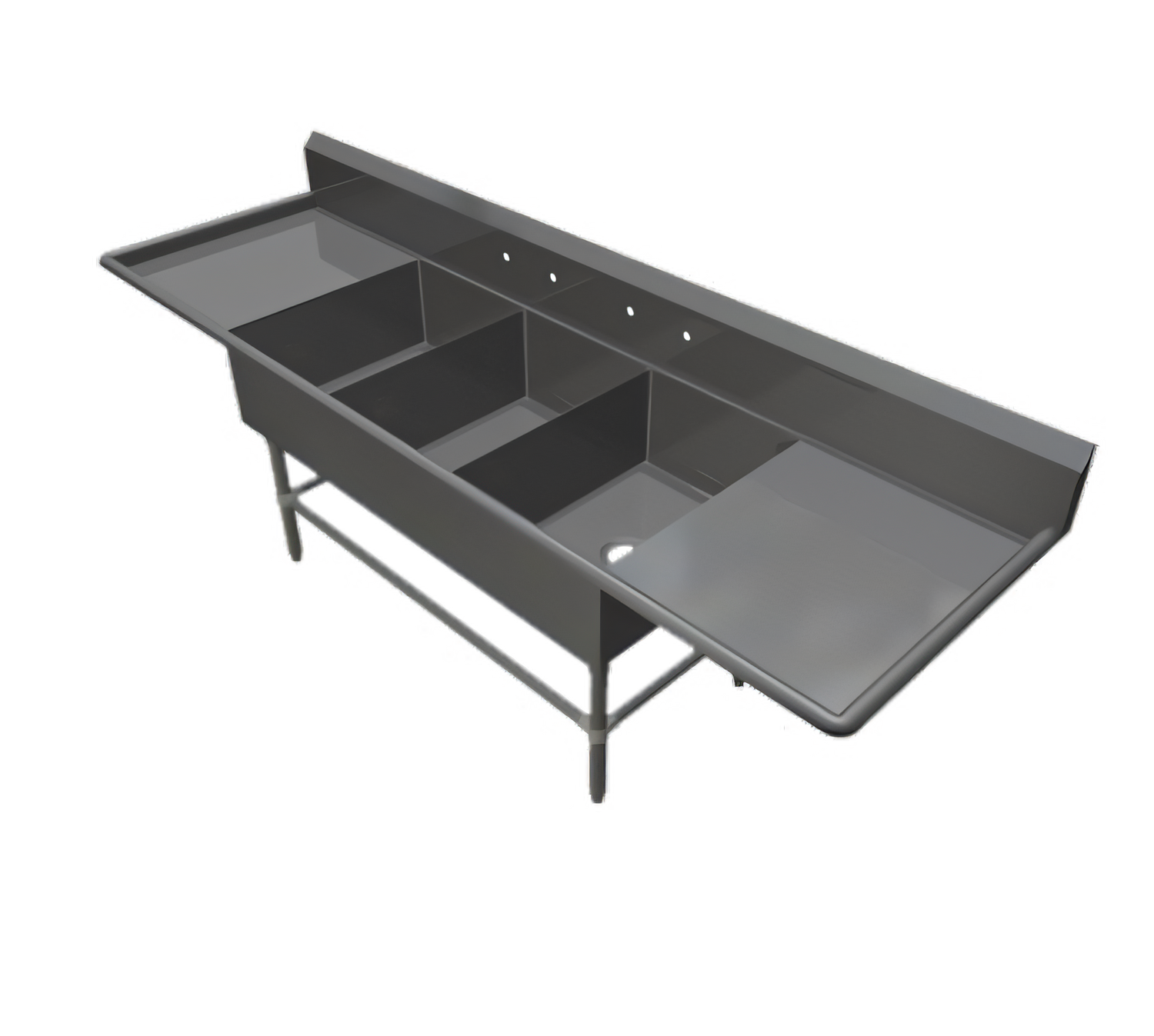

John Boos Pro-Bowl 3-Compartment Sink – 165-1/4" Wide w/ Twin 36" Drainboards
Model 43PB3024-2D36 | NSF & CSA-SanitationEngineered for the heaviest kitchen traffic, the Pro-Bowl series combines ultra-durable 14-gauge stainless steel with thoughtful, labor-saving details. Three roomy wash bowls plus a full 36" drainboard on each side give you an efficient clean-/dirty-ware workflow in one rugged, easy-to-install unit.
Key Features
- Massive 165-1/4" W × 29-1/2" D footprint maximizes throughput without bottlenecks.
- (3) 30" × 24" × 12" deep bowls – fits full-size sheet pans and large stock pots with room to spare.
- (2) 36" drainboards (left & right) with positive slope for quick water run-off.
- 10" boxed backsplash with 45° top & 2" return keeps water off the walls.
- Pre-punched 8" on-center faucet holes (2 sets) for splash-mount faucets or pre-rinse units.
- 3-1/2" die-stamped drain openings accept standard commercial strainers or lever-waste assemblies.
- 14-ga Type 300 stainless steel top & bowls, TIG-welded and polished to a #4 satin finish.
- 1-5/8" O.D. stainless steel legs with adjustable 1-1/4" O.D. front & side bracing.
- Level easily on uneven floors with heavy-duty adjustable stainless bullet feet.
- Ships knocked down (KD) to reduce freight cost; quick field assembly.
Specifications
| Overall dimensions (W × D × H) | 165-1/4" × 29-1/2" × 44-1/16" |
|---|---|
| Bowl count / size | 3 bowls – 30" W × 24" F-B × 12" D |
| Drainboards | 36" left & 36" right |
| Backsplash | 10" H boxed, 45° top, 2" return |
| Faucet holes | (2) sets, 8" on-center, splash mount |
| Drain openings | 3-1/2" diameter, die-stamped |
| Material / gauge | 14-ga Type 300 stainless steel (#4 satin) |
| Legs & bracing | 1-5/8" O.D. SS legs, 1-1/4" O.D. SS bracing, adj. bullet feet |
| Compliance | NSF & CSA-Sanitation listed |
| Ship configuration | Knocked Down (KD) |
Looking for faucets, lever wastes, or end-splashes? Contact us for compatible John Boos accessories.
Why 14-Gauge Stainless?
- 57 % thicker than common 18-ga sinks – resists dents, dings & flexing.
- Lower noise and vibration when dumping trays or pots.
- Satin polish cleans easily and resists corrosion with proper care.
Proudly manufactured in Effingham, Illinois by John Boos & Co. – crafting quality since 1887.
