John Boos

John Boos Pro-Bowl 3-Compartment Floor Model Sink with Right Drainboard, 30 x 24 x 12 Inch Bowls

SKU: 43PB3024-1D30R
$3,720.42
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos Pro-Bowl 3-Compartment Floor Model Sink with Right Drainboard, 30 x 24 x 12 Inch Bowls

14-Gauge 300 Series Stainless Steel, 10-Inch Boxed Backsplash

Built for high-volume dish stations, this Pro-Bowl sink combines three deep stainless steel compartments with a roomy right-hand drainboard and rugged 14-gauge construction.

  • Three 30" x 24" x 12" compartments support wash, rinse, and sanitize workflows.
  • 30-inch right-hand drainboard provides extra space for staging and air drying.
  • 14-gauge Type 300 stainless steel construction is built for demanding commercial use.
  • 10-inch boxed backsplash with 45-degree top and 2-inch return helps protect the wall from splash.
  • Stainless steel legs, front and side bracing, and adjustable bullet feet provide a stable base.
  • 3-1/2-inch die-stamped drain openings and 8-inch on-center faucet holes simplify installation.
  • Ships knocked down for easier transport and setup.

Overall Dimensions:

124.19"W x 29.5"D x 44.06"H

Product Weight:

219.0 lb

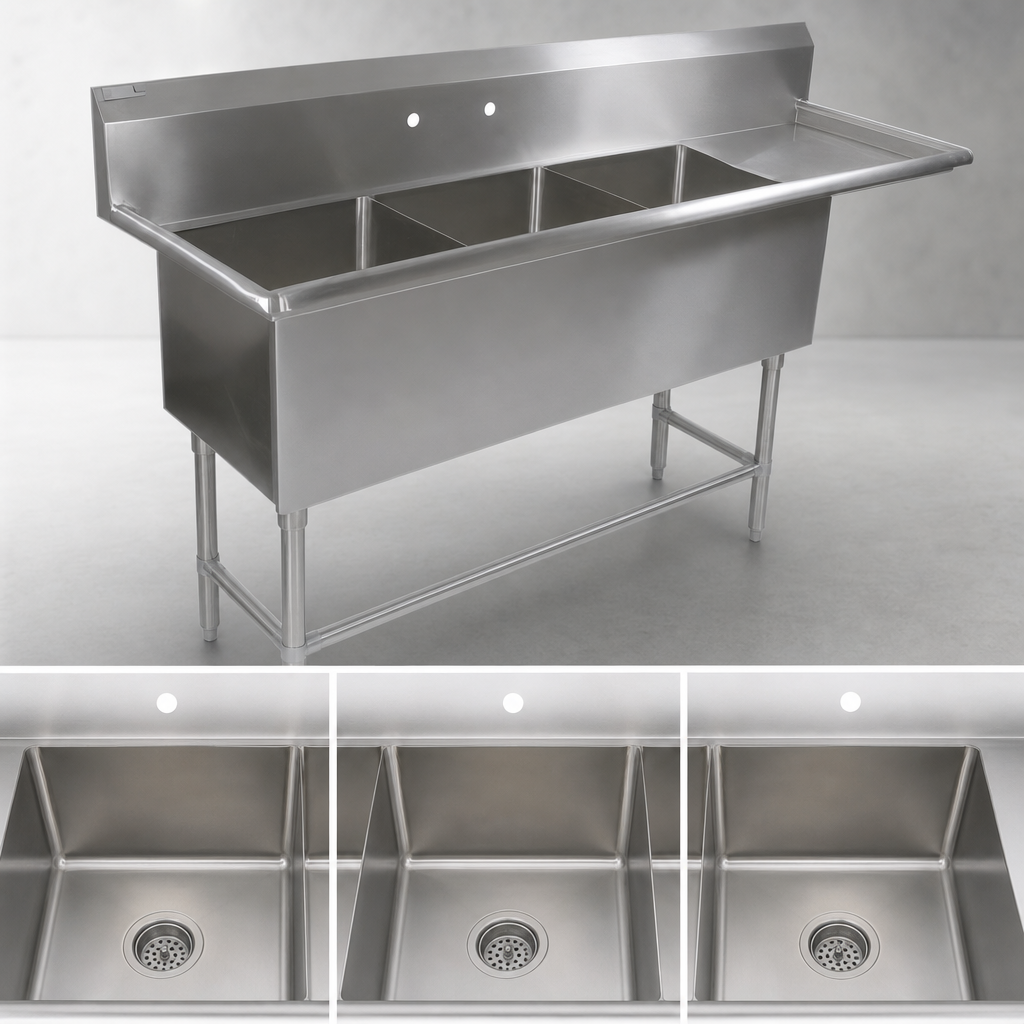

Three-Compartment Layout

Dedicated wash, rinse, and sanitize bowls help streamline dishroom workflow.

Right-Hand Drainboard

The 30-inch drainboard gives you a convenient area to stage, drain, or dry ware.

Heavy-Duty Stainless Steel Construction

14-gauge Type 300 stainless steel with a satin finish is designed for durability and corrosion resistance.

Boxed Backsplash

The 10-inch backsplash includes a 45-degree top and 2-inch return to help reduce wall splash.

Efficient Drainage

Bowls are formed with 3-1/2-inch die-stamped drain openings for improved drainage.

Stable Stainless Steel Base

Stainless steel legs, adjustable front and side bracing, and bullet feet support a secure installation.

Faucet Hole Configuration

Two sets of splash-mount faucet holes are spaced on 8-inch centers.

Knockdown Shipping

Ships KD to make transport and final assembly easier.

Type Compartment Sink
Style 3 Compartment with Right Drainboard
Installation Type Floor Model (With Legs)
Compartments 3
Material Stainless Steel
Finish Satin Finish
Top Gauge 14 Gauge
Stainless Steel Series 300 Series
Drainboard Side Right
Drainboard Length 30 Inches
Compartment Width 30 Inches
Compartment Depth 24 Inches
Bowl Depth 12 Inches
Backsplash Height 10 Inches
Faucet Hole Centers 8 Inches
Faucet Hole Diameter 1 Inch
Drain Opening 3-1/2 Inches
Shipping Width 125 Inches
Shipping Depth 30 Inches
Shipping Height 45 Inches
Shipping Weight 219 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

Each compartment measures 30 inches wide, 24 inches front-to-back, and 12 inches deep.
This model has a right-hand drainboard.
It is constructed of 14-gauge Type 300 stainless steel with a satin finish.
It includes a 10-inch boxed backsplash with a 45-degree top and 2-inch return to help control splash.
The backsplash has two sets of splash-mount faucet holes on 8-inch centers with 1-inch hole openings.
Yes. The series includes left- or right-side drainboards and 12-inch or 14-inch deep bowl options, along with 30-inch and 36-inch drainboard lengths.
