John Boos 43PB204-2D24 Pro-Bowl Compartment Sinks
Description

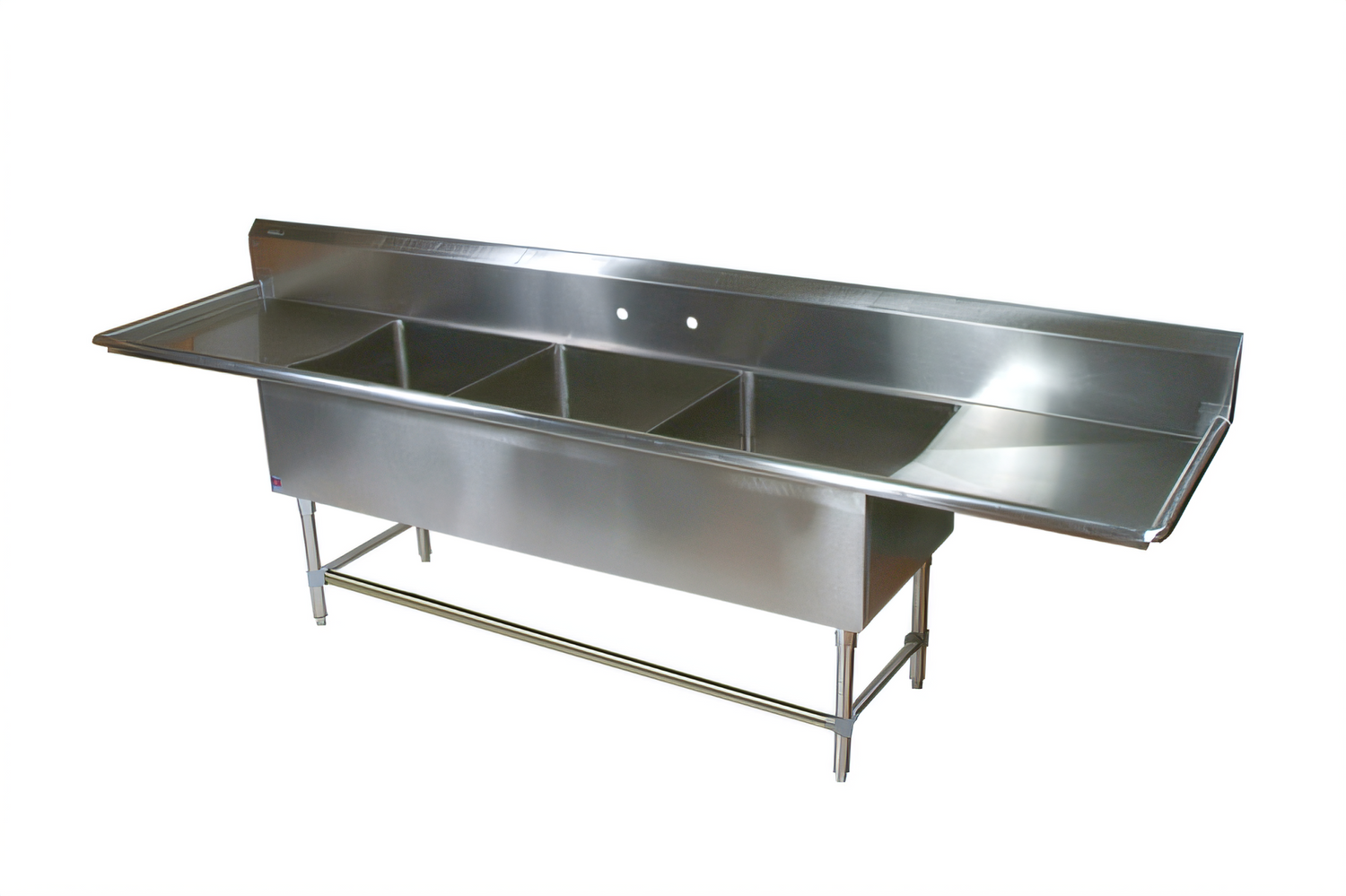

John Boos “Pro-Bowl” 3-Compartment Sink w/ Dual 24" Drainboards
Model 43PB204-2D24 | 111-1/4" W × 25-1/2" D × 44-1/16" HEngineered for the busiest commercial kitchens, the John Boos Pro-Bowl sink delivers uncompromising durability, ergonomic workflow and sanitary performance. Three spacious 20" × 20" × 14" bowls handle high-volume prep, wash and rinse tasks, while full-length 24" drainboards on both sides keep dishes moving efficiently down the line. Heavy-duty 14-gauge, type 300 stainless steel throughout—right down to the legs and bracing—stands up to years of daily abuse and harsh cleaning chemicals.
Key Features

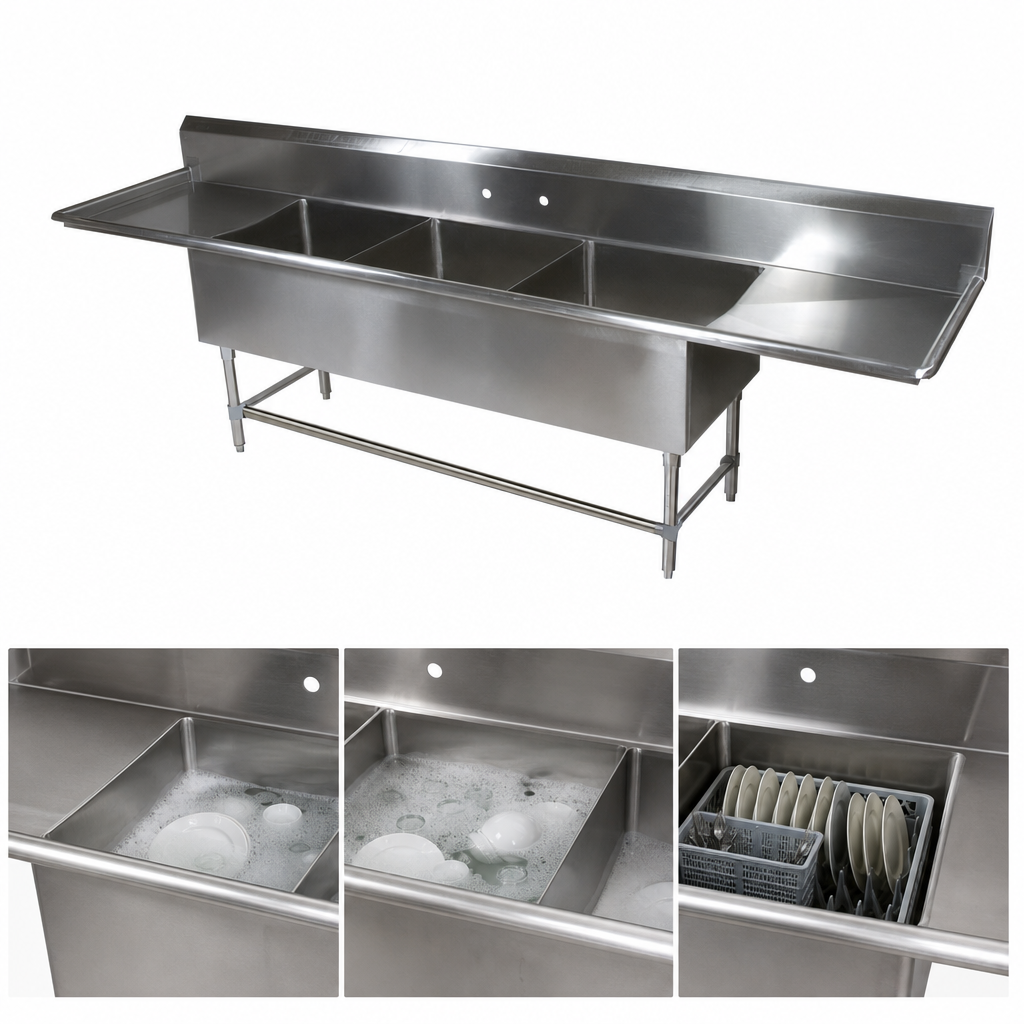

- Three 20" W × 20" F-B × 14" D compartments for separate wash, rinse and sanitize stations.
- Dual 24" drainboards (left & right) provide ample staging for dirty and clean wares.
- 10" high boxed backsplash with 45° top edge and 2" rear return helps contain splashes.
- Pre-punched 8"-on-center splash-mount faucet holes; accepts most commercial faucets.
- 3-1/2" dia. die-stamped drain openings for a positive, gasket-ready fit.
- 14-gauge, type 300 stainless steel top, bowls & apron with #4 satin polish.
- All corners (vertical & horizontal) coved to a 5/8" radius for fast, thorough cleaning.
- Stainless steel legs with adjustable front & side bracing add rock-solid stability.
- 1" adjustable stainless steel bullet feet for easy leveling on uneven floors.
- Ships knocked-down (KD) to minimize freight cost and simplify installation.
- NSF and CSA-Sanitation listed for code-compliant operation nationwide.
At-a-Glance Specifications
| Overall width (left-to-right) | 111 1/4" (282.6 cm) |
|---|---|
| Overall depth (front-to-back) | 25 1/2" (64.8 cm) |
| Overall height (to top of backsplash) | 44 1/16" |
| Bowl count / size | 3 × 20" W × 20" F-B × 14" D |
| Drainboards | 24" left & 24" right (integral) |
| Backsplash | 10" boxed, 2" return, 45° top |
| Faucet mounting | (1) 8"-on-center splash-mount set of holes, 1" dia. |
| Drain openings | 3 1/2" dia. die-stamped (per bowl) |
| Material & finish | 14 ga Type 300 stainless steel, #4 satin polish |
| Legs / feet | 1 5/8" O.D. SS legs, 1" adjustable SS bullet feet |
| Bracing | 1 1/4" O.D. stainless front & side bracing (adjustable) |
| Certifications | NSF, CSA-Sanitation |
| Ship configuration | Knocked-down (KD) |
Faucet(s), drain plumbing, and other accessories sold separately. Please confirm local code requirements before installation.
