John Boos 43PB204-1D24R Pro-Bowl Compartment Sinks
John Boos 43PB204-1D24R Pro-Bowl Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos 43PB204-1D24R Pro-Bowl Compartment Sinks
Description

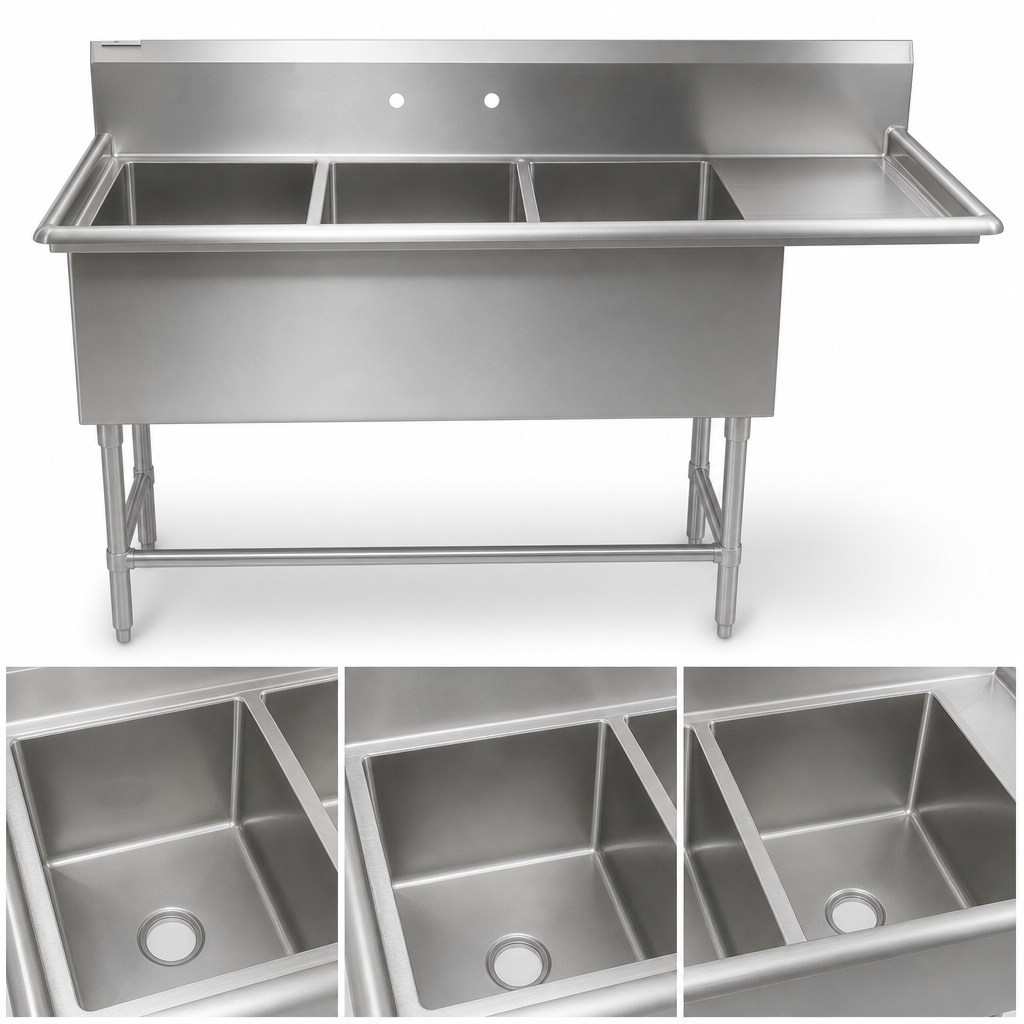

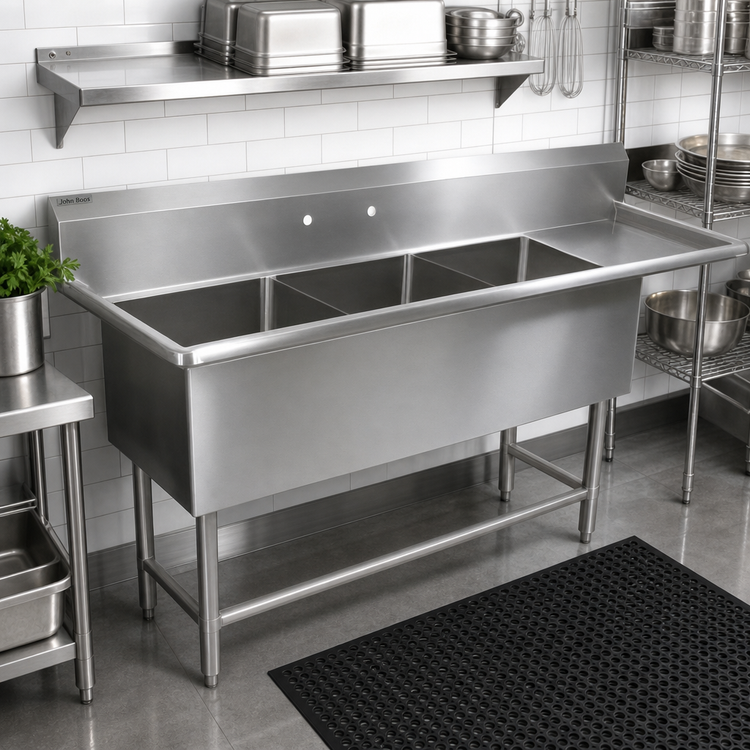

John Boos Pro-Bowl 3-Compartment Sink
Model 43PB204-1D24R • 88-3/16" W x 25-1/2" D with 24" Right DrainboardBuilt for high-volume dishrooms and prep areas, the John Boos Pro-Bowl sink pairs rugged 14-gauge stainless steel construction with thoughtful, workflow-boosting details. Three spacious 20" x 20" x 14" compartments handle the classic wash–rinse–sanitize sequence, while a full 24" drainboard on the right keeps clean wares moving. NSF and CSA-Sanitation certifications mean it’s ready for immediate food-service use.
Key Features
- (3) 20" W x 20" F-to-B x 14" D bowls—roomy enough for stock pots & sheet pans
- 24" right-side drainboard for efficient air-drying & staging
- Heavy-duty 14-gauge, type 300 stainless steel top, bowls & apron with #4 satin finish
- 10" boxed backsplash with 45° top & 2" return to protect surrounding walls
- (1) set of 8" on-center splash-mount faucet holes (1" Ø)
- 3-1/2" die-stamped drain openings—one per compartment for rapid drainage
- 1-5/8" Ø stainless legs with adjustable bullet feet
- Adjustable front & side stainless bracing adds rigidity
- Bull-nosed exterior edges for a safe, polished look
- Ships knocked-down (KD) to lower freight costs and simplify site entry
Compliance & Certifications
- NSF listed
- CSA-Sanitation certified
- Made in the USA by John Boos & Co.
Detailed Specifications
| Model No. | 43PB204-1D24R |
|---|---|
| Compartments | (3) 20" W × 20" F/B × 14" D |
| Overall Dimensions | 88-3/16" W × 25-1/2" D × 44-1/16" H (to top of backsplash) |
| Drainboard | 24" (right side) |
| Backsplash | 10" H boxed, 2" 45° return, 3/4" turned-down rear lip |
| Material / Gauge | 14-ga 300 series stainless steel |
| Faucet Holes | (2) holes on 8" centers, 1" Ø |
| Drain Openings | 3-1/2" Ø, die-stamped (one per bowl) |
| Legs | 1-5/8" Ø stainless steel |
| Bracing | 1-1/4" Ø stainless—adjustable (front & sides) |
| Feet | Adjustable stainless bullet feet |
| Shipping Weight | Approx. 168 lb |
Popular Accessories (sold separately)
- Add-A-Faucets & pre-rinse units
- Lever waste drains
- End splashes (left, right or both)
- Stainless overshelves & pot racks
Looking for a different drainboard orientation or bowl size? Contact us for the full John Boos Pro-Bowl catalog.
