John Boos 43PB20284-1D20R Pro-Bowl Compartment Sinks
John Boos 43PB20284-1D20R Pro-Bowl Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos 43PB20284-1D20R Pro-Bowl Compartment Sinks
Description

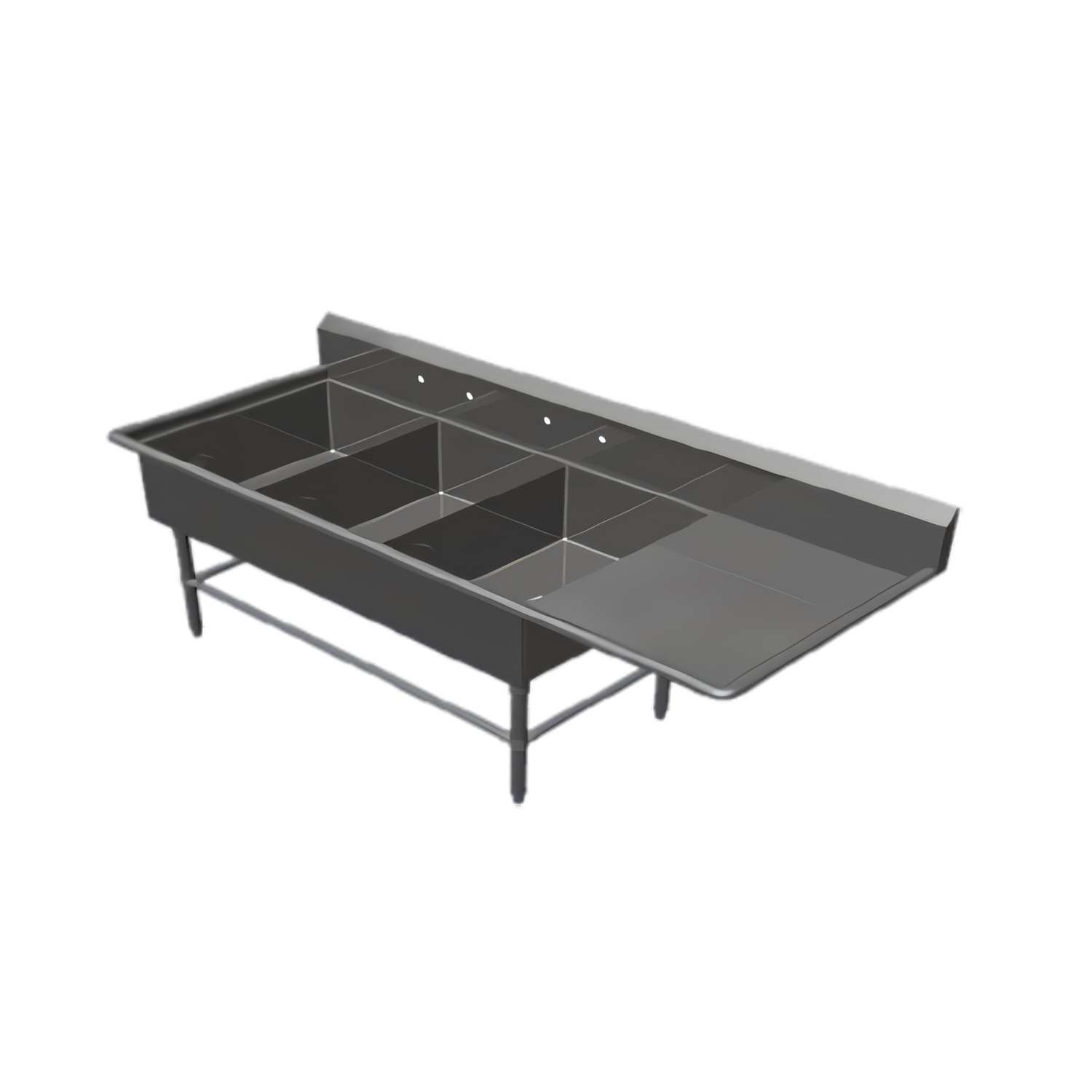

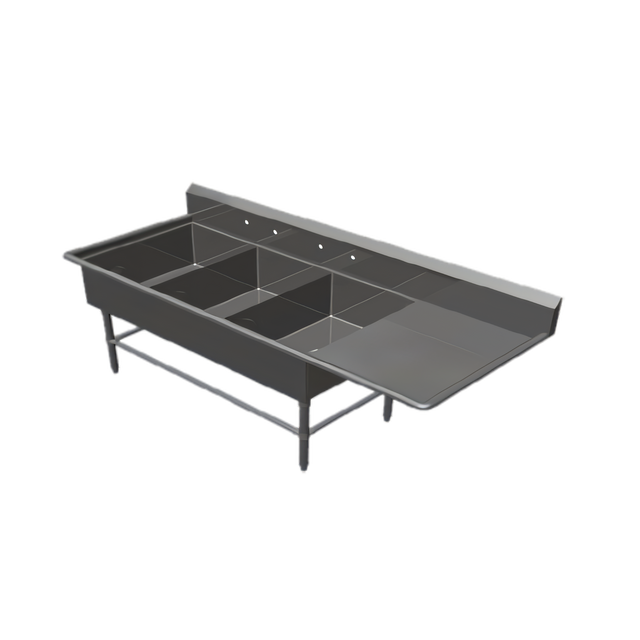

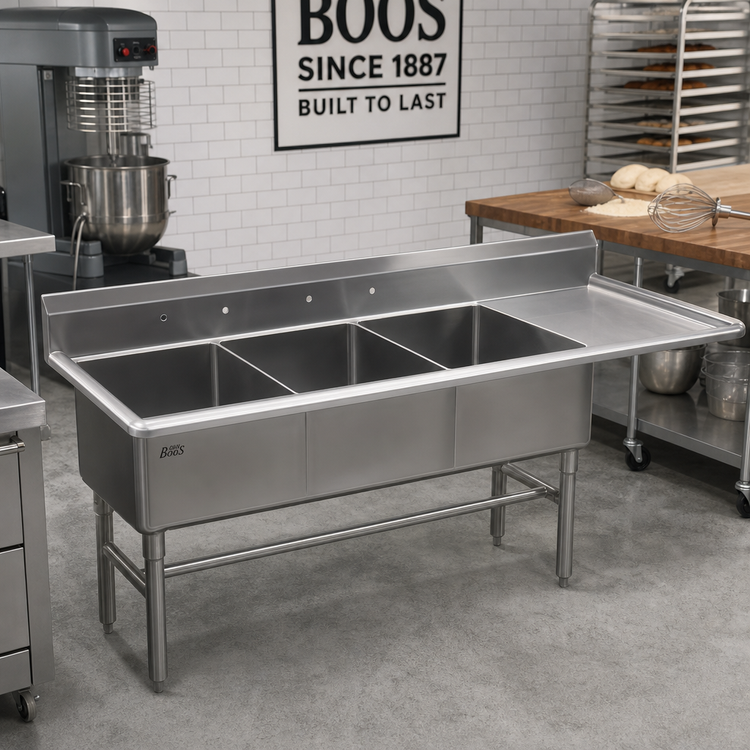

John Boos Pro-Bowl 3-Compartment Sink w/ 20" Right Drainboard
Model 43PB20284-1D20R | 14 ga Type 300 Stainless SteelBuilt for the rigors of bustling bakeries, restaurants and commissary kitchens, the John Boos Pro-Bowl series delivers rock-solid durability, food-safe sanitation and a workflow-friendly layout — all in a space-saving 7-foot footprint.
Key Features

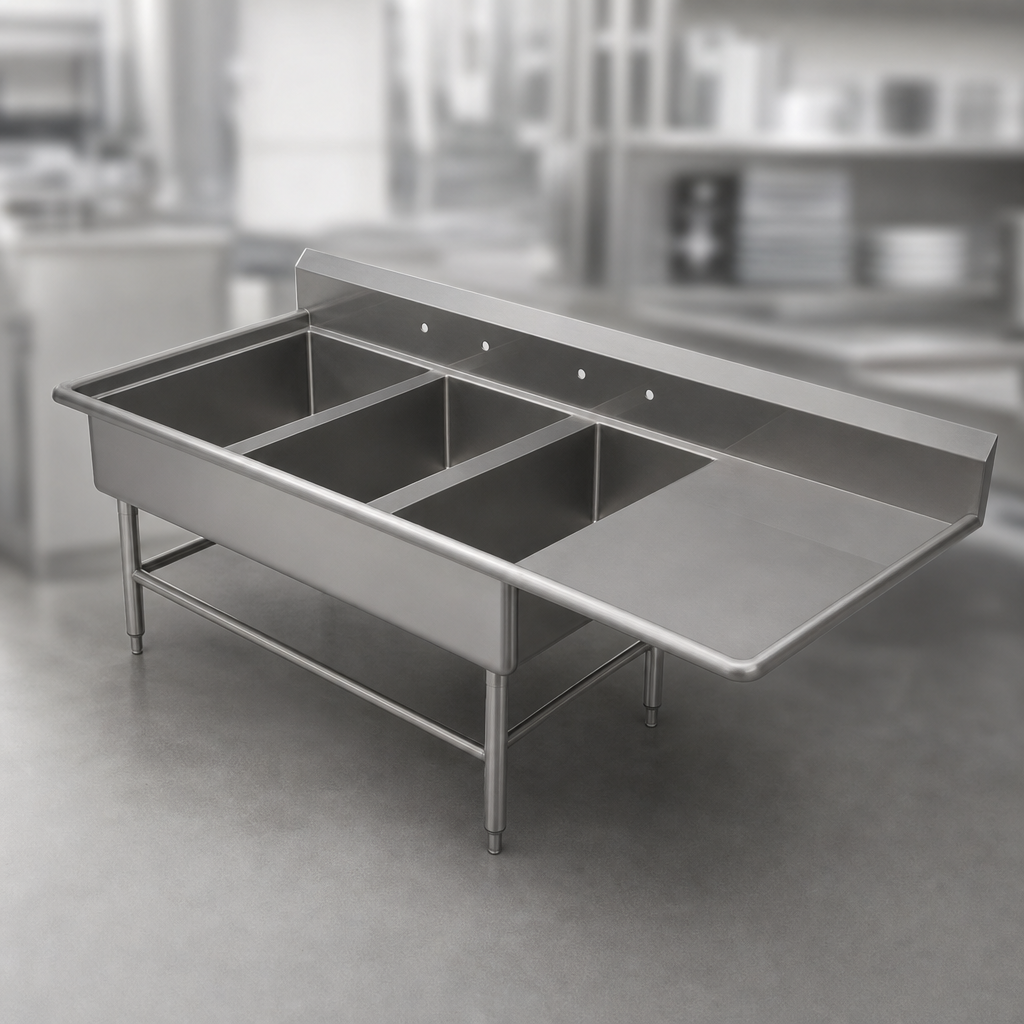

- (3) roomy 20" W × 28" F-B × 14" D compartments for dedicated wash, rinse & sanitize bays.
- Integrated 20" right-side drainboard keeps clean or soiled items organized and off the counter.
- 10" high boxed backsplash with 2" return and 45° top deflects splashes and protects walls.
- Pre-punched splash-mount faucet holes on 8" centers (1" dia.) for fast, universal installation.
- Heavy-duty 14-gauge, #4 satin-polished type 300 stainless steel resists dents, corrosion and chemicals.
- All corners coved to a 5/8" radius; apron edges are bull-nosed for operator safety and easy wipe-down.
- TIG-welded seams are ground and polished to match surrounding surfaces.
- 1-5/8" Ø stainless legs with 1-1/4" Ø adjustable front & side bracing; 1" adjustable SS bullet feet.
- 3-1/2" die-stamped drain openings accept industry-standard basket strainers (sold separately).
- NSF & CSA-Sanitation listed; ships knocked-down (KD) for easier site access.
At-a-Glance Specs
| Overall width | 84-3/16" |
|---|---|
| Overall depth | 33-1/2" |
| Overall height | 44-1/16" |
| Bowl count | 3 |
| Individual bowl size | 20" W × 28" F-B × 14" D |
| Drainboard | 20" — right side |
| Backsplash | 10" boxed, 2" return, 45° top |
| Faucet holes | (1) set, 8" centers, 1" dia. |
| Drain opening | 3-1/2" die-stamped |
| Top & bowls | 14-ga type 300 SS, #4 satin finish |
| Legs / bracing | 1-5/8" Ø SS legs | 1-1/4" Ø SS bracing (adjustable) |
| Feet | 1" adjustable stainless bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Shipping | Knocked-down (assembly required) |
Why Choose Boos Pro-Bowl?
- Engineered for 24/7 commercial duty — trusted by foodservice pros since 1887.
- Made in the USA at John Boos’ Effingham, IL facility.
- Fully weld-polished seams and radius interiors slash clean-up time and labor cost.
What’s Included
- John Boos 3-compartment sink with right drainboard
- Stainless legs, front & side bracing and 1" bullet feet
- Assembly hardware & instructions
Care & Maintenance
Preserve the satin finish and corrosion-resistant film by cleaning with non-chloride detergents, soft cloths or plastic scouring pads. Finish with John Boos Stainless Steel Cleaner for a showroom shine. Avoid abrasive powders, wire brushes and cleaners containing chlorides.
